W.FL-2LP-04N2-A-(140)

Description
CBL ASSY W.FL PLUG-PLUG 5.512"
CategoryWire/cable
File Size272KB,8 Pages
ManufacturerHirose Electric
Environmental Compliance
Download Datasheet Parametric View All

W.FL-2LP-04N2-A-(140) Overview

CBL ASSY W.FL PLUG-PLUG 5.512"

W.FL-2LP-04N2-A-(140) Parametric

Parameter NameAttribute value
gendermother form to mother form
styleW.FL to W.FL
first connectorW.FL female connector, right angle
Second connectorW.FL female connector, right angle
length5.512"(140.00mm)
Cable type0.81mm outer diameter coaxial cable
impedance50 Ohms
Frequency - maximum6GHz
colorblack
characteristicshield
Operating temperature-40°C ~ 90°C
Ultra Small Surface Mount Coaxial Connectors
1.4mm or 1.65mm Mated Height
W.FL Series
Occupied Mounting Area
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
W.FL Series
U.FL Series
Fig.1

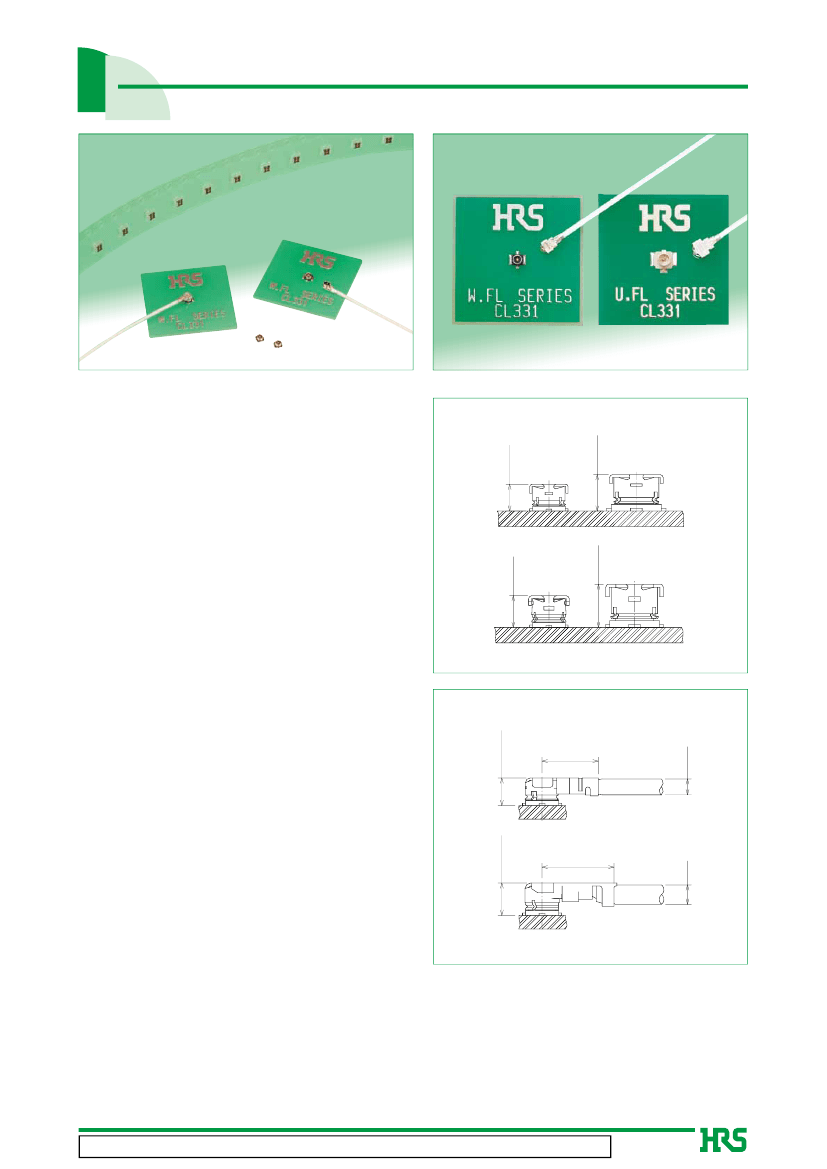

Features
Mated height comparison
1. Nominal mated height of 1.4mm or 1.65mm
(Max. 1.55 or 1.85mm)(Fig.2)
(MAX2.0)
(MAX2.4)
2.3
1.9
W.FL-LP(G)-062HF
U.FL-LP-062HF
1.4 (MAX1.55)
2. Small board footprint
The W.FL Series is about 55% smaller than our
U.FL Series connector and only uses 3.4mm
2
of
PCB space. The PCB layout for the W.FL Series is
the same as for W.FL2 and X.FL Series.
Note:This product is not compatible with W.FL2
Series and X.FL Series.(Fig.1)
W.FL-LP-040HF
U.FL-LP(V)-040HF
3. Extremely light weight
Receptacle:
5.6 mg
Right-angle plug: 18.6 mg(040), 28.2mg(062)
4. Frequency range up to 6 GHz
DC to 3 GHz : V.S.W.R. of 1.3 max.
3 GHz to 6 GHz: V.S.W.R. of 1.4 max.
1.65 (MAX1.85)
Fig.2

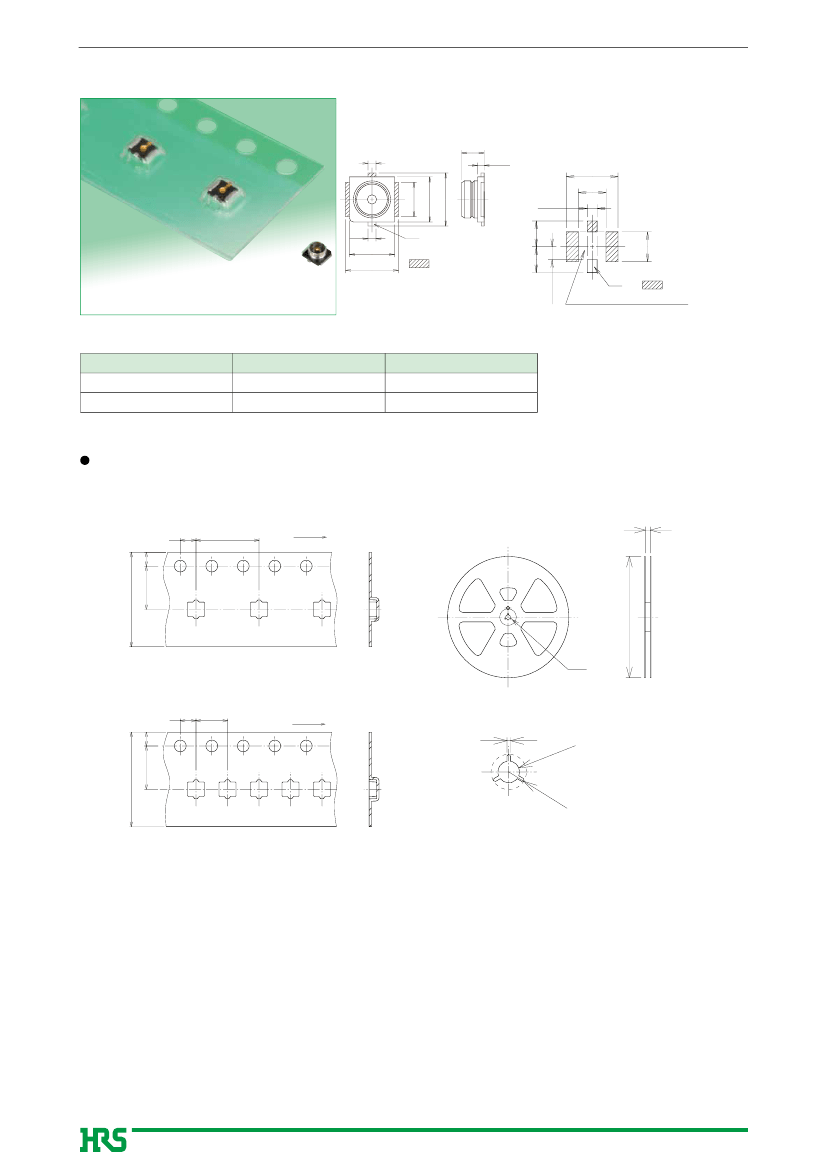

5. Automatic board placement
Packaged on tape-and-reel the receptacles can be
placed with vacuum nozzles of the automatic
placement equipment.
W. FL Plug and Receptacle
1.4 (MAX1.55)
W.FL-LP-040HF

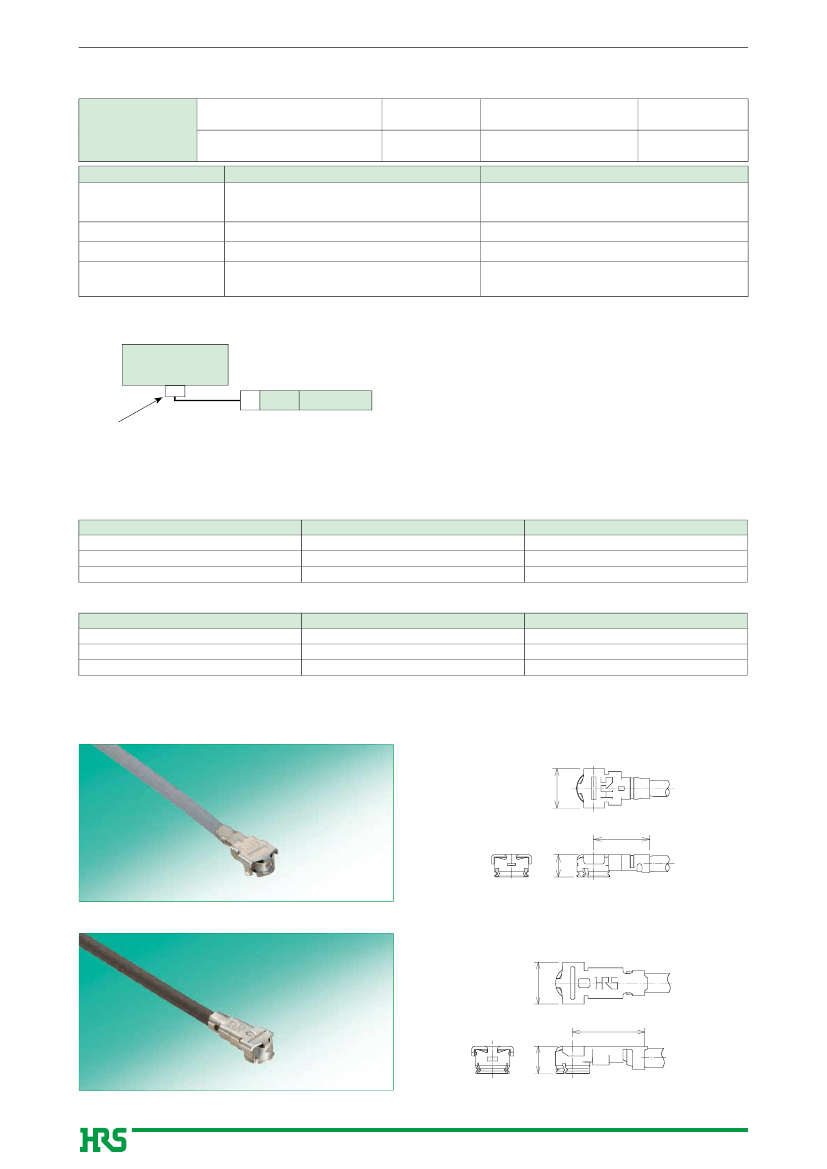

6. Plugs are terminated with ultra-fine
coaxial (fluorinated resin insulated)
cable
The use of ultra-fine coaxial(fluorinated resin
insulated) cables on these connectors offer the
ability to complete connections in small, confined
spaces with a smooth, easy operation.
2.85
1.65 (MAX1.85)
W.FL-LP(G)-062HF
Ø1
3.65
7. Simple connector mating / unmating
Use of the available mating/un-mating tools
assures correct connection/disconnection of the
plug and receptacle.
8. Halogen-free*(Receptacle, Plug(HF type))
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900 ppm maximum,
Cl+Br combined-1,500 ppm maximum
Ø0.81
Fig.3
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.6④
1
