Microwave Components
Chip Antennas
Chip Antennas
o

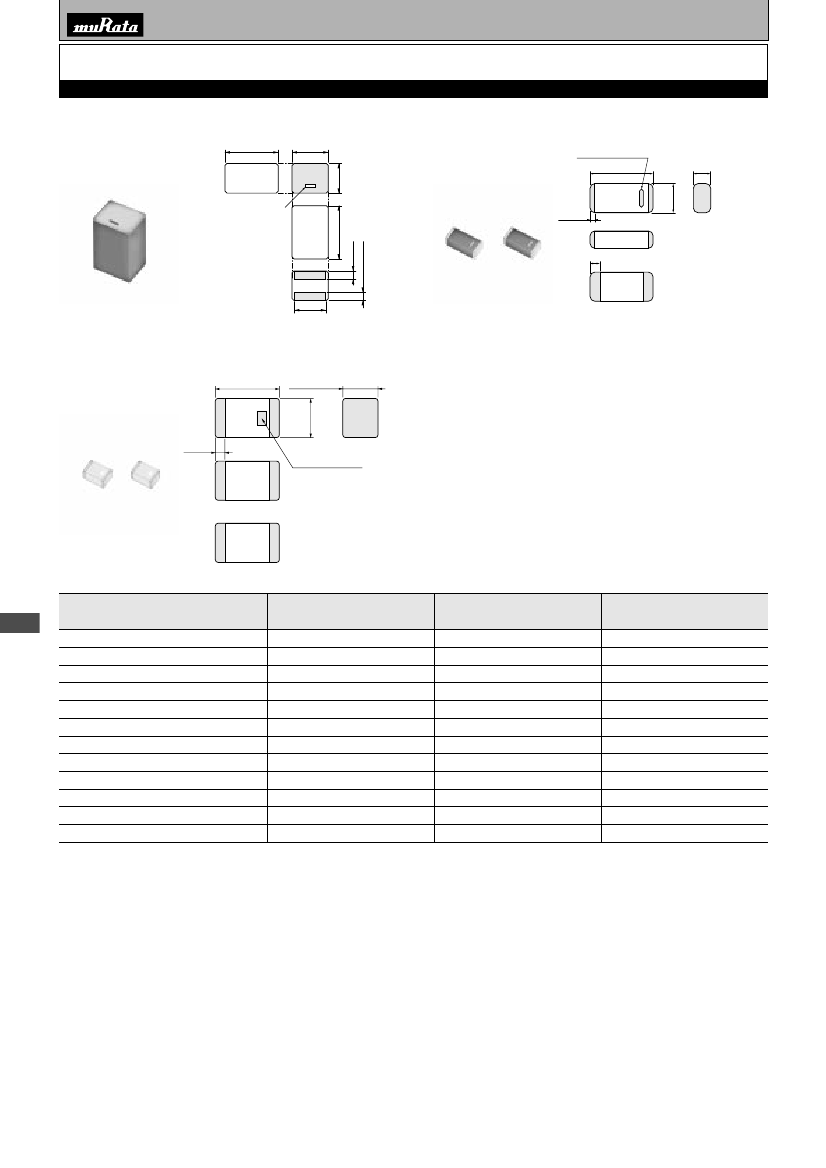

LDA Series
3.8±0.2
2.3±0.2
(2)
1.8±0.2
Directional Input Mark
3.2±0.2
1.6±0.2
1.2
-0.2
+0.1
(1)
A
(2)
0.2±0.2
3.8±0.2
(1)
A : Directional Input Mark
(1) : Feeding Point
(2) : NC
0.5±0.2
0.5±0.2
0.5±0.2
(1) : Feeding Point
(2) : NC
LDA2H2G6540G-254
1.9±0.2
* Terminal of "NC" should be connected to the floating land.
* All the technical data and information contained herein are
subject to change without prior notice.
(in mm)
LDA312G7313F-237
Terminal of "NC" should be connected to the floating land.
All the technical data and information contained
herein are subject to change without prior notice.
(in mm)
2.0
±0.15
0.95 +0.05/-0.1
1.25
±0.15
Directional Input Mark
(1) Feeding Terminal
(2) Fixing Terminal
(in mm)
(2)
(1)
0.3
±0.2
Microwave Components
LDA212G3110K-282
8
Part Number
LDA212G3110K-282
LDA212G4410K-283
LDA212G6310K-284
LDA212G8610K-285
LDA213G1610K-286
LDA2H2G6540G-254
LDA312G4413H-280
LDA312G7313F-237
LDA313G0313F-240
LDA313G3313F-243
LDA315G2013F-246
LDA316G2013F-250
Fo
(MHz)
2330
2460
2630
2860
3160
2650
2442
2730
3030
3330
5200
6200
Bandwidth
-
-
-
-
-
-
-
-
-
-
-
-
VSWR
(max.)
-
-
-
-
-
-
-
-
-
-
-
-
!Note
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
sales representatives or product engineers before ordering.
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
09.12.15
Microwave Components
o

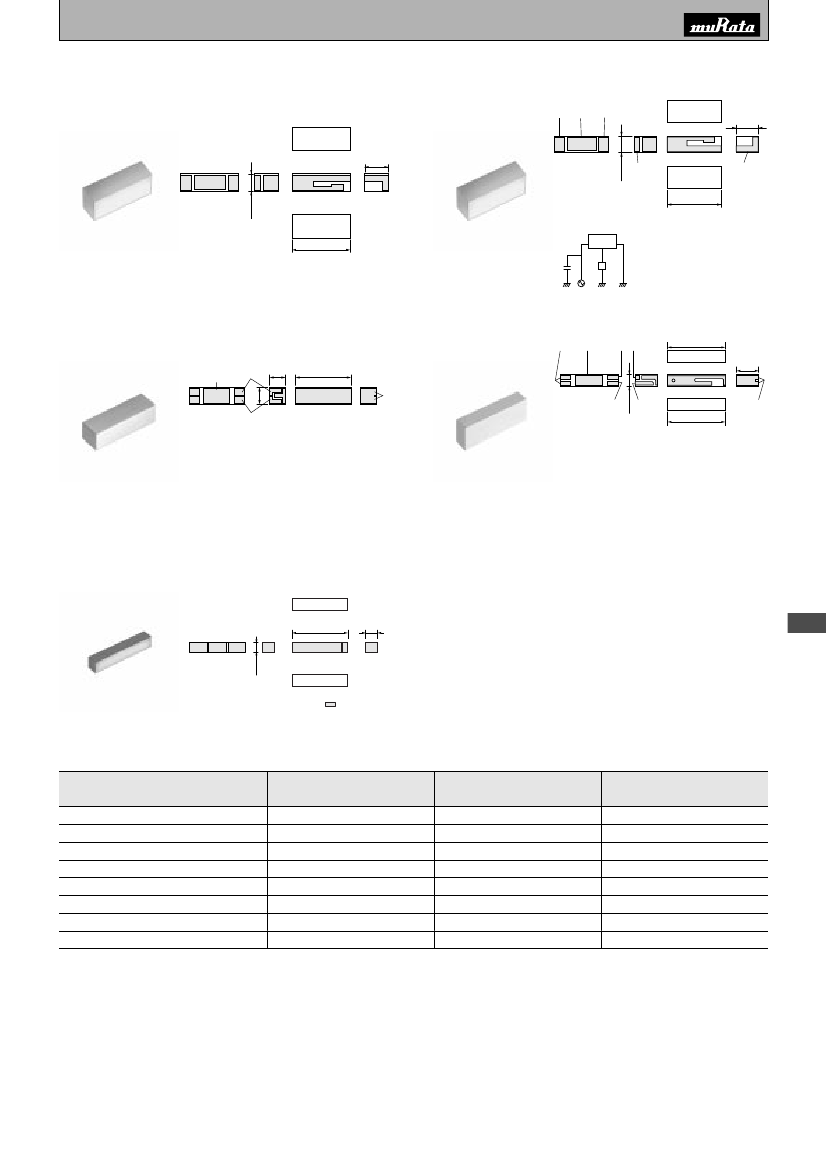

ANC Series
w
e
q
4.0±0.2
4.0±0.2
(1)
Bottom View
3.0±0.2
(2)
Bottom View
3.0±0.2
q
w
9.8±0.2
(in mm)
q:
Feeding terminal
w:
Ground terminal
e:
Cnnect to GND through
fine tuning component
r:
Impedance matching element (C)
t:
Fine tuning element (C or L)
9.8±0.2
qew
ANCG11G57SAA136
(1) Feeding Electrode
(2) Fixing Electrode
(in mm)
ANCG11G57SAA137
r
t
(2)
(3)
(2) (2)
9.8±0.2
3.8±0.2
(3)
(2)
(2)
Bottom View
(2)
3±0.2
2.8±0.2
9.8±0.2
2.0±0.2
Bottom View
(1)
(1) Feeding Electrode
(2) GND Electrode
(3) Floating Pad
(1): Feeding electrode
(2): Fixing electrode
(3): Floating pad
(Depends on the circumstances, it is
connected to GND through fine tuning
component.)
(in mm)
(2)
(1)
9.8±0.2
(2)
(1)
(Depends on the circumstances,
it is connected to GND through fine tuning component.)
ANCG11G57SAA160
(in mm)
ANCG12G44SAA145
ANCG12G44SAA148
9.0±0.2
(2)
1.5±0.1
Bottom View
1.85±0.1
(1)
8
Electrode
ANCV11G57SAA128
(1) Feeding Electrode
(2) Fixing Electrode
(in mm)
Part Number
ANCG11G57SAA136
ANCG11G57SAA137
ANCG11G57SAA146
ANCG11G57SAA160
ANCG12G44SAA145
ANCG12G44SAA148
ANCV11G57SAA128
ANCV11G57SAA144
Fo
(MHz)
1575
1575
1575
1575
2442
2442
1575
1575
Bandwidth
(MHz)
2
2
2
2
84
84
2
2
VSWR
(max.)
3.0
3.0
3.5
3.5
4.0
4.0
3.0
3.5
ANCG series are available on ground plane. Please contact us for detail specifications.
!Note
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
sales representatives or product engineers before ordering.
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
09.12.15
