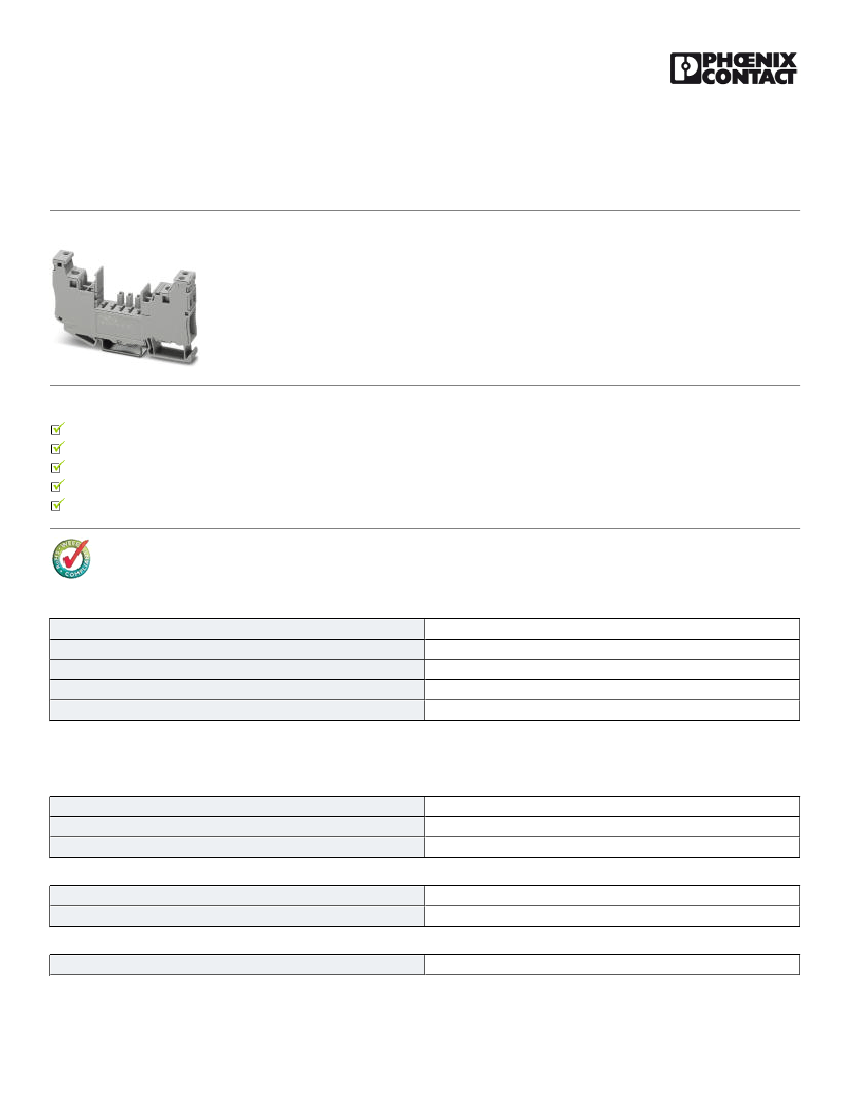

Base element - CB 1/10-1/10 UT-BE - 2801305
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Base element with screw connection technology for CB... device circuit breakers
Product Features
For accommodating CB TM.../CB E.... device circuit breakers
DIN rail module
With bridge shafts
Systematic structure with 1-channel base elements possible
Can be loaded with up to 41 A if two bridges are connected for the supply.
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
10 pc
46.0 g
85389099
Indonesia
Technical data
Dimensions
Height
Width
Depth
90.8 mm
12.3 mm
70 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-30 °C ... 60 °C
IP30 (Actuation area)
General
Flammability rating according to UL 94
V0
12/15/2015 Page 1 / 5
https://www.phoenixcontact.com/us/products/2801305
Base element - CB 1/10-1/10 UT-BE - 2801305
Technical data
General
Mounting type
Color
DIN rail: 35 mm
gray
Electrical data
Nominal voltage U
N
Rated surge voltage
Rated voltage
Rated current I
N
Rated insulation voltage U
i
Insertion/withdrawal cycles
277 V
2.5 kV
277 V (AC)
80 V (DC)
16 A
277 V AC
100
Connection data
Connection name
Connection method
Stripping length
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Connection name
Connection method
Stripping length
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Connection name
Connection method
Stripping length
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Connection 1
Screw connection
10 mm
0.5 mm²
16 mm²
0.5 mm²
16 mm²
20
6
Connection 2
Screw connection
10 mm
0.5 mm²
16 mm²
0.5 mm²
16 mm²
20
6
Connection 12/11/14
Screw connection
7 mm
0.14 mm²
4 mm²
0.14 mm²
4 mm²
12/15/2015 Page 2 / 5
https://www.phoenixcontact.com/us/products/2801305
Base element - CB 1/10-1/10 UT-BE - 2801305
Technical data
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
26
16
Standards and Regulations
Standards/specifications
UL 1059
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141116
27141116
27141116
27141116
27141116
27141116
27141116
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000899
EC000899
EC000899
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211812
39121411
39121411
39121411
39121411
Approvals
Approvals
Approvals
UL Recognized / GL / EAC / EAC
Ex Approvals
12/15/2015 Page 3 / 5
https://www.phoenixcontact.com/us/products/2801305
Base element - CB 1/10-1/10 UT-BE - 2801305
Approvals
Approvals submitted
Approval details
UL Recognized
GL
EAC
EAC
Drawings
Dimensional drawing
91,2
12,3
51,6
12/15/2015 Page 4 / 5
https://www.phoenixcontact.com/us/products/2801305
Base element - CB 1/10-1/10 UT-BE - 2801305

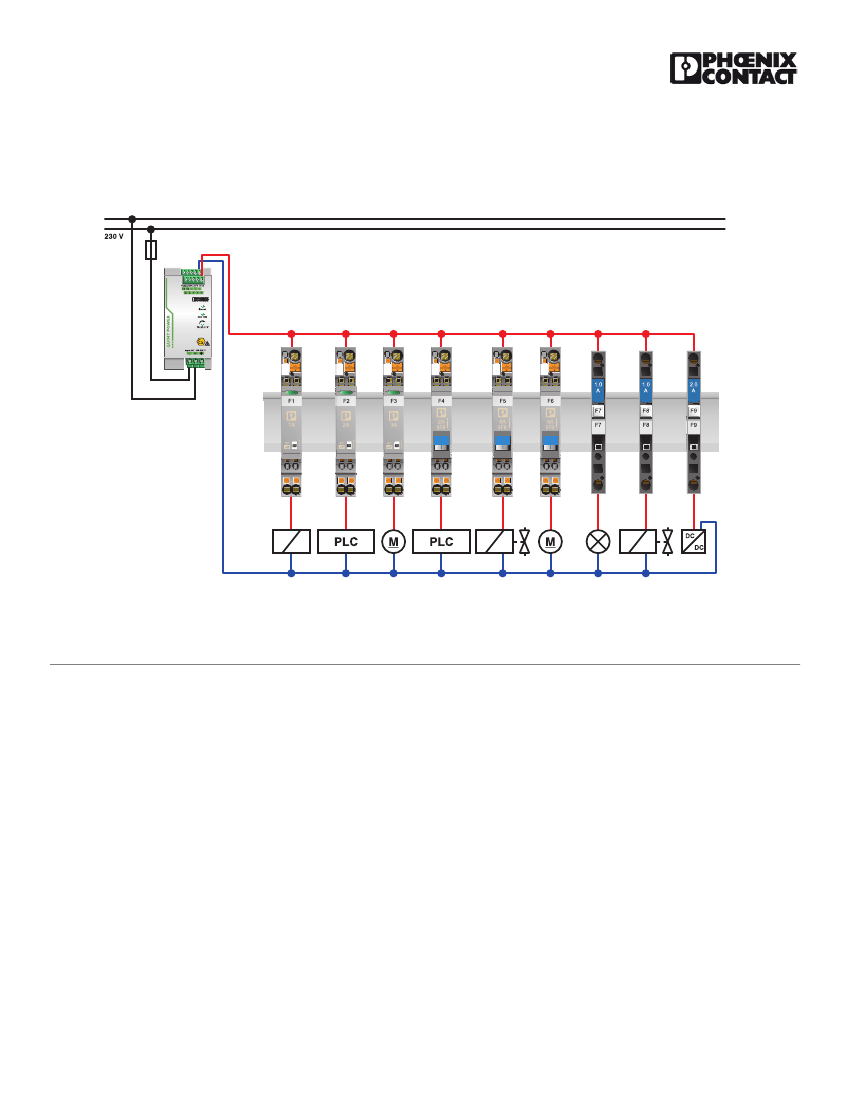

Application drawing
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
12/15/2015 Page 5 / 5
