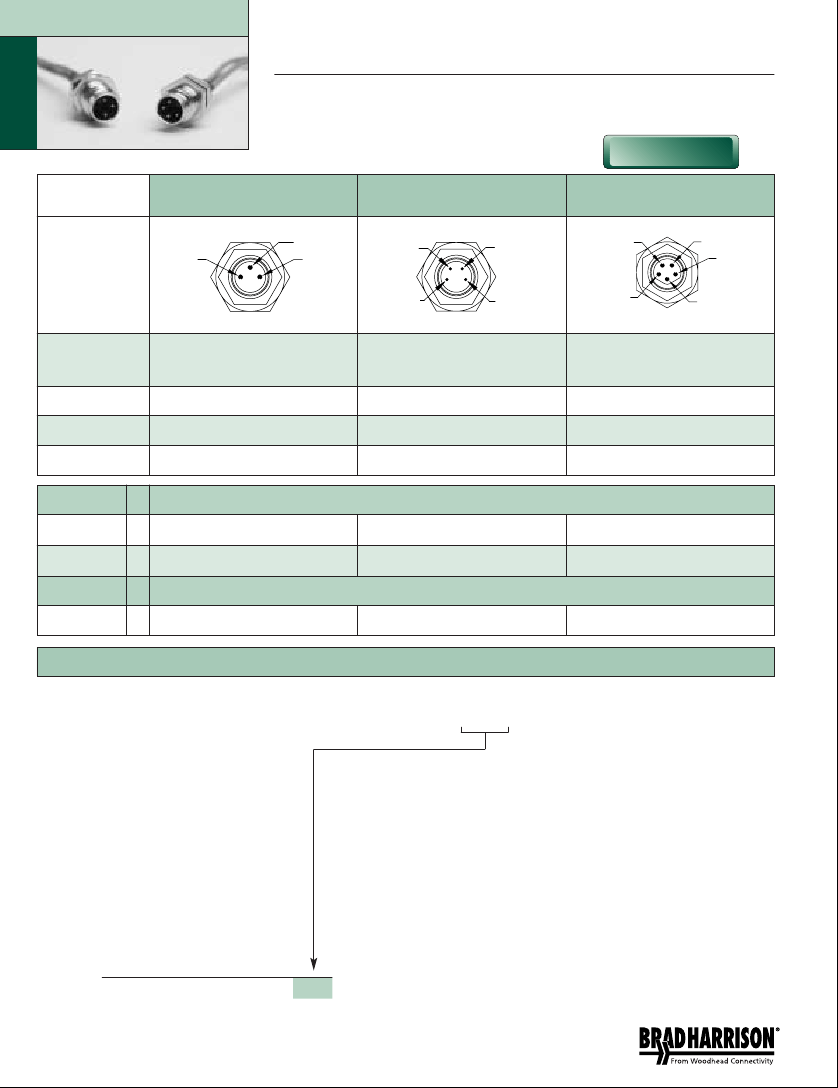

Nano-Change Receptacles
®
3P to 5P
M8 Receptacles
Nickel-plated brass body
IP 68 rating on threaded connection
NEW 5 Pole
3P
4
2
3
4P
4
2
5P
4
3
MALE FACE
VIEW
1
1
3
1
5
COLOR CODE
VOLTAGE
CURRENT
CONDUCTOR
ACCEPTS SNAP OR
THREADED CORDSETS
1- brown
3- blue
4- black
1- brown
2- white
3- blue
4- black
1- brown
2- white
3- blue
4- black
5- gray
60V AC / 75V DC
4A
#24-3
60V AC / 75V DC
4A
#24-4
60V AC / 75V DC
3A
#24-5
MALE
FIG
RECEPTACLES
WITH 30 CENTIMETER #24 AWG PVC LEADS
M8 X 0.5 MOUNTING
THREADS
M8 X 1 MOUNTING
THREADS
ACCEPTS THREADED
CORDSETS ONLY
1
2
FIG
4R3P06A27C300
4R3F06A27C300
4R4P06A27C300
4R4F06A27C300
4R5P06A27C300
—
FEMALE
RECEPTACLES
WITH 30 CENTIMETER #24 AWG PVC LEADS
4R3P00A27C300
4R4P00A27C300
4R5P00A27C300
M8 X 0.5 MOUNTING
THREADS
3
CATALOG OPTIONS
Note: For mating cordsets see pages 168-175
Refer to compatibility matrix for
cordset/receptacle combinations
Use the following chart to modify your part’s specifications
4R5P06A27C3001
LEAD LENGTH
60 CENTIMETER . . . . . . . . . . . 600
176
1 - 8 0 0 - 2 2 5 - 7 7 2 4
SALES AND TECHNICAL SUPPORT
Nano-Change Receptacles
®
MECHANICAL
CONNECTOR FACE:
SHELL:
O-RING:
WIRE:
ELECTRICAL
VOLTAGE RATING:
AMPERAGE:
PBT
NICKEL-PLATED BRASS
VITON
PVC; #24 AWG (19X #36)
60V AC / 75V DC
3P - 4A
4P - 4A
5P - 3A
ENVIRONMENTAL
PROTECTION: NEMA 6P, IP 68 (COUPLER)
NEMA 4, IP 65 (SNAP)
AMBIENT OPERATING TEMP: -4° TO 221°F (-20º TO 105ºC) - PVC
CERTIFICATIONS
UL: UL RECOGNIZED, FILE NO. 152210

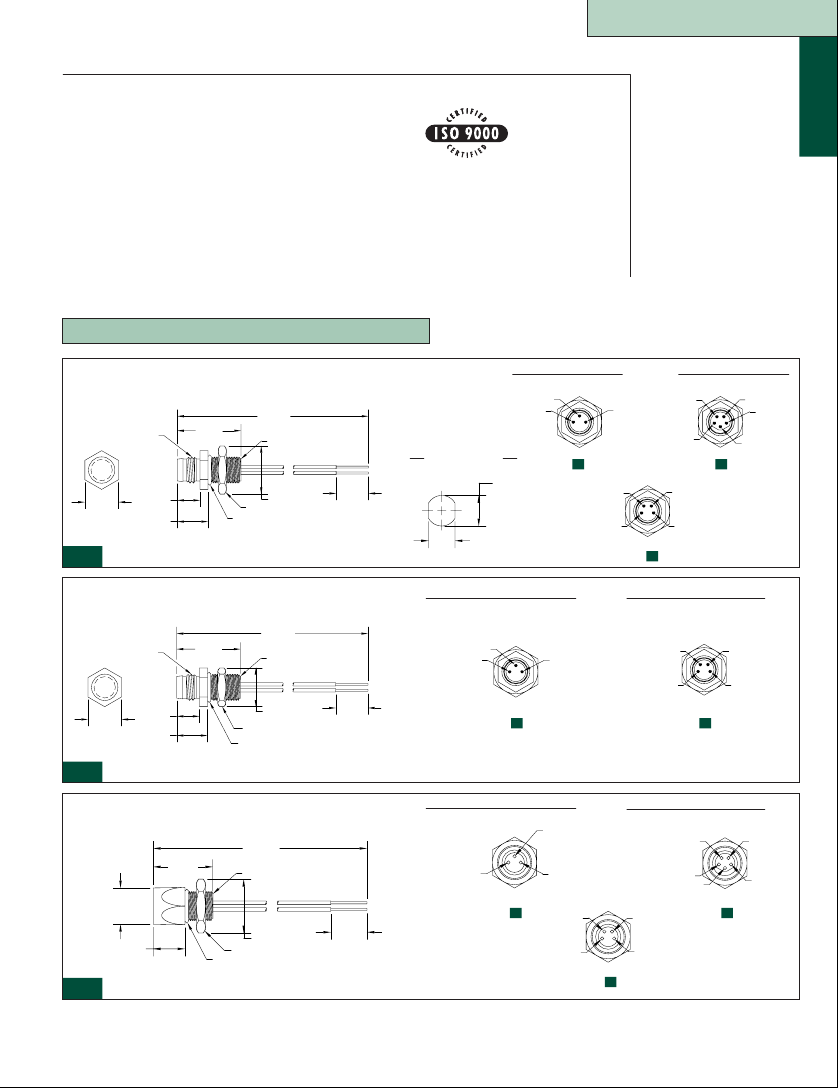

RECEPTACLE DIMENSIONS
MALE - M8 X 0.5 MOUNTING THREADS
(ACCOMMODATES SNAP AND THREADED FEMALE CORDSETS)
4-BLACK
11.81" REF
[300mm]
M8x1
.75" REF
[19.05mm]
M8x0.5
FACE VIEW
2-WHITE
3-BLUE
4-BLACK
3-BLUE
1-BROWN
1-BROWN
5-GRAY
5P
TYPICAL KNOCKOUT
.32"
[Ø8.2mm]
.39"
[Ø10.0mm]
.27" REF
[8.86mm]
.36" REF
[9.14mm]
.45" [11.5mm]
LOCKNUT
O-RING
.38" REF
[9.65mm]
3P
2-WHITE
4-BLACK
1-BROWN
3-BLUE
.28"
[7.1mm]
FIG 1
MALE - M8 X 1 MOUNTING THREADS
(ACCOMMODATES SNAP AND THREADED FEMALE CORDSETS)
11.81" REF
[300mm]
M8x1
.75" REF
[19.05mm]
4P
FACE VIEW
4-BLACK
M8x1
2-WHITE
3-BLUE
1-BROWN
4-BLACK
1-BROWN
3-BLUE
.39"
[Ø10.0mm]
.27" REF
[8.86mm]
.36" REF
[9.14mm]
.45" [11.5mm]
LOCKNUT .50" DIA
[12.7mm]
O-RING
.38" REF
[9.65mm]
3P
4P
FIG 2
FEMALE - M8 X 0.5 MOUNTING THREADS
(ACCOMMODATES THREADED MALE CORDSETS ONLY)
4-BLACK
4-BLACK
2-WHITE
FACE VIEW
11.81" REF
[300mm]
.63" REF
[16.00mm]
M8x0.5
3-BLUE
1-BROWN
3-BLUE
5-GRAY
1-BROWN
Ø
.38" REF
[9.65mm]
.38" REF
[9.65mm]
3P
4-BLACK
2-WHITE
5P
.45" [11.5mm]
.34" REF
[8.64mm]
LOCKNUT
O-RING
3-BLUE
SEE PAGE 168-175
FOR ADDITIONAL
RECEPTACLES
1-BROWN
FIG 3
4P
