SAC-4P-M12MS/1,5-PUR/M12FR
Order No.: 1668496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668496
Sensor/Actuator cable, 4-position, PUR, halogen-free, Black-gray RAL
7021, Plug, straight M12, A-coded, on Socket, angled M12, A-coded,
Cable length: 1.5 m
Product notes
Commercial data
GTIN (EAN)
4
017918
137328
WEEE/RoHS-compliant since:
12/01/2005
sales group
Pack
Customs tariff
Catalog page information
D111
1 pcs.
85444290
Page 82 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
4A
250 V
4
≤ 5 mΩ
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 14, 2011
SAC-4P-M12MS/1,5-PUR/M12FR
Order No.: 1668496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668496
Insulation resistance
Length of cable
Ambient temperature (operation)
General characteristics
Standards/regulations
Coding
Surge voltage category
Pollution degree
Degree of protection
Insertion/withdrawal cycles
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Status display
Conductor data
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
External cable diameter
Wire colors
External sheath, color
Insulation resistance
Conductor resistance
Nominal voltage, conductor
Test voltage, conductor
≥ 10 MΩ
1.5 m
-25 °C ... 90 °C (Male connector / female connector)
M12 connector IEC 61076-2-101
A - standard
II
3
IP65/IP68/IP69K
≥ 100
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, (nickel-plated)
NBR
No
PUR halogen-free black
PUR
Li9Y11Y-HF
0.34 mm²
22
42x 0.10 mm
1.27 mm ±0.02 mm
≥ 0.21 mm (Core insulation)
≥ 0.8 mm (Outer cable sheath)
4.7 mm ±0.15 mm
Black, brown, blue, white
Black-gray RAL 7021
≥ 100 MΩ*km
≤ 58 Ω/km (at 20°C)
≤ 300 V
≥ 3000 V
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 14, 2011
SAC-4P-M12MS/1,5-PUR/M12FR
Order No.: 1668496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668496
Overall twist
Length of twist, overall twist
Outer sheath, material
Material conductor insulation
Conductor material
Cable weight
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Ambient temperature (operation)
Special properties
4 wires, twisted
49.5 mm
PUR
PP
Bare Cu litz wires
30 kg/km
23.5 mm
47 mm
4000000
47 mm
10 m
3 m/s
10 m/s²
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or
varnish
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with FT1 as per UL 758
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Certificates / Approvals
Certification
CUL Listed, GOST, UL Listed
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 14, 2011
SAC-4P-M12MS/1,5-PUR/M12FR
Order No.: 1668496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668496

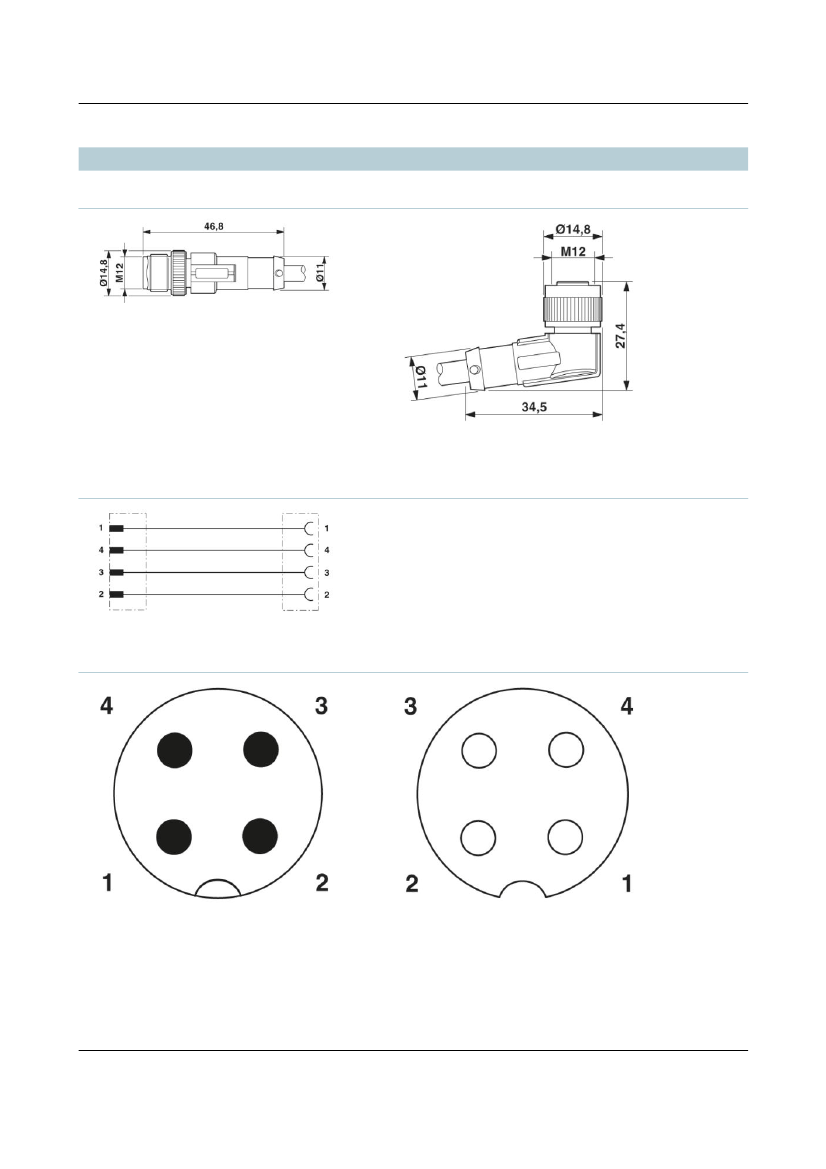

Diagrams/Drawings
Dimensioned drawing
M12 x 1 male connector, straight
M12 x 1 female connector, angled
Circuit diagram
Contact assignment of the M12 plug and the M12 socket
Schematic diagram
Pin assignment M12 plug, 4-pos., A-
coded, view plug side
Pin assignment M12 socket, 4-pos., A-
coded, view female side
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 14, 2011
SAC-4P-M12MS/1,5-PUR/M12FR
Order No.: 1668496
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668496
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 14, 2011
