20828128 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> 20828128

20828128: DescriptionINPAC ACCESSORY 4U HANDLES 1 SET; Categoryaccessories; File Size1MB，12 Pages; ManufacturerSchroff

Download Datasheet Parametric View All

20828128 Overview

INPAC ACCESSORY 4U HANDLES 1 SET

20828128 Parametric

Parameter Name	Attribute value
type	meter
high	-
Length - center to center	-
Thread/screw/hole size	-
Material	aluminum
Installation type	screw holes, back

Preview

Download Datasheet

View All

Inpac

Main Catalogue

19" chassis – Inpac

OVERVIEW

MAIN KATALOG

Cabinets . . . . . . . 1

Wall mounted

cases . . . . . . . . . 2

Accessories for

cabinets and wall

mounted cases . . 3

Climate control . . 4

Electronics

cases . . . . . . . . . 5

Subracks/

19" chassis . . . . . 6

02192001

Front panels,

plug-in units . . . . 7

Systems . . . . . . . 8

Power supply

units . . . . . . . . . . 9

Backplanes . . . . 10

Connectors, front

panel component

system . . . . . . . 11

Appendix . . . . . 12

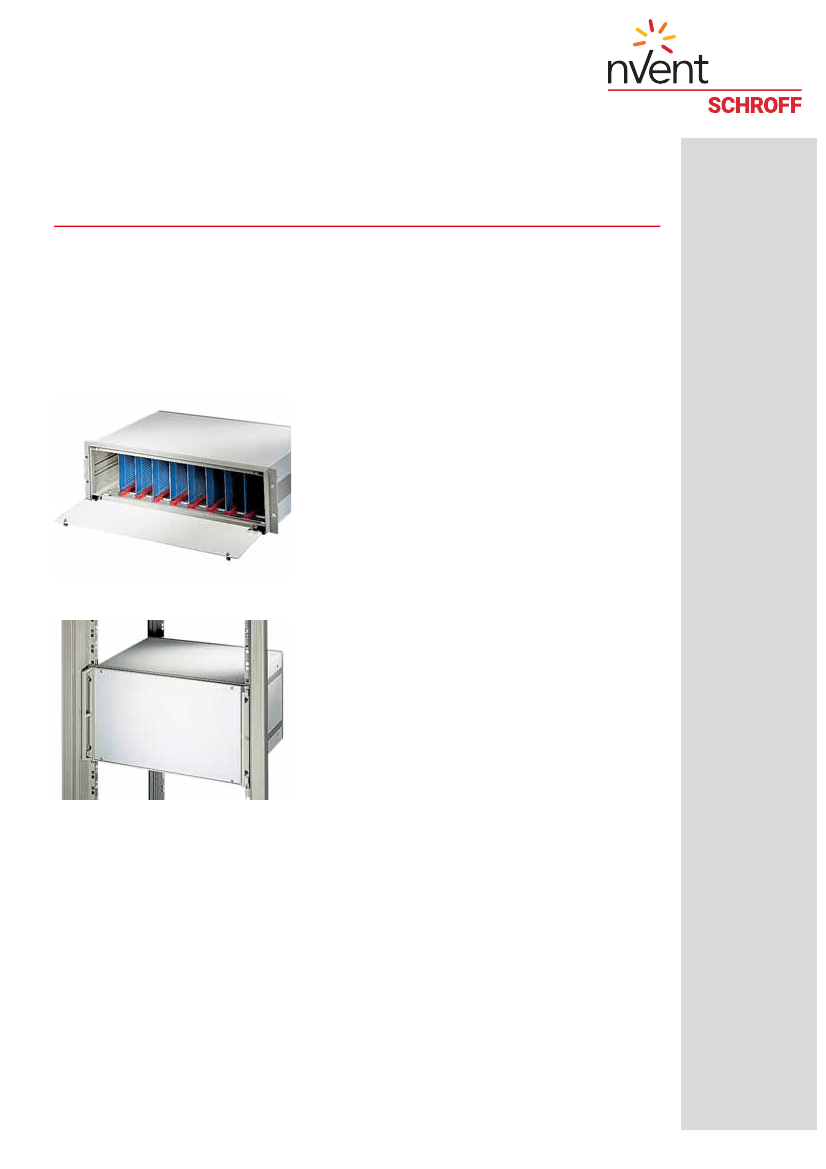

Robust 19" chassis, also for board assembly

02192005

Assembly with boards and hinged front panel

02196001

STANDARDS

•

External dimensions in accordance with:

IEC 60297-3-101

•

Ingress protection IP 20 to IEC 60529

•

GND/earthing connectors to:

DIN EN 50178/VDE 0160

DIN EN 60950/VDE 0805

DIN EN 61010-1/VDE 0411 part 1

DIN EN 61010-1A2/VDE 0411 part 1/A1

6.128

nVent.com/SCHROFF

SCHROFF PRODUCT CATALOG 05/2018

ELECTRONICS PROTECTION

19" chassis – Inpac

OVERVIEW

FMain Catalogue

Overview

. . . . . . .

6.128

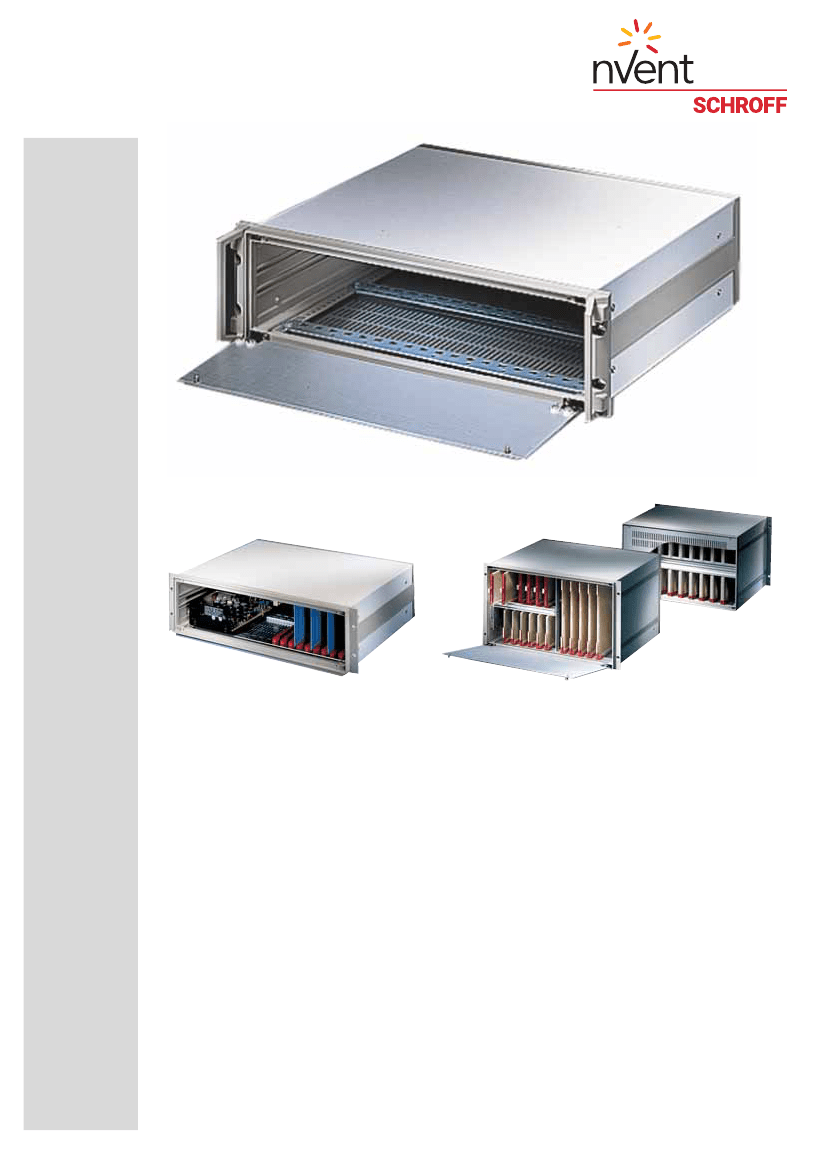

19" CHASSIS WITH HIGH MECHANICAL STABILITY

• Also usable as desk-top case

• Robust cases from aluminium die-cast frames to front and rear

• Flexible assembly for standardised board formats or individually,

e.g. for mounting plates

• Cost benefit with mounting service and custom processing in ServicePLUS

19" CHASSIS/DESK-TOP ENCLOSURE

•

2 U, 3 U, 4 U and 6 U heights

inpac

19" chassis . . . . . . .

6.130

Accessories

Full-width front

panels . . . . . . . . . . .

6.131

Full-width rear panels

...........

6.131

Support rails . . . . .

Horizontal rails . . .

02192002

6.132

6.133

Front handles . . . .

GND/earthing kit . . .

6.133

Guide rails . . . . . . .

6.134

INPAC BUILT INTO 19"CABINET

Text

Dimensions . . . . . . . 6.136

02192003

SERVICEPLUS

e.g. individual configuration and assembly from 1 piece

e.g. printing

e.g. cut-outs in front or rear panels or cover plates

e.g. modification (special colours)

e.g. custom solutions (special depths, electromagnetically

shielded applications)

nVent.com/SCHROFF

6.129

19" chassis – Inpac

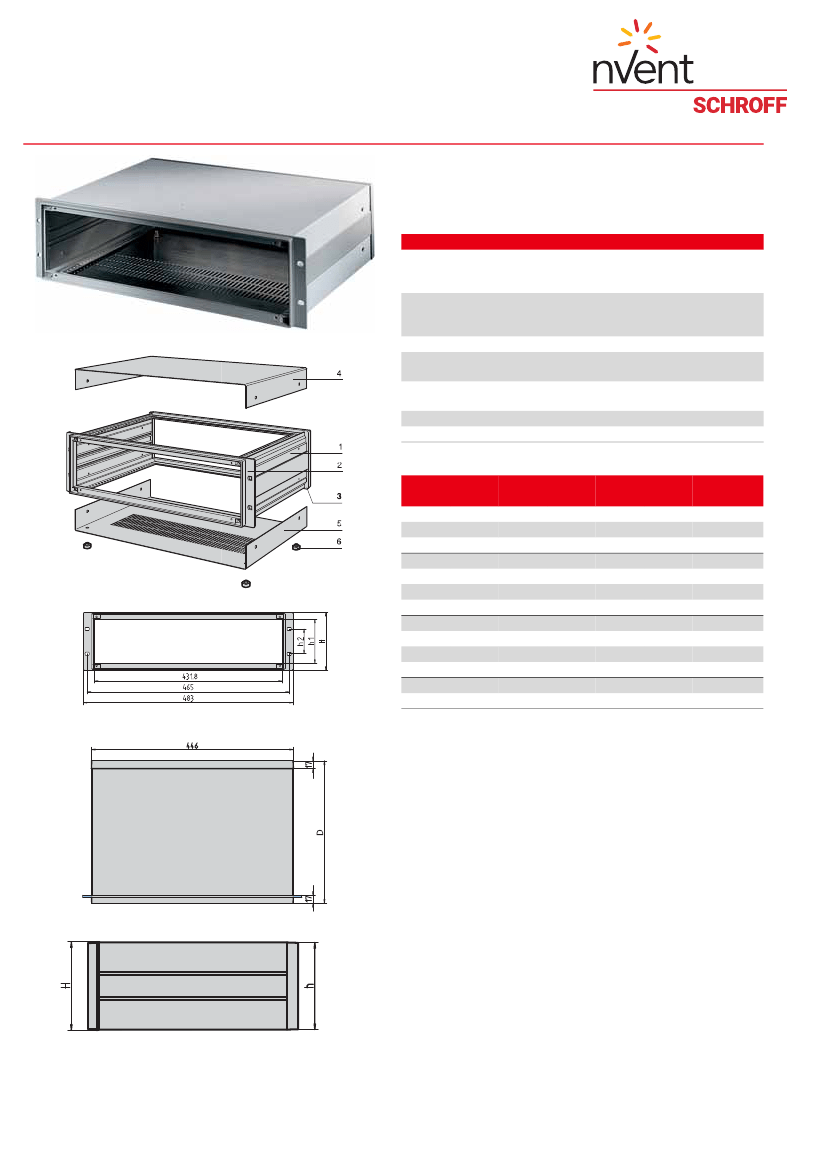

19" CHASSIS

FMain CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days

•

For assembly with 19" components or individually with

mounting plates

•

Three rows ventilation slots in base for air inlet

DELIVERY INCLUDES

(Kit)

Item

Qty

Description

Side panel, Al extrusion, RAL 7030,

at 6 U: 2 Al corner profiles,

1 divider plate (steel plate)

Front frame, Al die-cast, RAL 7030, rear side with counterbores for

drill holes to mount handles and

front panels

Rear frame, Al die-cast, RAL 7030

Cover plate, St, 1 mm, RAL 7035, plastic-coated,

with GND/earthing connection

Base plate, St, 1 mm, RAL 7035, plastic-coated,

with GND/earthing connection

Case foot with anti-slip protection, PC, UL 94 V-0

Assembly kit

02192006

ORDER INFORMATION

Height H

88.0

132.5

177.0

265.9

86.0

130.5

174.5

263.5

57.5

102.0

146.5

235.4

76.2

57.1

101.6

190.5

Depth D

254.5

314.5

374.5

254.5

314.5

374.5

434.5

254.5

314.5

374.5

434.5

374.5

434.5

Part no.

10828-071

10828-072

10828-073

10828-051

10828-052

10828-053

10828-054

10828-056

10828-057

10828-058

10828-059

10828-068

10828-069

ipa30632

h1 = useable height

IPA30635

Note

•

Max. installation space when fitting 19" components is 75 HP

•

Scope of delivery includes screws to fix rear and front panels

IPA30704

IPA30706

6.130

nVent.com/SCHROFF

SCHROFF PRODUCT CATALOG 05/2018

19" chassis – Inpac

FRONT PANEL

DELIVERY COMPRISES

Item

Qty

Description

Front panel, Al, 2.5 mm, anodised, cut edges untreated

ORDER INFORMATION

Height

IPA42082

Height H

76.0

120.5

165.0

253.8

65.6

110.0

154.5

243.4

Part no.

30828-055

30828-058

30828-061

30828-067

Note

•

The assembly kit for the front panel is included with the 19" chassis

FRONT PANEL, BOTTOM-HINGED

DELIVERY COMPRISES

5,9 x 3,3

Item

Qty

Description

Front panel, hinged, Al, 2.5 mm, anodised, cut edges untreated

ORDER INFORMATION

Height

Height H

76.0

54.5

120.5

99.0

165.0

143.5

253.8

232.3

Hinge for front panel PPE, UL 94 V-0,

PU 1 kit (includes fixing material kit and 2 collar screws)

ipa42083

Part no.

30828-085

30828-088

30828-091

30828-097

20828-028

Note

•

Please order hinge for front panel separately

REAR PANEL WITH VENTILATION OPENINGS

DELIVERY COMPRISES

(kit)

Item

Qty

Description

Rear panel, incl. assembly kit, Al, 2.5 mm, anodised,

cut edges untreated

ORDER INFORMATION

Height

IPA42086

Height H

76.0

120.5

165.0

253.8

65.6

110.0

154.5

243.4

–

Part no.

30828-070

30828-073

30828-076

30828-082

Note

•

The scope of delivery of the 19" chassis includes an assembly kit for the

front panel

Part number in bold face type: ready for despatch within 2 working days

Part number in normal type: ready for despatch within 10 working days

nVent.com/SCHROFF

6.131
