5026-36 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Test and measurement> 5026-36

5026-36: DescriptionBANTAM PLUG/2 ALLIGATOR CLIP 36"; CategoryTopical application Test and measurement; File Size37KB，1 Pages; ManufacturerPomona Electronics

Download Datasheet Parametric Compare View All

5026-36 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5026-36	-	-	View	Buy Now

5026-36 Overview

BANTAM PLUG/2 ALLIGATOR CLIP 36"

5026-36 Parametric

Parameter Name	Attribute value
Configuration	Short alligator clip to short mini plug
first connector	Terminal clamps, isolation type (2)
Second connector	short mini plug
cable length	36.0"（914.40mm）
content	1 cable, black, black and red leads, black plug
Material - Insulation	Polyvinyl chloride (PVC)
Wire gauge	22 AWG
Voltage - Rated	150VAC，DC
Rated current	5A
temperature range	122°F（50°C）

Preview

Download Datasheet

View All

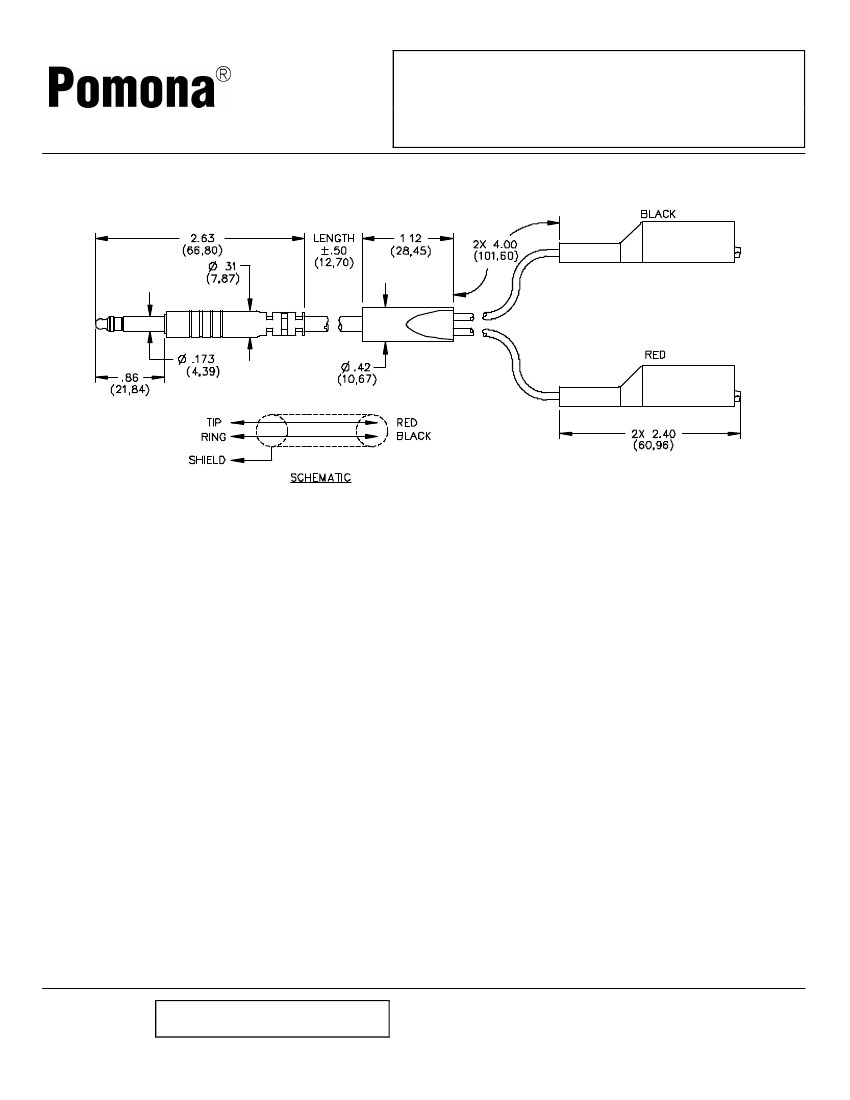

Model 5026 & 5026N

Bantam Plug (Miniature Phone Plug)

To Alligator Clips

FEATURES:

•

Converts Bantam (Miniature Phone Plug) Female into Alligator Clips

•

Shielded cable to reduce noise

•

Bantam molded to the cable for optimum durability

MATERIALS:

Conn: 1

end: Miniature 3 Cond. Phone Plug. (5026 brass, 5026N nickel plated brass).

Insulation: PVC, black. Sleeve, no connection

Cable: Two cond. Shielded, 22 AWG, 7 x 30 t.c., 4.6 (.180) O.D., Y-mold insulation, PVC, gray

Conn: 2

end: Alligator clips. Steel, nickel plated. Vinyl boots, one Black and one Red.

RATINGS:

Operating Temperature: +50°C. (+122°F.) Max.

Operating Voltage: 150 VRMS/DC

Current: 5 Amperes

ORDERING INFORMATION:

Model 5026-XX

XX=Cable Length, Standard Lengths: 36” (914), 60” (1524), 84” (2134)

Ordering Example: 5026-84, Cable length is 84” with brass Bantam connector

5026N-60, Cable length is 60” with nickel plated brass Bantam connector

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

7/1/02 SY/EH/LS

Last saved by Laura Goldberg

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90613

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

C:\Laura Goldberg\FlukeDataSheet \d5026_26N_1_02.doc
