PCB terminal block - MKDSP 95/ 2-20,0-F - 1841869
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 232 A, Nom. voltage: 1000 V, Pitch: 20 mm, Number of positions: 2,
Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color:
green

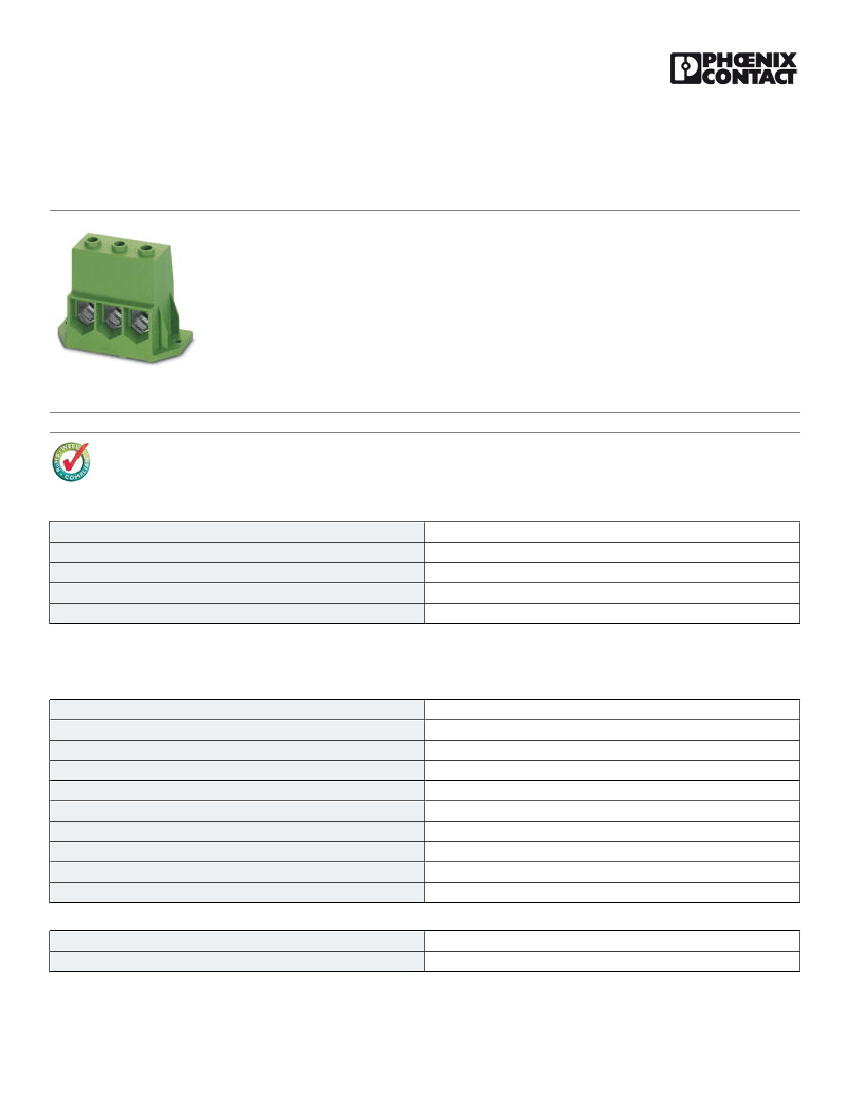

The illustration shows the 3-pos.
version
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
5 pc
228.0 g
85369010
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Width
Constructional height
Height
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
44 mm
20 mm
20 mm
72 mm
69 mm
73 mm
4 mm
3 x 3 mm
13.8 mm
4.8 mm
General
Range of articles
Insulating material group
MKDSP 95
I
09/04/2015 Page 1 / 5
https://www.phoenixcontact.com/us/products/1841869
PCB terminal block - MKDSP 95/ 2-20,0-F - 1841869
Technical data
General
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Inflammability class according to UL 94
Stripping length
Number of positions
Screw thread
Tightening torque, min
8 kV
8 kV
8 kV
1000 V
1000 V
1000 V
EN-VDE
232 A
95 mm²
232 A
PA
Sn
V0
25 mm
2
M8
10 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
16 mm²
95 mm²
25 mm²
95 mm²
16 mm²
95 mm²
16 mm²
95 mm²
6
3/0
16 mm²
25 mm²
16 mm²
25 mm²
16 mm²
25 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
16 mm²
sleeve, min.
09/04/2015 Page 2 / 5
https://www.phoenixcontact.com/us/products/1841869
PCB terminal block - MKDSP 95/ 2-20,0-F - 1841869
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with plastic
25 mm²
sleeve, max.
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
27141134
27141134
27440401
ETIM
ETIM 5.0
EC002643
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / VDE Zeichengenehmigung / IECEE CB Scheme / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
6-3/0
200 A
600 V
C
6-3/0
200 A
600 V
09/04/2015 Page 3 / 5

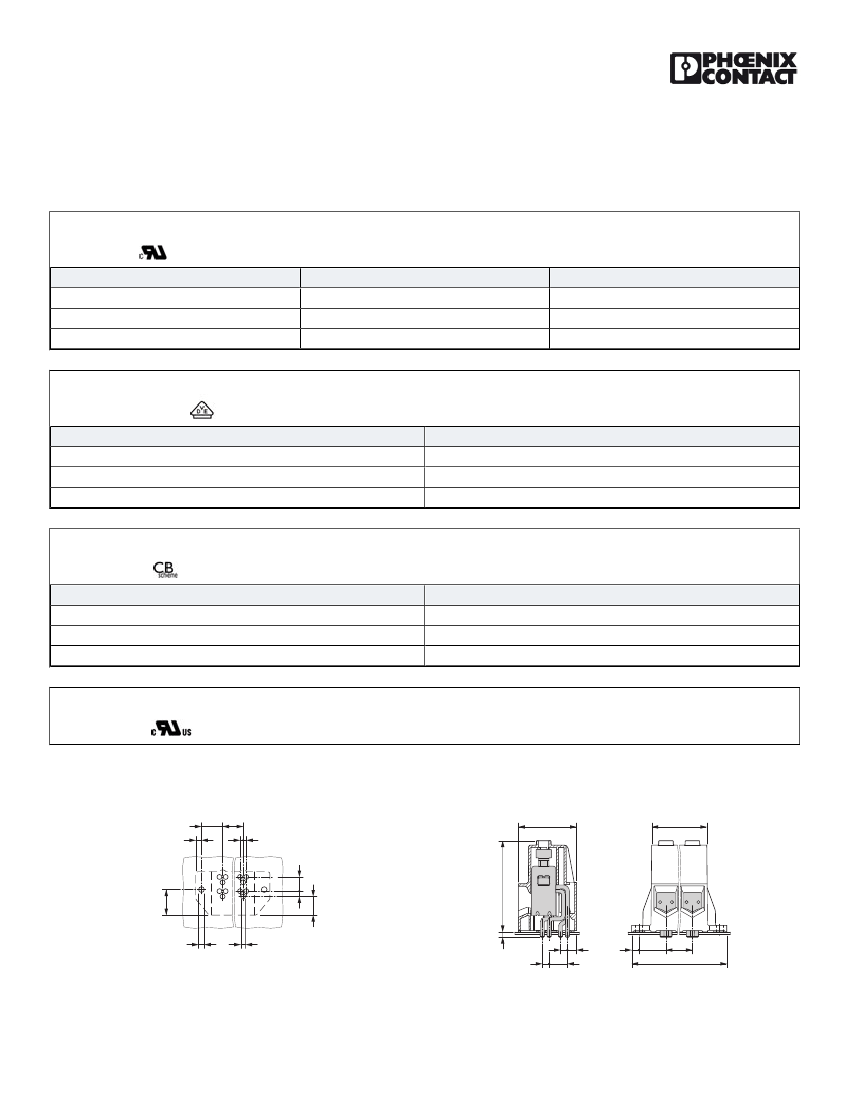

https://www.phoenixcontact.com/us/products/1841869
PCB terminal block - MKDSP 95/ 2-20,0-F - 1841869
Diagram
Current strength [A]
400
360
320
280
240
200
160
120
80
40
0
0
= 95 mm
2
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Type: MKDSP 95/ 4-20,0-F
Tested in accordance with DIN EN 60512-5-2:2003-01
Reduction factor = 1
Number of positions: 4
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
09/04/2015 Page 5 / 5
