DC935A

Description
EVAL BOARD FOR LTC2605
CategoryDevelopment board/suite/development tools
File Size398KB,10 Pages
ManufacturerLinear ( ADI )
Websitehttp://www.analog.com/cn/index.html
Environmental Compliance
Download Datasheet Parametric Compare View All

DC935A Online Shopping

Suppliers Part Number Price MOQ In stock
DC935A - - View Buy Now

DC935A Overview

EVAL BOARD FOR LTC2605

DC935A Parametric

Parameter NameAttribute value
Number of DACs8
Number of digits16
Sample rate (per second)-
Data interfaceI²C
Setup time10µs
DAC typeVoltage
What's includedplate
IC/parts usedLTC2605
DEMO MANUAL DC590B
USB Serial Controller for
Linear Technology
QuikEval Demo Boards
Description
Demonstration circuit 590B is a USB-based controller
with generic serial peripheral interface (SPI) and inter
integrated circuit (I
2
C) ports. It is designed to mate with
Linear Technology’s family of QuikEval™ demonstration
boards. The demo board is fully isolated from the host
PC’s ground, and in many cases no external power source
is required. The evaluation software automatically detects
which demo board is connected and loads the appropriate
control screen.
The QuikEval system provides a quick and easy way to
evaluate the performance of a wide variety of Linear Tech-
nology’s products, including ADCs, DACs, SMBus power
control products and many others.
Design files for this circuit board are available at
http://www.linear.com/demo
L,
LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
QuikEval and PScope are trademarks of Linear Technology Corporation. All other trademarks
are the property of their respective owners.
BoarD photo
DO NOT CONNECT
DEMO CIRCUIT
UNDER EVALUATION
USB CABLE
TO HOST PC
SELECT ISOLATED SUPPLY
VOLTAGE (2.7V, 3.3V, 5.0V,
OR EXTERNAL
CONNECT EXTERNAL 10V TO 12V
SUPPLY ONLY IF JP5, ISO IS SET TO OFF
(SEE TEXT)
CONNECT 2.7 TO 5V LOGIC SUPPLY
ONLY IF VCCIO IS SET TO EXT
(SEE TEXT)
ISOLATED
GROUND
dc590b F01
DO NOT CONNECT
ISOLATED POWER SUPPLY
(SHOWN IN OFF POSITION)

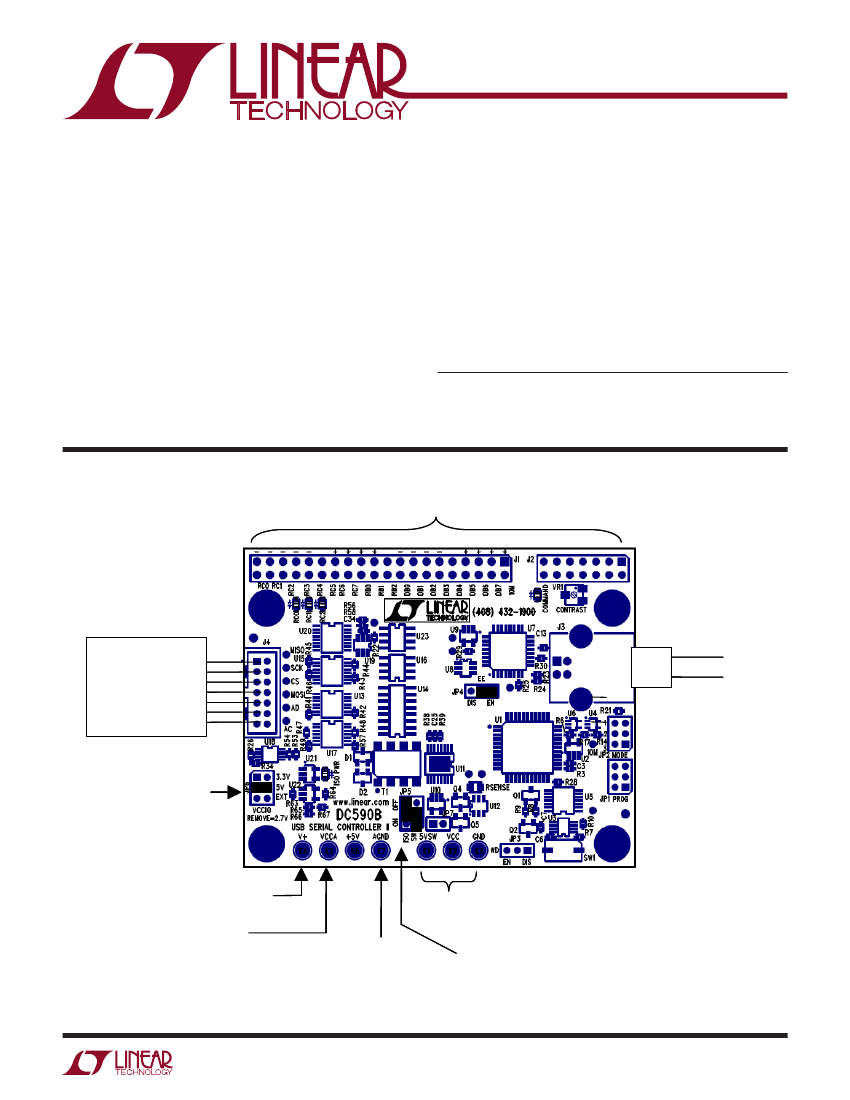

Figure 1. DC590B Connection Diagram
dc590bf
1

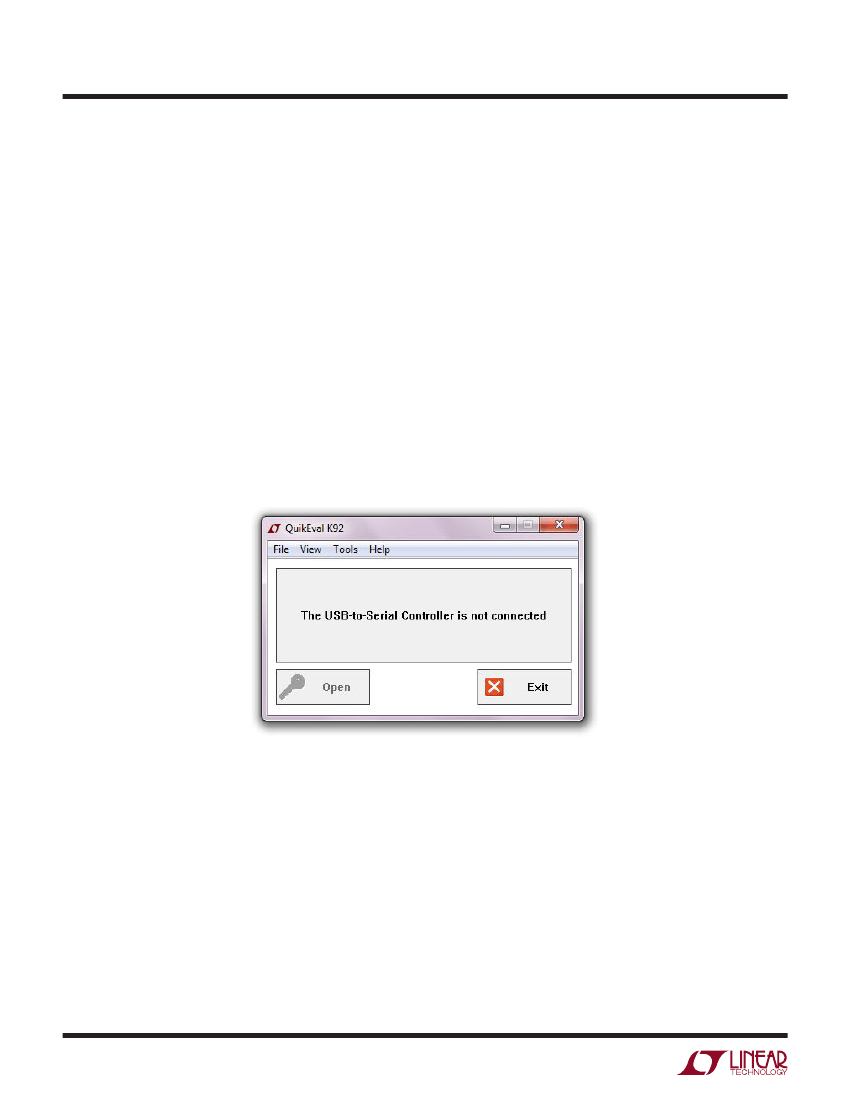

DC935A Related Products

DC935A DC812A DC812A_15 DC936A DC778A DC809A DC777A DC752A-B
Description EVAL BOARD FOR LTC2605 SCH LTC2606CDD 16 BIT RAIL TO RAIL VOUT DAC I2C INTERFACE SCH LTC2606CDD 16 BIT RAIL TO RAIL VOUT DAC I2C INTERFACE EVAL BOARD FOR LTC2609 EVAL BOARD FOR LTC2602 EVAL BOARD FOR LTC2604 EVAL BOARD FOR LTC2601 EVAL BOARD FOR LTC2704-16
Number of DACs 8 - - 4 2 4 1 4
Number of digits 16 - - 16 16 16 16 16
Data interface I²C - - I²C MICROWIRE™, SERIAL, SPI™ MICROWIRE™, SERIAL, SPI™ MICROWIRE™, SERIAL, SPI™ SPI
Setup time 10µs - - 10µs 10µs 10µs 10µs 10µs
DAC type Voltage - - Voltage Voltage Voltage Voltage Voltage
What's included plate - - plate plate plate plate plate
IC/parts used LTC2605 - - LTC2609 LTC2602 LTC2604 LTC2601 LTC2704-16
