Conductor connectors - SACC-CC-8QO SH ETH - 1414412
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Cable connector, Ethernet CAT6
A
(10 Gbps), 8-pos., halogen-free, shielded, insulation displacement connection,
housing material: zinc die-cast, nickel-plated, outer cable diameter of 5 mm ... 9.7 mm

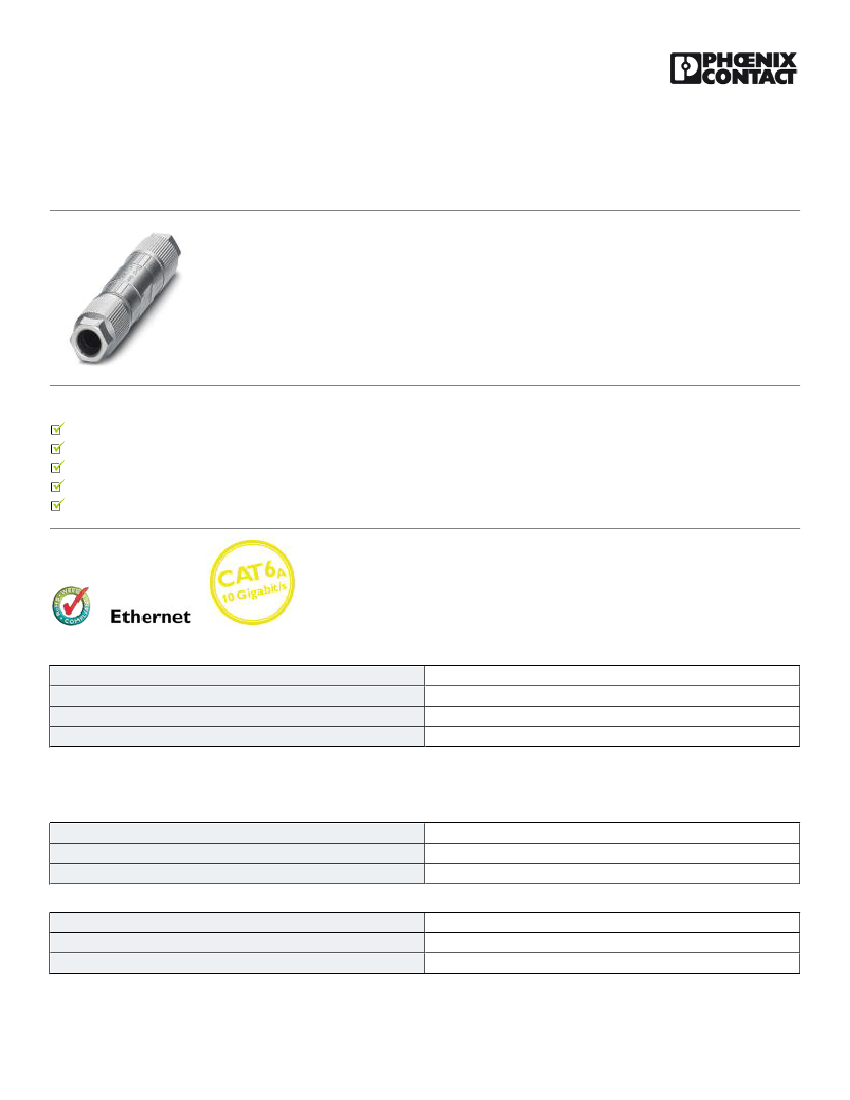

Product Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Convenient: quick and easy assembly without special tools
Insulation displacement connection: innovative and time-saving assembly without stripping the single wire
Safe use in the field, thanks to a high degree of protection
Reliable signal transmission - 360° shielding in environments with electromagnetic interference
Packing unit
1 pc
60.0 g
85366990
Germany
Key Commercial Data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Wrench size, union nut
External diameter
Stripping length of the sheath
15 mm
5 mm ... 9.7 mm
≥ 80 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (assembly)
Degree of protection
-40 °C ... 85 °C
-5 °C ... 50 °C
IP65
10/20/2015 Page 1 / 3
https://www.phoenixcontact.com/us/products/1414412
Conductor connectors - SACC-CC-8QO SH ETH - 1414412
Technical data
Ambient conditions
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Signal type/category
Status display
Overvoltage category
Pollution degree
Connection method
Conductor cross section
AWG conductor cross section
Wire diameter including insulation
Frequency of connections between conductors of the same cross section
Wire insulation material
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
Torque
Assembly instructions
0.6 A (30 W)
57 V DC
8
≥ 100 MΩ
Ethernet CAT6
A
(IEC 11801), 10 Gbps
No
III
3
Insulation displacement connection
0.14 mm² ... 0.34 mm²
26 ... 22
0.75 mm ... 2 mm
10
PVC / PE / PP / rubber
Class 2-6
5 Nm (Pressure nut)
If the conductor is to be reconnected, it must be cut off above the last
contact point.
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Standards/regulations
V0
CuSn
Ni/Au
PA 6.6
Zinc die-cast, nickel-plated
Zinc die-cast, nickel-plated
NBR
PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and
R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
27143423
27143423
10/20/2015 Page 2 / 3
https://www.phoenixcontact.com/us/products/1414412
Conductor connectors - SACC-CC-8QO SH ETH - 1414412
Classifications
ETIM
ETIM 5.0
EC002635

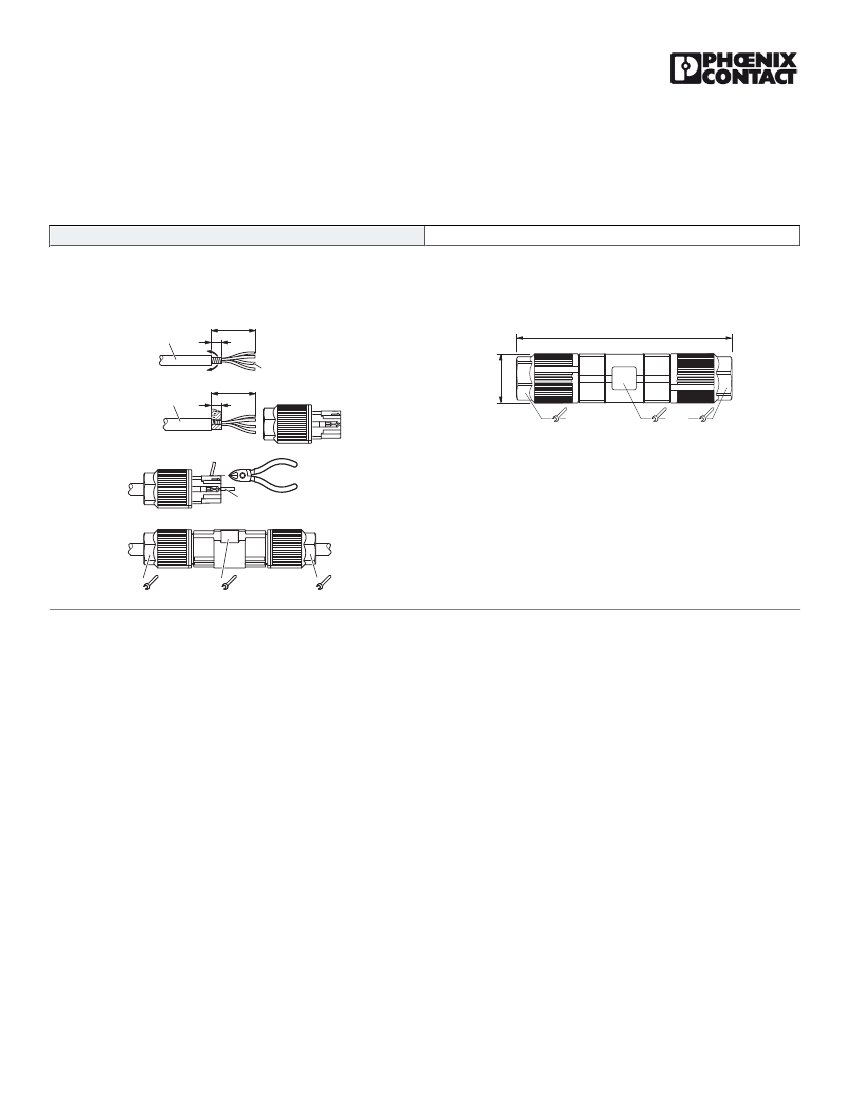

Drawings
Functional drawing
Ø 5 - 6 mm
6
80
Dimensional drawing
83
Ø 6 - 9,7 mm 6
80
19
0,14 - 0,34 mm²
15
17
15
PVC/PE/PP/rubber
15
5Nm
17
15
5Nm
