FNA23060 600 V Motion SPM® 2 Series
August 2015
FNA23060
600 V Motion SPM
®
2 Series
Features
• UL Certified No. E209204 (UL1557)
• 600 V - 30 A 3-Phase IGBT Inverter, Including Control
ICs for Gate Drive and Protections
• Low-Loss, Short-Circuit-Rated IGBTs
• Very Low Thermal Resistance Using Al
2
O
3
DBC
Substrate
• Built-In Bootstrap Diodes and Dedicated Vs Pins
Simplify PCB Layout
• Separate Open-Emitter Pins from Low-Side IGBTs for
Three-Phase Current Sensing
• Single-Grounded Power Supply Supported
• Built-In NTC Thermistor for Temperature Monitoring
and Management
• Adjustable Over-Current Protection via Integrated
Sense-IGBTs
• Isolation Rating of 2500 Vrms / 1 min.
General Description
The FNA23060 is a Motion SPM
®
2 module providing a
fully-featured, high-performance inverter output stage for
AC induction, BLDC, and PMSM motors. These modules
integrate optimized gate drive of the built-in IGBTs to
minimize EMI and losses, while also providing multiple

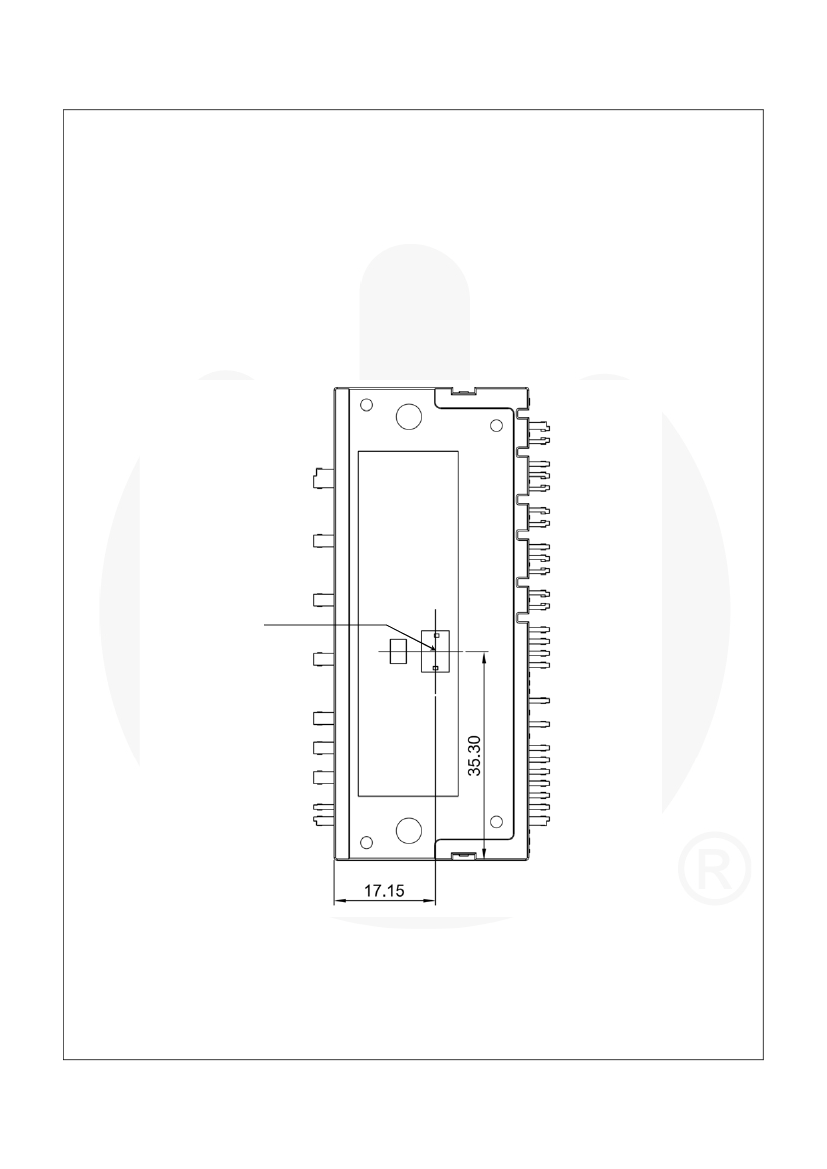

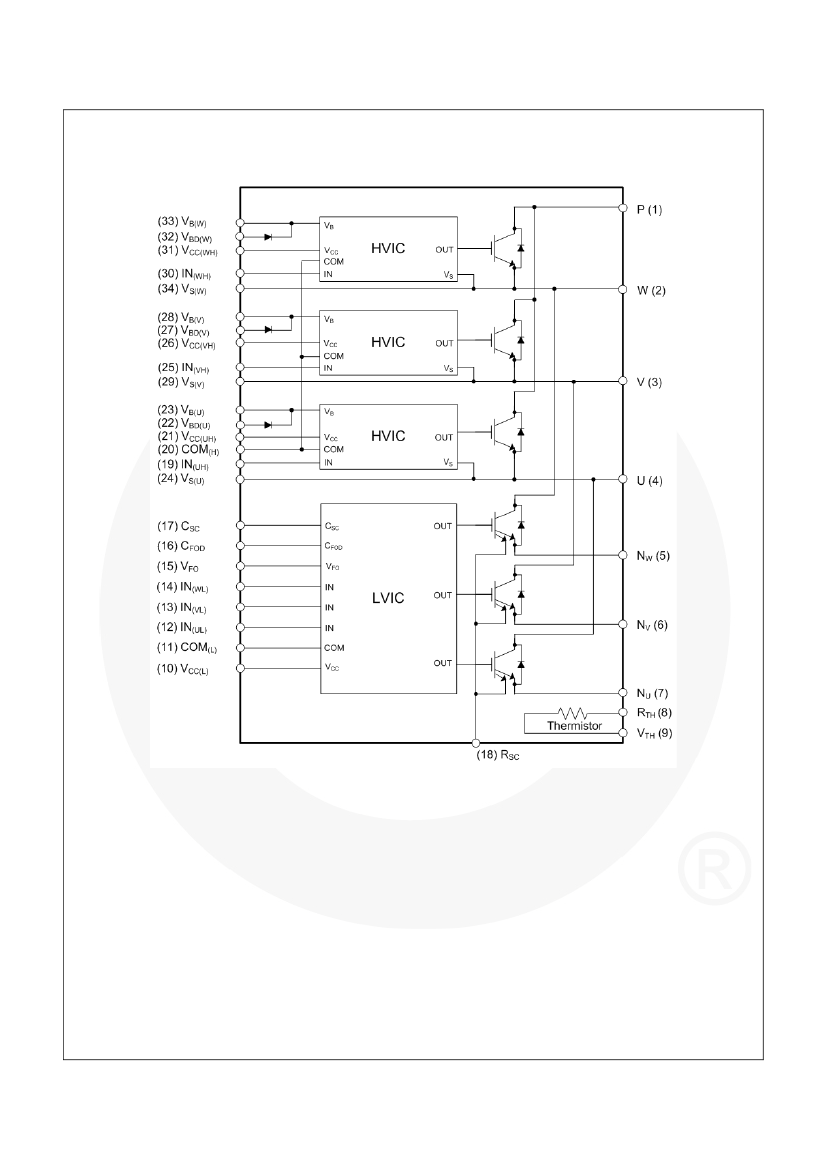

1. Inverter high-side is composed of three normal-IGBTs, freewheeling diodes, and one control IC for each IGBT.
2. Inverter low-side is composed of three sense-IGBTs, freewheeling diodes, and one control IC for each IGBT. It has gate drive and protection functions.
3. Inverter power side is composed of four inverter DC-link input terminals and three inverter output terminals.
