VJ0402D5R1CLXAC datasheet, PDF

Datasheet> All Categories > Passive components> VJ0402D5R1CLXAC

VJ0402D5R1CLXAC: DescriptionCAP CER 5.1PF 25V C0G/NP0 0402; CategoryPassive components; File Size141KB，11 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

VJ0402D5R1CLXAC Overview

CAP CER 5.1PF 25V C0G/NP0 0402

VJ0402D5R1CLXAC Parametric

Parameter Name	Attribute value
capacitance	5.1pF
Tolerance	±0.25pF
Voltage - Rated	25V
Temperature Coefficient	C0G，NP0
Operating temperature	-55°C ~ 125°C
characteristic	High Q value, low loss
grade	-
application	RF, microwave, high frequency
Installation type	Surface mount, MLCC
Package/casing	0402 (1005 Metric)
size/dimensions	0.040" long x 0.020" wide (1.02mm x 0.51mm)
Height - Installation (maximum)	-
Thickness (maximum)	0.024"（0.61mm）
lead spacing	-
Lead form	-

Preview

Download Datasheet

View All

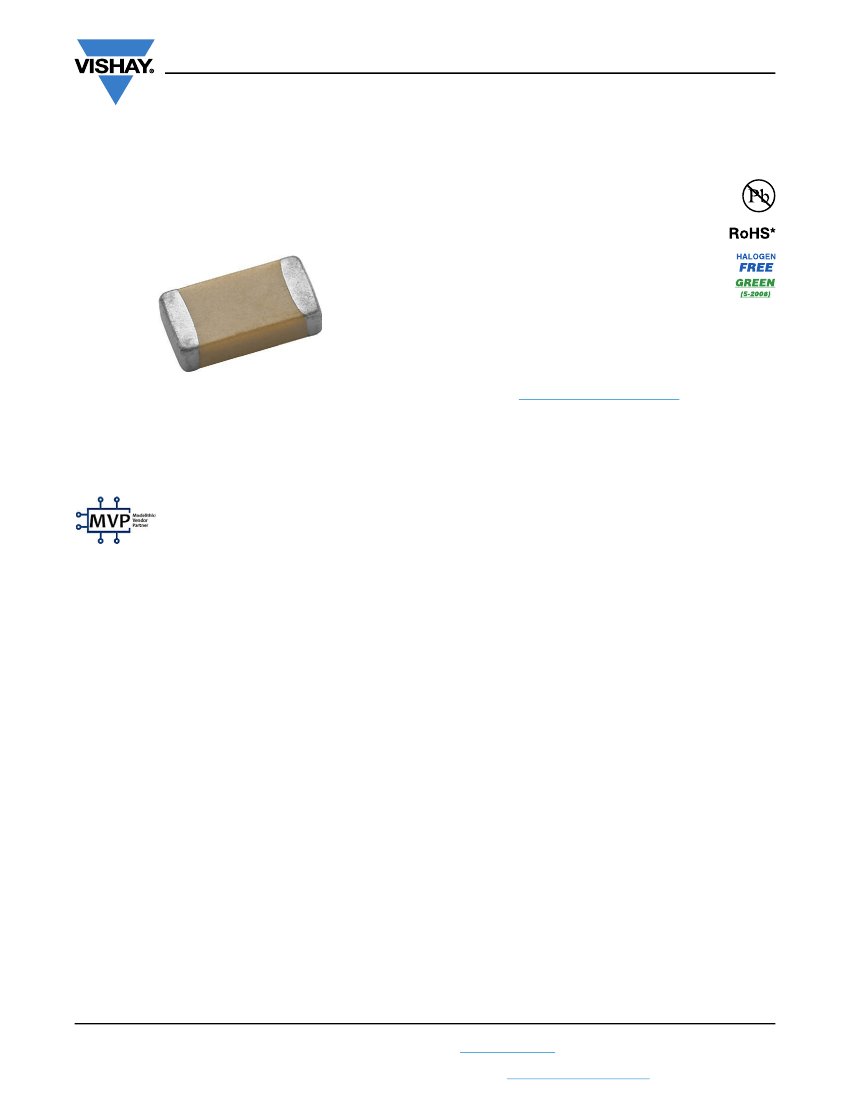

VJ HIFREQ Series

www.vishay.com

Vishay Vitramon

Surface Mount Multilayer

Ceramic Chip Capacitors for High Frequency

FEATURES

Case size 0402, 0603, 0805

Available

High frequency

Ultra-stable dielectric material

Available

Non-magnetic copper termination “C”

Lead (Pb)-free terminations code “X”

Tin / lead termination code “L”

Available

Surface mount, wet build process

Reliable Noble Metal Electrode (NME) system

Made with a combination of design, materials and tight

process control to achieve very high field reliability

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

•

DESIGN TOOLS

(click logo to get started)

APPLICATIONS

•

RF and microwave

Broadband communication

Satellite communication

Base stations

Medical instrumentation and test

Military devices (radar, communication, etc.)

Wireless devices

ELECTRICAL SPECIFICATIONS

Note

• Electrical characteristics at 25 °C unless otherwise specified

Operating Temperature:

-55 °C to +125 °C

Capacitance Range:

0402: 0.1 pF to 82 pF

0603: 0.1 pF to 470 pF

0805: 0.1 pF to 1.5 nF

Voltage Rating:

25 V

to 250 V

Temperature Coefficient of Capacitance (TCC):

C0G (D): 0 ppm/°C ± 30 ppm/°C from -55 °C to +150 °C with

zero (0) V

applied

Dissipation Factor (DF):

C0G (D): 0.05 % max. at 1.0 V

RMS

and 1 MHz

for values



1000 pF

C0G (D): 0.05 % max. at 1.0 V

RMS

and 1 kHz

for values > 1000 pF

Aging Rate:

0 % maximum per decade

Insulation Resistance (IR):

at +25 °C and rated voltage 100 000 M minimum or

1000

F,

whichever is less

at +125 °C and rated voltage 10 000 M minimum or

100

F,

whichever is less

Dielectric Strength Test:

performed per method 103 of EIA-198-2-E.

Applied test voltages:



200 V

-rated: min. 250 % of rated voltage

> 200 V

-rated: min. 200 % of rated voltage

Revision: 19-Jun-2018

Document Number: 45071

For technical questions, contact:

mlccrf@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
