CMOZ1L8 THRU CMOZ47L
SURFACE MOUNT
LOW LEVEL SILICON ZENER DIODE
1.8 VOLTS THRU 47 VOLTS
250mW, 5% TOLERANCE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMOZ1L8 Series
Low Level Zener Diode is a high quality voltage
regulator in an epoxy-molded ULTRAmini™ package,
designed for applications requiring an extremely low
operating current and low leakage.
MARKING CODE: SEE MARKING CODE ON
ELECTRICAL CHARACTERISTICS TABLE
SOD-523 CASE
MAXIMUM RATINGS:
(TA=25°C)
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
PD
TJ, Tstg
Θ
JA
UNITS
mW
°C
°C/W
250
-65 to +150
500
ELECTRICAL CHARACTERISTICS:
(TA=25°C), VF=0.9 MAX @ IF=10mA (for all types)
ZENER
VOLTAGE
VZ @ IZT
MIN
V
CMOZ1L8
CMOZ2L0
CMOZ2L2
CMOZ2L4
CMOZ2L5
CMOZ2L7
CMOZ3L0
CMOZ3L3
CMOZ3L6
CMOZ3L9
CMOZ4L3
CMOZ4L7
CMOZ5L1
CMOZ5L6
CMOZ6L2
CMOZ6L8
CMOZ7L5
CMOZ8L2
CMOZ9L1
CMOZ10L
CMOZ11L
1.71
1.90
2.09
2.28
2.37
2.57
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.89
6.46
7.12
7.79
8.65
9.50
10.45
NOM
V
1.8
2.0
2.2
2.4
2.5
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
MAX
V
1.89
2.10
2.31
2.52
2.63
2.84
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.51
7.14
7.88
8.61
9.56
10.50
11.55
TEST
CURRENT
IZT
μA
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
MAXIMUM
ZENER
IMPEDANCE
ZZT @ IZT
Ω
1400
1400
1400
1400
1500
1500
1600
1600
1700
1600
1600
1500
1500
1400
1200
200
200
200
200
200
200
IR
μA
25
25
25
25
10
5.0
5.0
5.0
5.0
5.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
REVERSE
CURRENT
@
VR
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
1.5
1.5
2.0
2.0
3.5
3.5
6.0
6.0
8.0
8.0
L8
L9
L0
M1
M2
M3
M30
M4
M5
M6
M7
M8
M9
M0
N1
N2
N3
N4
N5
N6
N7
TYPE
MARKING
CODE
R8 (11-April 2011)
CMOZ1L8 THRU CMOZ47L
SURFACE MOUNT
LOW LEVEL SILICON ZENER DIODE
1.8 VOLTS THRU 47 VOLTS
250mW, 5% TOLERANCE
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C), VF=0.9 MAX @ IF=10mA (for all types)
ZENER
VOLTAGE
VZ @ IZT
MIN
V
CMOZ12L
CMOZ13L
CMOZ15L
CMOZ16L
CMOZ18L
CMOZ20L
CMOZ22L
CMOZ24L
CMOZ27L
CMOZ30L
CMOZ33L
CMOZ36L
CMOZ39L
CMOZ43L
CMOZ47L
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
NOM
V
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
MAX
V
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
TEST
CURRENT
IZT
μA
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
MAXIMUM
ZENER
IMPEDANCE
ZZT @ IZT
Ω
200
200
100
100
100
150
150
150
150
200
250
200
200
250
250
IR
μA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
REVERSE
CURRENT
@
VR
V
10.5
10.5
11.5
14
16
18
20
22
24
27
30
33
36
40
43
N8
N9
N0
P1
P2
P3
P4
P5
P6
P7
P8
P9
P0
R1
R2
TYPE
MARKING
CODE

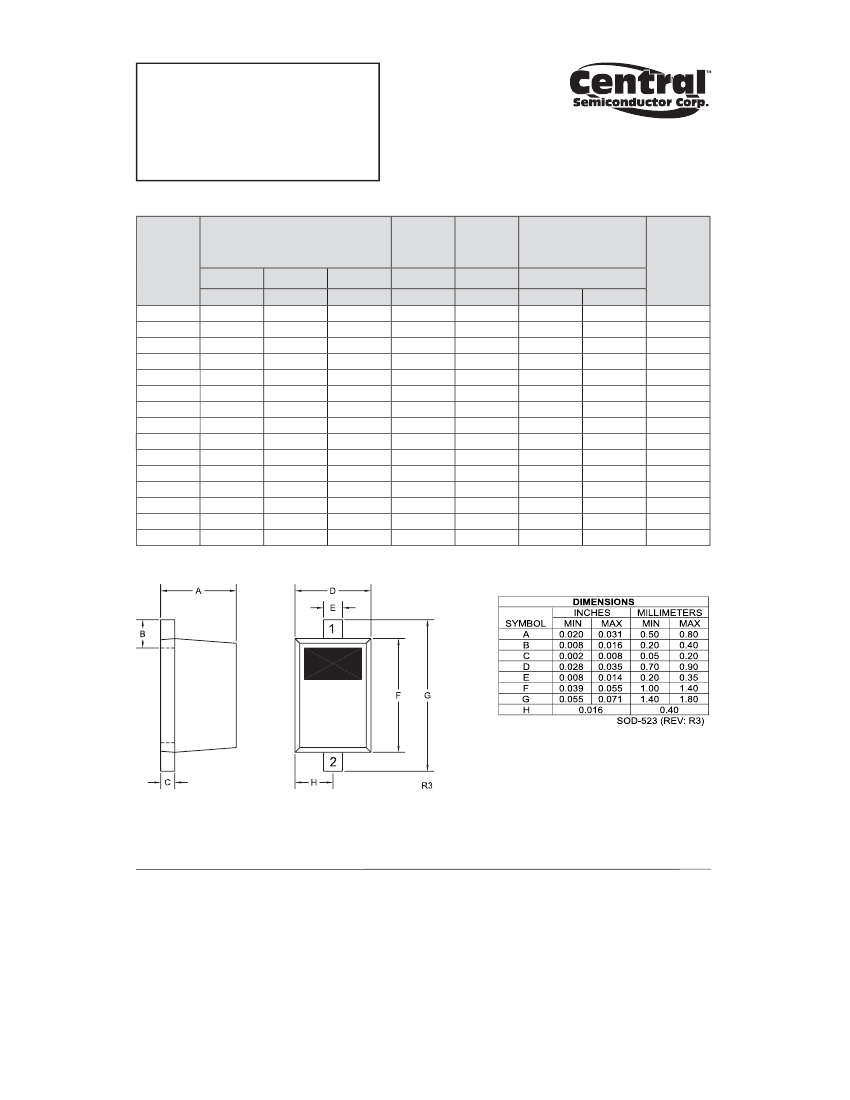

SOD-523 CASE - MECHANICAL OUTLINE
LEAD CODE:
1) Cathode
2) Anode
R8 (11-April 2011)
