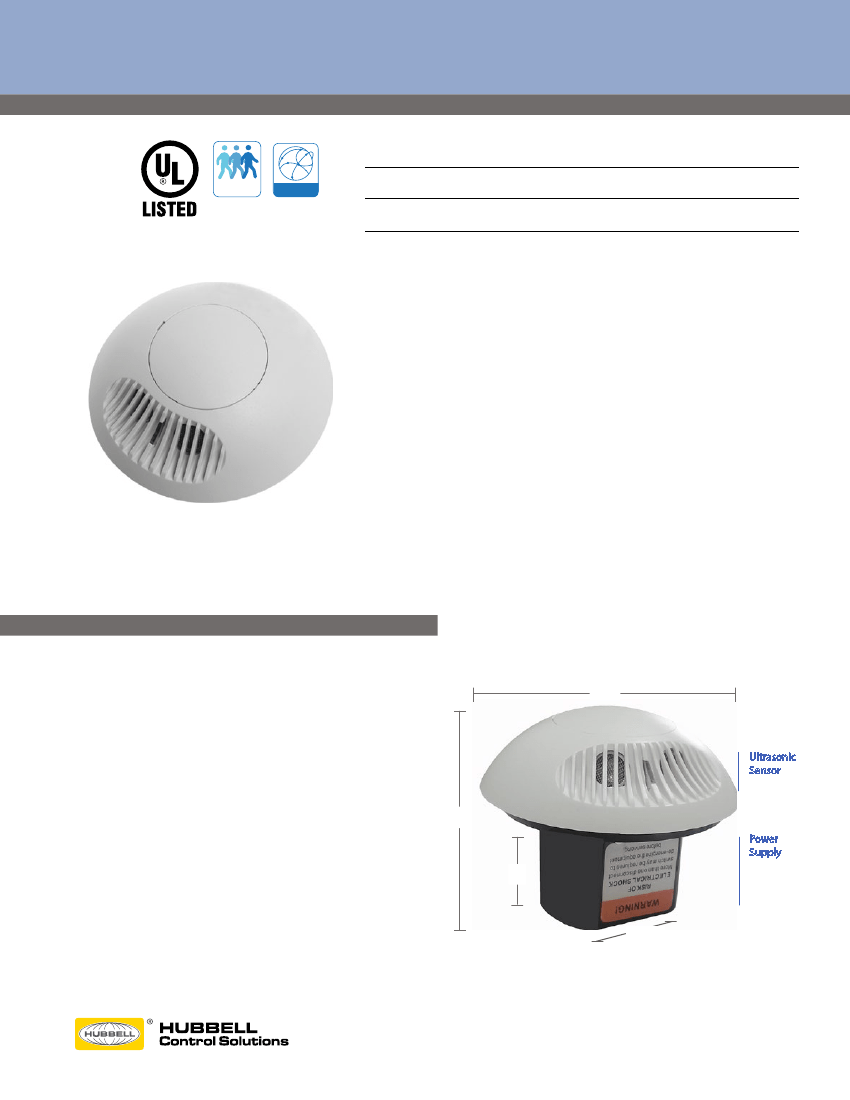

OMNI®-BP Line Voltage Ultrasonic Ceiling Sensor
CEILING MOUNT OCCUPANCY SENSORS
24
COMPLIANCE
TITLE
PROJECT INFORMATION
OCCUPANCY
Project Name
IntelliDAPT
SENSING
Catalog No.
Date
The
OMNIUSBP1277
line voltage ceiling sensor uses ultrasonic (US) technology to
turn lighting on and off based on occupancy. Designed specifically for both areas
with obstructions (e.g. columns, cubicles, stalls, and filing cabinets) and areas with
long periods of minor-motion activity (e.g. typing), this sensor features Hubbell
Controls' patented IntelliDAPT® technology, which makes all the sensor
adjustments automatically.
Throughout the product’s lifespan, smart software analyzes the controlled area and
makes digital adjustments to sensitivity and timer settings. Occupancy sensors with
IntelliDAPT
technology provide a maintenance-free install-and-forget operation.
OMNIUS500BP1277
PRODUCT FEATURES
•
IntelliDAPT
self-adaptive technology — no manual
adjustment required
• Superior all-digital ultrasonic (US) minor motion detection
• Non-volatile memory for sensor settings
• 500–2,000 square-foot coverage area (depending on model)
• Self-contained power supply
• Universal voltage (120-277VAC; 50/60 Hz)
• UL and cUL listed
• California Title 24 compliant
• Five-year warranty
•
120-277 Vac
4.5”
Ultrasonic
Sensor
3.4”
Power
Supply
1.95”
2.5”
23'
32'
23'
32' 23'
23'
Minor Motion
Major Motion
32'
23'
Minor Motion
Major Motion
45'
64'
Minor Motion
Major Motion
US 500 Range
US 1000 Range
US 2000 Range
General Specifications
IntelliDAPT® Technology
Auto reset from test setting
Self-adjusting timer
Self-adjusting ultrasonic thresholds
Automatic false-on/false-off corrections
Green—ultrasonic motion
Automatic mode: 8–30 min. (self-adjusts based on occupancy)
Test mode: 8 seconds (for an easy check at installation)
Ultrasonic (US) output
Coverage
Power requirements
Single phase only
Output
Relay Contact Rating
OMNIUS500: 40kHz output
OMNIUS1000 and OMNIUS2000: 32kHz output
500–2,000 square feet (depending on model)
120-277VAC; 50/60Hz
24 VDC active high-logic control signal with short circuit protection
20A: 120VAC Incandescent
20A: 120 or 277VAC Magnetic Ballast
16A: 120 or 277VAC Electronic Ballast
1HP: 120VAC Motor Load
3/4HP: 277VAC Motor Load
Operating environment
Indoor use only
Operating temperature: 32° to 104°F (0° to 40°C)
Relative humidity (non-condensing): 0% to 95%
Construction
Casing - rugged, high-impact, injection-molded plastic KJB ABS
Cycolac (UL-945VA) flame class rating, UV inhibitors
Color-coded leads are 6” long
Size and weight
Color
Mounting
Certifications
Warranty
Size: 4.5” diameter, 3.4” height (114 mm diameter, 86.4mm height)
Weight: 8.2 oz (232g)
Off-white
Mounting using a3 inch mud ring attached to 4 inch square electrical box
Recommended MAX mounting height: 12ft.
UL and cUL listed
Five years
LED lamp
Timer timeout
Ordering Information
OMNIUS500BP1277
OMNIUS1000BP1277
OMNIUS2000BP1277
MODEL
Line Voltage Ultrasonic
Ceiling Sensor 500 Sq Ft coverage
Line Voltage Ultrasonic
Ceiling Sensor 1000 Sq Ft coverage
Line Voltage Ultrasonic
Ceiling Sensor 2000 Sq Ft coverage
9601 Dessau Road | Building One | Austin, Texas 78754 | 512-450-1100 | 512-450-1215 fax | www.hubbell-automation.com
1402A 2.3.2016
