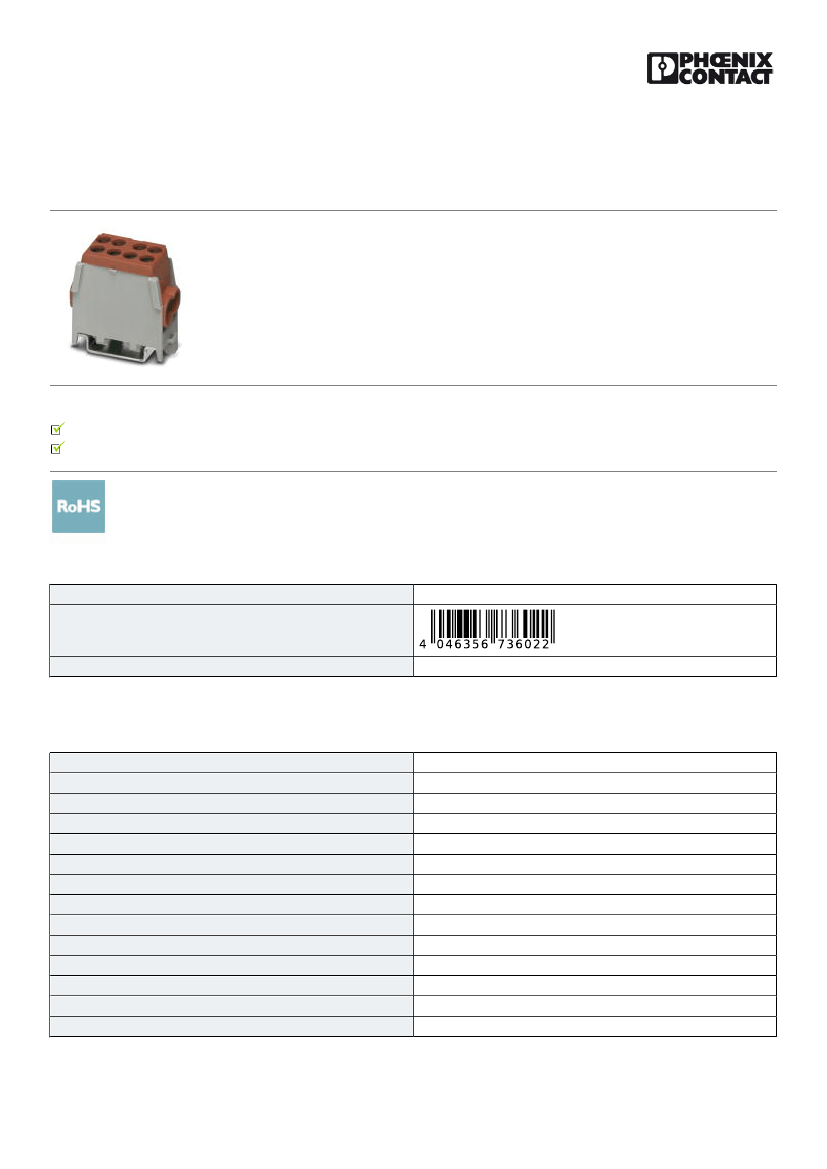

Trunk line branch terminal - UDB 2X25/16 BN - 3071357
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Trunk line branch terminal, nom. voltage: 400 V, nominal current: 101 A, connection method: Screw
connection, Screw connection, number of connections: 4, number of positions: 1, cross section:1.5 mm² - 25
mm², AWG: 8 - 2, width: 23 mm, color: brown, mounting type: NS 35/7,5, NS 35/15
Your advantages
The branch terminal is suitable for the simple voltage pick-off of main supply cables
Conformance with DIN VDE 0603‑2/EN 60998‑1
Key Commercial Data
Packing unit
GTIN
GTIN
4046356736022
5 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
1
1
4
1
25 mm²
brown
PA
V0
8 kV
3
III
I
3.26 W
101 A
10/07/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3071357
Trunk line branch terminal - UDB 2X25/16 BN - 3071357
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
101 A
400 V (max. 1000 V)
No
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
23 mm
46 mm
42 mm
49.5 mm
Connection data
Connection method
Connection in acc. with standard
Note
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Tightening torque, min
Tightening torque max
Screw connection
IEC 60998-1
Use ferrules for stranded conductors
1.5 mm²
25 mm²
8
2
10 mm²
25 mm²
8
3
1.5 mm²
1.5 mm²
10 mm²
16 mm
M5/M6
2.2 Nm
2.5 Nm
Screw connection
IEC 60998-1
1.5 mm²
16 mm²
1.5 mm²
1.5 mm²
6 mm²
16 mm
1.7 Nm
2 Nm
10/07/2018 Page 2 / 3
Conductor cross section flexible, with ferrule without plastic sleeve max. 16 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
https://www.phoenixcontact.com/pi/products/3071357
Trunk line branch terminal - UDB 2X25/16 BN - 3071357
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60998-1
IEC 60998-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/07/2018 Page 3 / 3
