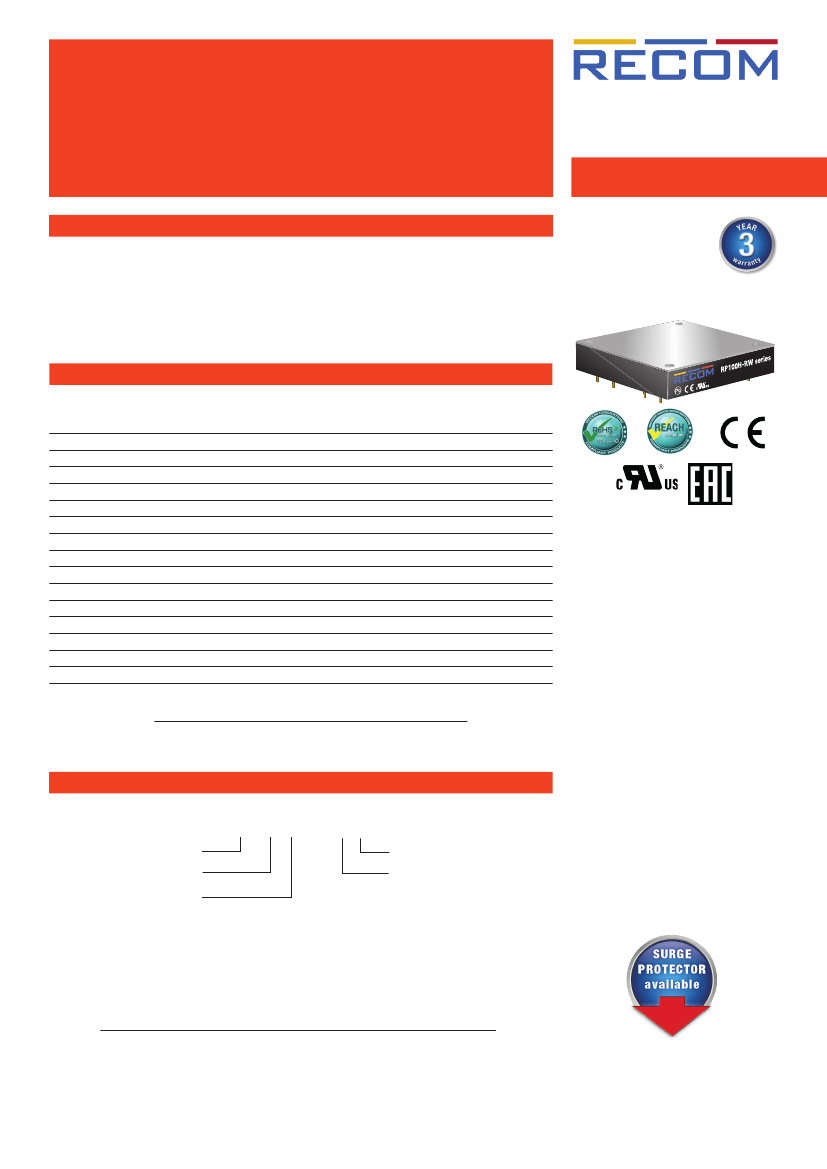

Features
Regulated
Converter
Description
• 4:1 wide input range
• 3kVAC reinforced insulation for 110Vin
2.25kVDC basic insulation for 24Vin & 48Vin
• Efficiency up to 93%
• No minimum load required
• EN50155, IEC/EN60950-1 & UL60950-1 certified
DC/DC Converter
RP100H-RW
100 Watt
Half Brick
Single Output
The half-brick RP100H series DC/DC converters are designed for railway rolling stock and high voltage battery
applications. Each series has three 4:1 input voltage range options to cover all input voltages from 9VDC up to
160VDC with isolated and regulated 5V to 48VDC outputs. The converters have high efficiencies and metal base-
plates to permit a wide operating temperature range from -40°C to +85°C (when mounted on a suitable heatsink).
The case is fitted with threaded inserts to allow secure mounting to the PCB or bulkhead for use in high shock
and vibration environments. The converters are EN50155, UL60950 and IEC/EN60950 certified. The RP100H-RW
series have a three year warranty.
Selection Guide
Input
Output
Voltage Range Voltage
[VDC]
[VDC]
RP100H-2405SRW
9-36
5
RP100H-2412SRW
9-36
12
RP100H-2415SRW
9-36
15
RP100H-2424SRW
9-36
24
RP100H-2448SRW
9-36
48
RP100H-4805SRW
16.5-75
5
RP100H-4812SRW
16.5-75
12
RP100H-4815SRW
16.5-75
15
RP100H-4824SRW
16.5-75
24
RP100H-4848SRW
16.5-75
48
RP100H-11005SRW 43-160
5
RP100H-11012SRW 43-160
12
RP100H-11015SRW 43-160
15
RP100H-11024SRW 43-160
24
RP100H-11048SRW 43-160
48
Notes:
Note1:
Part Number
Output
Current
[mA]
20000
8400
6700
4200
2100
20000
8400
6700
4200
2100
20000
8400
6700
4200
2100
Input
(1)
Current
[mA]
4480
4666
4601
4666
4666
2240
2333
2300
2333
2307
1010
1018
1015
1018
1007
Output Efficiency
(1)
Max. Capacitive
Power
typ.
Load
[W]
[%]
[µF]
100
93
40000
101
90
7000
100
91
4460
101
90
1750
101
90
430
100
93
40000
101
90
7000
100
91
4460
101
90
1750
101
90
430
100
93
40000
101
90
7000
100
91
4460
101
90
1750
101
90
430
E196683
EN50155 certified
IEC/EN60950-1 certified
UL60950-1 certified
Efficiency is tested by nominal Vin, full load and at 25°C
Model Numbering
RP100H-__ __SRW/_ _
Input Voltage
Output Voltage
Single
Ordering Examples
RP100H-2405SRW/N = 24V Input, 5V Output, Single, Neg. CTRL function
RP100H-11012SRW/P = 110V Input, 12V Output, Single, Pos. CTRL function
RP100H-2405SRW/N-HC = 24V Input, 5V Output, Single, Neg. CTRL function, premounted Heat-sink
Notes:
Note2: standard part is with suffix “P” for positive logic (1=ON, 0=OFF)
or add suffix “N” instead for negative logic (0=ON, 1=OFF)
Note3: add suffix “-HC” for premounted Heat-sink
(compatible with all other suffixes)
www.recom-power.com
REV.: 3/2018
Package
(3)
CTRL Logic
(2)
https://www.recom-power.com/pdf/
Powerline_DC-DC/RSPxxx-168.pdf
PA-1
RP100H-RW
DC/DC Converter
Specifications
(measured @Ta = 25°C, resistive load, nominal Vin and rated Iout unless otherwise noted)
BASIC CHARACTERISTICS
Parameter
Internal Input Filter
Input Voltage Range
nom Vin = 24V
nom Vin = 48V
nom Vin = 110V
Vin = 24V, 1s max.
Vin = 48V, 1s max.
Vin = 110V, 1s max.
Vin = 24V
Vin = 48V
Vin = 110V
Power up
Remote ON/OFF
Vin = 24V, Vin =48V
Vin = 110V
Measured by 20MHz BW
with a 1µF/25V X7R MLCC & a 22µF/25V POS Cap
with a 1µF/25V X7R MLCC & a 22µF/25V POS Cap
with a 4.7µF/50V X7R MLCC
with a 2.2µF/100V X7R MLCC
Vin = 24V
Under Voltage Lockout (UVLO)
Vin = 48V
Vin = 110V
Positive Logic
ON/OFF Control
Negative Logic
Input current of CTRL pin
Standby Current
Output Trim
Remote Sense
% of nom Vout
-20%
225kHz
270kHz
0%
5 Vout
12, 15Vout
24Vout
48Vout
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
-0.5mA
3mA
+10%
10%
100
90
80
Series
Condition
Min.
9VDC
16.5VDC
43VDC
Typ.
24VDC
48VDC
110VDC
Max.
Pi-Type
36VDC
75VDC
160VDC
50VDC
100VDC
185VDC
Input Surge Voltage
Quiescent Current
25mA
15mA
10mA
75ms
75ms
250kHz
300kHz
35mA
25mA
Start-up time
Internal Operating Frequency
Minimum Load
275kHz
330kHz
Ripple and Noise
75mVp-p
100mVp-p
200mVp-p
300mVp-p
7.3VDC
15.5VDC
33.0VDC
9VDC
8.1VDC
18VDC
16.3VDC
43VDC
36.0VDC
Open or 3.0V < Vr < 12V
Short or 0V < Vr < 1.2V
Short or 0V < Vr < 1.2V
Open or 3.0V < Vr < 12V
1mA
RP100H-2405SRW
100
90
80
70
60
50
40
30
20
10
0
10
20
Efficiency vs. Output Current
Efficiency vs. Input Voltage
Efficiency [%]
Efficiency [%]
70
60
50
40
30
20
10
100% Load
50% Load
25% Load
9Vin
24Vin
36Vin
30
40
50
60
70
80
90
100
9
12
15
18
21
24
27
30
33
36
Output Current [%]
www.recom-power.com
continued on next page
REV.: 3/2018
Input Voltage [V]
PA-2
RP100H-RW
DC/DC Converter
Specifications
(measured @Ta = 25°C, resistive load, nominal Vin and rated Iout unless otherwise noted)
RP100H-2405SRW
18
15
12
9
6
3
0
9Vin
24Vin
36Vin
10
20
30
40
50
60
70
80
90
100
Series
Typical Output Ripple and Noise/full load
Power Dissipation vs. Output Current
Power Dissipation [W]
Output Current [%]

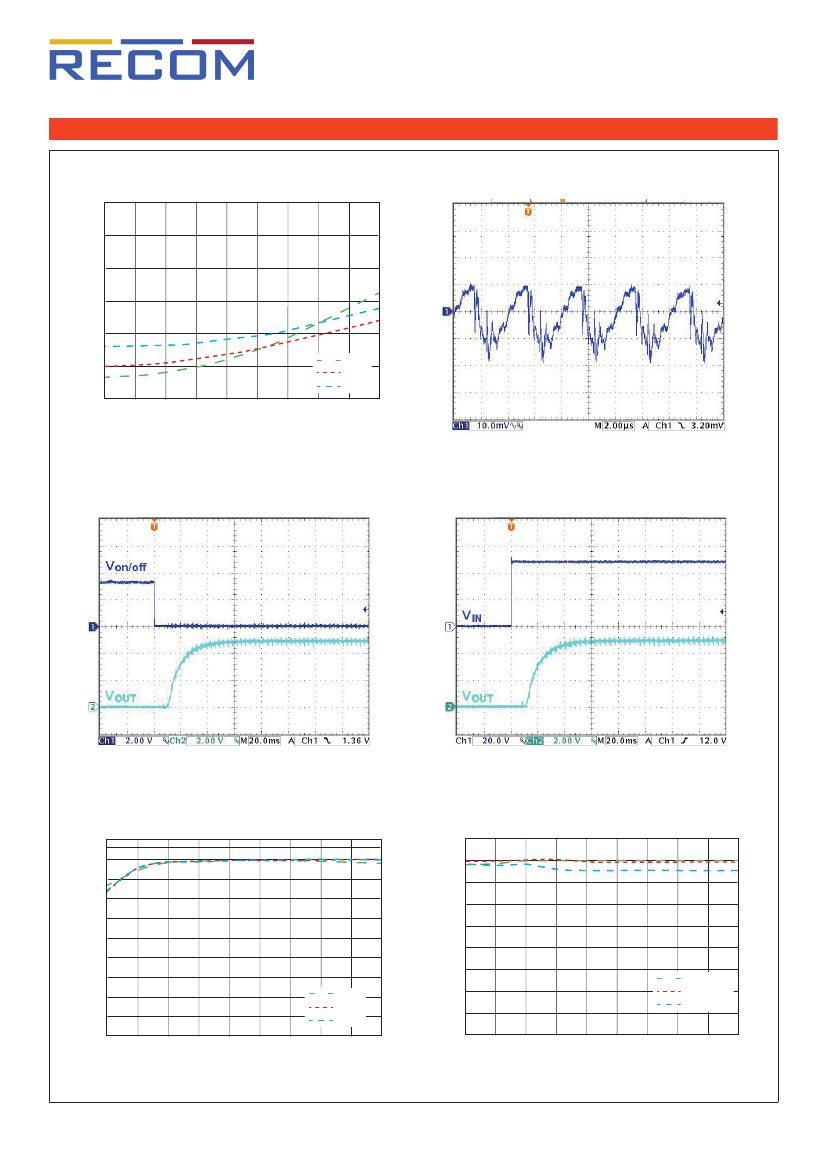

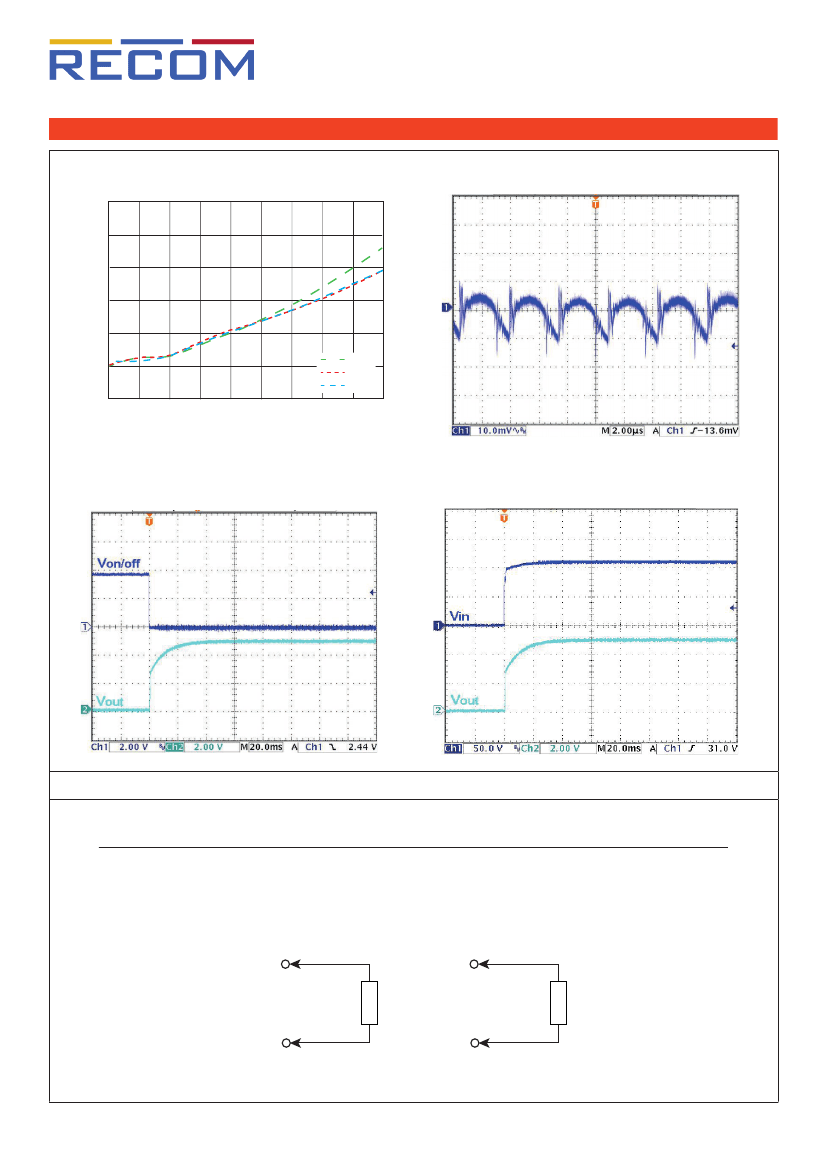

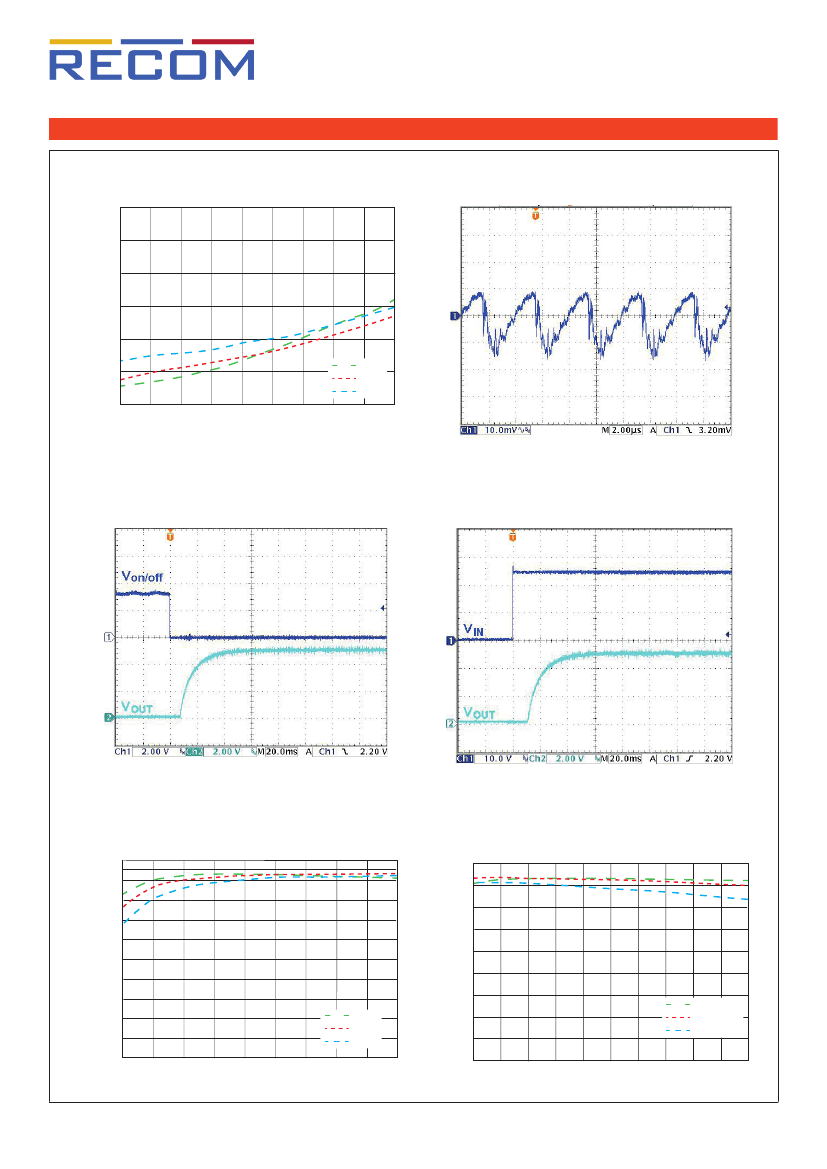

ON/OFF Control Start-up Rise Characteristic
Power up Start-up Characteristic
RP100H-4805SRW
100
90
80
Efficiency vs. Output Current
100
90
80
Efficiency vs. Input Voltage
Efficiency [%]
Efficiency [%]
70
60
50
40
30
20
10
0
10
20
30
40
50
60
70
80
16.5Vin
48Vin
75Vin
90
100
70
60
50
40
30
20
10
16.5
24
30
36
42
48
54
60
100% Load
50% Load
25% Load
66
72
75
Output Current [%]
www.recom-power.com
continued on next page
REV.: 3/2018
Input Voltage [V]
PA-3
RP100H-RW
DC/DC Converter
Specifications
(measured @Ta = 25°C, resistive load, nominal Vin and rated Iout unless otherwise noted)
RP100H-4805SRW
18
15
Series
Typical Output Ripple and Noise/full load
Power Dissipation vs. Output Current
Power Dissipation [W]
12
9
6
3
0
16.5Vin
48Vin
75Vin
10
20
30
40
50
60
70
80
90
100
Output Current [%]
ON/OFF Control Start-up Rise Characteristic
Power up Start-up Characteristic
RP100H-11005SRW
100
90
80
70
60
50
40
30
20
10
0
10
20
30
40
50
60
70
80
43Vin
110Vin
160Vin
90
100
Efficiency vs. Output Current
100
90
80
Efficiency vs. Input Voltage
Efficiency [%]
Efficiency [%]
70
60
50
40
30
20
10
43
60
65
80
95
110
125
100% Load
50% Load
25% Load
140
155 160
Output Current [%]
continued on next page
www.recom-power.com
REV.: 3/2018
Input Voltage [V]
PA-4
RP100H-RW
DC/DC Converter
Specifications
(measured @Ta = 25°C, resistive load, nominal Vin and rated Iout unless otherwise noted)
RP100H-11005SRW
Power Dissipation vs. Output Current
18
15
12
9
6
3
0
43Vin
110Vin
160Vin
10
20
30
40
50
60
70
80
90
100
Series
Typical Output Ripple and Noise
Power Dissipation [W]
Output Current [%]
ON/OFF Control Start-up Rise Characteristic
Power up Start-up Characteristic
OUTPUT TRIM
Output Voltage Trimming
RP100H-RW converters offer the feature of trimming the output voltage over a certain range around the nominal value by using external trim
resistors. The values for trim resistors shown in trim tables below are according to standard E96 values; therefore, the specified voltage may
slightly vary; they also can be calculated with below shown equation.
TRIM UP
TRIM
R
1
+Sense
TRIM DOWN
-Sense
R
2
TRIM
continued on next page
www.recom-power.com
REV.: 3/2018
PA-5
