Embedded Serial Busses Development Kit
Sku: 53319-577
Development Kit Options
Tools Included
Compiler Software
Programmer
Prototyping board
Power supply & cables
Exercise book
Price
w/Compiler Just H/W
Only PCB

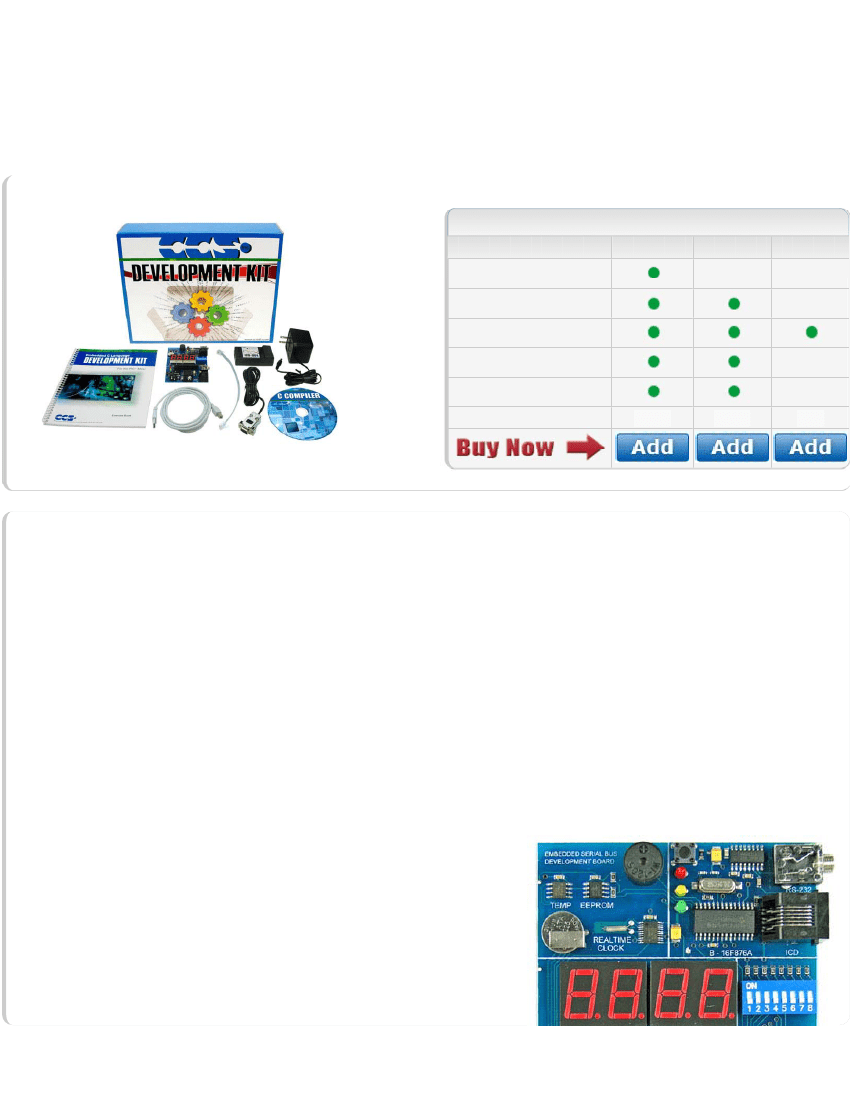

This kit gives users an introduction to SPI and I2C serial buses. The development kit includes the powerful PCW Integrated
Development Environment with compiler support for Microchip's PIC
memory and sensor components between two PIC16 MCUs.
The first node has a PIC16F877A chip connected to a 74HC165 parallel-in/serial-out shift register, which allows its user to read a bank
of eight DIP switches. Four 74HC595 serial-in/ parallel-out shift registers allow the user to display information on a four digit 7-
segment LED display.
The second node has a PIC16F876A chip, which shares an I C temperature sensor and a serial EEPROM with the first node. This allows
for the investigation into data collision while accessing shared components. Both nodes have their own potentiometer, LEDs, push-
button and RS-232 port.
2
®
PIC10, PIC12 and PIC16 families and an ICD-U64 in-circuit
programmer/debugger that supports C-aware real time debugging. The prototyping board has two nodes and shares common I/O,

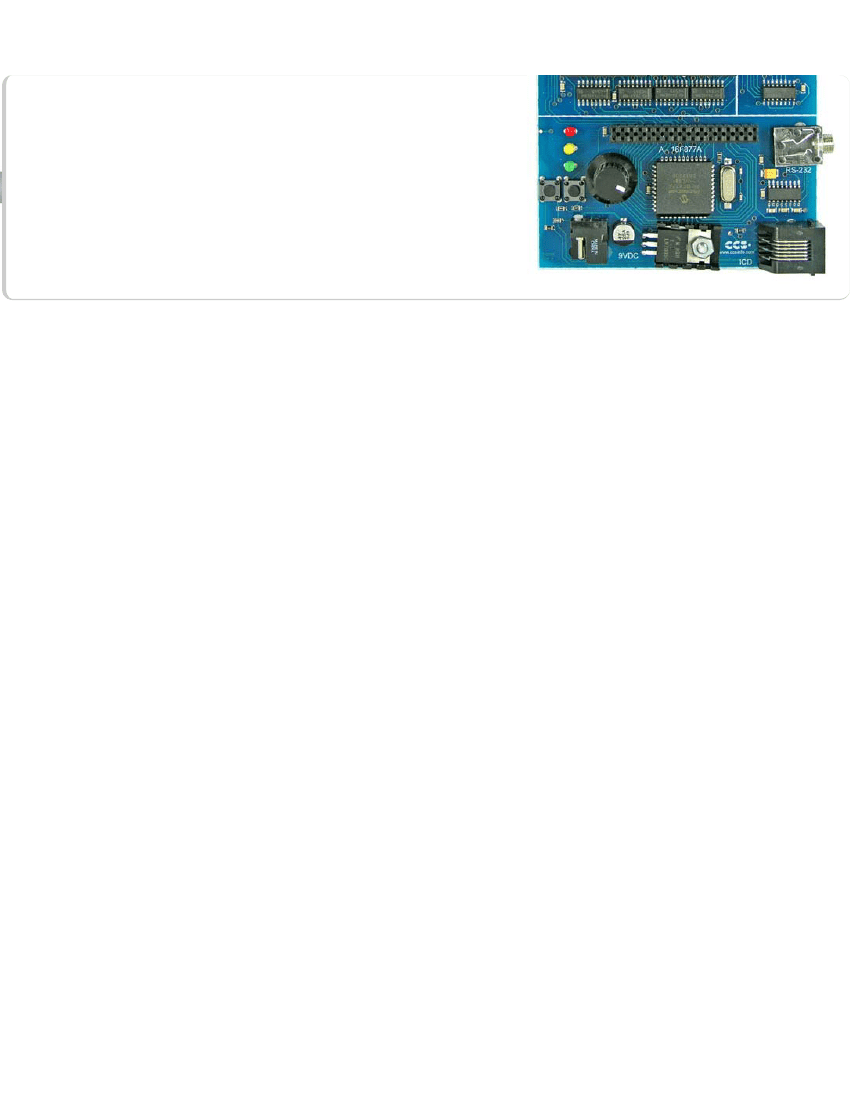

Embedded Serial Busses Prototyping Board (Size 4.5" x 3.25")
includes:
•
•
•
•
PIC16F877A
PIC16F876A
30 I/O Pins (7 Can Be Analog)
Two Nodes
2
• Common I C Bus Between Nodes
• I
2
C EEPROM
•
•
•
•
I C Temperature Sensor
SPI Bus to Real-Time Clock
Three 7-Segment LEDs
8 DIP Switches
2
Page 2 of 2
• Expansion I/O Bus
• Connections Between MCU Nodes for custom communications
Embedded Serial Busses Development
Kit includes:
•
•
•
•
Embedded Serial Busses Development Board
In-Circuit Debugger/Programmer
Exercise Tutorial
9V AC Adapter and Cables
http://www.ccsinfo.com/product_info.php?products_id=embserkit
