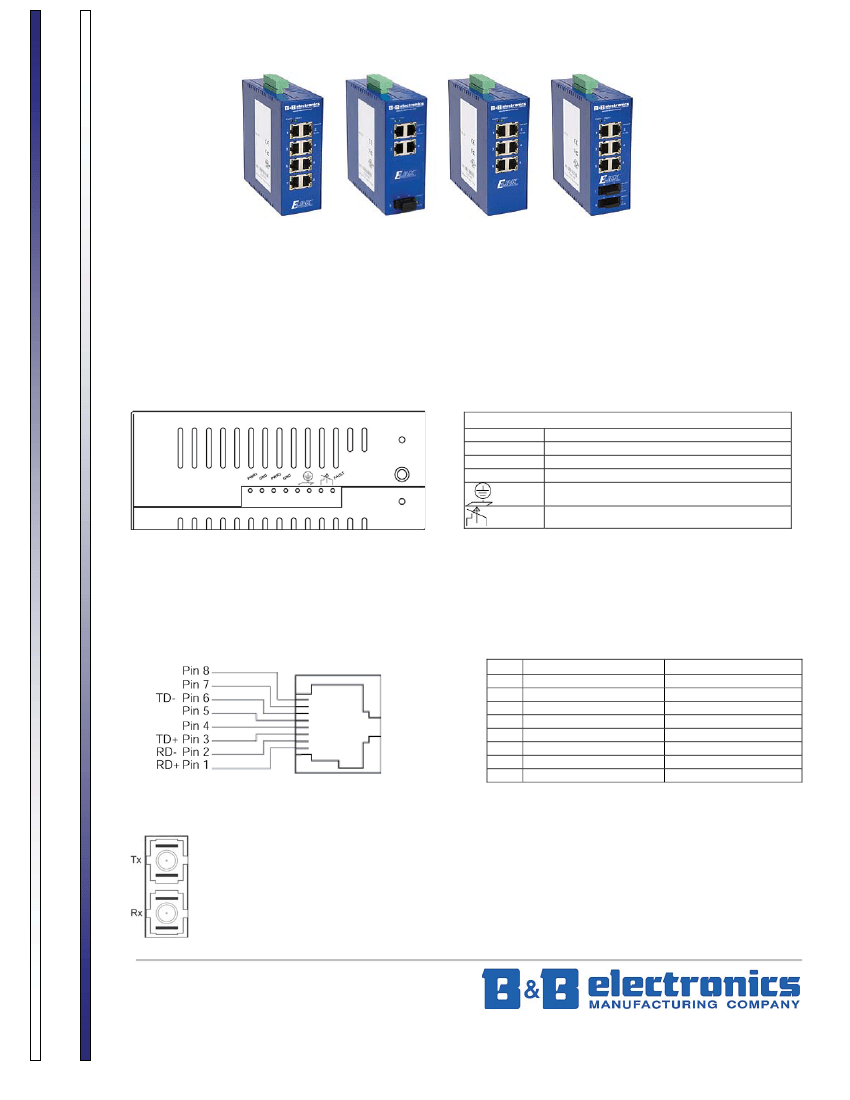

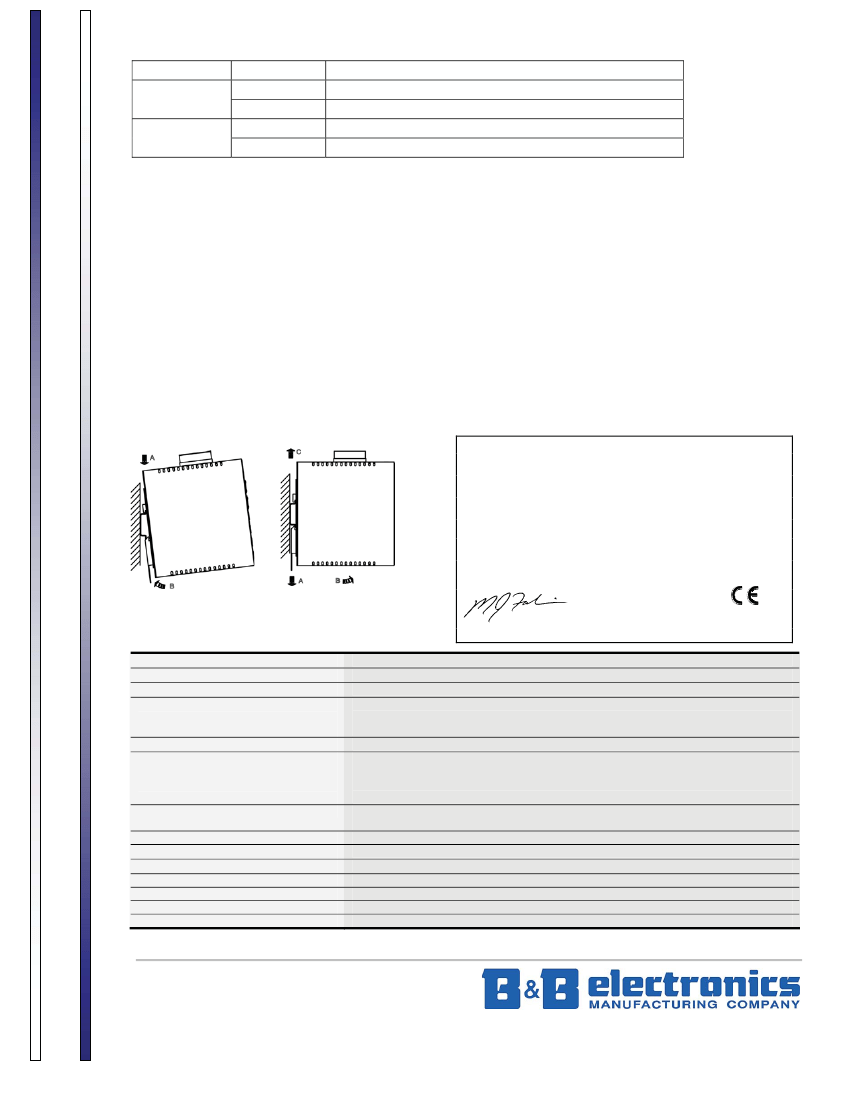

B&B ELECTRONICS
EIR30x series-4206ds
- 1/2
Model: EIR30x series
Description
Hardened Compact Ethernet Switches
This quick installation guide describes how to install and use the hardened compact Ethernet Switch.
Capable of
operating at temperature extremes of -34 to +74°C, this is the switch of choice for harsh environments constrained by
space.
Physical Description
Terminal Block and Power Inputs
Terminal Block
PWR1
Power Input 1 (+24VDC)
GND
Power Ground
PWR2
Power Input 2 (+24VDC)
GND
Power Ground
Earth Ground
FAULT
The relay opens if PWR1 or PWR2 fails (1A)
There are two pairs of voltage inputs that can be used to power up this switch. Redundant voltage supplies
are supported. You only need one voltage supply connected to run the switch.
10/100BaseTX and 100BaseFX Connectors
10/100BaseTX Connections
The following diagram lists the pinouts of 10/100BaseTX ports.
Pin
1
2
3
4
5
6
7
8
Regular Ports
Input Receive Data +
Input Receive Data -
Output Transmit Data +
NC
NC
Output Transmit Data -
NC
NC
Uplink Port
Output Transmit Data +
Output Transmit Data -
Input Receive Data +
NC
NC
Input Receive Data -
NC
NC
PRODUCT INFORMATION
100BaseFX Connections
Fiber Port Pinouts
The Tx (transmit) port of device I is connected to the Rx (receive) port of device II,
and the Rx (receive) port of device I to the Tx (transmit) port of device II.
International Headquarters:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA
815-433-5100 Fax 433-5104
www.bb-elec.com orders@bb-elec.com support@bb-elec.com
European Headquarters:
Westlink Commercial Park Oranmore Co. Galway Ireland
+353 91 792444 Fax +353 91 792445
www.bb-europe.com orders@bb-europe.com support@bb-europe.com
B&B ELECTRONICS
EIR30x series-4206ds
- 2/2
LED
LNK/ACT
(Green)
10/100
(Yellow)
State
Steady
Flashing
Steady
Off
Indication
Network connection established, LNK stands for LINK
Transmitting or receiving data, ACT stands for ACTIVITY
100 Mbps data
10 Mbps data
Functional Description
Meets NEMA TS1/2 Environmental requirements for temperature, shock, vibration for traffic control equipment.
Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment.
Support 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/half-duplex; Auto MDI/MDIX.
100BaseFX: Multi mode SC or ST type; Single mode SC type.
Support 2K MAC addresses. Provides 96K bytes memory buffer.
Alarms for power failure by relay output.
Redundant 10-30 VDC terminal block power inputs.
Operating temperature ranges from -34 to 74°C.
Supports Din-rail mounting installation.
Assembly, Startup, and Dismantling
Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the
mounting surface until it audibly snaps into place.
Startup: Connect the supply voltage to start up the switch via the terminal block.
Dismantling: Pull out the lower edge and then remove the switch from the DIN rail.
DECLARATION OF CONFORMITY
Name:
Address:
B&B Electronics Manufacturing Company
P.O. Box 1040
707 Dayton Road
Ottawa, IL 61350 USA
EIR305-1ST, EIR305-1SC, EIR306, EIR308,
EIR308-2ST, EIR308-2SC, EIR308-2SC-SM
5, 6, 8 port Ethernet Switches[
Light industrial ITE equipment
89/336/EEC
EN 55022
EN 61000 (-3-2, -3-3)
EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)
Model Numbers:
Description:
Type:
Application of Council Directive:
Standards:
Specifications
Hardened Compact Switch
Applicable Standards
Switching Method
Forwarding Rate
10BaseT:
100BaseTX/FX:
Performance
Cable
10BaseT:
100BaseTX:
100BaseFX:
LED Indicators
Dimensions / Net Weight
Power Input
Power Consumption
Operating / Storage Temperature
Humidity
Safety
Emissions
Michael J. Fahrion, Director of Engineering
10/100BaseT/TX auto-negotiating ports with RJ-45 connectors, 100BaseFX fiber ports
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX/FX
Store-and-Forward
10 / 20Mbps half / full-duplex
100 / 200Mbps half / full-duplex
148,80pps for 10Mbps, 148,800pps for 100Mbps
2-pair UTP/STP Cat. 3, 4, 5 up to 100m
2-pair UTP/STP Cat. 5 up to 100m
MMF (50 or 62.5μm), SMF (9 or10μm)
Per unit – Power status (PWR1, PWR2)
Per port – LNK/ACT – (Green) 10/100TX or 100FX, 100 – (Yellow) 10/100TX or 100FX
W13.5 cm × D12.5 cm × H5 cm Compact Size / 0.8kg approx.
Terminal Block: 24VDC @ 400mA
9.6W Maximum
-34°C to 74° C / -45°C to 93°C
10%-95% non-condensing
UL/CUL 60950, EN60950, IEC 60950, IEC61000-6-2
FCC Class A, CE Class A
