HMC392LC4
v04.0514
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz
Typical Applications
The HMC392LC4 is ideal for:
Features
Gain: 16 dB
Noise Figure: 2.5 dB
Single Supply Voltage: +5V
No External Matching Components Required
50 Ohm Matched Input/Output
RoHS Compliant 4x4 mm SMT Package
LOW NOISE AMPLIFIERS - SMT
• Point-to-Point Radios
• VSAT
• LO Driver for HMC Mixers
• Military EW, ECM, C
3
I
• Space

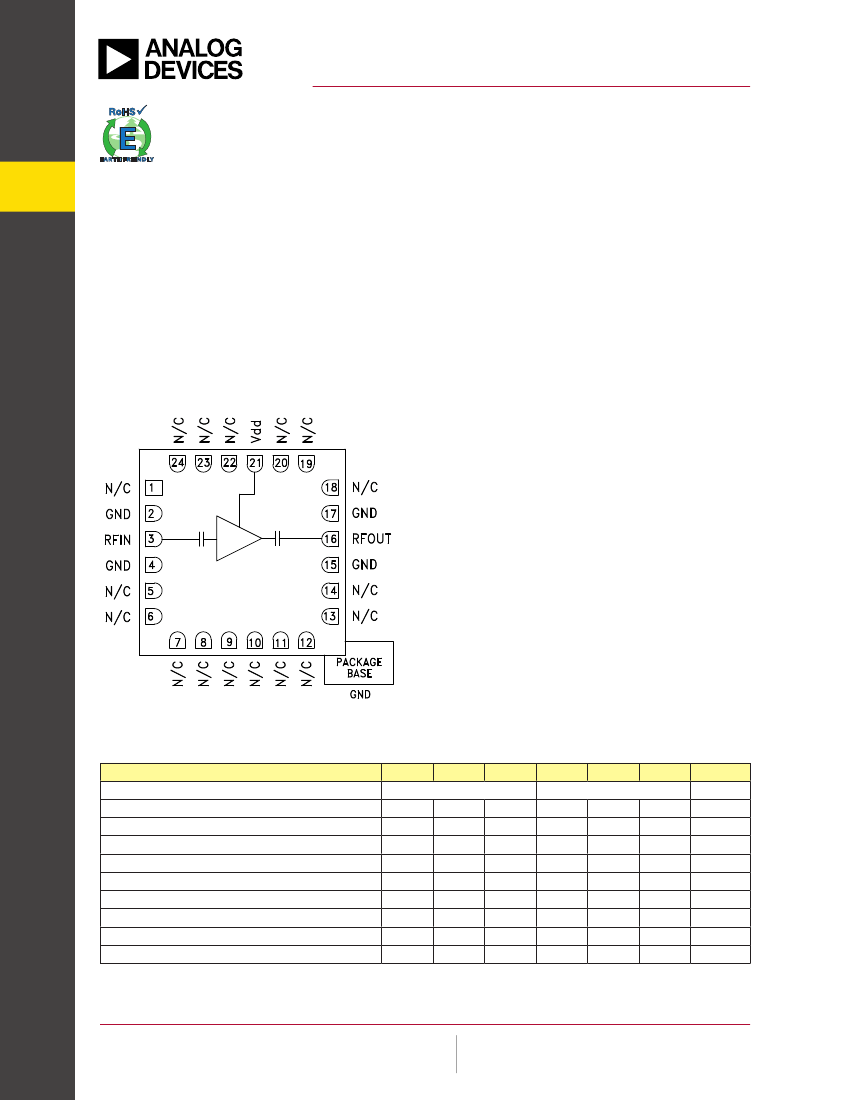

Functional Diagram
General Description
The HMC392LC4 is a GaAs MMIC Low Noise Amplifier
which operates between 3.5 and 7.0 GHz. Housed
in a leadless 4x4 mm SMT package, this amplifier
provides 16 dB of gain, 2.5 dB noise figure and 30
dBm IP3 from a +5V supply voltage. HMC392LC4
functions well as a low noise front end or as a driver
amplifier. The RF I/Os are DC blocked and matched to
50 Ohms for ease of use. The HMC392LC4 allows the
use of surface mount manufacturing techniques and
is suitable for high reliability military, industrial and
space applications.
Electrical Specifications,
T
A
= +25° C, Vdd= 5V
Parameter
Frequency Range
Gain
Gain Variation Over Temperature
Input Return Loss
Output Return Loss
Output Power for 1 dB Compression (P1dB)
Saturated Output Power (Psat)
Output Third Order Intercept (IP3)
Noise Figure
Supply Current (Idd)
25
13
13.5
Min.
Typ.
4.0 - 6.0
16
0.018
15
18
16
20
30
2.5
55
3.1
75
23
12
0.025
12.5
Max.
Min.
Typ.
3.5 - 7.0
14.5
0.018
12
12
16
20
30
2.9
55
3.5
75
0.025
Max.
Units
GHz
dB
dB/ °C
dB
dB
dBm
dBm
dBm
dB
mA
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC392LC4
v04.0514
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz

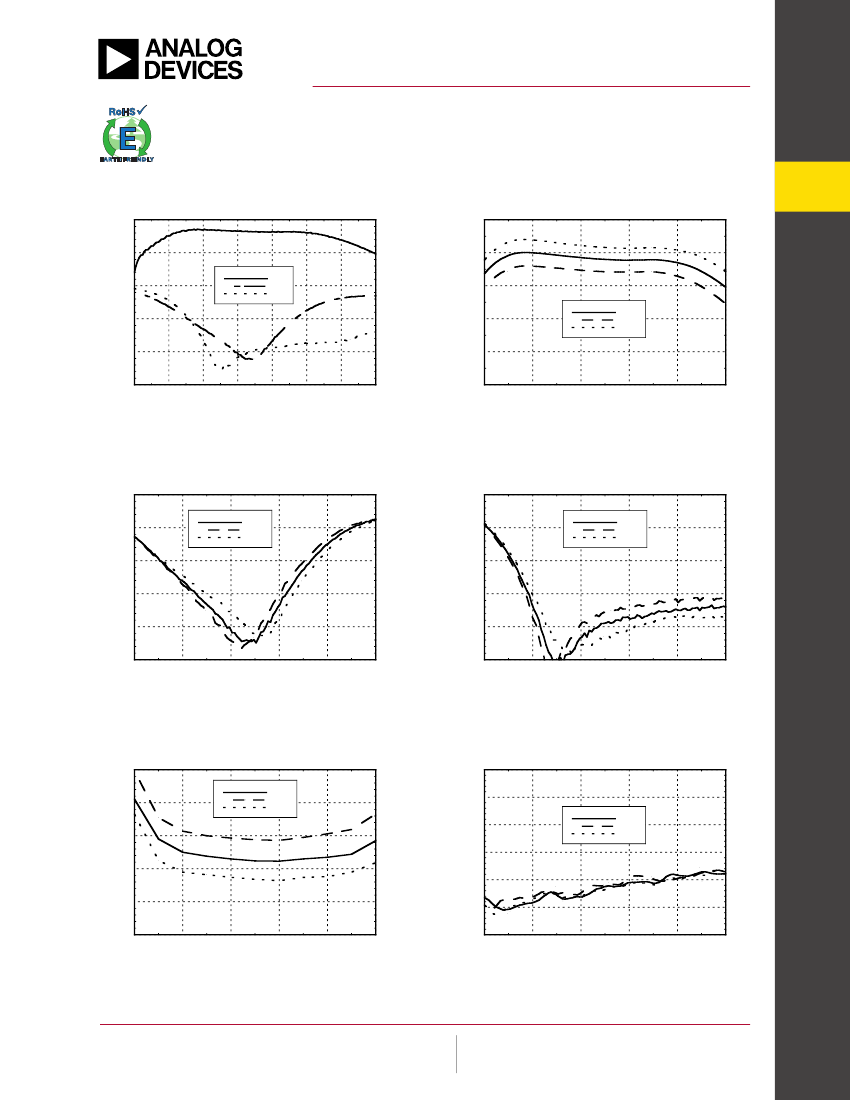

Broadband Gain & Return Loss
20
Gain vs. Temperature
20
10
RESPONSE (dB)
S21
S11
S22
17
0
14
+25C
+85C
-40C
-10
11
-20
8
-30
2
3
4
5
6
7
8
9
FREQUENCY (GHz)
5
3
4
5
6
7
8
FREQUENCY (GHz)
Input Return Loss vs. Temperature
0
+25C
+85C
-40C
Output Return Loss vs. Temperature
0
+25C
+85C
-40C
-5
RETURN LOSS (dB)
-5
RETURN LOSS (dB)
-10
-10
-15
-15
-20
-20
-25
3
4
5
6
7
8
FREQUENCY (GHz)
-25
3
4
5
6
7
8
FREQUENCY (GHz)
Noise Figure vs. Temperature
5
+25C
+85C
-40C
Reverse Isolation vs. Temperature
0
-10
ISOLATION (dB)
-20
-30
-40
-50
-60
+25C
+85C
-40C
4
NOISE FIGURE (dB)
3
2
1
0
3
4
5
6
7
8
FREQUENCY (GHz)
3
4
5
6
7
8
FREQUENCY (GHz)
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
LOW NOISE AMPLIFIERS - SMT
2
GAIN (dB)
HMC392LC4
v04.0514
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz

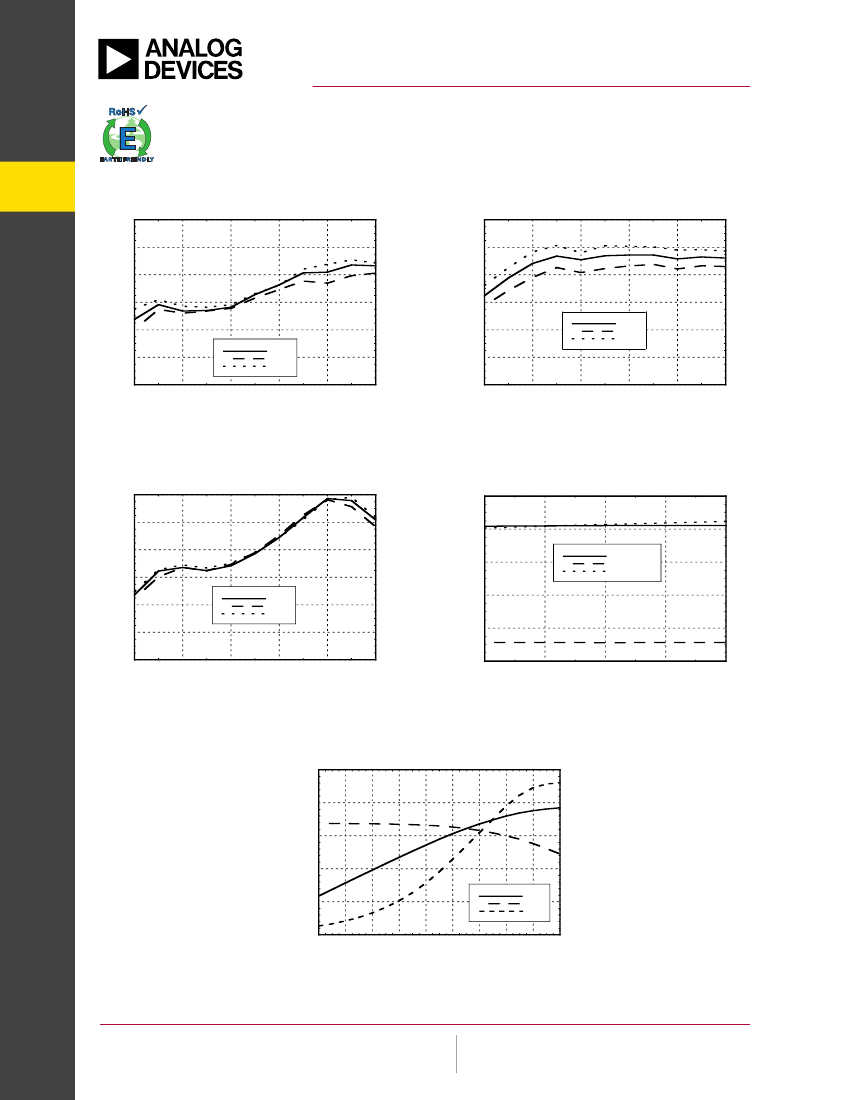

P1dB vs. Temperature
22
Psat vs. Temperature
22
20
18
16
14
+25C
+85C
-40C
+25C
+85C
-40C
LOW NOISE AMPLIFIERS - SMT
20
18
16
14
12
10
3
4
5
6
7
8
FREQUENCY (GHz)
P1dB (dBm)
Psat (dBm)
12
10
3
4
5
6
7
8
FREQUENCY (GHz)
Output IP3 vs. Temperature
32
30
28
IP3 (dBm)
26
24
22
20
3
4
5
6
7
8
FREQUENCY (GHz)
+25C
+85C
-40C
Gain, Noise Figure & Power
vs. Supply Voltage @ 5.5 GHz
GAIN (dB), NOISE FIGURE (dB), P1dB (dBm)
20
16
Gain
Noise Figure
P1dB
12
8
4
0
4.5
4.7
5
VOLTAGE SUPPLY (V)
5.2
5.5
Power Compression @ 5.5 GHz
25
Pout (dBm), GAIN (dB), PAE (%)
20
15
10
Pout
Gain
PAE
5
0
-11
-9
-7
-5
-3
-1
1
3
5
7
INPUT POWER (dBm)
3
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC392LC4
v04.0514
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz
Absolute Maximum Ratings
Drain Bias Voltage (Vdd)
RF Input Power (RFIN)(Vdd = +5.0 Vdc)
Channel Temperature
Continuous Pdiss (T= 85 °C)
(derate 6.5 mW/°C above 85 °C)
Thermal Resistance
(channel to ground paddle)
Storage Temperature
Operating Temperature
+7 Vdc
+11 dBm
175 °C
0.42 W
155 °C/W
-65 to +150 °C
-40 to +85 °C
Typical Supply Current vs. Vdd
Vdd (V)
+4.5
+5.0
+5.5
Idd (mA)
55
56
Note: Amplifier will operate over full voltage ranges shown
above.
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
LOW NOISE AMPLIFIERS - SMT
4
54
HMC392LC4
v04.0514
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz

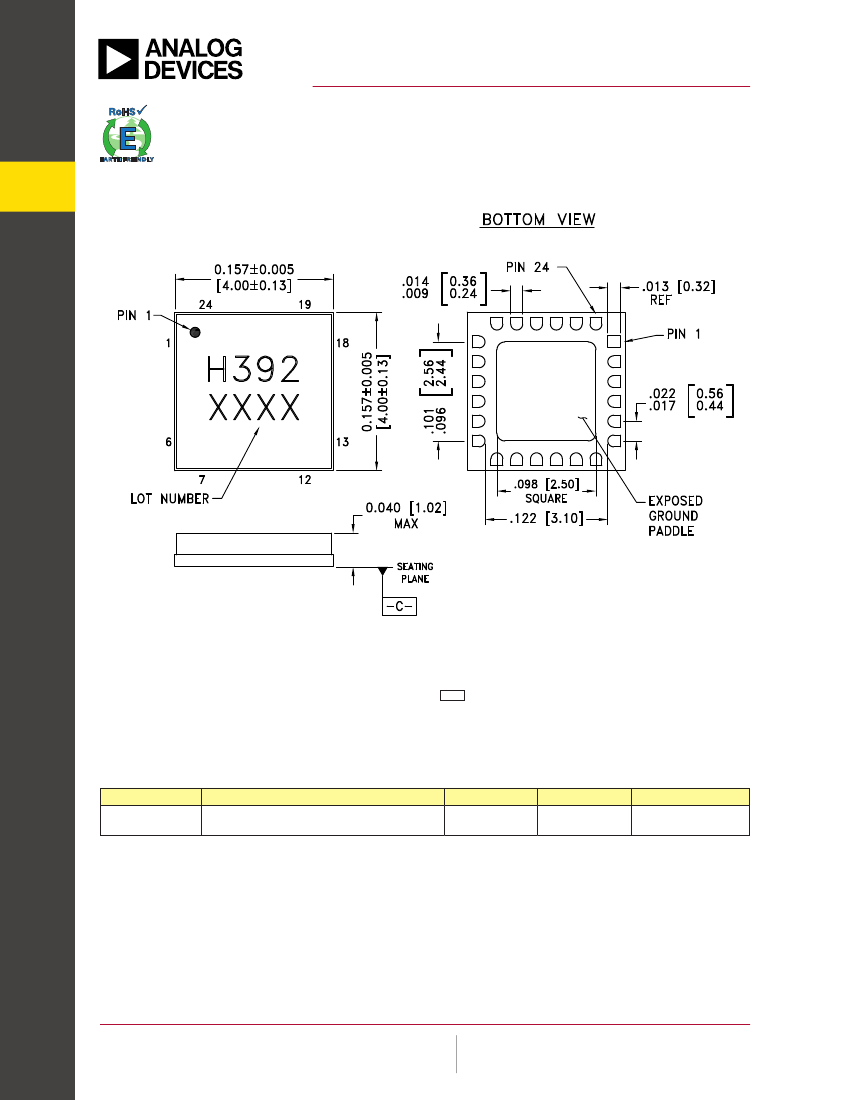

Outline Drawing
LOW NOISE AMPLIFIERS - SMT
NOTES:
1. PACKAGE BODY MATERIAL: ALUMINA.
2. LEAD AND GROUND PADDLE PLATING: 30-80 MICROINCHES GOLD OVER 50 MICROINCHES MINIMUM NICKEL
3. DIMENSIONS ARE IN INCHES (MILLIMETERS).
4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
5. CHARACTERS TO BE HELVETICA MEDIUM, .025 HIGH, BLACK INK, OR LASER MARK LOCATED APPROX. AS SHOWN.
6. PACKAGE WARP SHALL NOT EXCEED 0.05MM DATUM – C –
7. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND.
Package Information
Part Number
HMC392LC4
Package Body Material
Alumina, White
Lead Finish
Gold over Nickel
MSL Rating
MSL3
[1]
Package Marking
[2]
H392
XXXX
[1] Max peak reflow temperature of 260 °C
[2] 4-Digit lot number XXXX
5
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
