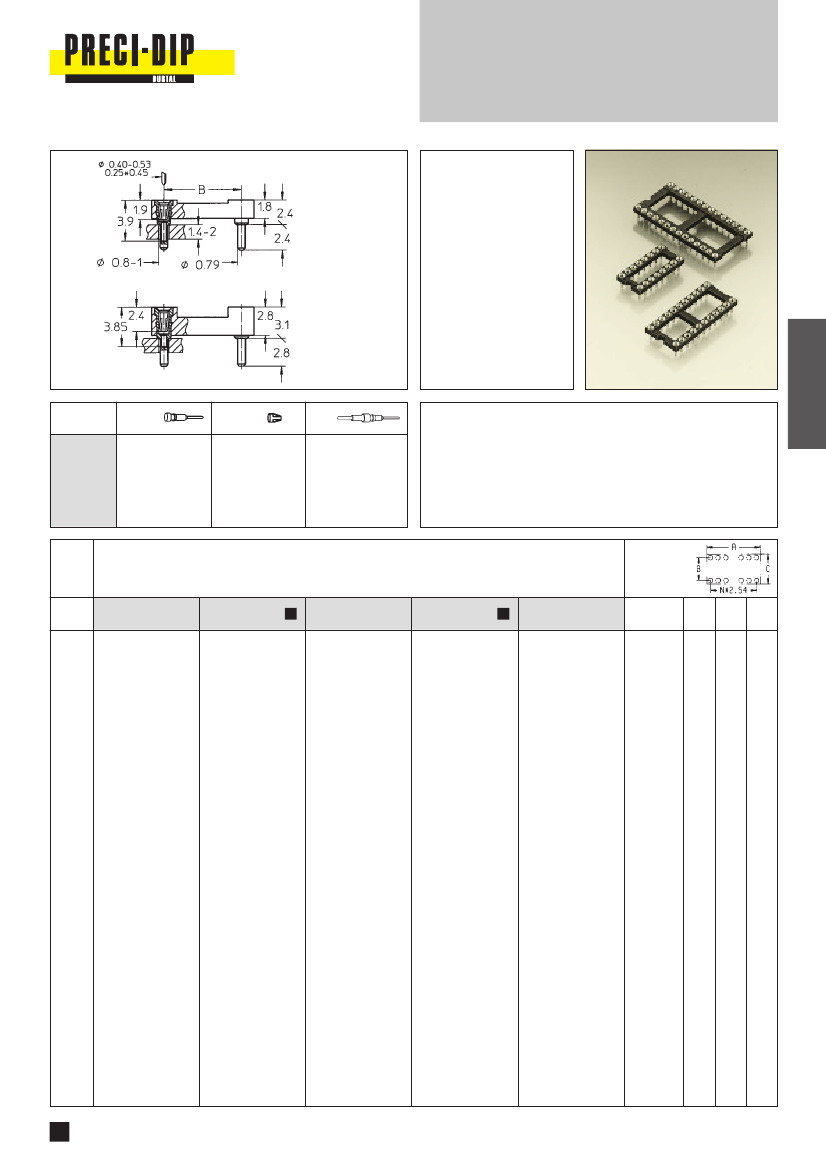

Series 115
Dual-in-line sockets very low profile /
ultra low profile / open frame
Solder tail
57
Fig. 1
Preci-Dip “Very low / Ultra
low profile” sockets have
specially designed con-
tacts for reduced socket
height above PCB
Insertion characteristics:
4-finger standard
(very low)
4-finger short (ultra low)
Fig. 2
Platings
91
93
97
99
Sleeve
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
Clip
0.25
µm
Au
0.75
µm
Au
Goldflash
5
µm
Sn Pb
Pin
Ordering information
For standard version (ultra low) (Fig. 1) see table
Option:
Very low version (Fig. 2) is optional; change suffix 003 to 001.
Insulator body dimensions see page 50 Fig. 1 to 28. Same num-
ber of poles as standard series 110.
No.
of
poles
Plating 91
6
8
10
14
16
18
20
22
24
28
20
22
24
28
24
28
32
36
40
48
50
115-91-306-41-003
115-91-308-41-003
115-91-310-41-003
115-91-314-41-003
115-91-316-41-003
115-91-318-41-003
115-91-320-41-003
115-91-322-41-003
115-91-324-41-003
115-91-328-41-003
115-91-420-41-003
115-91-422-41-003
115-91-424-41-003
115-91-428-41-003
115-91-624-41-003
115-91-628-41-003
115-91-632-41-003
115-91-636-41-003
115-91-640-41-003
115-91-648-41-003
115-91-650-41-003
Plating 93
B
115-93-306-41-003
115-93-308-41-003
115-93-310-41-003
115-93-314-41-003
115-93-316-41-003
115-93-318-41-003
115-93-320-41-003
115-93-322-41-003
115-93-324-41-003
115-93-328-41-003
115-93-420-41-003
115-93-422-41-003
115-93-424-41-003
115-93-428-41-003
115-93-624-41-003
115-93-628-41-003
115-93-632-41-003
115-93-636-41-003
115-93-640-41-003
115-93-648-41-003
115-93-650-41-003
Order Codes
Insulator
dimen-
sions
Plating 99
B
115-99-306-41-003
115-99-308-41-003
115-99-310-41-003
115-99-314-41-003
115-99-316-41-003
115-99-318-41-003
115-99-320-41-003
115-99-322-41-003
115-99-324-41-003
115-99-328-41-003
115-99-420-41-003
115-99-422-41-003
115-99-424-41-003
115-99-428-41-003
115-99-624-41-003
115-99-628-41-003
115-99-632-41-003
115-99-636-41-003
115-99-640-41-003
115-99-648-41-003
115-99-650-41-003
See
page 51
Fig. 50
Fig. 51
aFig.
51a
Fig. 52
Fig. 53
Fig. 54
Fig. 55
Fig. 56
Fig. 57
Fig. 58
Fig. 59
Fig. 60
Fig. 61
Fig. 62
Fig. 63
Fig. 64
Fig. 65
Fig. 66
Fig. 67
Fig. 68
Fig. 69
A
7.6
10.1
12.6
17.7
20.3
22.8
25.3
27.8
30.4
35.5
B
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
C
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
Plating 97
115-97-306-41-003
115-97-308-41-003
115-97-310-41-003
115-97-314-41-003
115-97-316-41-003
115-97-318-41-003
115-97-320-41-003
115-97-322-41-003
115-97-324-41-003
115-97-328-41-003
115-97-420-41-003
115-97-422-41-003
115-97-424-41-003
115-97-428-41-003
115-97-624-41-003
115-97-628-41-003
115-97-632-41-003
115-97-636-41-003
115-97-640-41-003
115-97-648-41-003
115-97-650-41-003
27.8 10.16 12.6
30.4 10.16 12.6
35.5 10.16 12.6
30.4
35.5
40.6
45.7
50.6
60.9
63.5
15.24
15.24
15.24
15.24
15.24
15.24
15.24
17.7
17.7
17.7
17.7
17.7
17.7
17.7
B
Products not available from stock. Please consult PRECI-DIP.
