Poke-Home: Single Horizontal Contact
12-28 AWG: WTB
70-9296
INTER
CONNECT

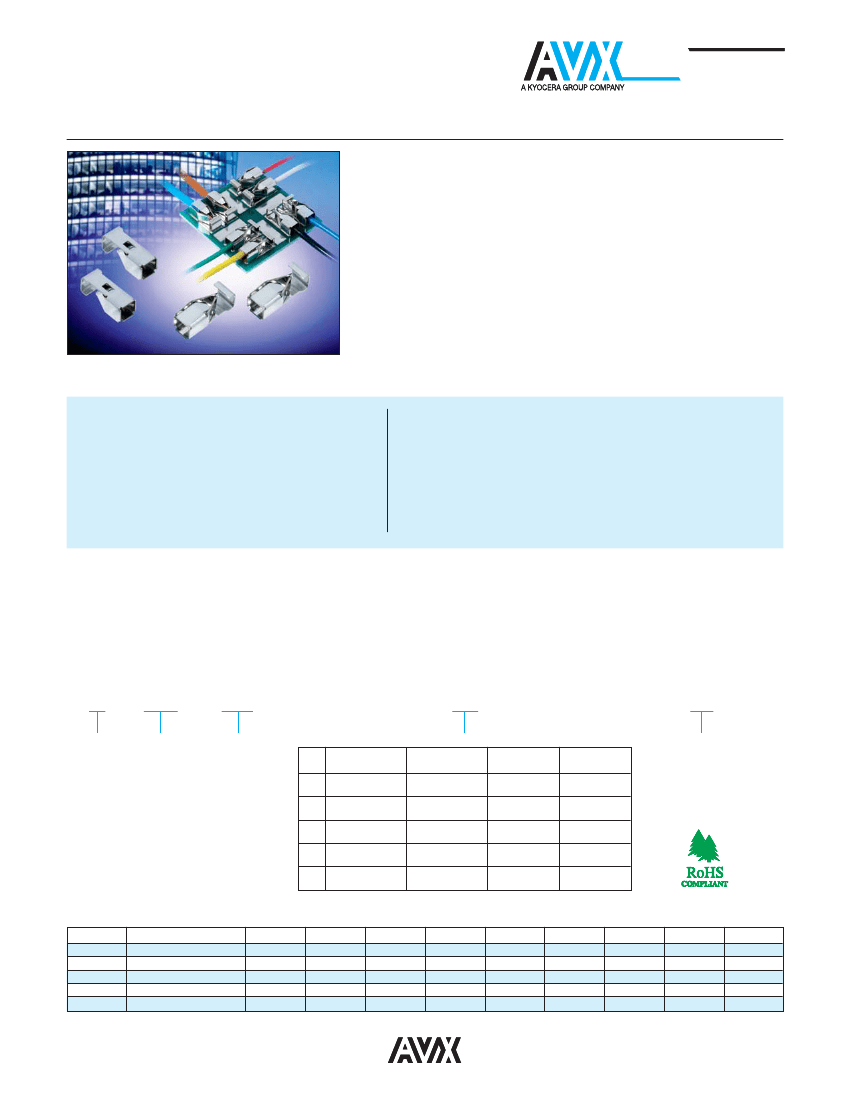

The widespread market adaptation of the AVX STRIPT™ contact systems
continue to drive new product developments. The 70-9296 series of dual
beam, boxed contacts provide a simple, yet reliable wire-to-board
alternative to full sized 1pc and 2pc connector solutions. Contacts are
SMT onto the PCB, then either solid or stranded wires can be stripped to
length and inserted into the contact. Contacts are designed with dual
beam high force contacts to maximize wire retention. Integral wire guides
and stop assures proper positioning of the wire.
In this round of product expansion, the 2.5mm has been added to offer a
new size when trying to maximize AWG and keep the smallest profile
contact available is size critical applications. Additionally, this contact has
been designed without a wire stop to facilitate solid pin insertion
capabilities for board-to-board and module-to-module applications (see
BTB Jumper data sheet for 109296001xxx906).
APPLICATIONS
•
•
•
•
•
Industrial/Ruggedized Wire-to-Board applications
Replace hard soldering of wire to a PCB
Reference Product Specification 201-01-143
Reference Application Notes 201-01-150
Linear Board-to-Board capabilities with
109296001xxx906 jumpers
FEATURES AND BENEFITS
• Dual Beam box contact provides maximum mechanical
stability and wire retention
• Tape and reel packaged for automated SMT placement
• Staged current rating based on AWG, maximum is 20A
(12AWG)
• 2.5mm w/o wire stop allows for variable PCB mating
tolerances in linear BTB applications
ELECTRICAL
• Voltage Rating: 300V
Based on placement distance
• Current Rating: See Matrix Below
ENVIRONMENTAL
• Operating Temperature:
-40ºC to +125ºC
MECHANICAL
• Contact Material: Phosphor Bronze
• Contact Plating: Pure Tin
• Durability 5 Cycles
HOW TO ORDER
70
Prefix
70 = Contact
9296
Series
001
Number of Ways
001= 1
Code
017
002
025
003
004
Contact
Size
1.7mm Contact
2mm Contact
2.5mm Contact
3mm Contact
4mm Contact
0XX
Contact Size
Wire
Gauge
22-26 AWG
Solid or Stranded
22-28 AWG
Solid or Stranded
20-26 AWG
Max
Insulation
0X6
Plating &
Other Options
006 = Wire Stop Included
Pure Tin All Over
016 = No Wire Stop
(2.5mm only)
Pure Tin All Over
UL Approved
E90723
Solid or Standed
18-26 AWG
Solid or Stranded
12-20 AWG
Solid or Stranded
1.3mm
Ø
(See page 85)
1.5mm
Ø
(See page 85)
Max 2mm
Ø
(See page 85)
2.5mm
Ø
3.4mm
Ø
Yes
Yes
Yes
Yes
Yes
CURRENT RATING
Size
4mm
3mm
2.5mm
2mm
1.7mm
Part Number
709296001004006
709296001003006
7092960010250x6
709296001002006
709296001017006
12AWG
20A
14AWG
16A
16AWG
14A
18AWG
12A
12A
20AWG
10A
10A
12A
22AWG
8A
10A
8A
8A
24AWG
7A
8A
7A
7A
26AWG
5A
6A
5A
5A
28AWG
4A
84
071618
Poke-Home: Single Horizontal Contact
12-28 AWG: WTB
70-9296
70-9296-001-017-006
1.7MM POKE HOME CONTACT
INTER
CONNECT

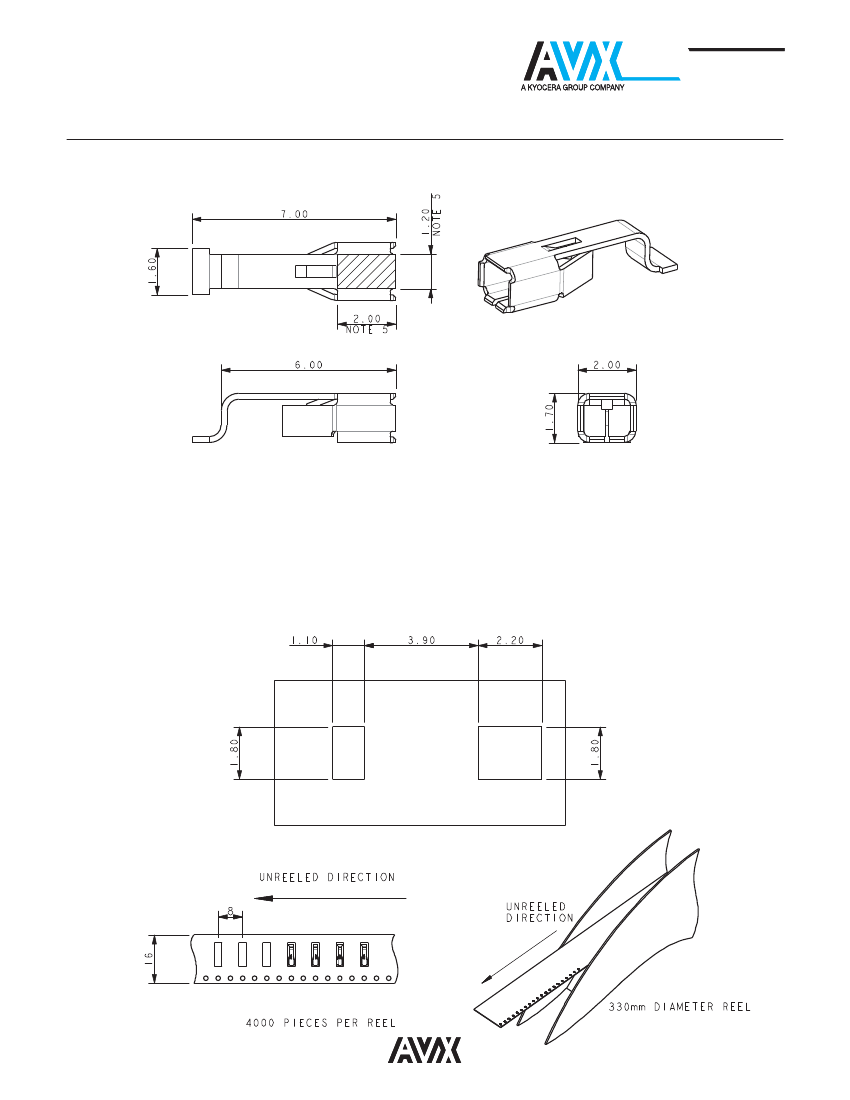

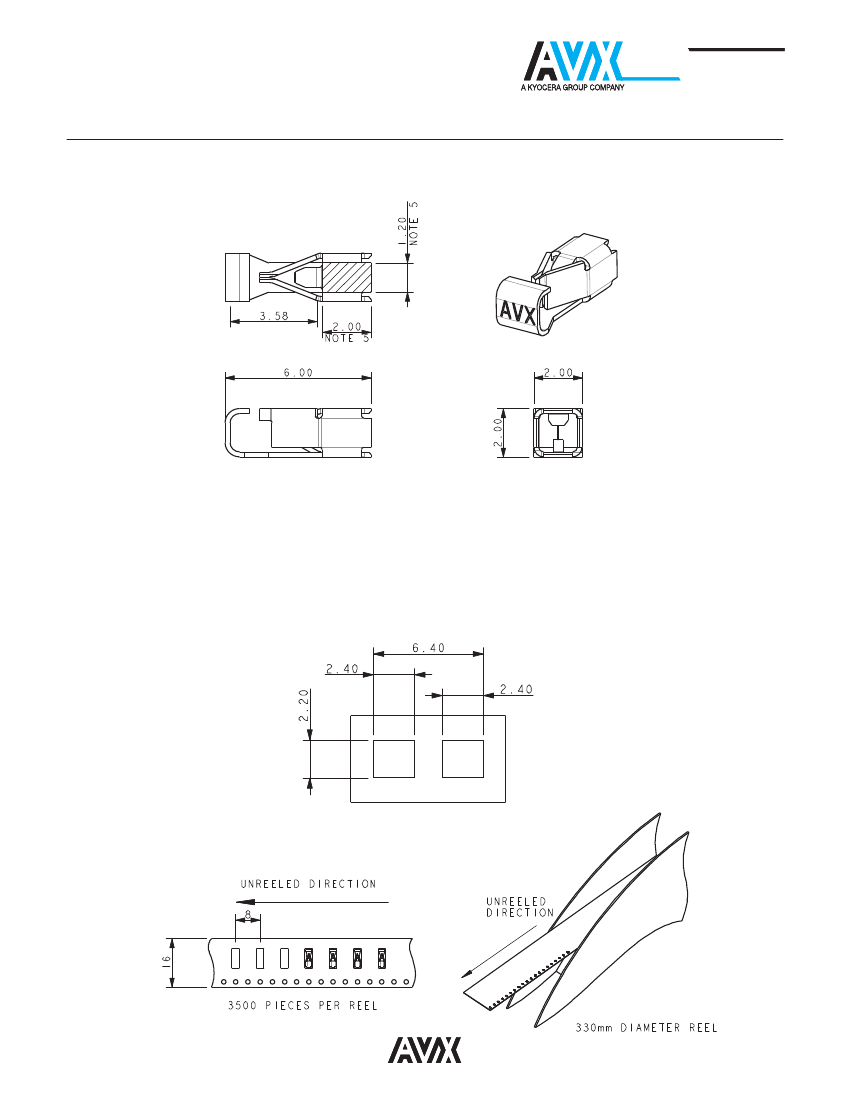

NOTES:
1. FOR FURTHER INFORMATION REFER TO ELCO SPECIFICATION 201-01-143
AND APPLICATION NOTES 201-01-150.
2. MATERIAL: TIN PLATED PHOSPHOR BRONZE.
3. PACKING IN TAPE AND REEL, 4000 PIECES PER REEL.
4. FOR WIRE TRIM DETAILS REFER TO PAGE 91.
5. AREA AVAILABLE FOR PICK AND PLACE.
6. UL REFERENCE 90723.
7. GENERAL TOLERANCE ±0.10.
SUGGESTED PCB LAYOUT
PACKING DETAILS
071618
85
Poke-Home: Single Horizontal Contact
12-28 AWG: WTB
70-9296
70-9296-001-002-006
2MM POKE HOME CONTACT
INTER
CONNECT
NOTES:
1. FOR FURTHER INFORMATION REFER TO ELCO SPECIFICATION 201-01-143
AND APPLICATION NOTES 201-01-150.
2. MATERIAL: TIN PLATED PHOSPHOR BRONZE.
3. PACKING IN TAPE AND REEL, 3500 PIECES PER REEL.
4. FOR WIRE TRIM DETAILS REFER TO PAGE 91.
5. AREA AVAILABLE FOR PICK AND PLACE.
6. UL REFERENCE 90723.
7. GENERAL TOLERANCE ±0.10.
SUGGESTED PCB LAYOUT
PACKING DETAILS
86
071618
Poke-Home: Single Horizontal Contact
12-28 AWG: WTB
70-9296
70-9296-001-025-006
2.5MM POKE HOME CONTACT
INTER
CONNECT

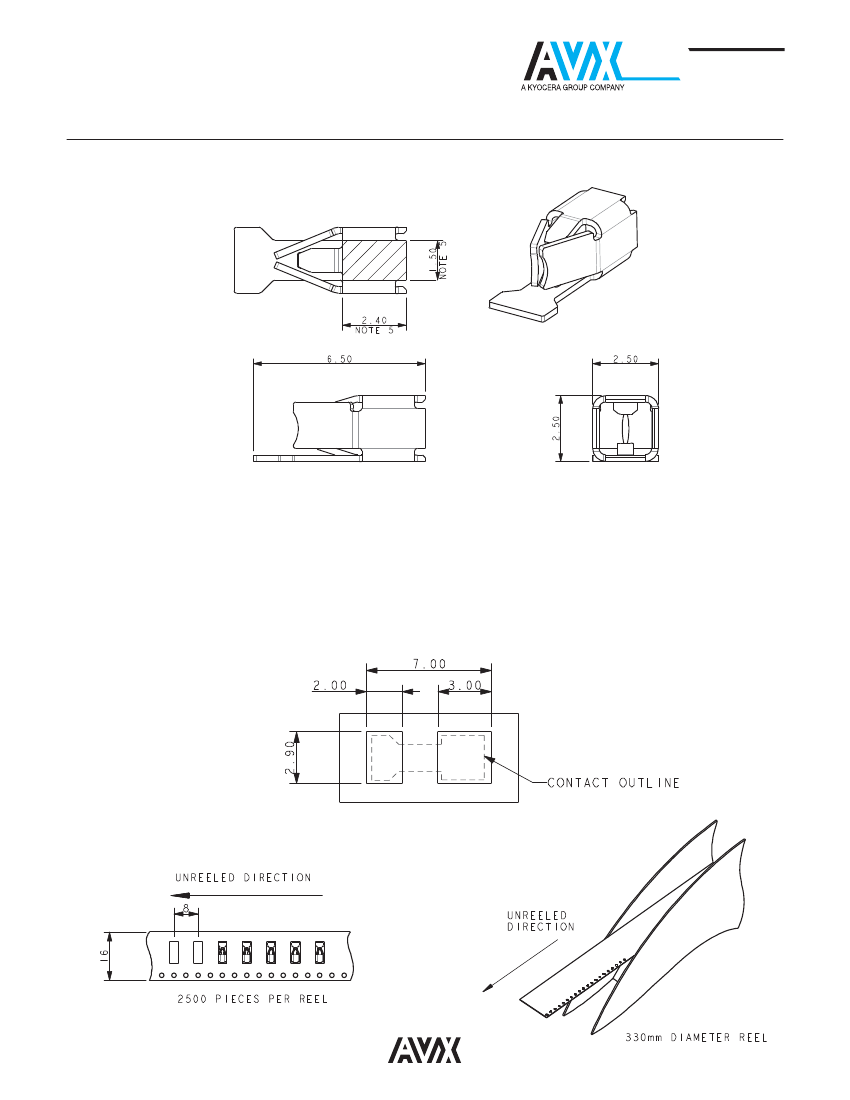

NOTES:
1. FOR FURTHER INFORMATION REFER TO ELCO SPECIFICATION 201-01-143
AND APPLICATION NOTES 201-01-150.
2. MATERIAL: TIN PLATED PHOSPHOR BRONZE.
3. PACKING IN TAPE AND REEL, 2500 PIECES PER REEL.
4. FOR WIRE TRIM DETAILS REFER TO PAGE 91.
5. AREA AVAILABLE FOR PICK AND PLACE.
6. THIS COMPONENT IS NOT CURRENTLY UL CERTIFIED.
7. GENERAL TOLERANCE ±0.10.
SUGGESTED PCB LAYOUT
PACKING DETAILS
071618
87
Poke-Home: Single Horizontal Contact
12-28 AWG: WTB
70-9296
70-9296-001-025-016
2.5MM POKE HOME CONTACT – NO STOP
INTER
CONNECT

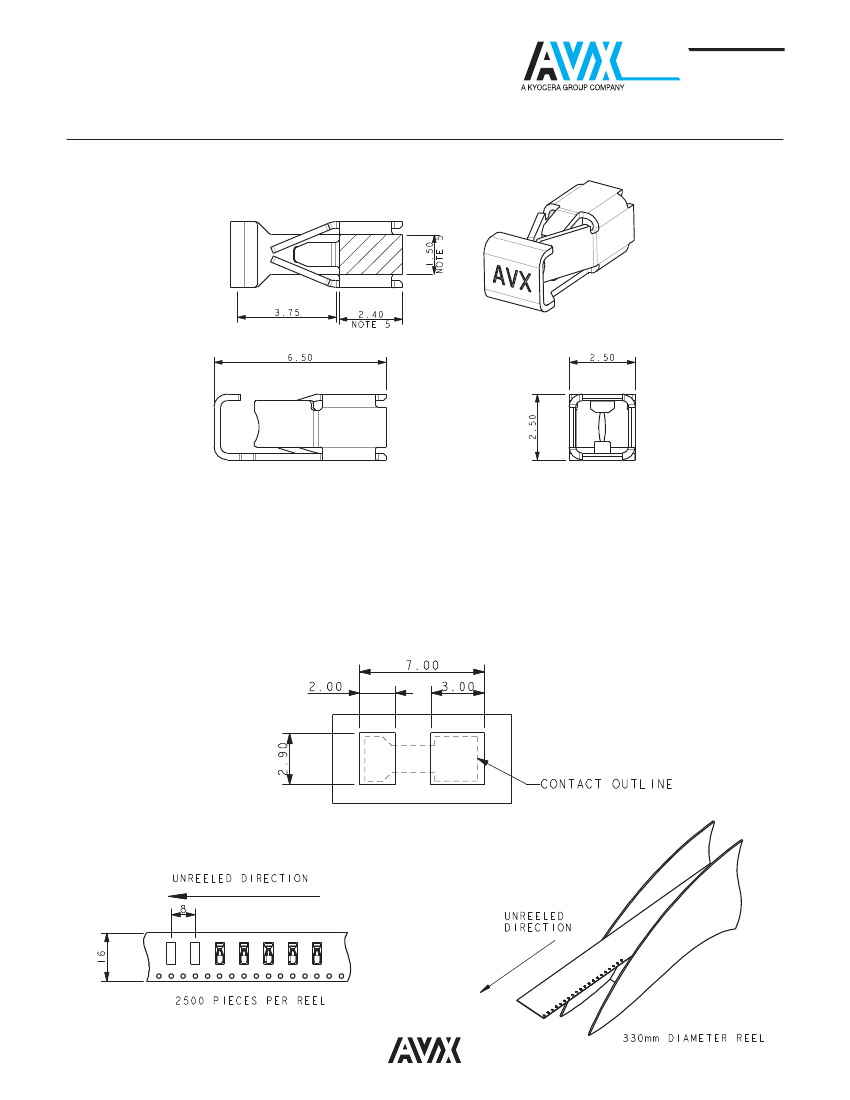

NOTES:
1. FOR FURTHER INFORMATION REFER TO ELCO SPECIFICATION 201-01-143
AND APPLICATION NOTES 201-01-150.
2. MATERIAL: TIN PLATED PHOSPHOR BRONZE.
3. PACKING IN TAPE AND REEL, 2500 PIECES PER REEL.
4. FOR WIRE TRIM DETAILS REFER TO PAGE 91.
5. AREA AVAILABLE FOR PICK AND PLACE.
6. THIS COMPONENT IS NOT CURRENTLY UL CERTIFIED.
7. GENERAL TOLERANCE ±0.10.
SUGGESTED PCB LAYOUT
PACKING DETAILS
88
071618
