BF016010BE10036BH1 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> BF016010BE10036BH1

BF016010BE10036BH1: DescriptionCeramic Capacitor, Ceramic, 5V, 10% +Tol, 10% -Tol, -250ppm/Cel TC, 0.00001uF, Chassis Mount,; CategoryPassive components capacitor; File Size83KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

BF016010BE10036BH1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BF016010BE10036BH1	-	-	View	Buy Now

BF016010BE10036BH1 Overview

Ceramic Capacitor, Ceramic, 5V, 10% +Tol, 10% -Tol, -250ppm/Cel TC, 0.00001uF, Chassis Mount,

BF016010BE10036BH1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1104102649
Reach Compliance Code	unknown
Country Of Origin	Germany
YTEOL	5.95
Other features	RATED AC PEAK VOLTAGE(V) : 5000
capacitance	0.00001 µF
Capacitor type	CERAMIC CAPACITOR
diameter	16 mm
dielectric materials	CERAMIC
JESD-609 code	e4
length	10 mm
Installation features	CHASSIS MOUNT
multi-layer	No
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Axial
positive tolerance	10%
Rated (DC) voltage (URdc)	5 V
surface mount	NO
Temperature Coefficient	-250ppm/Cel ppm/°C
Terminal surface	Silver (Ag)
Terminal shape	LUG

Preview

Download Datasheet

View All

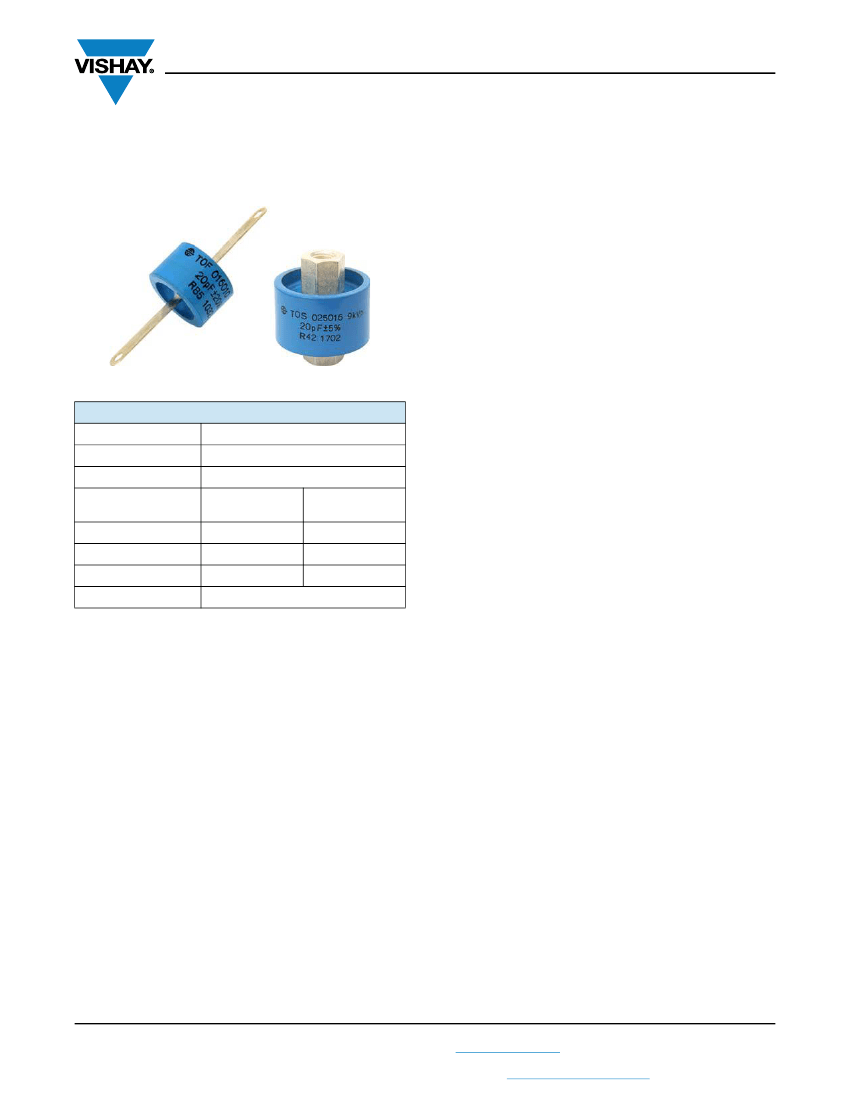

TOF 016010, TOS 016010, TOF 025016, TOS 025016

www.vishay.com

Vishay Draloric

RF Power Barrel Capacitors

with Mounting Tags or Screw Terminals, Class 1 Ceramic

FEATURES

• Small size

• Geometry minimizes inductance, optimizes voltage

withstand and maximizes heat radiation

• Available with thread terminals or copper mounting tags

APPLICATIONS

• Industrial and medical RF power supply

• Small broadcasting equipment

• Antenna couplers

• Induction heating equipment

CAPACITANCE RANGE

QUICK REFERENCE DATA

DESCRIPTION

Ceramic Class

Ceramic Dielectric

Type

Voltage (V

)

Min. Capacitance (pF)

Max. Capacitance (pF)

Mounting

VALUE

R7, R16, R42, R85

TOF 016010

TOS 016010

5000

1.5

TOF 025016

TOS 025016

9000

2.0

100

1.5 pF to 100 pF

CAPACITANCE TOLERANCE



10 pF: ± 2 pF; ± 1 pF; ± 0.5 pF



10 pF: ± 20 %; ± 10 %; ± 5 %

CERAMIC DIELECTRICS

• R7 (TCC + 100 ppm/K)

• R16 (TCC + 100 ppm/K)

• R42 (TCC - 250 ppm/K)

• R85 (TCC - 750 ppm/K)

Mounting tags or screw terminal

RATED VOLTAGE

MATERIAL

Capacitor elements made from class 1 ceramic dielectric

with noble metal electrodes.

Connection terminals:

• Axial copper tags, silver plated (style TOF...)

• Thread terminal, brass, silver plated (style TOS...)

Allowable torque:

M5 thread 3.5 Nm (31 lbf in)



M6 thread 5.0 Nm (44 lbf in)

• 5.0 kV

• 9.0 kV

DIELECTRIC STRENGTH TEST

200 % of rated AC voltage (50 Hz, 5 minutes)

DISSIPATION FACTOR

• R7:

• R16:

• R42, R85:

max. 0.07 % (1 MHz)

max. 0.04 % (1 MHz)

max. 0.05 % (1 MHz)

FINISH

Capacitor body completely protective lacquered.

INSULATION RESISTANCE

Min. 100 000 M (at 25 °C)

MARKING

Type designator, capacitance value and tolerance, rated

peak voltage, ceramic material code, production date code,

manufacturer logo.

OPERATING TEMPERATURE RANGE

-55 °C to +100 °C

Revision: 17-Feb-17

Document Number: 22085

For technical questions, contact:

powcap@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

BF016010BE10036BH1 Related Products

	BF016010BE10036BH1	BF016010BE16036BH1	BF016010BE20036BJ1	BF016010BE25036BJ1	BF016010BE50036BJ1
Description	Ceramic Capacitor, Ceramic, 5V, 10% +Tol, 10% -Tol, -250ppm/Cel TC, 0.00001uF, Chassis Mount,	Ceramic Capacitor, Ceramic, 5V, 10% +Tol, 10% -Tol, -250ppm/Cel TC, 0.000016uF, Chassis Mount,	Ceramic Capacitor, Ceramic, 5V, 10% +Tol, 10% -Tol, N750, -750ppm/Cel TC, 0.00002uF, Chassis Mount,	Ceramic Capacitor, Ceramic, 5V, 10% +Tol, 10% -Tol, N750, -750ppm/Cel TC, 0.000025uF, Chassis Mount,	Ceramic Capacitor, Ceramic, 5V, 10% +Tol, 10% -Tol, N750, -750ppm/Cel TC, 0.00005uF, Chassis Mount,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Objectid	1104102649	1104102655	1104102658	1104102661	1104102670
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Country Of Origin	Germany	Germany	Germany	Germany	Germany
YTEOL	5.95	5.95	5.95	5.95	5.95
Other features	RATED AC PEAK VOLTAGE(V) : 5000	RATED AC PEAK VOLTAGE(V) : 5000	RATED AC PEAK VOLTAGE(V) : 5000	RATED AC PEAK VOLTAGE(V) : 5000	RATED AC PEAK VOLTAGE(V) : 5000
capacitance	0.00001 µF	0.000016 µF	0.00002 µF	0.000025 µF	0.00005 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
diameter	16 mm	16 mm	16 mm	16 mm	16 mm
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e4	e4	e4	e4	e4
length	10 mm	10 mm	10 mm	10 mm	10 mm
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
multi-layer	No	No	No	No	No
negative tolerance	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Axial	Axial	Axial	Axial	Axial
positive tolerance	10%	10%	10%	10%	10%
Rated (DC) voltage (URdc)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
Temperature Coefficient	-250ppm/Cel ppm/°C	-250ppm/Cel ppm/°C	-750ppm/Cel ppm/°C	-750ppm/Cel ppm/°C	-750ppm/Cel ppm/°C
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal shape	LUG	LUG	LUG	LUG	LUG
Temperature characteristic code	-	-	N750	N750	N750
