CCK15F/90 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> CCK15F/90

CCK15F/90: DescriptionCARD RACK EIA 4UX19X12 FRAMEONLY; Categoryaccessories; File Size1MB，1 Pages; ManufacturerVECTOR ELECTRONICS AND TECHNOLOGY, INC.; Websitehttps://www.vectorelect.com/

Download Datasheet Parametric View All

CCK15F/90 Overview

CARD RACK EIA 4UX19X12 FRAMEONLY

CCK15F/90 Parametric

Parameter Name	Attribute value
type	Small rack kit
size/dimensions	12.000" long x 19.000" wide (304.80mm x 482.60mm)
high	4U = 7.000"（177.80mm）
Card size range	4.250" ~ 6.250" high x 9.600" long (107.95mm ~ 158.75mm x 243.84mm)
Guide rail connection method	No card guide
Material	aluminum

Preview

Download Datasheet

View All

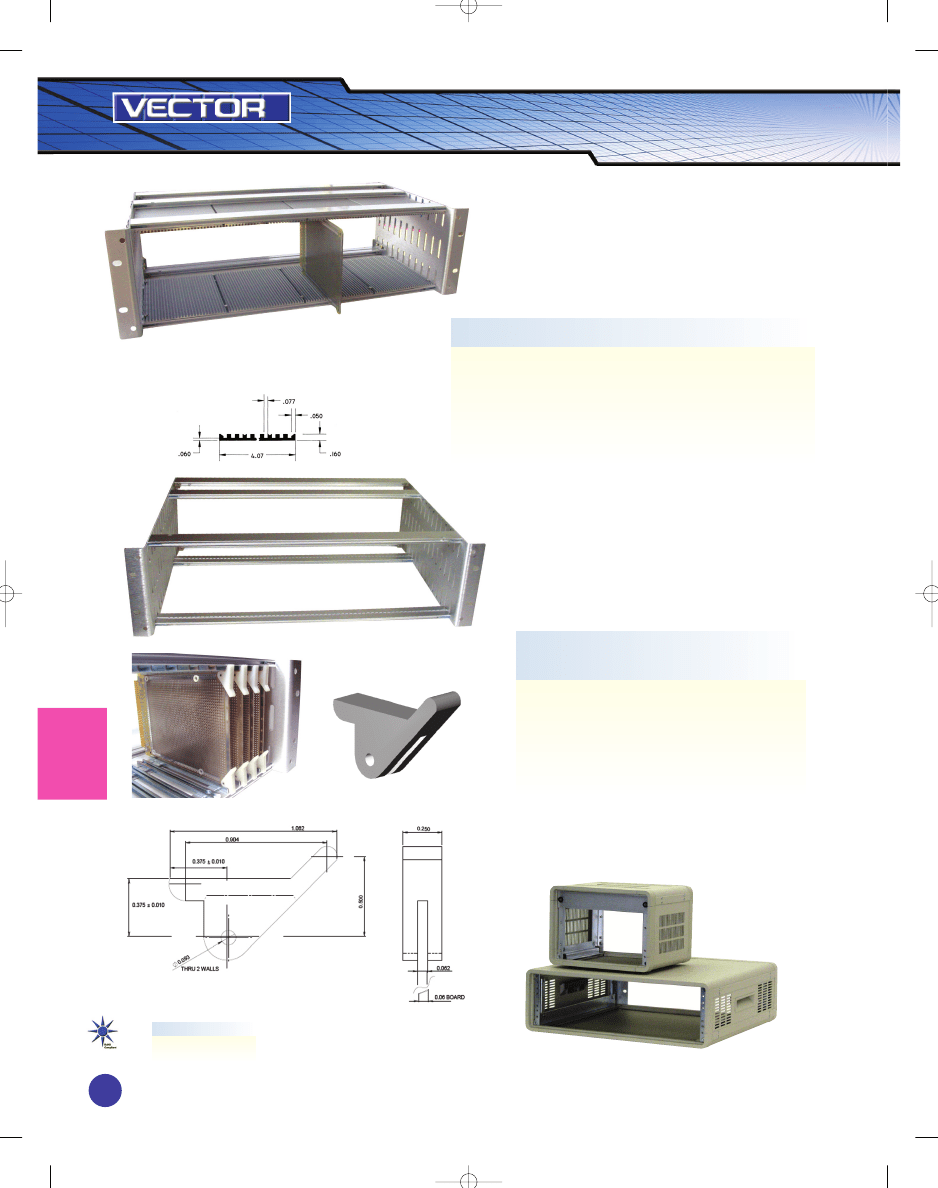

CATALOG 126:CATALOG 126.qxd

7/7/2008

12:50 PM

Page 44

ELECTRONICS & TECHNOLOGY, INC.

A FINE TECHNOLOGY GROUP

EIA -Based VectorPak

Subrack Systems

VectorPak

Continuous Guide Plate

Card Racks with Continuous Guide Plate allows card

placement on 0.150” centers. Guide plates created

from extruded 6063-T6 aluminum. 0.80” thick brushed

aluminum side plates with clear irridite finish. Rear “T”

Struts included for mounting of connectors (Vector P/N

HD34).

Part No.

Dimensions

(H x W x D)

Description/ Installed

CCA13C/90 - Assembled Subrack

with continuous guide plate.

2U Rack

Card height min. 0.75” to 2.75” max. X 6.5” L

CCA10C/90 2U (3.50”) X 19.0” X 12.0”

Continuous guide plate, conductive

3U Rack

Card height min. 2.50” to 4.50” max. X 6.5” L

CCA13C/90 3U (5.25:) X 19.0” X 9.0”

Continuous guide plate, conductive

4U Rack

Card height min. 4.25” to 6.25” max. X 9.6 L

CCA19C/90 4U (7.00”) X 19.0” X 12.0”

5U Rack

Card height min. 6.00” to 8.00” max. X 9.6 L

CCA15C/90 5U (8.75”) X 19.0” X 12.0”

Continuous guide plate, conductive

VectorPak

Card Frame Only

Card Rack Frame only, no card guides (guides

sold separately). Will accept any VectorPak

CG2-series card guide. More economical when

only a few cards needed. Rear “T”-struts

included for mounting of connectors (Vector

P/N HD34).

CCA14F/90 - Subrack frame only

Part No. Description/

Version

Installed

2U Rack

CCA10F/90 Frame only

3U Rack

CCA13F/90 Frame only

Rack Outer

Dimensions

(H x W x D)

Kit

2U (3.50”) X 19” X 12” CCK10F/90

3U (5.25”) X 19” X 9”

CCK13F/90

EIA

Subracks

4U Rack

CCA15F/90 Frame only

5U Rack

CCA17F/90 Frame only

4U (7.00”) X 19” X 12” CCK15F/90

5U (8.75”) X 19” X 12” CCK17F/90

Rotation Type Ejector Handle - HA9

Attractive & Extremely Rugged

Benchtop/Desktop Outer Enclosures

SE1588

4U for 8.4”W Subrack

Part No. Pkg Qty

HA9/4

HA9/C

100

• Card ejector, corner mounting

• Supports up to 40 lbs extrac-

tion force

• White nylon,

(hardware included)

SE1322

3U x 22”D for 19”W Subrack

800-423-5659

www.vectorelect.com

Specification subject to change without notice
