UMB10N FHA
General purpose (Dual digital transistor)
Datasheet
AEC-Q101 Qualified
l
Outline
Parameter
V
CC
I
C(MAX.)
R
1
R
2
DTr1 and DTr2
-50V
-100mA
2.2kΩ
47kΩ
SOT-363
SC-88
UMT6
l
Features
1)Two DTA123J chips in a UMT6 package.
2)Mounting possible with UMT3 automatic
mounting machines.
3)Transistor elements are independent,
eliminating interference.
4)Mounting cost and area can be cut in half.
l
Inner circuit
l
Application
INVERTER, INTERFACE, DRIVER
l
Packaging specifications
Part No.
Package
SOT-363
(UMT6)
Package
size
2021
Taping
code
TN
Reel size Tape width
(mm)
(mm)
180
8
Basic
ordering
unit.(pcs)
3000
Marking
UMB10N FHA
B10
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
1/5
20161012 - Rev.001
UMB10N FHA
Datasheet
l
Absolute maximum ratings
(T
a
= 25°C)
<For DTr1 and DTr2 in common>
Parameter
Supply voltage
Input voltage
Output current
Collector current
Power dissipation
Junction temperature
Range of storage temperature
Symbol
V
CC
V
IN
I
O
I
C(MAX)*1
P
D*2*3
T
j
T
stg
Values
-50
-12 to 5
-100
-100
150
150
-55 to +150
Unit
V
V
mA
mA
mW/TOTAL
℃
℃
l
Electrical characteristics
(T
a
= 25°C)
<For DTr1 and DTr2 in common>
Values
Parameter
Symbol
V
I(off)
V
I(on)
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T*1
Conditions
Min.
Input voltage
V
CC
= -5V, I
O
= -100μA
V
O
= -0.3V, I
O
= -5mA
I
O
= -5mA, I
I
= -0.25mA
V
I
= -5V
V
CC
= -50V, V
I
= 0V
V
O
= -5V, I
O
= -10mA
-
-
V
CE
= -10V, I
E
= 5mA,
f = 100MHz
-
-1.1
-
-
-
80
1.54
17
-
Typ.
-
-
-100
-
-
-
2.2
21
250
Max.
-0.5
V
-
-300
-3.6
-500
-
2.86
26
-
mV
mA
nA
-
kΩ
-
MHz
Unit
*1 Characteristics of built-in transistor.
*2 Each terminal mounted on a reference land.
*3 120mW per element must not be exceeded.
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
2/5
20161012 - Rev.001
UMB10N FHA
Datasheet
l
Electrical characteristic curves
(T
a
= 25°C)
<For DTr1 and DTr2 in common>

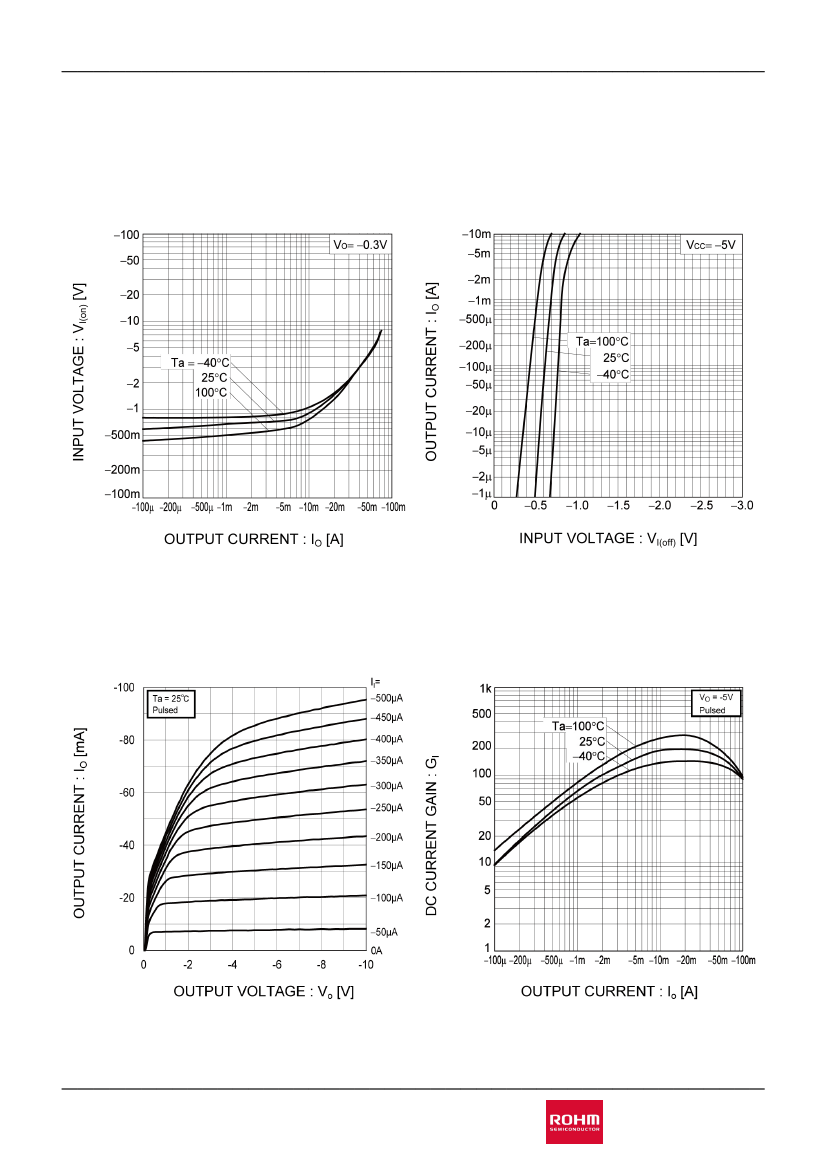

Fig.1 Input Voltage vs. Output Current
(ON Characteristics)
Fig.2 Output Current vs. Input Voltage
(OFF Characteristics)
Fig.3 Output Current vs. Output Voltage
Fig.4 DC Current Gain vs. Output Current
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
3/5
20161012 - Rev.001
UMB10N FHA
Datasheet
l
Electrical characteristic curves
(T
a
= 25°C)
<For DTr1 and DTr2 in common>

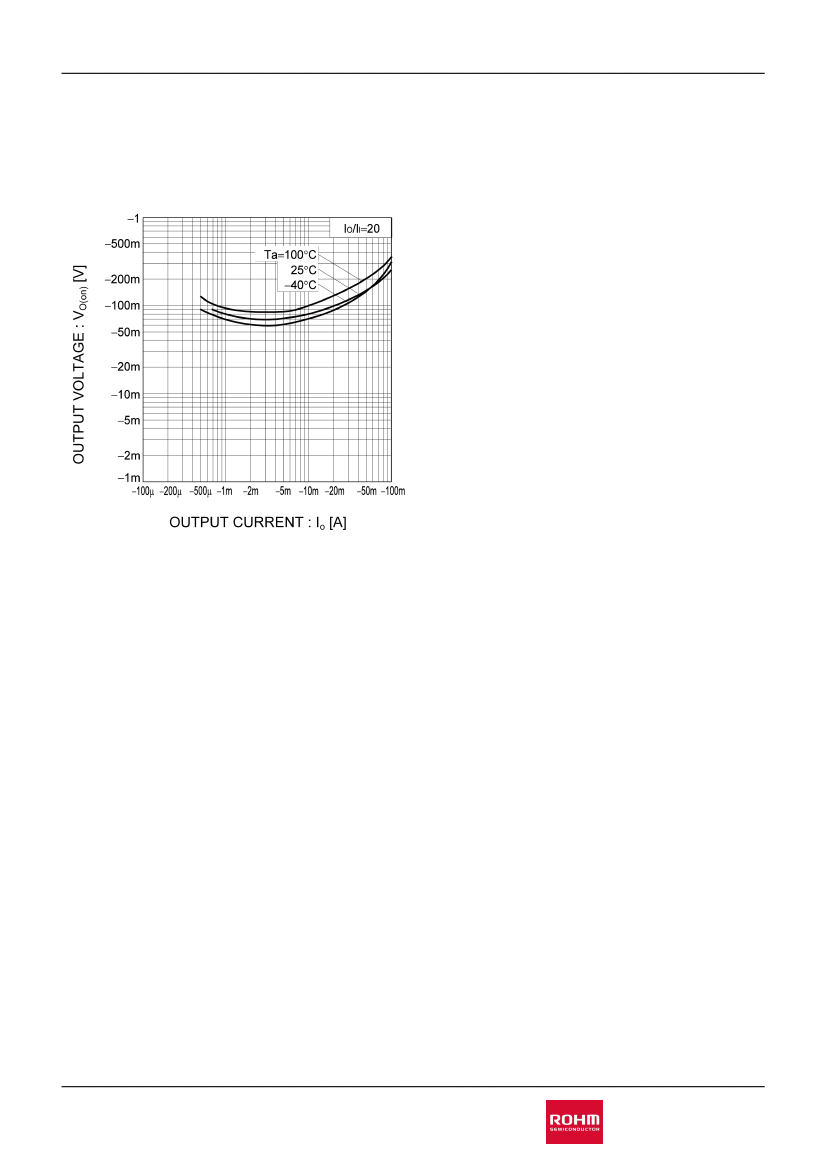

Fig.5 Output Voltage vs. Output Current
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
4/5
20161012 - Rev.001
UMB10N FHA
l

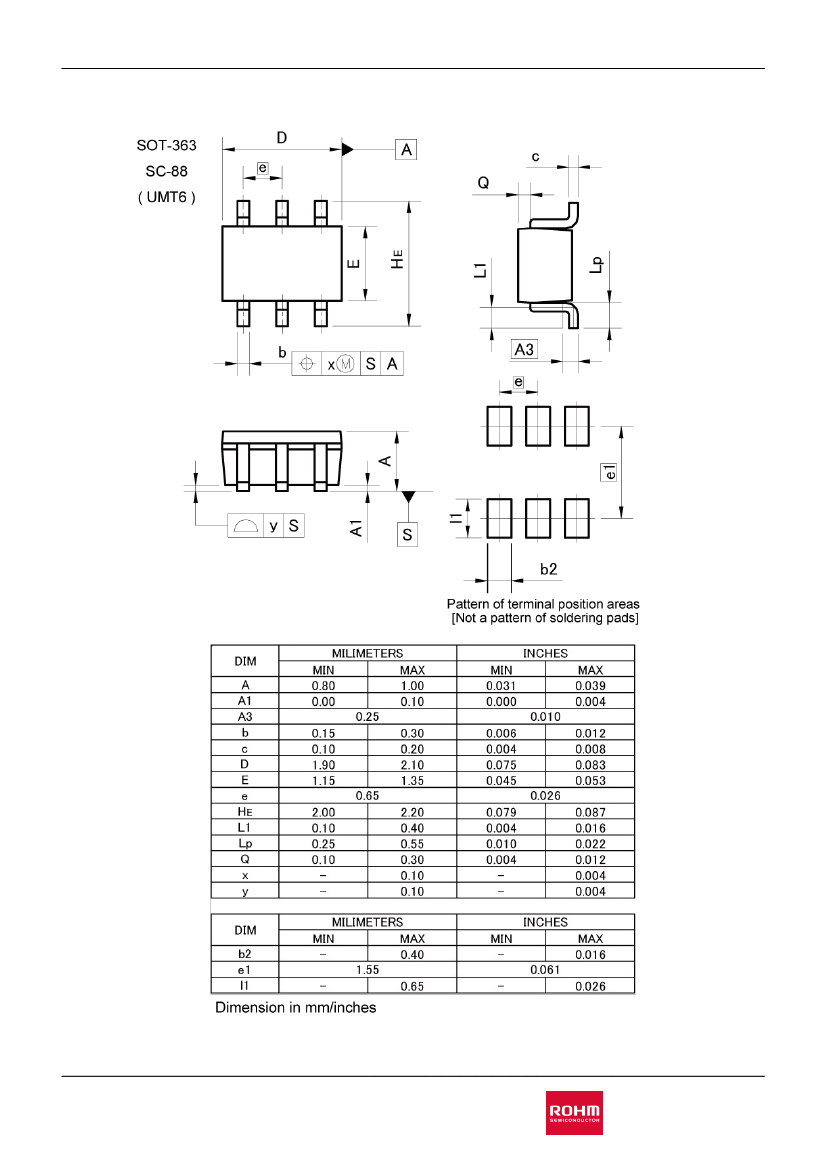

Dimensions
Datasheet
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
5/5
20161012 - Rev.001
