RB056LAM-40TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> RB056LAM-40TR

RB056LAM-40TR: DescriptionDIODE SCHOTTKY 40V 3A PMDTM; Categorysemiconductor Discrete semiconductor; File Size261KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

RB056LAM-40TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RB056LAM-40TR	-	-	View	Buy Now

RB056LAM-40TR Overview

DIODE SCHOTTKY 40V 3A PMDTM

RB056LAM-40TR Parametric

Parameter Name	Attribute value
Diode type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	40V
Current - average rectification (Io)	3A
Voltage at different If - Forward (Vf	670mV @ 3A
speed	Fast recovery = < 500 ns, > 200mA (Io)
Current at different Vr - Reverse leakage current	50µA @ 40V
Capacitance at different Vr, F	-
Installation type	surface mount
Package/casing	SOD-128
Supplier device packaging	PMDTM
Operating Temperature - Junction	150°C (maximum)

Preview

Download Datasheet

View All

Tape and Packing

Product

Type

Diode

JEDEC code SOD-128

Package

PMDTM

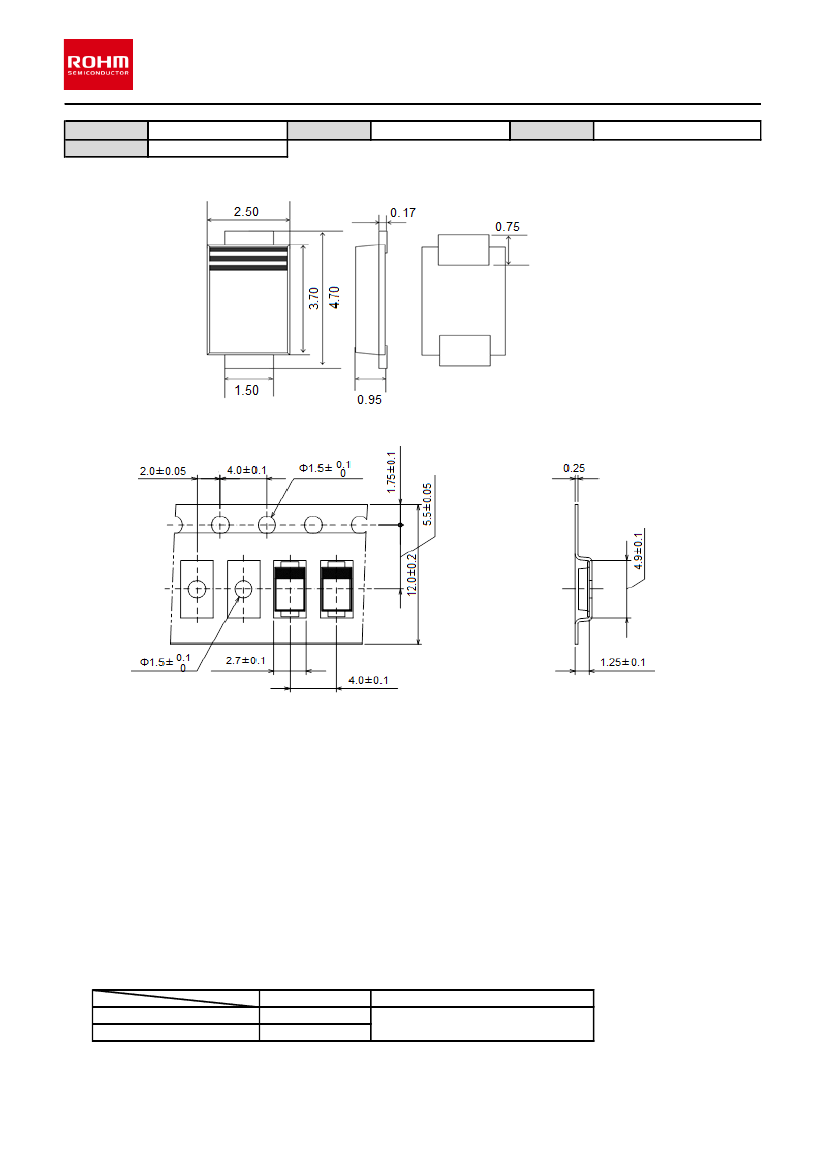

1. Components description (Only for reference / Unit : mm)

2. Taping dimensions (Unit : mm)

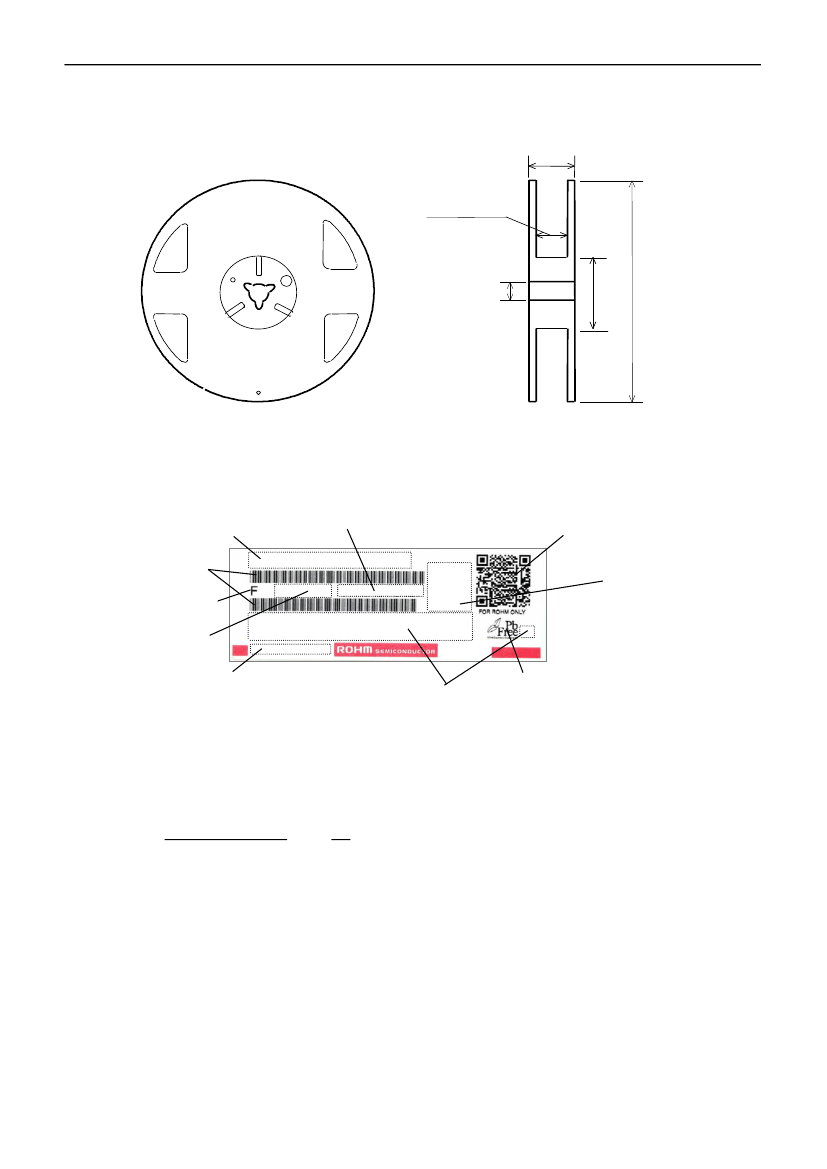

3. Tape and packing specification

3-1. Direction of tape winding

Cathode on sprocket hole side. The direction shall be one in a reel.

3-2. Cumulative pitch tolerance

The cumulative pitch tolerance of the mold for producing the carrier tape shall be within ±0.2mm

per 10pitches.

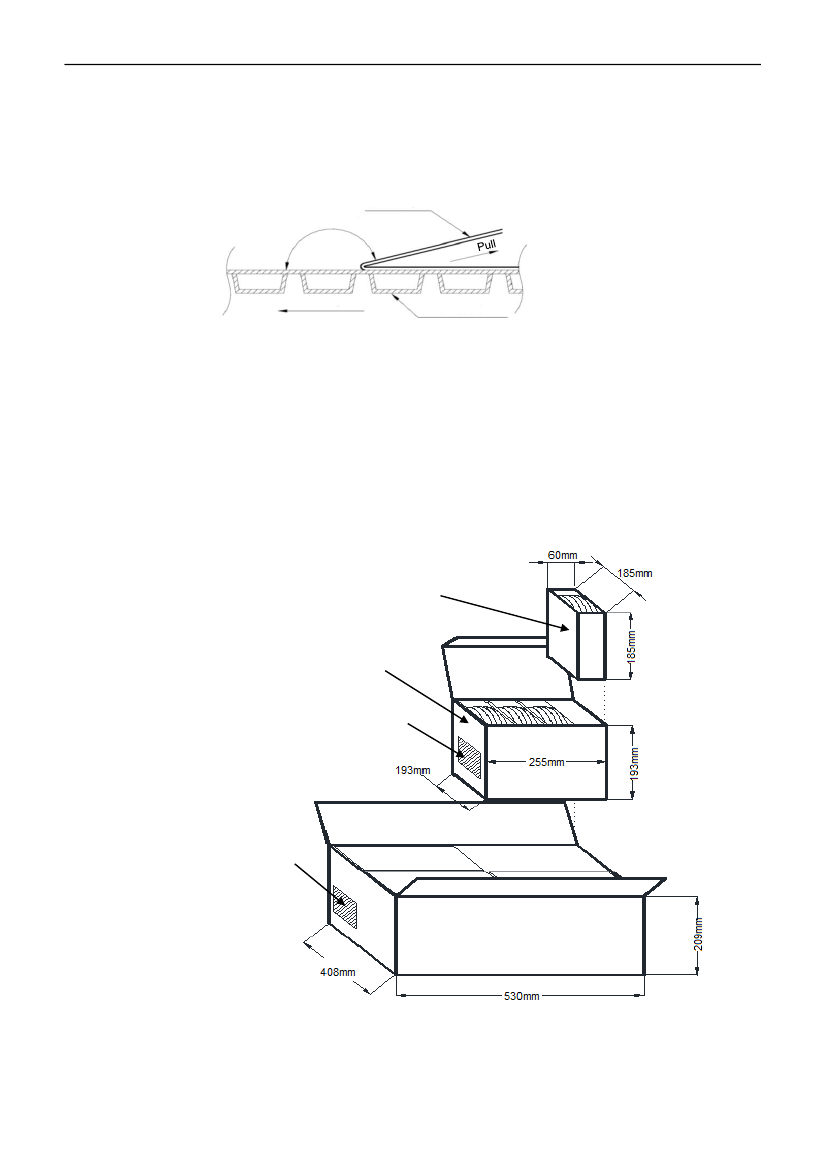

3-3. The minimum radius to bend the carrier tape

Carrier tape shall be flexible enough to protect from no component and damage under a minimum

radius of 15mm. However it shall be defined only inside of carrier tape．

3-4. The material of carrier tape

Polystyrene

3-5. Failure Rate

Continuous missing

Discontinuous missing

Incidence

Remark

　Except

leader and trail portion

Max.0.1%／reel

＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿

www.rohm.com

1/4

2017.5 - Rev.002
