74HC374D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC374D

74HC374D: DescriptionIC FF D-TYPE SNGL 8BIT 20SOIC; Categorylogic logic; File Size201KB，11 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric View All

74HC374D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74HC374D	-	-	View	Buy Now

74HC374D Overview

IC FF D-TYPE SNGL 8BIT 20SOIC

74HC374D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
package instruction	SOP,
Reach Compliance Code	unknown
Factory Lead Time	12 weeks
Samacsys Description	Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC
series	HC/UH
JESD-30 code	R-PDSO-G20
length	12.8 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	285 ns
Maximum seat height	2.5 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

Preview

Download Datasheet

View All

74HC374D

CMOS Digital Integrated Circuits Silicon Monolithic

74HC374D

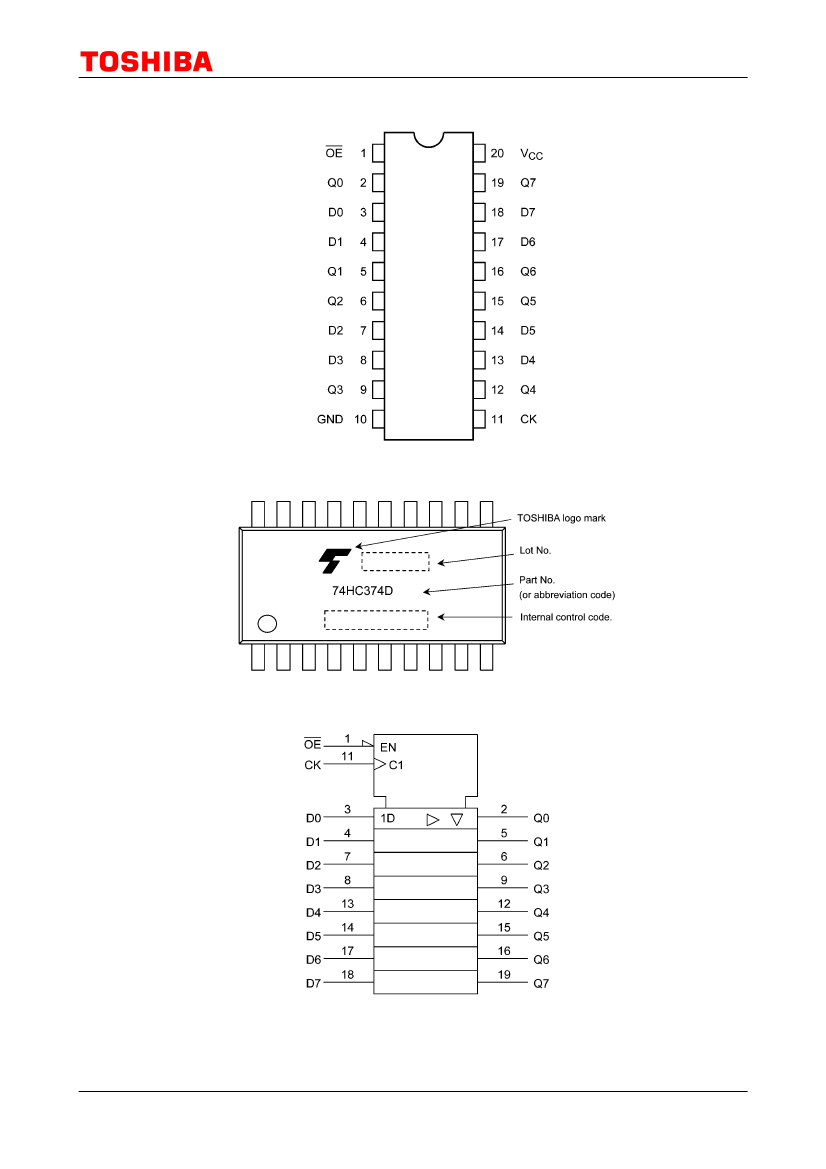

1. Functional Description

•

Octal D-Type Flip Flop with 3-State Outputs

2. General

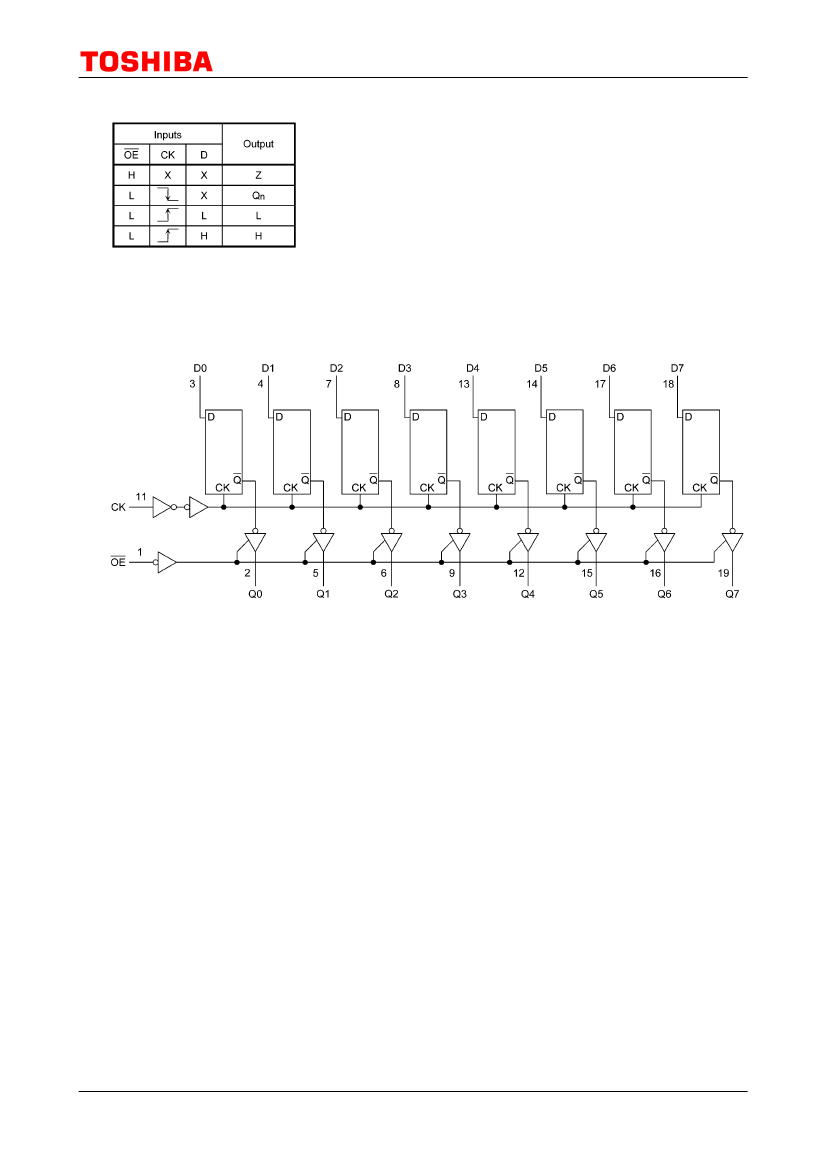

The 74HC374D is a high speed CMOS OCTAL FLIP-FLOP with 3-STATE OUTPUT fabricated with silicon gate

MOS technology.

It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power

dissipation.

These 8-bit D-type flip-flops are controlled by a clock input (CK) and an output enable input (OE).

When the input is high, the eight outputs are in a high impedance state.

All inputs are equipped with protection circuits against static discharge or transient excess voltage.

3. Features

(1)

(2)

(3)

(4)

High speed: f

MAX

= 90 MHz (typ.) at V

= 6.0 V

Low power dissipation: I

= 4.0

µA

(max) at T

= 25



Balanced propagation delays: t

PLH

≈

PHL

Wide operating voltage range: V

CC(opr)

= 2.0 V to 6.0 V

4. Packaging

SOIC20

Start of commercial production

2016-03

2016-08-04

Rev.3.0
