BX4090WANLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> BX4090WANLT

BX4090WANLT: DescriptionTRANSFORMER LINE 3:5:1 200UH SMD; CategoryPower/power management; File Size300KB，1 Pages; ManufacturerPulse Electronics Network; Environmental Compliance

Download Datasheet Parametric Compare View All

BX4090WANLT Overview

TRANSFORMER LINE 3:5:1 200UH SMD

BX4090WANLT Parametric

Parameter Name	Attribute value
Transformer type	VDSL
inductance	200µH
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	3.5：1
Installation type	surface mount
size/dimensions	0.378" long x 0.354" wide (9.60mm x 9.00mm)
Height - Installation (maximum)	0.433"（11.00mm）
Operating temperature	-40°C ~ 85°C
weight	0.07 oz (1.99g)

Preview

Download Datasheet

View All

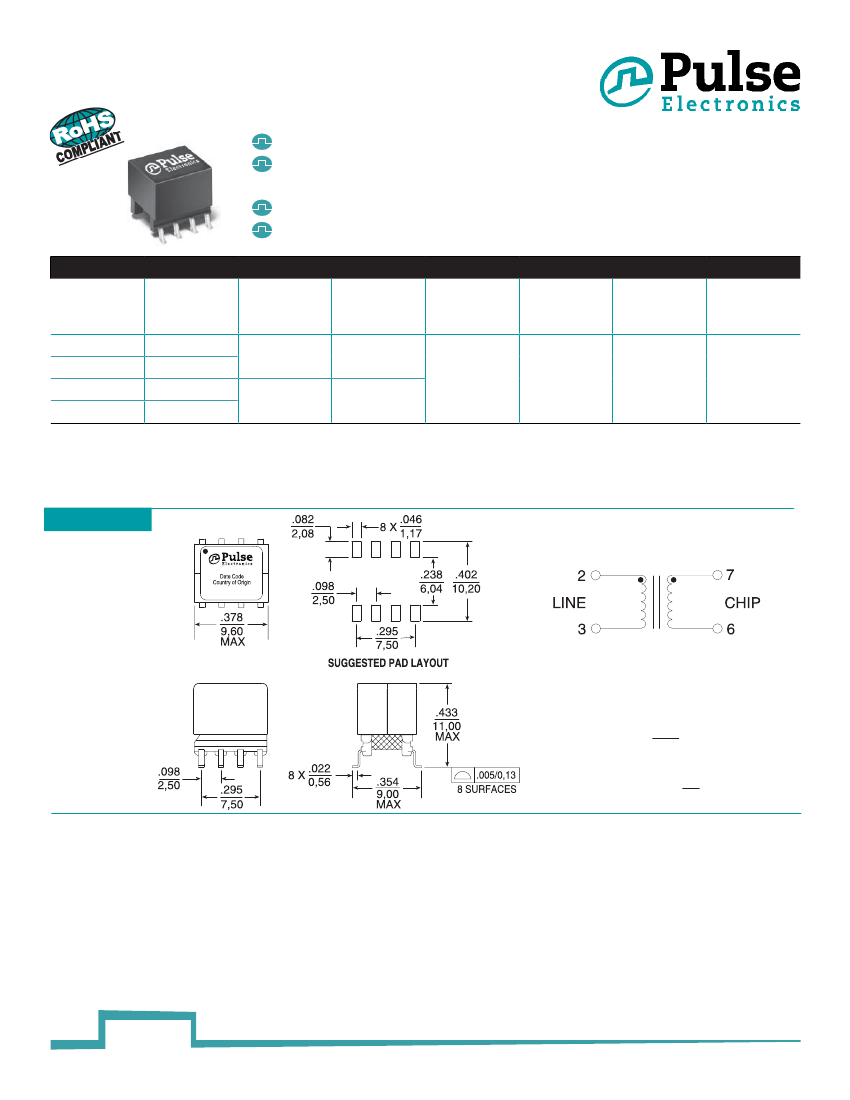

VDSL Line Transformers

For Use with Ikanos Chipset

Matched to Ikanos SmartLeap chipset

Both versions designed to meet IEC950 operational or supplementary

insulation requirements for working voltages up to 250 Vrms

Compact industry standard surface mount footprint

Extended temperature range

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

RoHS-5

Compliant

Part Number

BX4052W

RoHS-6

Compliant

Part Number

BX4082WNL

BX4090WANL

BX4091WANL

Turns Ratio

(Line:Chip)

3:1

3.5:1

OCL Line

(μH

±7%)

220

1.0

200

1.30

-80

1500

Leakage

Inductance

(μH MAX)

Insertion Loss

@ 80 kHz to 12.5 MHz

(dB MAX)

@ 80 kHz, 4 Vp-p

(dB MIN)

Hipot

(Vrms)

Notes:

BX4052W and BX4091WANL are the supplementary insulation versions as per IEC950 for working voltage up to 250 Vrms.

BX4082W and BX4090WANL are the operational insulation versions as per IEC950 for working voltage up to 250 Vrms.

Optional Tape & Reel packagin can be ordered by adding a “T” suffix to the part number, i.e. BX4082WNLT.

Mechanical

BX40XX

Schematic

Weight

......................1.8 grams

Tape & Reel

...............300/tube

Tray

...............................95/tray

Inches

Dimensions:

Unless otherwise specified,

all tolerances are

.010

0,25

For More Information

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

Tel: 858 674 8100

Fax: 858 674 8262

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Road

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 2704/2705

Super Ocean Finance Ctr.

2067 Yan An Road West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Pulse South Asia

135 Joo Seng Road

#03-02

PM Industrial Bldg.

Singapore 368363

Tel: 65 6287 8998

Fax: 65 6287 8998

Pulse North Asia

3F, No. 198

Zhongyuan Road

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823 (Pulse)

Fax: 886 3 4356820 (FRE)

Tel: 49 7032 78060

Fax: 49 7032 7806 135

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be

pulseelectronics.com

B831.D (02/12)
