BX4175WNLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> BX4175WNLT

BX4175WNLT: DescriptionTRANSFORMER LINE 1.33:1 270UH; CategoryPower/power management; File Size56KB，1 Pages; ManufacturerPulse Electronics Network; Environmental Compliance

Download Datasheet Parametric Compare View All

BX4175WNLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BX4175WNLT	-	-	View	Buy Now

BX4175WNLT Overview

TRANSFORMER LINE 1.33:1 270UH

BX4175WNLT Parametric

Parameter Name	Attribute value
Transformer type	VDSL
inductance	270µH
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	1.33：1
Installation type	surface mount
size/dimensions	0.386" long x 0.358" wide (9.80mm x 9.10mm)
Height - Installation (maximum)	0.421"（10.70mm）
Operating temperature	-40°C ~ 85°C
weight	0.07 oz (1.99g)

Preview

Download Datasheet

View All

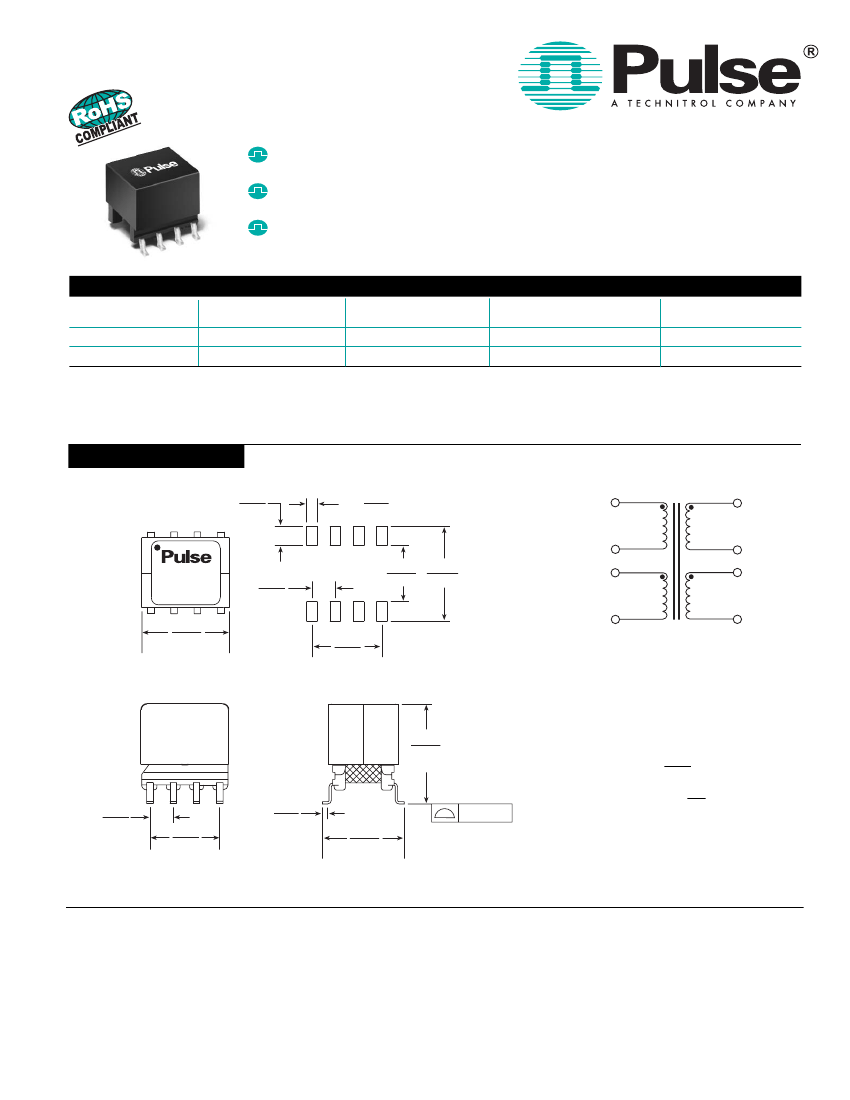

VDSL LINE TRANSFORMER

Matched to Infineon VDSL 5000i and 6000i chipset

For CO applications over frequency range of 138kHz to 12MHz

Designed to meet EN60950 functional isolation requirements

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

BX4104W

BX4175WNL

Turns Ratio

(Line:Chip)

1.33:1

OCL Primary

(µH)

770 ±12%

270 ±10%

THD @ 100kHz, 2Vrms

(dB MAX)

-80

Isolation Voltage

(Vrms)

1500

NOTE:

Transformers are shipped in trays unless Tape & Reel packaging is specified by adding the suffix

“T”

to the part number (i.e. BX4104WT).

Mechanical

BX4104W / BX4175WNL

.082

2,08

.046

8 X 1,17

LINE

Schematic

BX4104W

BX4175WNL

Date Code

Country of Origin

.098

2,50

.238 .402

6,04 10,20

CHIP

.386

9,80

MAX

.295

7,50

SUGGESTED PAD LAYOUT

Weight

. . . . . . . . . . . . . .1.8 grams

Tape & Reel

. . . . . . . . . . . .300/reel

Tray

. . . . . . . . . . . . . . . . . . .95/tray

.421

10,70

MAX

.098

2,50

.022

0,56

.005/0,13

8 SURFACES

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

.295

7,50

.358

9,10

MAX

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Pulse

Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Tel: 49 7032 7806 116

Fax: 49 7032 7806 135

Pulse China

Headquarters

No. 1

Industrial District

Changan, Dongguan

China

Tel: 86 769 85538070

Fax: 86 769 85538870

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Tel: 65 6287 8998

Fax: 65 6280 0080

Pulse North Asia

No. 26

Kao Ching Rd.

Yang Mei Chen

Taoyuan Hsien

Taiwan, R. O. C.

Tel: 886 3 4641811

Fax: 886 3 4641911

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

B875.B (10/06)

BX4175WNLT Related Products

	BX4175WNLT	BX4175WNL
Description	TRANSFORMER LINE 1.33:1 270UH	TRANSFORMER LINE 1.33:1 270UH
Transformer type	VDSL	VDSL
inductance	270µH	270µH
Turns Ratio - Primary:Secondary	1.33：1	1.33：1
Installation type	surface mount	surface mount
size/dimensions	0.386" long x 0.358" wide (9.80mm x 9.10mm)	0.386" long x 0.358" wide (9.80mm x 9.10mm)
Height - Installation (maximum)	0.421"（10.70mm）	0.421"（10.70mm）
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C
weight	0.07 oz (1.99g)	0.07 oz (1.99g)
