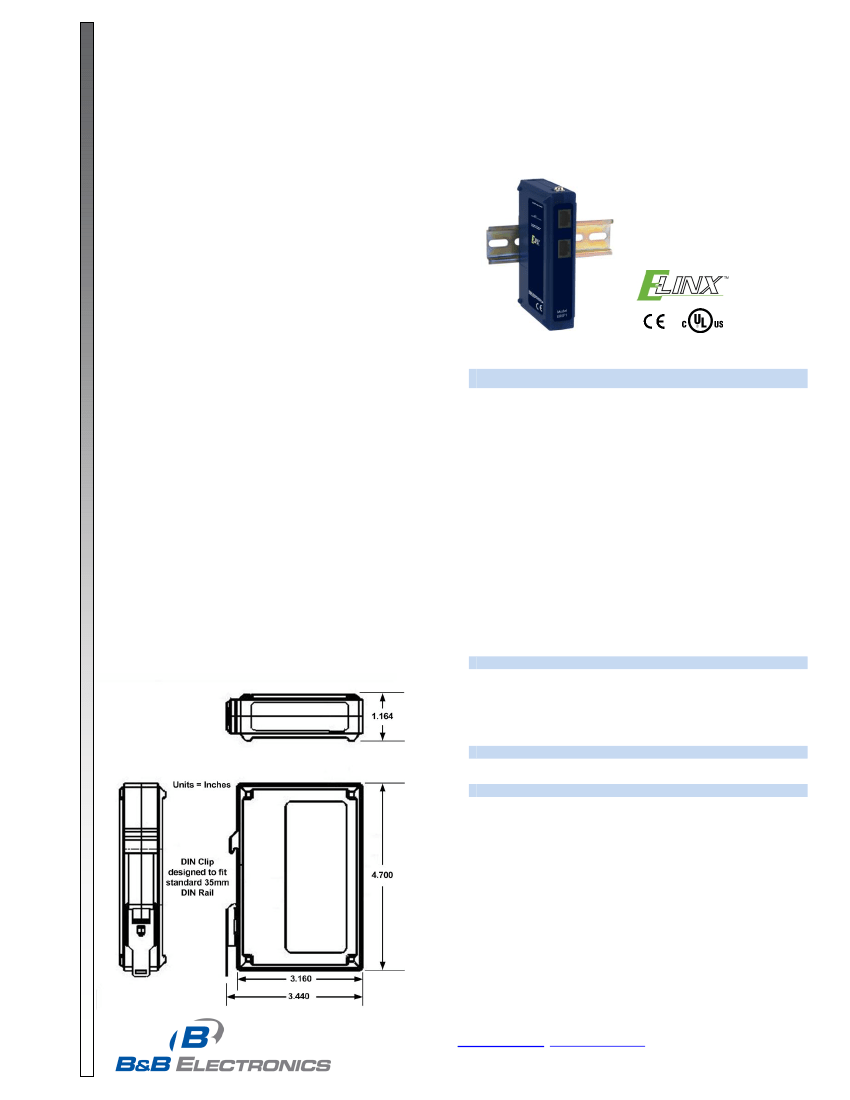

p/n 8440 EIRSP1-0812ds page 1/1
©2009 B&B Electronics. All rights reserved
B&B ELECTRONICS
EIRSP1
Industrial Ethernet Surge Protector
Space Saving IP30 Din Rail Enclosure
Protects all Eight CAT 5 Lines
Power Over Ethernet Compatible
The Elinx™ EIRSP1 Industrial Ethernet Surge
Protector is designed to protect all eight lines used
in a standard CAT5e Ethernet cable. It is compatible
with 10/100BaseT networks and 802.11af (Modes A
& B) Power Over Ethernet. Mode A applies power to
the data pairs, pins 1/2 and 3/6. Mode B applies
power to the unused pairs, pins 4/5 and 7/8.
Network connections are made using RJ-45
connectors. Grounding is accomplished using a
ground lug which accepts 14 to 22 AWG wire.
Stranded or braided cable is recommended with a
three foot maximum run to Earth Ground.
Specifications
Ethernet Connection
Lines Protected
Protocols
Speed
Clamping Voltage
Peak Pulse Power
Peak Surge Current
Capacitance
Response Time
Operating Temperature
Storage Temperature
Operating Humidity
Enclosure
Dimensions
MTBF
MTBF Calculation Method
Compliance
UL File Number
RJ-45
All 8
802.11af (Modes A&B)
10/100 BaseT
60 V
600 W
1000 Amps
<50 pF
<5 nS
-40 to 176 F (-40 to 80 C)
-40 to 185 F (-40 to 85 C)
0 to 95% Non-condensing
Plastic, IP 30 DIN Rail Case
1.2x4.7x3.4 in (3.0 x11.9 x8.6 cm)
131960 Hours
Parts Count Reliability Prediction
CE, FCC, UL
E222870
CE / FCC DoC available
for download.
RoHS
Yes
Wiring
Wire Type
Copper Wire Only
One conductor per terminal
Wire Range
14 to 22 AWG
Tightening Torque
1.7 lb-in
Wire Temperature Rating
105 C minimum (sized for
60 C ampacity)
Ordering Information
EIRSP1
Industrial Ethernet Surge
Protector
Accessories
DRPM25
Panel Mount Adapter
PRODUCT INFORMATION
www.bb-elec.com
orders@bb-elec.com
support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
