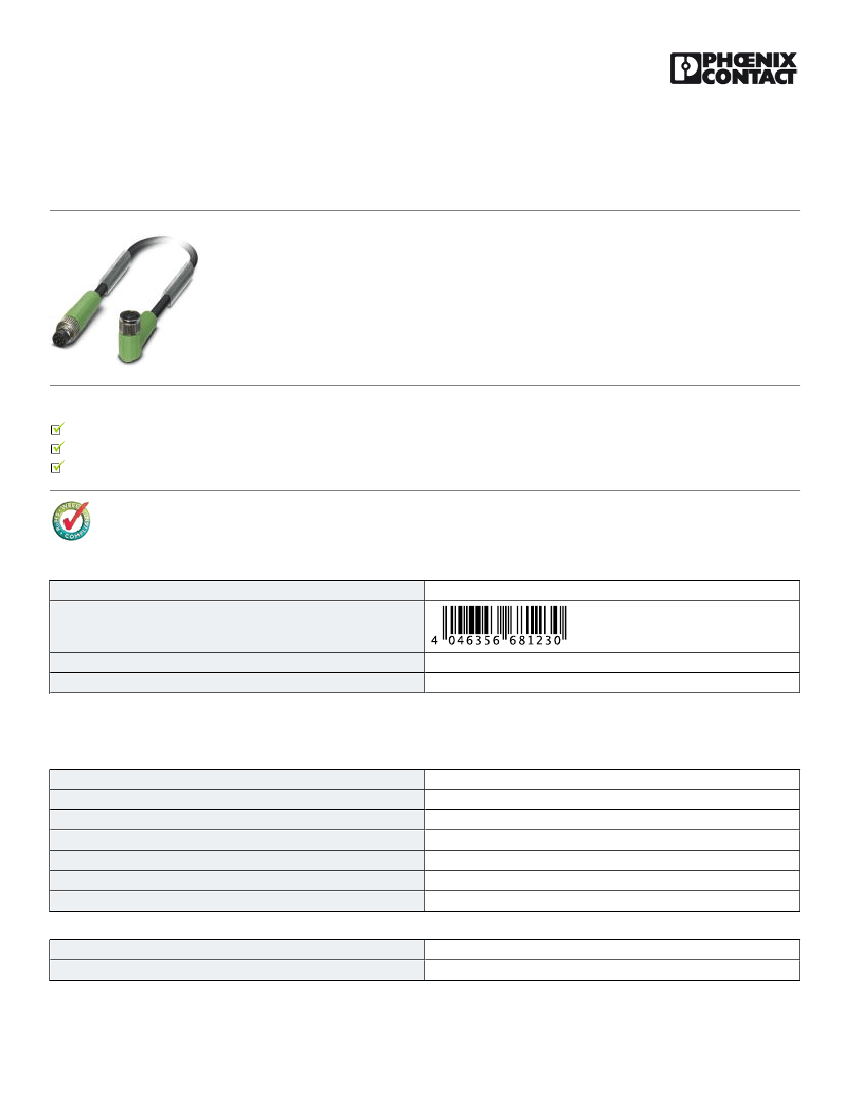

Sensor/Actuator cable - SAC-8P-M 8MS/ 1,5-PUR/M 8FR - 1404203
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/Actuator cable, 8-position, PUR, Black RAL 9005, Plug straight M8, on Socket angled M8, Cable length:
1.5 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
Save space – with high-pos. plug-in connectors
Key commercial data
Packing unit
GTIN
Custom tariff number
Country of origin
85444290
GERMANY
1 PCE
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
Insulation resistance
Length of cable
Ambient temperature (operation)
1.5 A
30 V
8
≤ 5 mΩ
≥ 100 MΩ
1.5 m
-25 °C ... 85 °C (Plug / socket)
General characteristics
Standards/regulations
Coding
M8 plug-in connector IEC 61076-2-104
A - standard
10.05.2013 Page 1 / 9
https://www.phoenixcontact.com/us/produkte/1404203
Sensor/Actuator cable - SAC-8P-M 8MS/ 1,5-PUR/M 8FR - 1404203
Technical data
General characteristics
Pollution degree
Degree of protection
Degree of protection
Degree of protection
Insertion/withdrawal cycles
Torque
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Status display
3
IP65
IP67
IP68
≥ 100
0.2 Nm (M8 plug-in connectors)
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
No
Conductor data
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material, filler
Material conductor insulation
Conductor material
Li9Y11Y
20549
8x 0.14 mm² (signal line)
26
18x 0.10 mm
1 mm ±0.02 mm (signal line)
≥ 0.21 mm (signal line)
≥ 0.38 mm (Outer cable sheath)
white, brown, green, yellow, gray, pink, blue, red
8 wires around filler to the core
58 mm
Black-gray RAL 7021
5.1 mm ±0.15 mm
25.5 mm
51 mm
4000000
51 mm
10 m
3 m/s
10 m/s²
PUR
PE
PP
Bare Cu litz wires
10.05.2013 Page 2 / 9
https://www.phoenixcontact.com/us/produkte/1404203
Sensor/Actuator cable - SAC-8P-M 8MS/ 1,5-PUR/M 8FR - 1404203
Technical data
Conductor data
Insulation resistance
Conductor resistance
Nominal voltage, conductor
Test voltage, conductor
Flame resistance
Flame resistance
Halogen-free
Halogen-free
Resistance to oil
Other resistance
Other resistance
Other resistance
Other resistance
Ambient temperature (operation)
Ambient temperature (operation)
1 GΩ*km (at 20 °C)
139 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
according to UL 758/1581 (horizontal)
In accordance with UL 758/1581 FT2
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
hydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
31251501
31251501
31251501
31251501
31251501
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27060306
27060306
27061801
27061801
27061801
27061801
10.05.2013 Page 3 / 9
https://www.phoenixcontact.com/us/produkte/1404203
Sensor/Actuator cable - SAC-8P-M 8MS/ 1,5-PUR/M 8FR - 1404203

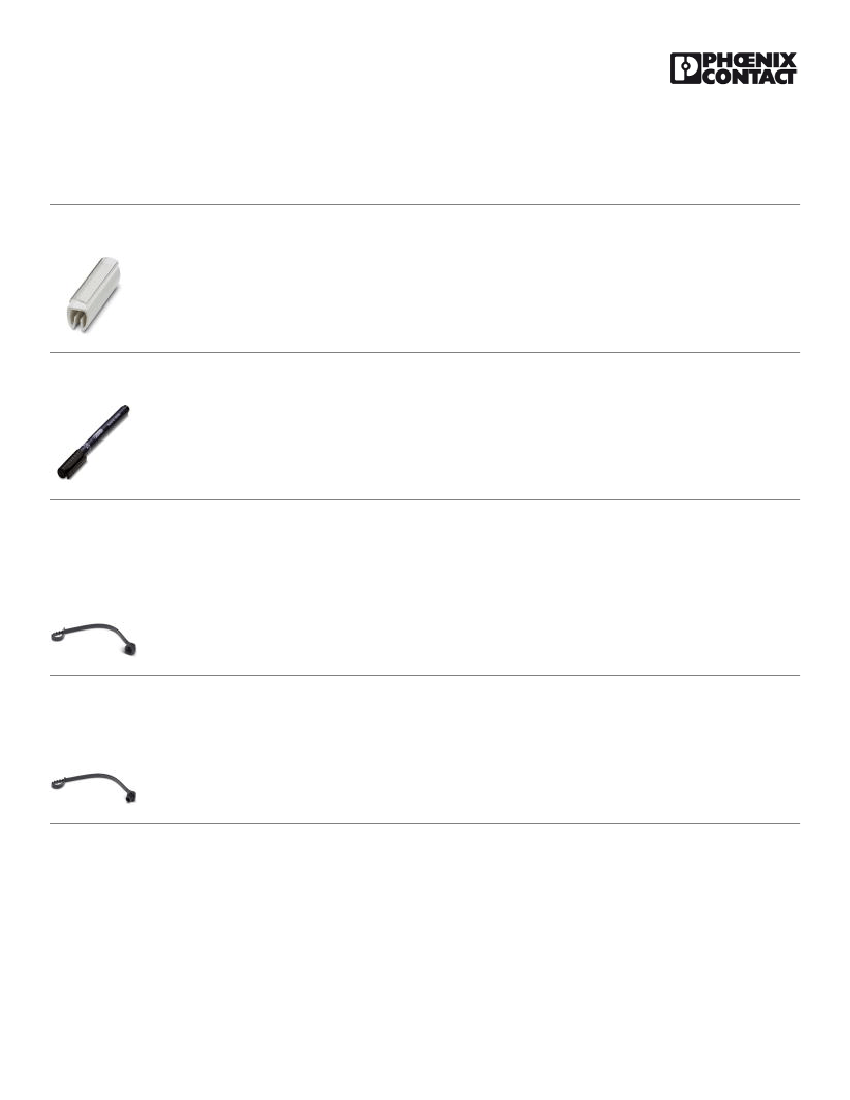

Accessories
Accessories
Marking
Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, Strip, red, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Conductor marker carrier - PATO 2/15 - 1013122
Conductor marker carrier, transparent, Unlabeled, Mounting type: Clip on, Cable diameter: 2.8-4.4 mm, Lettering field: 4
x 15 mm
Conductor marker carrier - PATO 3/15 - 1013135
Conductor marker carrier, transparent, Unlabeled, Mounting type: Clip on, Cable diameter: 4.4-6.7 mm, Lettering field: 4
x 15 mm
10.05.2013 Page 4 / 9
https://www.phoenixcontact.com/us/produkte/1404203
Sensor/Actuator cable - SAC-8P-M 8MS/ 1,5-PUR/M 8FR - 1404203
Accessories
Conductor marker carrier - PATO 4/15 - 1013148
Conductor marker carrier, transparent, Unlabeled, Mounting type: Clip on, Cable diameter: 6.7-10 mm, Lettering field: 4 x
15 mm
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Protection and sealing elements
Sealing cap - PROT-M 8 FS-PA-CHAIN - 1430857
M8 sealing cap made of plastic with fixing band for sensor cables, for M8 plugs
Screw plug - PROT-M 8 MS-PA-CHAIN - 1430860
M8 sealing cap made of plastic with fixing band for sensor cables, for M8 sockets
Tools
10.05.2013 Page 5 / 9
