C-STLV01-E3-KIT: DescriptionCAP KIT CER 1000PF-10UF 140PCS; CategoryDevelopment board/suite/development tools; File Size93KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

C-STLV01-E3-KIT Overview

CAP KIT CER 1000PF-10UF 140PCS

C-STLV01-E3-KIT Parametric

Parameter Name	Attribute value
Kit type	ceramics
Capacitance range	1000pF ~ 10µF
Installation type	Surface mount, MLCC
Voltage - Rated	25 ~ 50 V
Tolerance	±10%
application	Boardflex sensitive
characteristic	Soft terminal
quantity	140 pieces (14 values - 10 pieces each)
Includes packaging	0603, 0805, 1206, 1210 (1608, 2012, 3216, 3225 metric)

Preview

Download Datasheet

View All

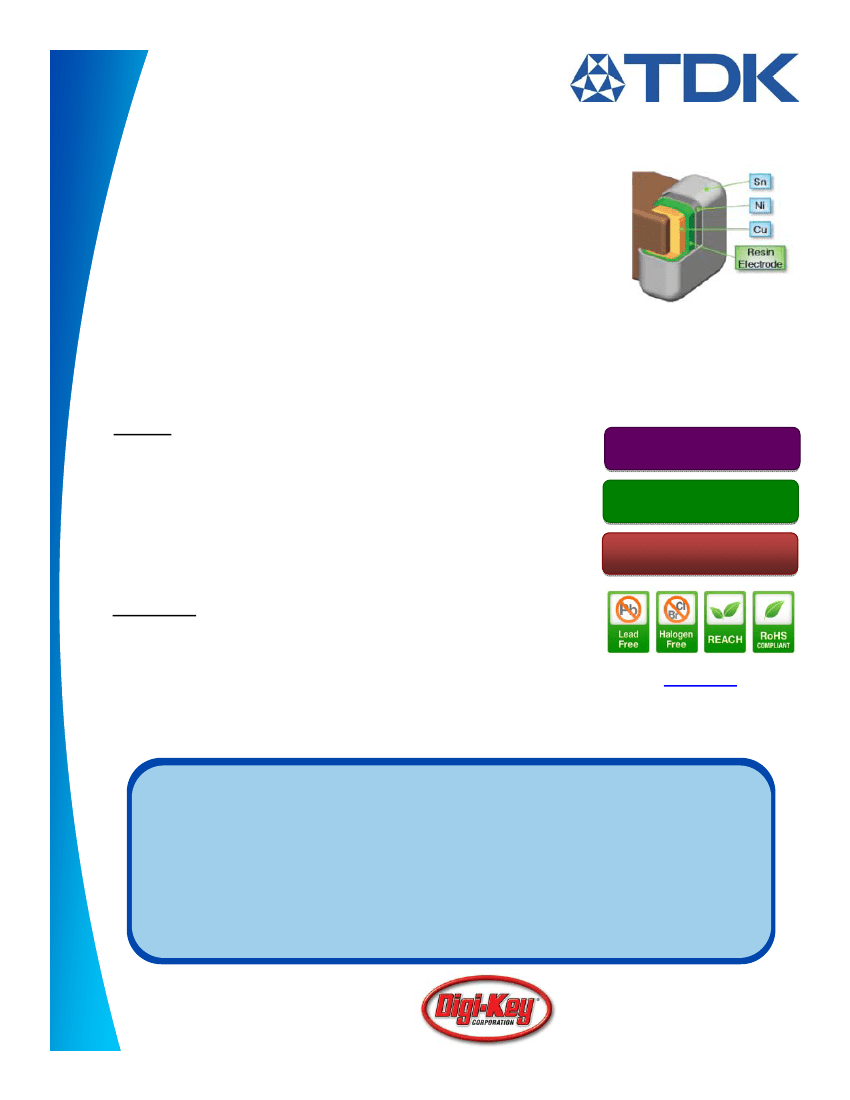

C Series—Board Flex Solutions MLCC Kit

Consumer Grade Low Voltage Soft Termination Capacitor Kit

The TDK C Series Mid Voltage Soft Termination MLCCs were designed for

applications where mechanical stress and extreme temperature swings are a

concern. Conventional termination materials used in standard MLCCs are inflexible,

therefore vibration, shock, and thermal expansion and contraction have the

potential to crack or shear the solder joint between the component and the circuit

board. The soft termination design mitigates cracking by incorporating an additional

conductive resin layer to the end terminal electrodes. This allows the capacitor to better absorb mechanical

stress, while TDK’s superior layer bonding technique reduces the risk of separation failure. Designers who are

specifically concerned with mechanical stress or who have had issues in the past with capacitor cracking should

look to TDK’s C Series Mid Voltage Soft Termination MLCCs.

Features



Improved board bending resistance

Improved temperature cycle performance

Conductive resin absorbs external stress to protect solder joints and

capacitor body

RoHS, WEE, and REACH compliant

Low Voltage

Soft Termination

Consumer

Applications



Output filter of DC-DC converters

Buck (Step-Down) Topology

Switch Mode Power Supply

Applications where mechanical

stress is a concern



Smart Meter

LED Lighting

Telecom Base Station

Datasheet

C-STLV01-E3-KIT Board Flex Solutions Kit Includes:

Case Sizes:

1608 (EIA 0603), 2012 (EIA 0805),

3216 (EIA 1206), & 3225 (EIA 1210)

Rated Voltage*:

25-50V

Capacitance Range:

1000pF-10µF

*Operating condition is

≤

40V

Now Available at:

Click the Digi-Key logo for ordering information

Rev. 1—September 2014
