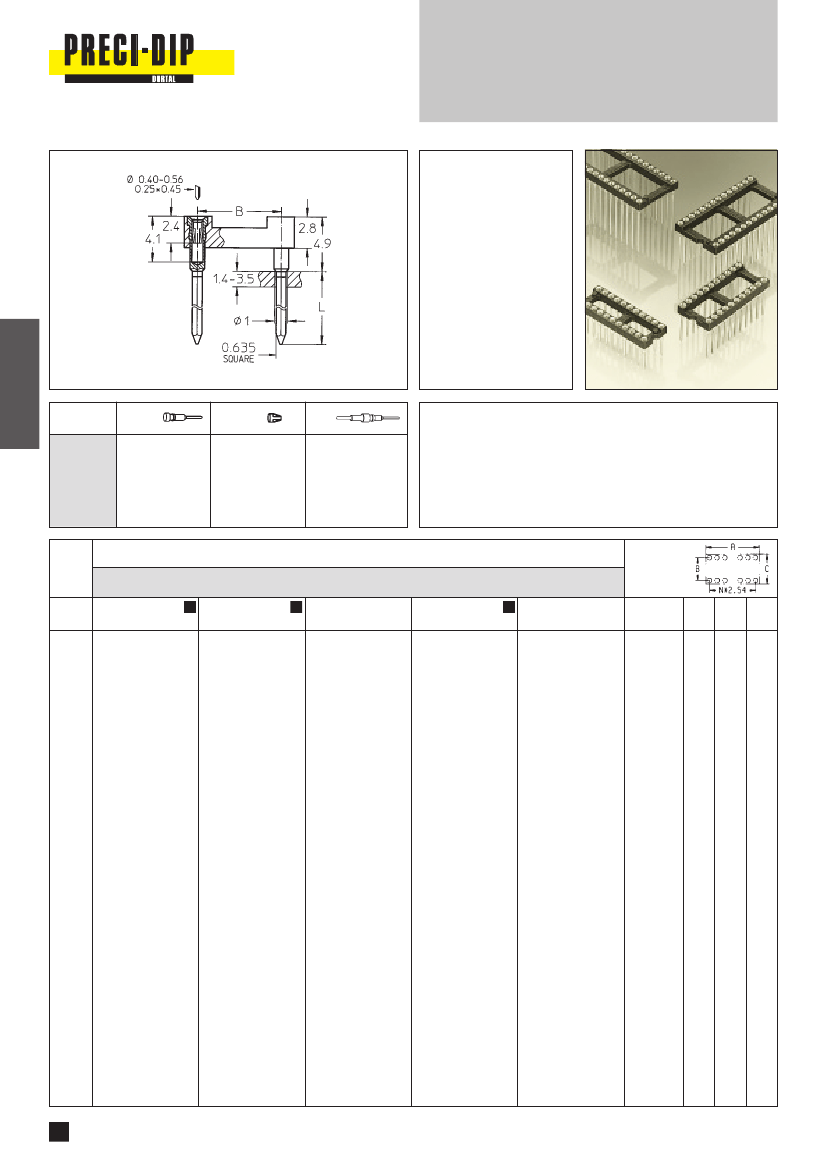

Series 121 / 122 / 123 / 124
62
Dual-in-line sockets
Open frame
Wire-wrap 1 / 2 / 3 / 4 level
Solderless wire-wrap ter-
minals are firmly locked in
the insulator body to
withstand torque of
wrapping tool
Length of terminal for
one-level wrapping
two-level wrapping
three-level wrapping
four-level wrapping
Insertion characteristics:
4-finger standard
Platings
13
91
93
99
Sleeve
0.25
µm
Au
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
Clip
0.75
µm
Au
0.25
µm
Au
0.75
µm
Au
5
µm
Sn Pb
Pin
Ordering information
For standard versions see table (order codes)
Platings available:
Series 121: 93
123: 13, 91, 93, 99
122: 13, 91, 93, 99
124: 93
Replace
xx
with required plating code
No.
of
poles
WW-1 level
B
L = 6.6 mm
10
4
6
8
10
12
14
16
18
20
22
24
28
20
22
24
28
32
10
24
28
32
36
40
42
48
50
52
50
52
64
121-93-210-41-001
121-93-304-41-001
121-93-306-41-001
121-93-308-41-001
121-93-310-41-001
121-93-312-41-001
121-93-314-41-001
121-93-316-41-001
121-93-318-41-001
121-93-320-41-001
121-93-322-41-001
121-93-324-41-001
121-93-328-41-001
121-93-420-41-001
121-93-422-41-001
121-93-424-41-001
121-93-428-41-001
121-93-432-41-001
121-93-610-41-001
121-93-624-41-001
121-93-628-41-001
121-93-632-41-001
121-93-636-41-001
121-93-640-41-001
121-93-642-41-001
121-93-648-41-001
121-93-650-41-001
121-93-652-41-001
121-93-950-41-001
121-93-952-41-001
121-93-964-41-001
Order Codes
Plating: see ordering information
WW-2 levels
B
L = 9.40 mm
122-xx-210-41-001
122-xx-304-41-001
122-xx-306-41-001
122-xx-308-41-001
122-xx-310-41-001
122-xx-312-41-001
122-xx-314-41-001
122-xx-316-41-001
122-xx-318-41-001
122-xx-320-41-001
122-xx-322-41-001
122-xx-324-41-001
122-xx-328-41-001
122-xx-420-41-001
122-xx-422-41-001
122-xx-424-41-001
122-xx-428-41-001
122-xx-432-41-001
122-xx-610-41-001
122-xx-624-41-001
122-xx-628-41-001
122-xx-632-41-001
122-xx-636-41-001
122-xx-640-41-001
122-xx-642-41-001
122-xx-648-41-001
122-xx-650-41-001
122-xx-652-41-001
122-xx-950-41-001
122-xx-952-41-001
122-xx-964-41-001
WW-3 levels
L = 12.95 mm
123-xx-210-41-001
123-xx-304-41-001
123-xx-306-41-001
123-xx-308-41-001
123-xx-310-41-001
123-xx-312-41-001
123-xx-314-41-001
123-xx-316-41-001
123-xx-318-41-001
123-xx-320-41-001
123-xx-322-41-001
123-xx-324-41-001
123-xx-328-41-001
123-xx-420-41-001
123-xx-422-41-001
123-xx-424-41-001
123-xx-428-41-001
123-xx-432-41-001
123-xx-610-41-001
123-xx-624-41-001
123-xx-628-41-001
123-xx-632-41-001
123-xx-636-41-001
123-xx-640-41-001
123-xx-642-41-001
123-xx-648-41-001
123-xx-650-41-001
123-xx-652-41-001
123-xx-950-41-001
123-xx-952-41-001
123-xx-964-41-001
WW-4 levels
B
L = 16 mm
124-93-210-41-002
124-93-304-41-002
124-93-306-41-002
124-93-308-41-002
124-93-310-41-002
124-93-312-41-002
124-93-314-41-002
124-93-316-41-002
124-93-318-41-002
124-93-320-41-002
124-93-322-41-002
124-93-324-41-002
124-93-328-41-002
124-93-420-41-002
124-93-422-41-002
124-93-424-41-002
124-93-428-41-002
124-93-432-41-002
124-93-610-41-001
124-93-624-41-002
124-93-628-41-002
124-93-632-41-002
124-93-636-41-002
124-93-640-41-002
124-93-642-41-002
124-93-648-41-002
124-93-650-41-002
124-93-652-41-002
124-93-950-41-002
124-93-952-41-002
124-93-964-41-002
Insulator
dimen-
sions
See
page 50
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
aFig.
5a
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
aFig.
12a
Fig. 13
Fig. 14
Fig. 15
Fig. 16
aFig.
16a
Fig. 17
Fig. 18
Fig. 19
Fig. 20
Fig. 21
Fig. 22
Fig. 23
Fig. 24
Fig. 25
Fig. 26
Fig. 27
Fig. 28
A
12.6
5.0
7.6
10.1
12.6
15.2
17.7
20.3
22.8
25.3
27.8
30.4
35.5
25.3
27.8
30.4
35.5
40.6
12.6
30.4
35.5
40.6
45.7
50.6
53.2
60.9
63.4
65.9
B
5.08
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
10.16
10.16
10.16
10.16
10.16
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
C
7.6
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
12.6
12.6
12.6
12.6
12.6
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
17.7
63.4 22.86 25.3
65.9 22.86 25.3
81.1 22.86 25.3
B
Products not available from stock. Please consult PRECI-DIP.
