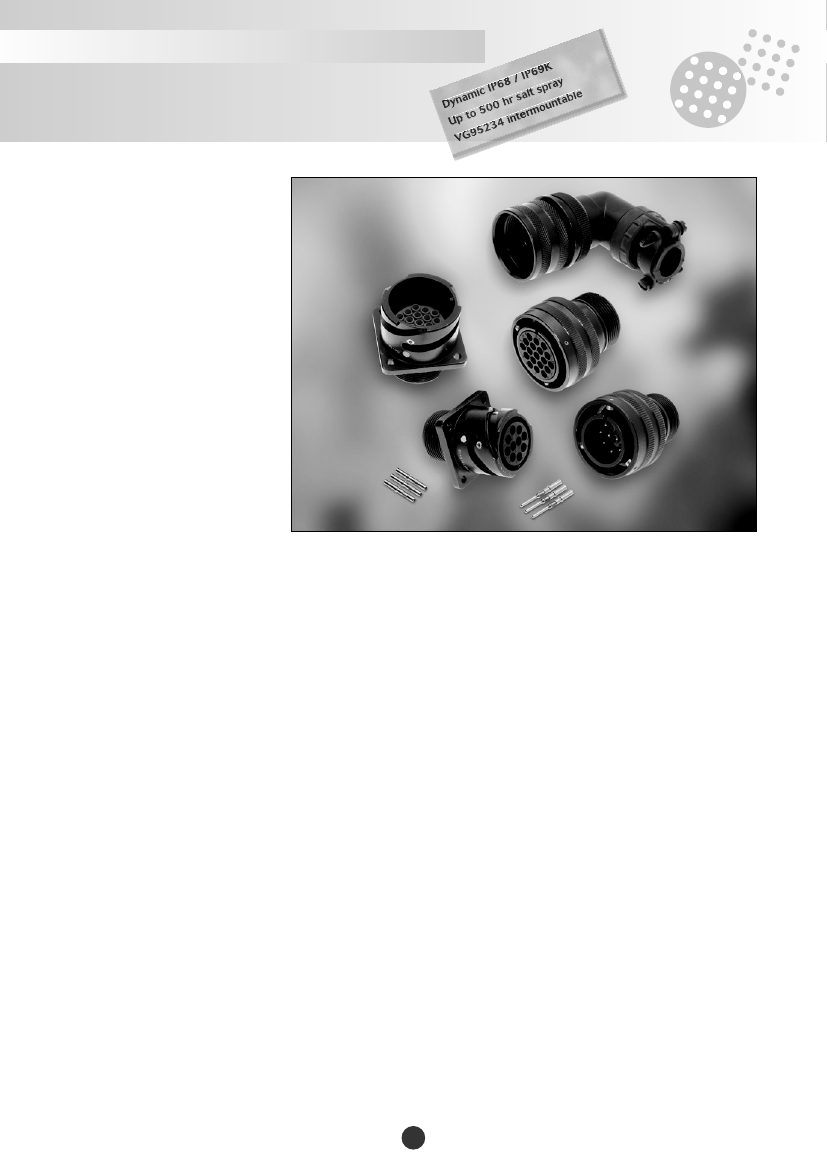

Ruggedized reverse
bayonet connectors
Completely
intermountable with
VG 95234 :
the MS 501 reverse
5
bayonet connectors
Description
This connector series is an enhanced
version of the VG 95234 connec-
tor standard but remains completely
intermountable with VG 95234 : the
MS 501 reverse bayonet connec-
5
tors.
Features and benefits (see also page 3)
• An interfacial seal is present on the male inserts to extend the creepage distance and to have a better sealing when
the connector is mated.
• The insulator is retained into the plug or receptacle shell by a metallic retaining ring which can be removed with a small
screwdriver. Once removed, user can defined insulator orientation.
• Contacts gauge 8, 1 or 16 are machined crimp contacts, removable thanks to a clip on the contact.
2
• No tools are needed to insert contacts into the insulator. An extraction tool is available to extract the contacts. The tool
is engaged by the front face of the connector and the contacts are rear released.
• Contacts are crimped thanks to very common toolings.
• The connector is rated 2 levels of water protection (see page 3):
Dynamic IP67/IP68/IP69K when mated and used with suitable accessories, a grommet or a sealed back shell.
• This connector can be supplied fully assembled or in component form (please consult us).
• Corrosion spray resistance is rated up to 500 hours salt spray
• Cadmium and lead free materials are used
122
New UTV
ruggedized series
New UTV series:
• The ruggedized product range in the TRIM TRIO broadline.
• Using size 1 signal and size 1 & 8 power contacts for up to
6
2
30 Amps per contact.

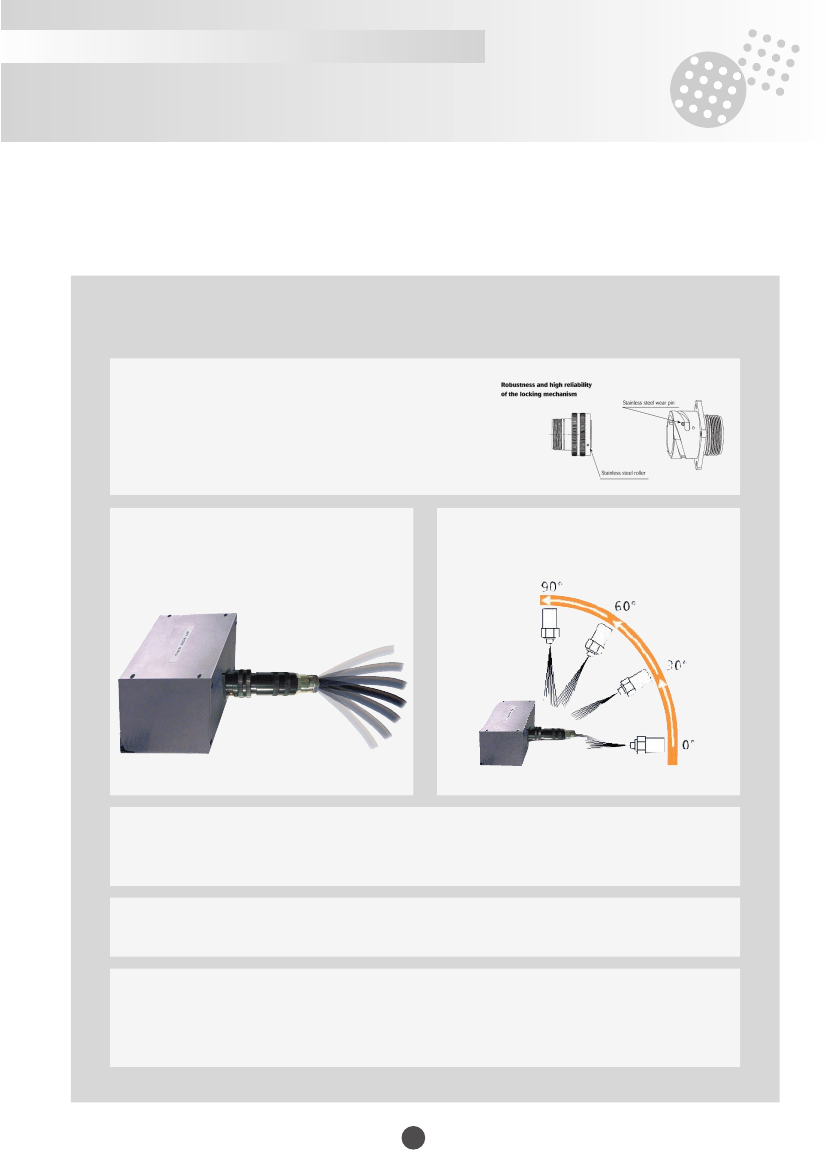

UTV series major technical features & benefits
• Ruggedized full metal reverse bayonet connector
– Enabling 500 mating-unmating without wear out
– Secure locking device
Audible “click” when mating
Visible yellow dot to indicate end of mating cycle
• Dynamic IP68*
Connector will remain IP68 even when:
– Pulling on the cable
– Bending the cable
• Dynamic IP69K*
Connector withstands high pressure water
cleaning.
* With appropriate back shell and grommet
* Exists also in IP67 version
• Up to 500 hours salt spray resistance
– Can be used in very severe environment
* With appropriate back shell and grommet
• Cadmium and lead free materials are used
• In accordance with following standards
– Completely intermountable with VG95234: the MS5015 reverse bayonet connectors
For detailed information on UTV series offering see pages 1 to 1
22
39
3
new
Description
Receptacle
Wear pins
UTV
69K
/ IP
y
8
I P6
spra
alt
le
mic
a
tab
hr s
Dyn
oun
00
to 5
term
Up
4 in
523
VG9

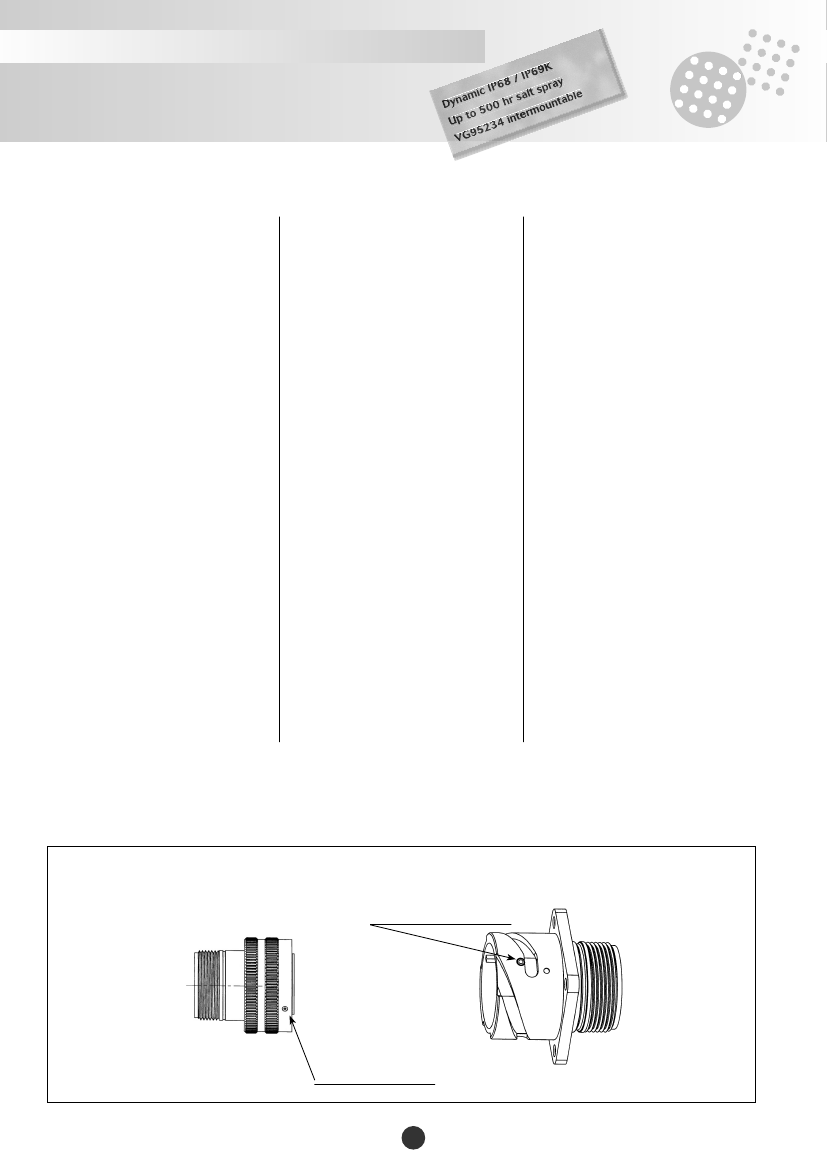

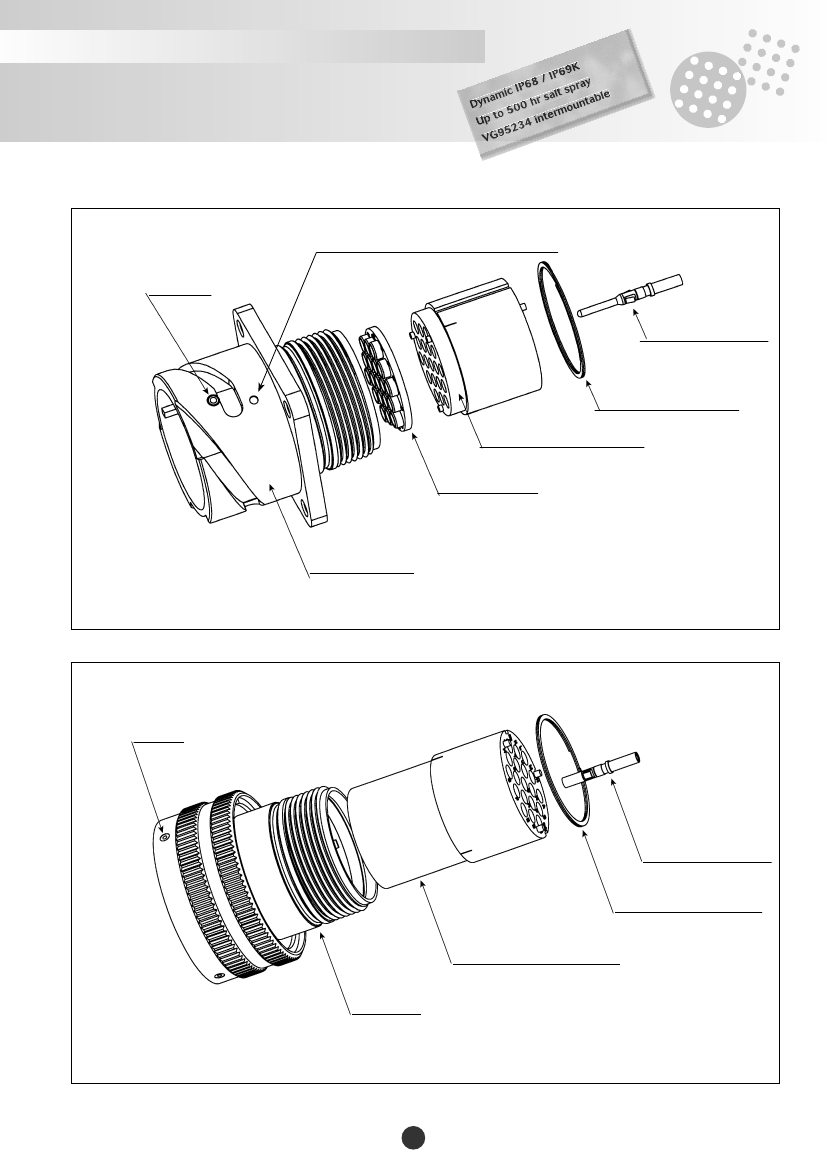

Yellow marking for locking end indication
Pin contact to
crimp with metallic
retention clip
Retaining insulator ring
Hard Thermoplastic insert
Interfacial seal
Receptacle shell
Plug
Roller
Socket contact to crimp
with metallic retention
clip
Retaining insulator ring
Hard Thermoplastic insert
Plug shell
123
new
UTV
Electrical
69K
/ IP
y
8
I P6
spra
alt
le
mic
a
tab
hr s
Dyn
oun
00
to 5
term
Up
4 in
523
VG9
Technical Features (see also page 3)
Mechanical
• Mechanical endurance : 500 mating and
unmating
• Minimum retention force of the contact
in the insulator :
- 70 N for contacts # 16 (1.6 mm)
- 90 N for contacts # 1 (2.4 mm)
2
- 1 N for contacts # 8 (3.6 mm)
10
Minimum values with a maximum
displacement of the contact of 0.3 mm
(following NFF 61030)
• Retention of the insulator in the shell :
(following MIL-C-26482G Series 2 class
L standard)
• Bayonet coupling mechanism -
Coupling torque : following VG 95234
• Vibrations : following NFF 61030
Sinus vibrations : 10 - 100 Hz
Acceleration : 2 g
• Shocks : Acceleration = 30 g
Duration = 18 ms following NFF 61030
• Impact strength (free fall of the plug).
The connector plug is subjected to a
free
fall test. The height of drop is 0.75 m.
No mechanical damage.
Environmental
• Climatic category : -40ºC +100ºC
Dry heat test : +100ºC during 96 h
• Corrosion spray resistance : up to
500 hours salt spray
• Damp heat : 21 days, 40°C,
95% relative humidity
• The connector is rated 2 levels of
water protection (see page 3):
Dynamic IP67/IP68/IP69K when mated
and used with suitable accessories, a
grommet or a sealed back shell.
• Cadmium and lead free materials are
used
• Contact resistance :
- 2.5 mΩ maxi for contact # 16
- 1.3 mΩ maxi for contact # 1
2
- 0.9
Ζ
Q maxi for contact # 8
following NFF 61030
•
Maximum current per contact :
- 1 Amps for contact # 16
5
- 20 Amps for contact # 1
2
- 30 Amps for contact # 8
• Withstanding voltage :
- 2550 Vrms for layouts # 16
- 3250 Vrms for layouts # 1 and 8
2
• Insulation resistance :
-
≥
5000 MΩ under 500 Vcc
-
≥
4000 MΩ under 220 Vcc
• Electrical continuity of the shells :
20 mΩ maximum
• In mated conditions
(interfacial seal is compression)
minimum creepage distance = minimum
insulation distance in the air :
- 9 mm minimum for layouts with con-
tacts # 16
- 1 mm minimum for layouts with con-
2
tacts # 1 or # 8
2
Material
• Shell in aluminium alloy with black
zinc cobalt plating
• Insulator : hard thermoplastic with glass
fiber
• O’ring and interfacial seal in silicone
• Retaining insulator ring in carbon steel
This full product range is qualified by ALSTOM, RATP and SNCF.
Robustness and high reliability
of the locking mechanism
Stainless steel wear pin
Stainless steel roller
124
new
UTV
69K
/ IP
y
8
I P6
spra
alt
le
mic
a
tab
hr s
Dyn
oun
00
to 5
term
Up
4 in
523
VG9
Connectors Ordering Information
(without contacts and accessories)
Shells, backshells, contacts and accessories have to be ordered separately
UTV
B
22
—1
4
P
N
--
Series
Shell type
Rear mounting receptacle
Plug
Rear mounting receptacle for PC tails
contact # 16 contacts mounted
B
D
C
Shell size : 1 - 20 -22 - 24 - 28 - 32 - 36 - 40
8
Layouts
Contact type : P - Pin
S - Socket
Insert Orientation : N ; W ; X ; Y ; Z or 0
0 = for insulator not installed in the shell
Modification Code :
Please consult us
Nota : Please consult us if you want to order the connector in component form (shell and insert).
