851-87-017-40-252191 datasheet, PDF

Datasheet> All Categories > The connector> 851-87-017-40-252191

851-87-017-40-252191: DescriptionPCB CONN SURFACE MOUNT 1.27MM; CategoryThe connector; File Size109KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html; Environmental Compliance

Download Datasheet Parametric View All

851-87-017-40-252191 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	851-87-017-40-252191	-	-	View	Buy Now

851-87-017-40-252191 Overview

PCB CONN SURFACE MOUNT 1.27MM

851-87-017-40-252191 Parametric

Parameter Name	Attribute value
Connector type	jack
Contact type	female socket
style	board to board
Number of pins	17
Number of pins loaded	all
Spacing - Mating	0.050"（1.27mm）
Number of rows	1
Line spacing - patching	-
Installation type	Surface mount, right angle
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	flash memory
Insulation color	black
Insulation height	0.087"（2.20mm）
Contact length - terminal	-
Operating temperature	-55°C ~ 125°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	-
Rated current	1A
Rated voltage	-
application	-
Insulation Materials	Polybutylene terephthalate (PBT), polyester, fiberglass reinforced
Contact shape	round
Contact material	copper beryllium
Contact Surface Treatment Thickness - Column	-

Preview

Download Datasheet

View All

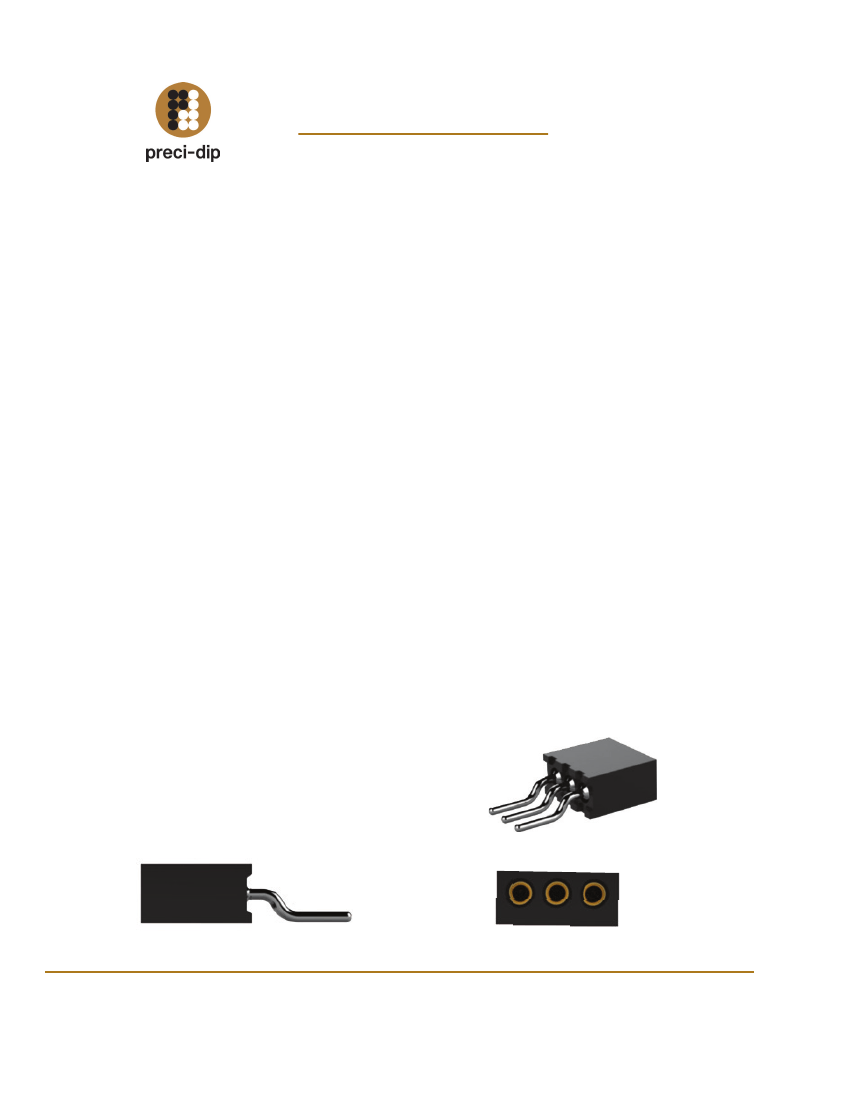

PRODUCT SPOTLIGHT

Series 851-PP-NNN-40-252191

Horizontal SMT 1,27mm sockets on tape and reel

Issue 002

June 2018

PRECI-DIP is pleased to introduce series 851-PP-NNN-40-252191 horizontal

SMT packaged in tape and reel for the convenience of production assembly. 851

series sockets are advantageous to design engineers who need high-density

1,27mm pin spacing, packaged inside a low proﬁle, pick and place insulator.

Horizontal, board-edge interconnects are ideal for PCB to PCB daisy-chain-

ing applications, and can be used as test point locations too. 851-PP-

NNN-40-252191 are available in strips as small as 2 positions to as large as 20,

and packaged in tape and reel suitable for production SMT assembly lines.

This low-proﬁle socket is RoHs compliant and features excellent coplanarity of

0,1mm over a span of 19 positions. This feature promotes improved solder joint

formation.

Inside of every preci-dip receptacle is a precision stamped beryllium copper

multi-ﬁnger contact which acts as the reliable mechanical and electrical inter-

face to the mating pin.

PRECI-DIP series 851-PP-NNN-40-252191 sockets accept mating pins between

0,40- 0,56mm and have a current rating of 1 amp.

As the world leader in innovation and production manufacturing of precision

machined interconnects, we welcome custom interconnect challenges. To learn

more about our vast manufacturing capabilities please visit www.precidip.com.

Thank you.

Part number key:

PP = Plating

87= Tin plating on shell, Flash gold on contact clip.

83= Tin plating on shell, 0,75um Gold on contact clip.

NNN = 002 to 020 positions on 1,27mm pin spacing.

851-87-103-40-252101

(Bulk part number)

PRECI-DIP SA

Rue Saint-Henri 11 CH-2800 Delémont / Switzerland

Phone +41 32 421 04 00 Fax +41 32 421 04 01 sales@precidip.com www.precidip.com

swiss world connects
