ROTARY CODED SWITCHES
S-1000A
/
2000A

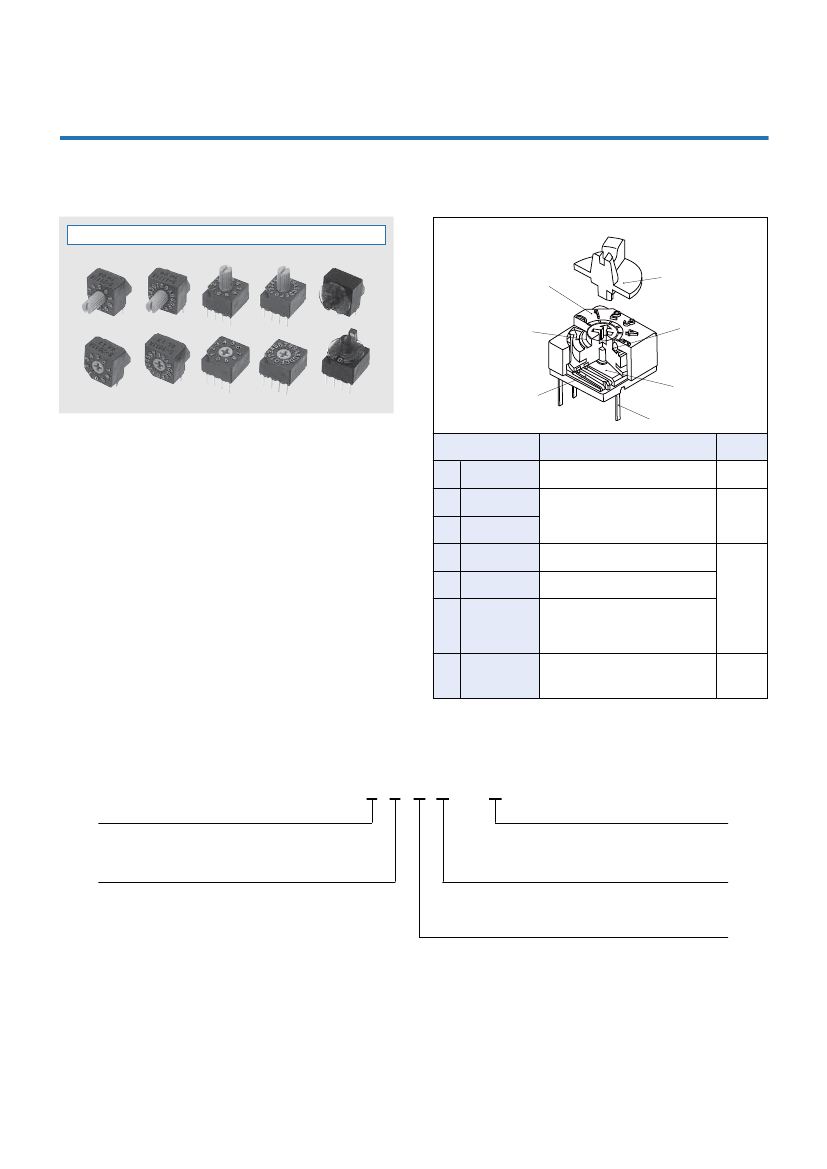

INTERNAL STRUCTURE
S-1000A / 2000A series
①
⑦
RoHS compliant
⑥
⑤
②
③
④
■
FEATURES
O
RoHS compliant
O
Protection against dust and whole cleaning after
soldering is possible
O
Pin compatible with conventional DIP switches
O
Translucent knob with flange type (S-1200A/2200A
series)
• Distinguished visibility with translucent flange
• Settable with fingers or screwdriver
Part name
Material
Polybutyleneterephthalate
Flammability
①
②
③
④
⑤
⑥
⑦
Housing
Contact
UL94HB
Copper alloy, Gold-plated
Terminal pin
Base
“O” ring
Polybutyleneterephthalate
Silicone rubber
—
UL94HB
Insert rotor
Rotor : Polyoxymethylene
Pattern : Copper alloy, Gold-plated
PAR（
Polyarylate
）
Translucent
knob with flange
※
S-12
□□
A/22
□□
A only
UL94V-2
■
PART NUMBER DESIGNATION
S - 1 0 1 0 A W
No. of positions
1
：
16 positions
2
：
10 positions
Form of packaging
W
：
Tray packaging
Blank
：
Bulk in plastic bag
Shape of rotor
0
：
Without knob
1
：
With knob (with extended shaft)
2
：
Translucent knob with flange (Black housing)
Setting position
0
：
Top setting
1
：
Side setting
Code format
1
：
Real code
3
：
Complementary code
※
Please refer to the LIST OF PART NUMBERS when placing orders.
S-1000A
/
2000A
ROTARY CODED SWITCHES
■
STANDARD SPECIFICATIONS
Circuit type
Operating temperature range
Storage temperature range
Washable by “O” ring
※Please
refer to page 150,151
Approx. 0.87 g
(S-1010A, S-1030A, S-2010A, S-2030A)
Approx. 1.13 g
(S-1011A, S-1031A, S-2011A, S-2031A)
Approx. 0.97 g
(S-1110A, S-1130A, S-2110A, S-2130A)
Approx. 1.23 g
(S-1111A, S-1131A, S-2111A, S-2131A)
Approx. 1.02 g
(S-1210A, S-1230A, S-2210A, S-2230A)
Approx. 1.28 g
(S-1211A, S-1231A, S-2211A, S-2231A)
BCD (Real code, complementary code)
BCH (Real code, complementary code)
−
40 ~ 85 °C
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V 100 mA
DC5 V 100 mA
DC20 mV 1
μA
100 mΩ maximum
1000 MΩ (DC100 V) minimum
AC300 V, 60 s
Sealing
Net weight
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
(Amplitude) 1.5 mm or
(Acceleration) 98 m/s
2
,
10-500-10 Hz, 3 directions for 2 h each
490 m/s
2
, 11 ms
6 directions for 3 times each
10000 steps
DC5 V, 100 mA
Resistance load DC50V 100mA
60 °C, Relative humidity 90 ~ 95 %, 1000 h
85 °C, 1000 h
−40
°C, 96 h
−40
(0.5 h) ~ 85 °C ( 0.5 h ), 5 cycles
Shock
■
MECHANICAL CHARACTERISTICS
No. of positions
Adjustment torque
Stepping angle
Terminal strength
Solderability
16 (S-1000A), 10 (S-2000A)
13 mN·m {133 gf·cm} minimum
22.5° (S-1000A), 36° (S-2000A)
15 N {1.53 kgf} minimum
245
±
3 °C, 2 ~ 3 s
Flow : 260
±
3 °C as the temperature in
a pot of molten solder, immersion
from head of terminal to backside
of board, 5 ~ 6 s, two times
maximum
Load life
Humidity (Steady state)
High temperature exposure
Low temperature exposure
Thermal shock
Soldering heat
Manual soldering
：
380
±
10 °C, 3 ~ 4 s
{ } : Reference only
