XC25BS6512WL

Description
Divider Signal Output Clock Generator ICs with Built-In Crystal Oscillator Circuit
File Size178KB,5 Pages
ManufacturerTOREX
Websitehttp://www.torex.co.jp/chinese/
Download Datasheet View All

XC25BS6512WL Overview

Divider Signal Output Clock Generator ICs with Built-In Crystal Oscillator Circuit

XC25BS6
Series
■GENERAL
DESCRIPTION
ETR1503_001
Divider Signal Output Clock Generator ICs with Built-In Crystal Oscillator Circuit
The XC25BS6 is a low operating voltage, low current consumption series of CMOS ICs with built-in crystal oscillator and
divider circuits designed for clock generators. Oscillation capacitors Cg and Cd are externally set up. Output is selectable
from any one of the following values for f0:f0/1024, f0/512, f0/256, and f0/128. With oscillation feedback resistors built-in, it is
possible to configure a stable fundamental oscillator using about 10pF of external oscillation capacitor and an external crystal.
The series has a stand-by function. The oscillation completely stops in the stand-by state and output will be one of
high-impedance.
■APPLICATIONS
●Crystal
oscillation modules
●Clocks
for micro-computers, DSPs, etc.
●Communication
equipment
●Various
system clocks
●Clock
time-base
■FEATURES
Oscillation Frequency
: 2MHz~36MHz (fundamental)
-Oscillation feedback resistor built-in
-External oscillation capacitor
Divider Ratio
: f0/1024, f0/512, f0/256, f0/128
Output
: 3-State
Operating Supply Voltage Range
: 2.3~4.0V
: 0.5μA (MAX.) when stand-by mode
Supply Current
Chip Form
: Chip size 1.3×0.8mm
CMOS Low Power Consumption
Low Operating Supply Voltage
: 2.3V (MIN.)
Output Frequency
: 32.768kHz
Package
: SOT-26
■PIN
CONFIGURATION
■PIN
ASSIGNMENT
PIN
NUMBER
1
PIN
NAME
/XT
FUNCTIONS
Crystal Oscillator
Connection (Output)
2
V
SS
Ground
3
Q0
Clock Output
4
CE
Stand-by Control *
5
V
DD
Power Supply
Crystal Oscillator
6
XT
Connection (Input)
*The stand-by control pin (pin #4) has a pull-down resistor built-in.
SOT-26
(TOP VIEW)

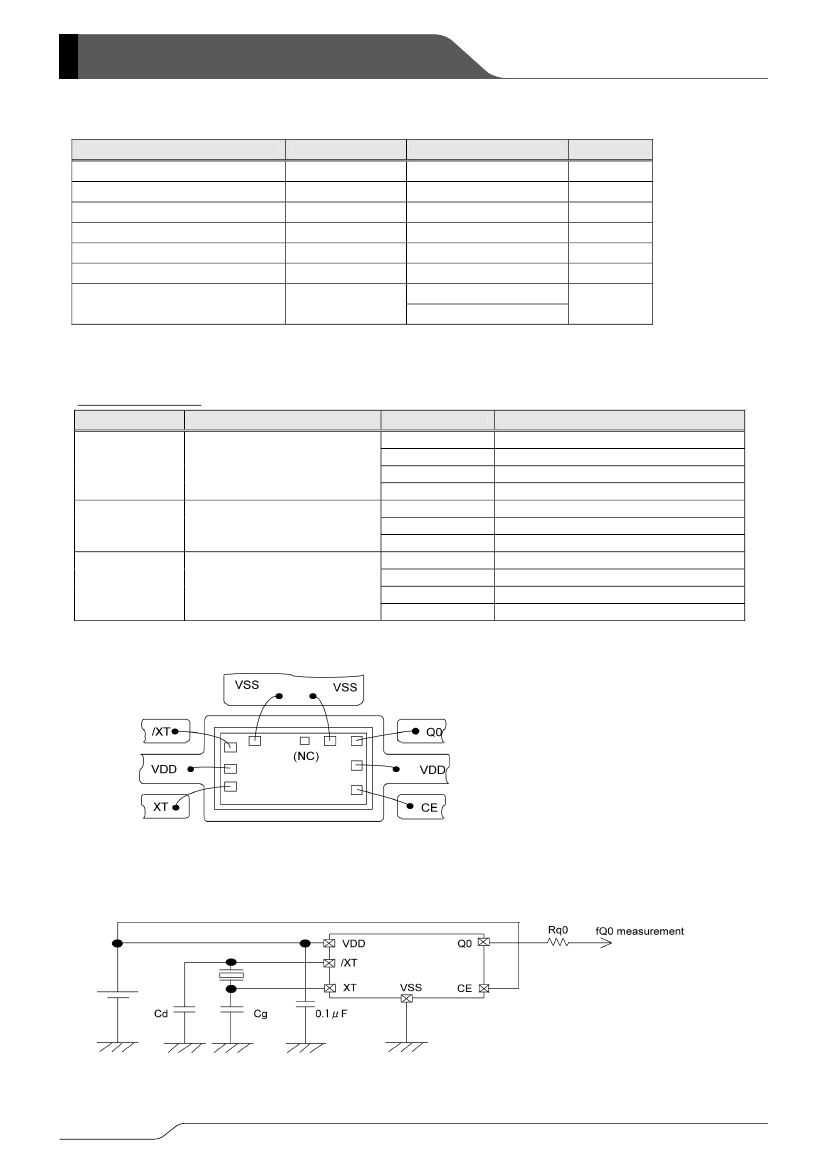

■PAD
LAYOUT FOR CHIP FORM
(1300,800)
VSS
(NC)
VSS
Q0
/XT
VDD
XT
(0,0)
■PAD
LOCATIONS
PIN
NUMBER
1
2
3
4
5
6
7
8
9
PIN
NAME
/XT
V
SS
(NC)
V
SS
Q0
V
DD
CE
XT
V
DD
FUNCTIONS
Crystal Oscillator
Connection (Output)
Ground
No Connection
Ground
Clock Output
Power Supply
Stand-by Control *
Crystal Oscillator
Connection (Input)
Power Supply
(Unit:μm)
PAD DIMENSIONS
X
Y
128.0
328.0
741.0
952.0
1172.0
1172.0
1172.0
128.0
128.0
610.0
672.0
672.0
672.0
672.0
430.0
189.0
187.0
399.0
VDD
CE
Chip Size
Chip Thickness
Chip Back
Pad Aperture
:1300×800μm
:280±20μm
:V
DD
level
:88×88μm
Note)
There are two V
SS
pads and two V
DD
pads. Please connect
both V
SS
pads to
GND, and connect both
V
DD
pads to a power
supply.
■BLOCK
DIAGRAM
VDD
/XT
*The stand-by control pin (pin #4) has a pull-down resistor built-in.
Counter
Q0
CE
■CE,
Q0 PIN FUNCTION
CE
‘H’
‘L’ or Open
Q0
Clock Output
High Impedance
XT
VSS
1/5
