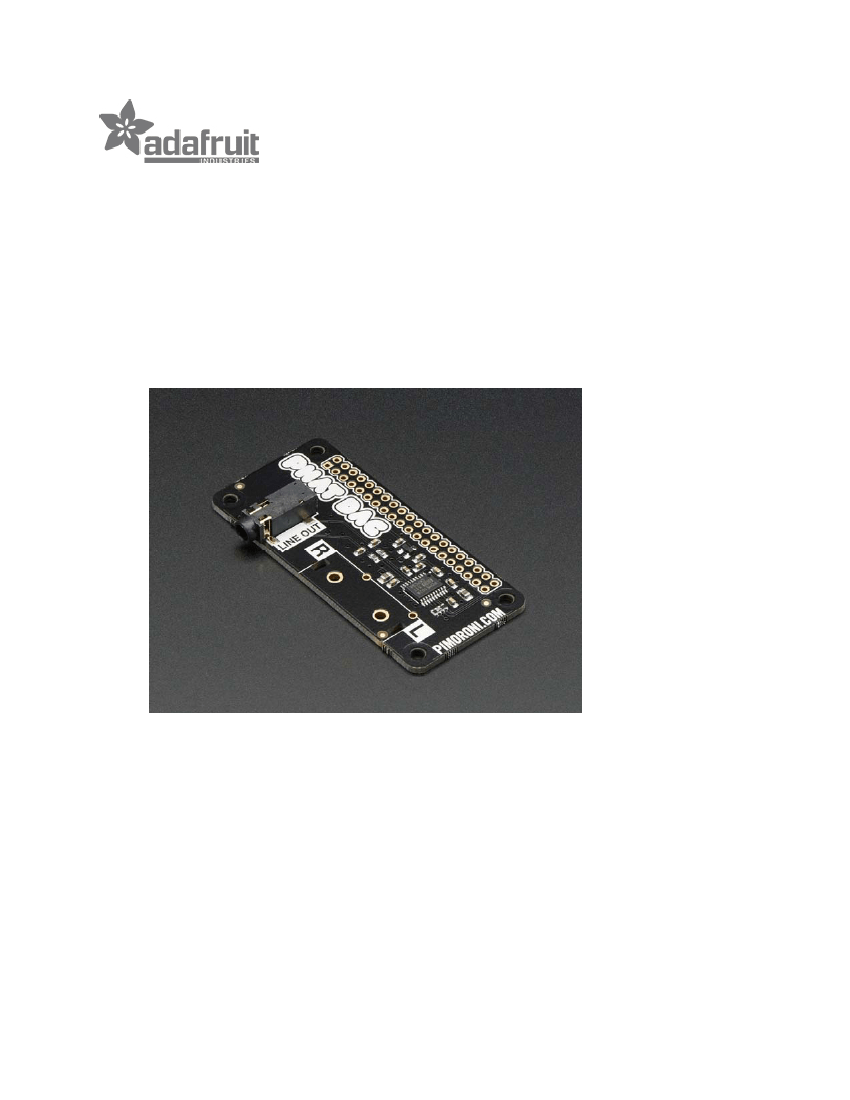

Pimoroni pHAT DAC for Raspberry Pi Zero
PRODUCT ID: 3016
Description
If music be the food of love, play on. But make sure you use this super little
pHAT DAC
to get the best out
of your Raspberry Pi audio!
The pHAT DAC provides a super affordable high-quality DAC for the Raspberry Pi. Pumping out 24-bits
at 192KHz of audio goodness from the Raspberry Pi's I2S interface on the 2x20 pin GPIO header. Since it's
digital audio, it sounds really good, much better than the onboard analog audio. The 3.5mm stereo jack
comes soldered onto the board already.
Though designed to match the format of the Raspberry Pi Zero it is compatible with all 40-pin GPIO
Raspberry Pi variants (2/B+/A+).
Features:
o
o
o
o
24-bit audio at 192KHz
Line out stereo jack
pHAT format board
Uses the PCM5102A DAC to work with the Raspberry Pi I2S interface
Kit includes:
Assembled pHAT DAC & 2x20 0.1" female GPIO header, some light soldering is required to
attach the header on, or you can of course solder the pHAT right onto the Pi Zero
At the heart of pHAT DAC is Texas Instrument's PCM5102A stereo audio DAC chip.
Raspberry Pi not
included!
Technical Details
o
o
o
PCM5102A Datasheet
65mm x 33mm x 6.8mm / 2.56" x 1.3" x 0.27"
Weight (assembled): 11.2g
For product support, replacement parts and warranty for Pimoroni products visit the Pimoroni forum or
contact Pimoroni directly.
