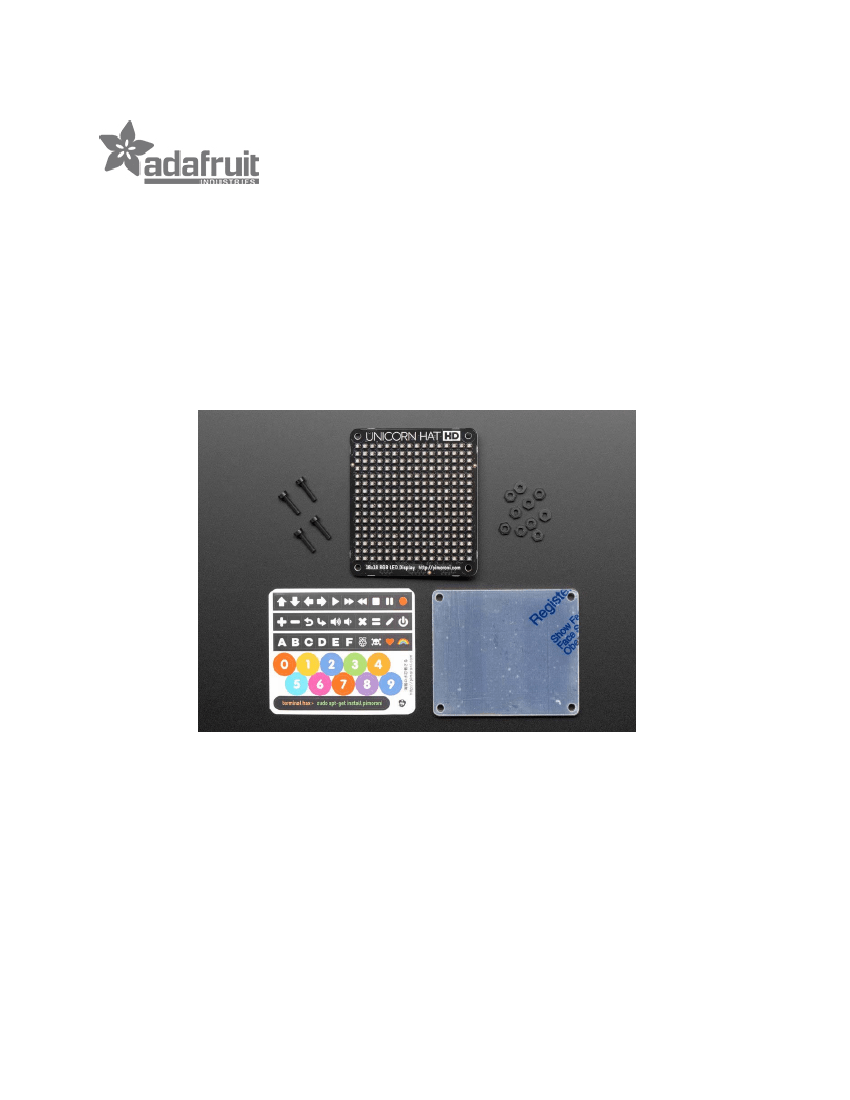

Pimoroni Unicorn HAT HD
PRODUCT ID: 3580
Description
Unicorn HAT HD crams 256 RGB LEDs, in a 16x16 = 256 LED matrix, onto a single HAT. High‐definition
rainbow goodness!
You can still use it for all of the same things as the regular Unicorn HAT, but with four times as many
pixels it makes much more complex animations possible, including scrolling text, and even low
resolution videos.
The bundled ninja diffuser makes the pixels look extra shiny by providing some subtle diffusion,
blurring the lines between each pixel. Simply use four of the nuts to space the diffuser slightly away
from the HAT, and the other four to secure it.
Features
o
o
o
o
o
o
o
256 RGB LED pixels in a 16x16 matrix
Pixels driven by ARM STM32F and three STP16CPC26 LED drivers
Bundled ninja diffuser, plus nuts and bolts
Unicorn HAT HD pinout
Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
Python library
Comes fully assembled
The ARM chip on Unicorn HAT HD does all of the heavy lifting, meaning that you can just bung data to
it, and it'll take care of the rest. It acts as the agent between your Pi and the three STP16CPC26 LED
drivers that actually drive the LEDs.
Technical Details
Unassembled board dimensions: 65.0mm x 56.0mm x 7.9mm / 2.5" x 2.2" x 0.3"
Unassembled board weight: 19.4g / 0.6oz
For product support, replacement parts and warranty for Pimoroni products visit the Pimoroni forum or
contact Pimoroni directly.
https://www.adafruit.com/product/3580 9‐15‐17
