PYCOM PYTRACK

3506 Parametric

Parameter Name	Attribute value
content	plate

Preview

Download Datasheet

View All

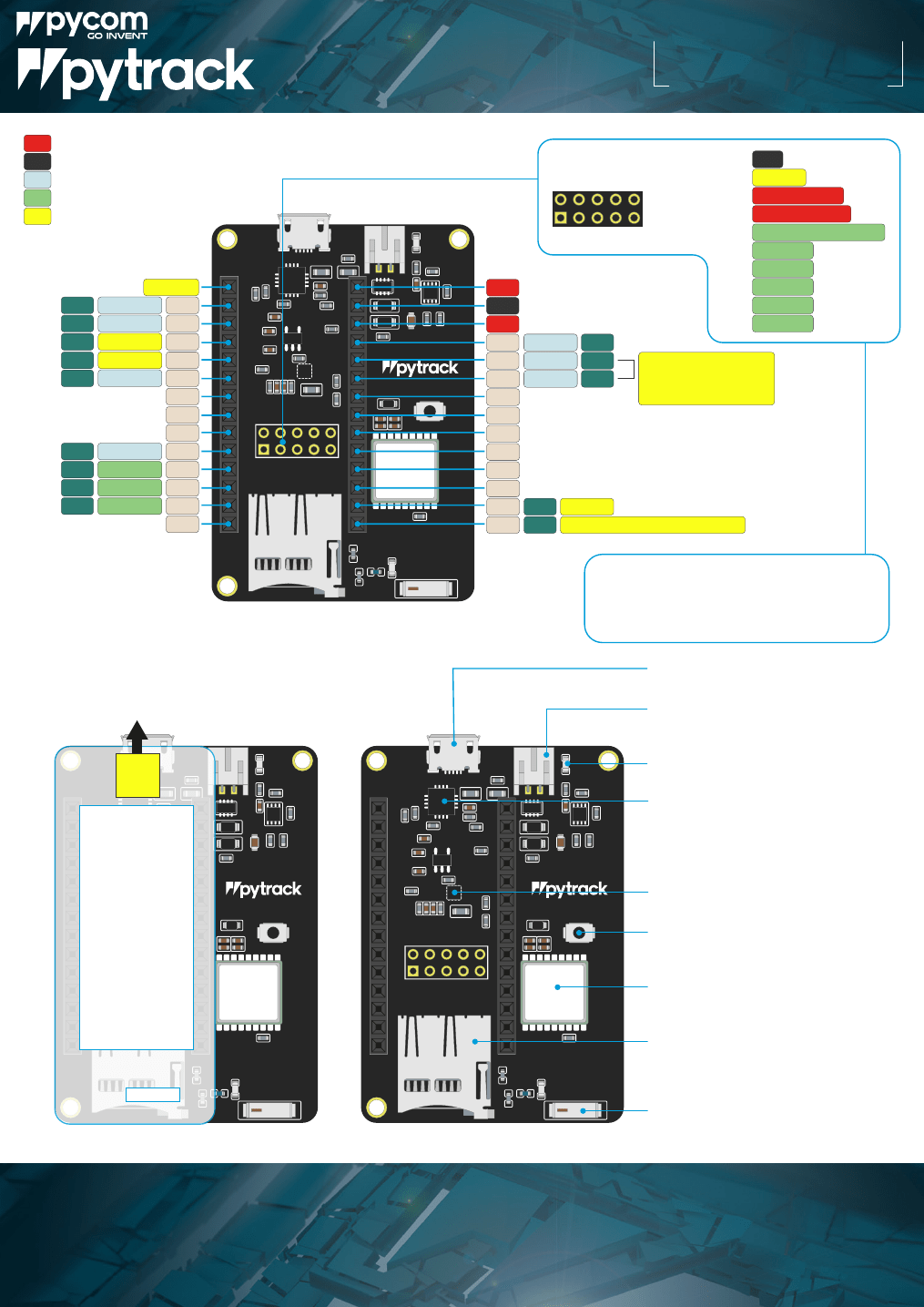

Pinout diagram

Power

GND

Serial Pin

External IO Pin

Control

External IO Header

2 4 6 8 10

1 3 5 7 9

P10

P11

Reset

UART_RX G2

UART_TX G1

RGB_LED G23

PWR_EN G24

SD_CMD G11

G12

G13

G14

SD_DAT G15

EXT_IO1 G16

EXT_IO2 G17

EXT_IO3 G22

G28

GND

3V3

G10 SD_CLK

P23

P22

SDA

GPS(Quectel L76-L)

and Accelerometer

P21

SCL

(LIS2HH12)

G30

G31

P14

Button

P13

Accelerometer Interrupt

GND

PWR_EN

3V3_Sensors

3V3_Pymodule

EXT_IO0 (RGB_LED)

EXT_IO1

EXT_IO2

EXT_IO3

EXT_IO4

EXT_IO5

* Interrupts EXT_IO0, EXT_IO4 &

EXT_IO5 are connected to a PIC and

are accessible via Pycom Libraries

Correct Board Mounting

RGB LED must be at the top of the

board, above the USB connector

USB

JST for LiPo battery (450mA)

(BQ24040)

Charge indicator LED

USB to serial

converter

RGB

LED

Accelerometer (LIS2HH12)

Button

GPS/ Glonass module

(Quectel L76-L)

Micro SD card

reader

GPS antenna

Distributed by Pycom Ltd.

this document may be reproduced, distributed, or transmitted in

any form or by any means, including photocopying, recording, or

other electronic or mechanical methods, without the prior

written permission of Pycom Ltd, except in the case of brief

quotations embodied in critical reviews and certain other

noncommercial uses permitted by copyright law.
