0.6mm Pitch Stacking Height 3mm to 16mm Connectors
FX8/FX8C Series
FX8 Series
FX8C Series
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note: that FX8 series and FX8C series are not mated with each other.
Features
1. Stacking Height: 3mm to 16mm
Stacking height of mated connectors ranges from
3mm to 16mm. (Fig.1.2)
●Stacking
Height 3,4mm-FX8 Series
2. SMT Coplanarity
The coplanar tolerance at the solder area is less
than 0.1mm.
3,4mm
3. Mating Guide
Built-in guide ribs and a chamfer allow for ±0.6
mm of mis-alignmet and ensures easy mating.
Fig.1
4. Mis-insertion Prevention
Bosses located on the bottom side of the connector
differ in position and diameter to prevent mis-orientating
the parts on the board.
●Stacking
Height 5 to 16mm-FX8C Series
5. Dual Connected Products
In order to enhance mounting reliability and
a c c u ra c y w h e n m o u n t i n g t wo o f t h e s a m e
connectors at the same time, Hirose offers the
option of having two connectors attached to one
another by means of a spacer. Pitch between the
two connectors is 11mm.
5 to 16mm
Fig.2
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.6
④
1
FX8/FX8C Series●0.6mm Pitch Stacking Height 3mm to 16mm Connectors
FX8 Series
Product Specifications
Rating
Operating Temperature Range -55ç to +85ç (Note 1) Storage Temperature Range -10ç to +60ç(Note 2)
Current rating 0.4A
Storage Humidity Range 40% to 70%(Note 2)
Voltage rating 100V AC Operating Humidity Range -40% to 80%
Specifications
1000Mø min
No flashover or insulation breakdown.
45mø max.
No electrical discontinuity of 1µs or more
Contact resistance : 55mø max. : Insulation
resistance : 100Mø min.
Conditions
250V DC
300V AC/1 min
100mA
Frequency : 10 to 55Hz, single amplitude of 0.75mm,
2 hours in each of the 3 axis directions.
96 hours at 40ç and humidity of 90% to 95%
(-55ç : 30 minutes, 15 to 35ç : 2 to 3 minutes
85ç : 30 minutes, 15 to 35ç : 2 to 3 minutes) 5 cycles
50 cycles
Reflow : At the recommended temperature profile
Manual soldering : 360ç for 5 seconds
Items
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5. Humidity (Steady state)
6. Temperature Cycle
Contact resistance : 55mø max. : Insulation
resistance : 100Mø min.
7. Mating Cycles
Contact resistance : 55mø max.
8. Resistance to Soldering No deformation of components affecting
heat
performance.
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range includes the non conducting condition in storage, shipment or during transportation.
Material / Finish
Finish
Remarks
Light brown
UL94V-0
Contact area
Gold plated
Header Contact
–––––––
Lead area
Tin (Note 2)
Phosphor bronze
Contact area
Receptacle Contact
Gold plated
–––––––
Lead area
Note 1 : Slight color difference to the resin may occur. This will not affect fit, form or function of the connector.
Note 2 : FX8-*P-SV is gold plated.
Part
Insulator
Material
PPS
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
Single Product
Mating Sectional View
2
3
4
5
6
FX8 - 120 P - SV 1 (92)
1
q
Series Name : FX8
w
No. of contacts : 60, 80, 90, 120, 140
e
Connector type
r
Contact type
P : Header
S : Receptacle
SV : Board vertical type
t
Product height variation : none= standard (minimum low profile)
1 : +1mm
y
Package Form
None, (71) : Tray package product
(21), (91) : Tube packaging product
(22), (92) : Emboss tape package product
(The above illustration represents the stacking height 3mm type.)
BStacking
Height Variation
FX8-**S-SV
FX8-**P-SV
3mm
FX8-**P-SV1
4mm
3 to 4
●Single
Product
2

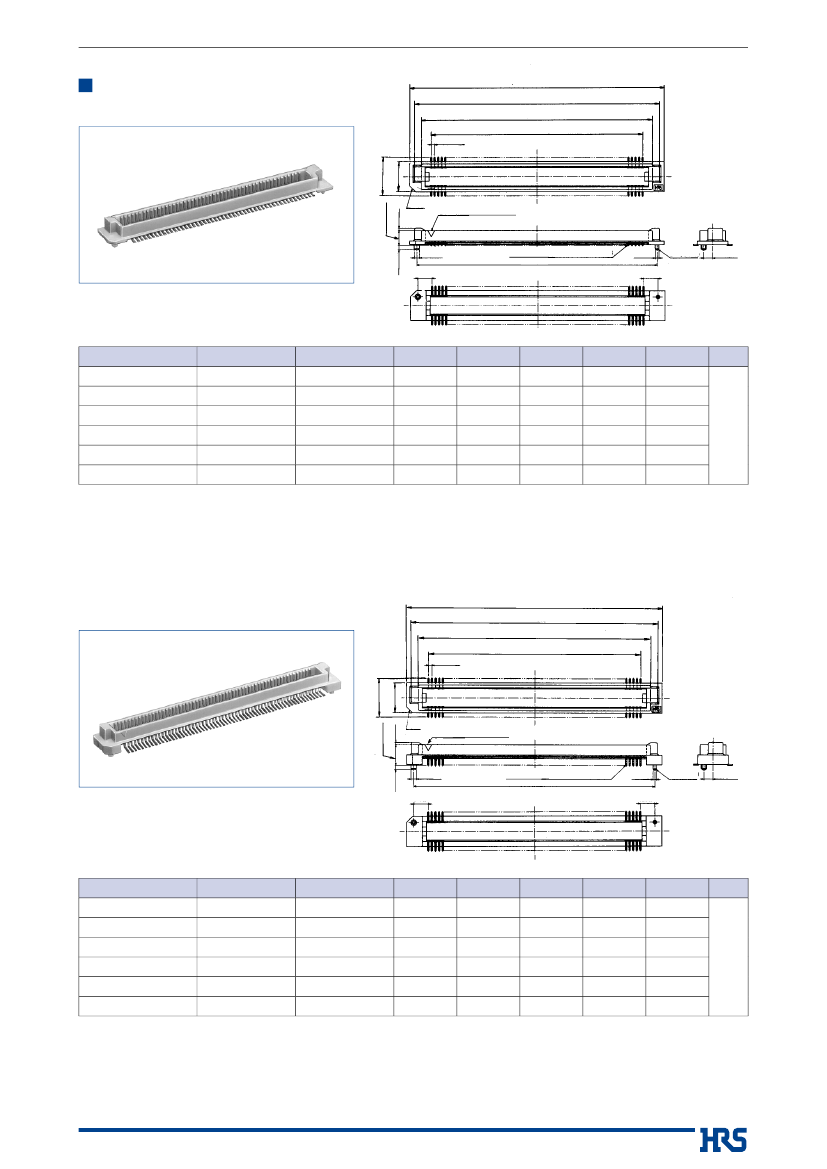

FX8/FX8C Series●0.6mm Pitch Stacking Height 3mm to 16mm Connectors
Header
[FX8-**P-SV]
0.6±0.1
0
2.45±0.25 6.5
_0.3
(0.4) 5.1±0.3
A±0.3
B
+0.05
_0.2
C
+0.05
_0.2
D±0.2
(C1)
Polarization mark
(0.75)
(Ø0.9)
(2.4)
t0.2±0.03∞w0.25±0.03
E±0.1
(Ø0.6)
(2.4)
2-(C0.2)
(1.5)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit : mm
Part No.
**
HRS No.
578-0001-6 **
578-0003-1 **
578-0004-4 **
578-0005-7 **
578-0006-0 **
578-0007-2 **
No. of contacts
60
80
90
100
120
140
A
24.60
30.60
33.60
36.60
42.60
48.60
B
23.00
29.00
32.00
35.00
41.00
47.00
C
20.70
26.70
29.70
32.70
38.70
44.70
D
17.40
23.40
26.40
29.40
35.40
41.40
E
22.20
28.20
31.20
34.20
40.20
46.20
RoHS
FX8-60P-SV(**)
FX8-80P-SV(**)
FX8-90P-SV(**)
FX8-100P-SV(**)
FX8-120P-SV(**)
FX8-140P-SV(**)
Yes
** 71 : Tray packaging, 91 : Tube packaging, 92 : Embossed tape packaging
Note 1 : Please place orders in full magazine/tube quantities.
Note 2 : Reels are sold containing 1,000 pcs/reel. Please refer to the delivery form on page 6 for details.
Note 3 : Please note that tray packaged parts are not suitable for use with automatic mounting processes.
[FX8-***P-SV1]
0.6±0.1
0
6.5
_0.3
3.45±0.25
(0.4) 5.1±0.3
A±0.3
B
+0.05
_0.2
C
+0.05
_0.2
D±0.2
(1)
Polarization mark
(0.75)
(Ø0.9)
(2.4)
t0.2±0.03∞w0.25±0.03
E±0.1
(Ø0.6)
(2.4)
2-(C0.2)
(1.5)
Unit : mm
Part No.
**
HRS No.
578-0041-0 **
578-0043-6 **
578-0044-9 **
578-0045-1 **
578-0046-4 **
578-0047-7 **
No. of contacts
60
80
90
100
120
140
A
24.60
30.60
33.60
36.60
42.60
48.60
B
23.00
29.00
32.00
35.00
41.00
47.00
C
20.70
26.70
29.70
32.70
38.70
44.70
D
17.40
23.40
26.40
29.40
35.40
41.40
E
22.20
28.20
31.20
34.20
40.20
46.20
RoHS
FX8-60P-SV1(**)
FX8-80P-SV1(**)
FX8-90P-SV1(**)
FX8-100P-SV1(**)
FX8-120P-SV1(**)
FX8-140P-SV1(**)
Yes
** 71 : Tray packaging, 91 : Tube packaging, 92 : Embossed tape packaging
Note 1 : Please place orders in full magazine/tube quantities.
Note 2 : The embossed tape packaged parts are available for all pin counts, except the 140 pin count. Reels are sold containing
1,000 pcs/reel. Please refer to the delivery form on page 15 for details.
Note 3 : Please note that tray packaged parts are not suitable for use with automatic mounting processes.
3
FX8/FX8C Series●0.6mm Pitch Stacking Height 3mm to 16mm Connectors
Receptacle
[FX8-**S-SV]
(1)
0
7
_0.3
5.6±0.3
A±0.3
B
+0.2
0
C
+0.2
0
0.6±0.1
D±0.2
2.25±0.25
(0.75)
Polarization mark (Back side)
(Ø0.9)
(2.4)
t0.2±0.03∞w0.25±0.03 (Ø0.6)
E±0.1
2-(C0.2)
(1.8)
(2.4)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit : mm
Part No.
**
HRS No.
578-0201-5 **
578-0203-0 **
578-0204-3 **
578-0205-6 **
578-0206-9 **
578-0207-1 **
No. of contacts
60
80
90
100
120
140
A
24.60
30.60
33.60
36.60
42.60
48.60
B
23.05
29.05
32.05
35.05
41.05
47.05
C
20.80
26.80
29.80
32.80
38.80
44.80
D
17.40
23.40
26.40
29.40
35.40
41.40
E
22.20
28.20
31.20
34.20
40.20
46.20
RoHS
FX8-60S-SV(**)
FX8-80S-SV(**)
FX8-90S-SV(**)
FX8-100S-SV(**)
FX8-120S-SV(**)
FX8-140S-SV(**)
Yes
** None : Tray packaging, 21 : Tube packaging, 22 : Embossed tape packaging
Note 1 : Please place orders in full magazine/tube quantities.
Note 2 : Reels are sold containing 1,000
pcs/reel
. Please refer to the delivery form on page 6 for details.
Note 3 : Please note that tray packaged parts are not suitable for use with automatic mounting processes.
PCB Mounting Pattern
Header
Receptacle
・Recommended
metal mask thickness : t = 0.15mm
・Recommended
metal mask thickness : t = 0.15mm
・If
the inside (the connector mounting lower side) of the SMT portion is not
treated with the insulation tape and so on, the area is specified as a pattern prohibited area.
4
FX8/FX8C Series●0.6mm Pitch Stacking Height 3mm to 16mm Connectors
Connector Precautions for use
1. Tolerance Clearance on the Mating Side
The effective contact length of the product is set to 0.7mm. Please make sure there is less than 0.2mm
clearance between the header and receptacle during mating.
2. Support between the PCBs
Please be sure to fix the boards to each other with screws or other means of support. Do not use only the
mated connector to support the boards.
3. Stacking Height Tolerance for Mating
3
+0.3
mm
_0.2
4
+0.3
mm
_0.2
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Stack 3mm
Stack 4mm
Note : Please Note that the above stacking tolerance doesn't include the solder paste thickness.
4. Multiple mounting on same PCB is not recommended in principle
5. Mounting Temperature Profile (Reference)
260
240
220
200
Temperature
180
160
140
150ç
200ç
220ç
(MAX 250ç)
HRS test conditions
Test boardGlass epoxy 161mm∞100mm∞1.6mm thick
Solder method
: Reflow
Solder composition : Paste, 96.5%Sn/3%Ag/0.5%Cu
Metal mask
: 0.15mm thick
Reflow cycles
: 2 cycles
(ç)
0
90 to 120s
Pre-heating time
(150 to 200ç)
MAX 60s
Soldering Time
(220ç min.)
Time (Second)
The temperature profile is based on the above
conditions.
In individual applications the actual temperature
may vary, depending on solder paste type, volume/
thickness and board size/thickness. Consult your
solder paste and equipment manufacturer for
specific recommendations.
5
