employs a fully monolithic design which eliminates
the need for external tuning networks. It can be
biased using 3- or 5-volt supplies and has an option
for biasing at higher currents for increased dynamic
range.
The MAALSS0044 is ideally suited for use where
low noise figure, high gain, high dynamic range and
low power consumption are required.
Typical
applications include receiver front ends in the Global
Positioning System (GPS) and Japanese Personal
Digital Cellular (PDC-1500) markets, as well as
standard gain blocks, buffer amps, driver amps and
IF amps in both fixed and portable systems.
M/A-COM’s MAALSS0044 is fabricated using a
mature 0.5-micron gate length GaAs process. The
process features full passivation for increased
performance reliability.
1
GND
2
R1
(optional)
3
RF IN
4
GND
Pin Configuration
Pin No.
1
2
3
4
Function
Ground
R1 (Optional)
See Note 10
RF Input
Ground
Pin No.
5
6
7
8
Function
Ground
RF Output
V
DD
Ground
Absolute Maximum Ratings
3,4
Parameter
V
DD
Input Power
Current
5
Channel Temperature
6
Operating Temperature
Storage Temperature
Absolute Maximum
+10 VDC
+17 dBm
30 mA
+150°C
-40°C to +85°C
-65°C to +150°C
Ordering Information
1,2
Part Number
MAALSS0044
MAALSS0044TR-3000
MAALSS0044SMB
Package
Bulk Packaging
3000 piece reel
Sample Test Board
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
3. Exceeding any one or combination of these limits may cause
permanent damage to this device.
4. M/A-COM does not recommend sustained operation near
these survivability limits.
5. Only if pin 2 is used to increase current (see note 10.
6. Typical thermal resistance (θjc) = +165°C/W.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0044
Low Noise Amplifier
1.5 - 1.6 GHz
Electrical Specifications
7
: T
A
= 25°C, V
DD
= +5 V, Z
0
= 50 Ω
Parameter
Gain
Noise Figure
Input VSWR
Output VSWR
Output 1 dB Compression
Input IP3
Reverse Isolation
Bias Current
7. See plots for 3-volt performance.
Rev. V1
Test Conditions
1.5 - 1.6 GHz, P
IN
= -30 dBm
1.5 - 1.6 GHz
1.5 - 1.6 GHz, P
IN
= -30 dBm
1.5 - 1.6 GHz, P
IN
= -30 dBm
1.5 - 1.6 GHz
1.5 - 1.6 GHz, P
IN
= -30 dBm
1.5 - 1.6 GHz, P
IN
= -30 dBm
—
Units
dB
dB
Ratio
Ratio
dBm
dBm
dB
mA
Min.
19
—
—
—
—
—
—
5
Typ.
21
1.55
1.5:1
1.5:1
6
-2
40
8
Max.
23
1.9
—
—
—
—
—
11
Recommended PCB Configuration
Application Schematic
8,9,10
V
DD
L1
C1
RF IN
RF OUT
R1
(Optional)
See Note 8
8.
9.
Component List
Part
C1
L1
Value
500 pF
15 nH
Case Size
0603
0805
0603
Manufacturer
Murata
Coilcraft
Panasonic
R1 (optional) 35 to 40
Ω
Pins 1, 4, 5 and 8 must be RF and DC grounded as shown.
Pin 3 is the RF input; pin 6 is the RF output. V
DD
is
applied on pin 7. This pin must be bypassed with a 500 pF
surface mount MLC capacitor, mounted as close as
possible to pin 7, and RF decoupled with a chip inductor
having a minimum value of 15 nH (as shown in the
Recommended PCB Configuration).
10. Pin 2 allows use of an external resistor to ground for
optional, higher current bias. For nominal current
operation no resistor is used. For optional 20-mA current
operation, connect a 35 to 40
Ω
chip resistor (as shown in
the Recommended PCB Configuration).
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0044
Low Noise Amplifier
1.5 - 1.6 GHz

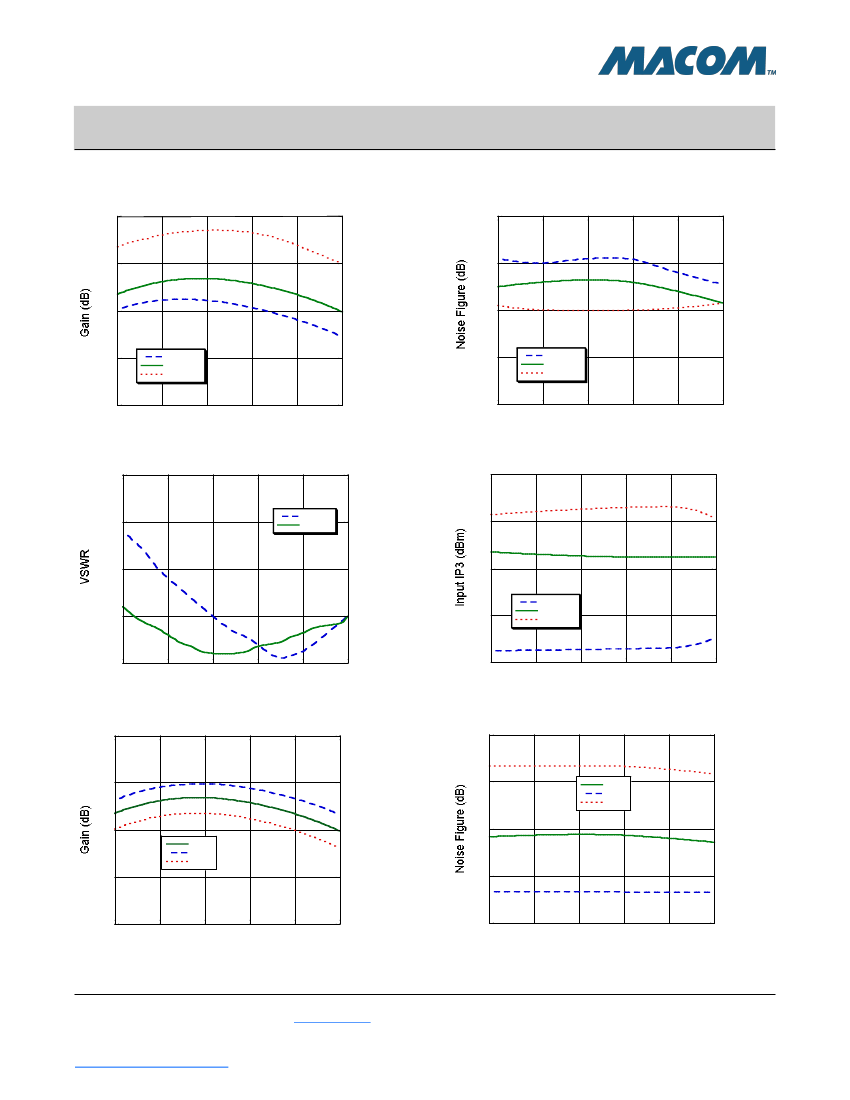

Typical Performance Curves
Gain @ +25°C
24
Rev. V1
Noise Figure @ +25°C
1.7
22
1.6
20
1.5
18
3 V, 8 mA
5 V, 8 mA
5 V, 20 mA
1.4
3 V, 8 mA
5 V, 8 mA
5 V, 20 mA
16
1.3
1.4
1.5
1.6
1.7
1.8
1.3
1.50
1.52
1.54
1.56
1.58
1.60
Frequency (GHz)
Frequency (GHz)
VSWR @ 5 V, 8 mA, +25°C
3.0
Input IP3 @ +25°C
3
2.5
INPUT
OUTPUT
0
2.0
-3
1.5
-6
3 V, 8 mA
5 V, 8 mA
5 V, 20 mA
1.0
1.3
1.4
1.5
1.6
1.7
1.8
-9
1.50
1.52
1.54
1.56
1.58
1.60
Frequency (GHz)
Frequency (GHz)
Gain @ 5 V, 8 mA
24
Noise Figure @ 5 V, 8 mA
2.2
22
1.9
+25°C
-40°C
+85°C
20
+25°C
-40°C
+85°C
1.6
18
1.3
16
1.3
1.4
1.5
1.6
1.7
1.8
1.0
1.50
1.52
1.54
1.56
1.58
1.60
Frequency (GHz)
3
Frequency (GHz)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0044
Low Noise Amplifier
1.5 - 1.6 GHz

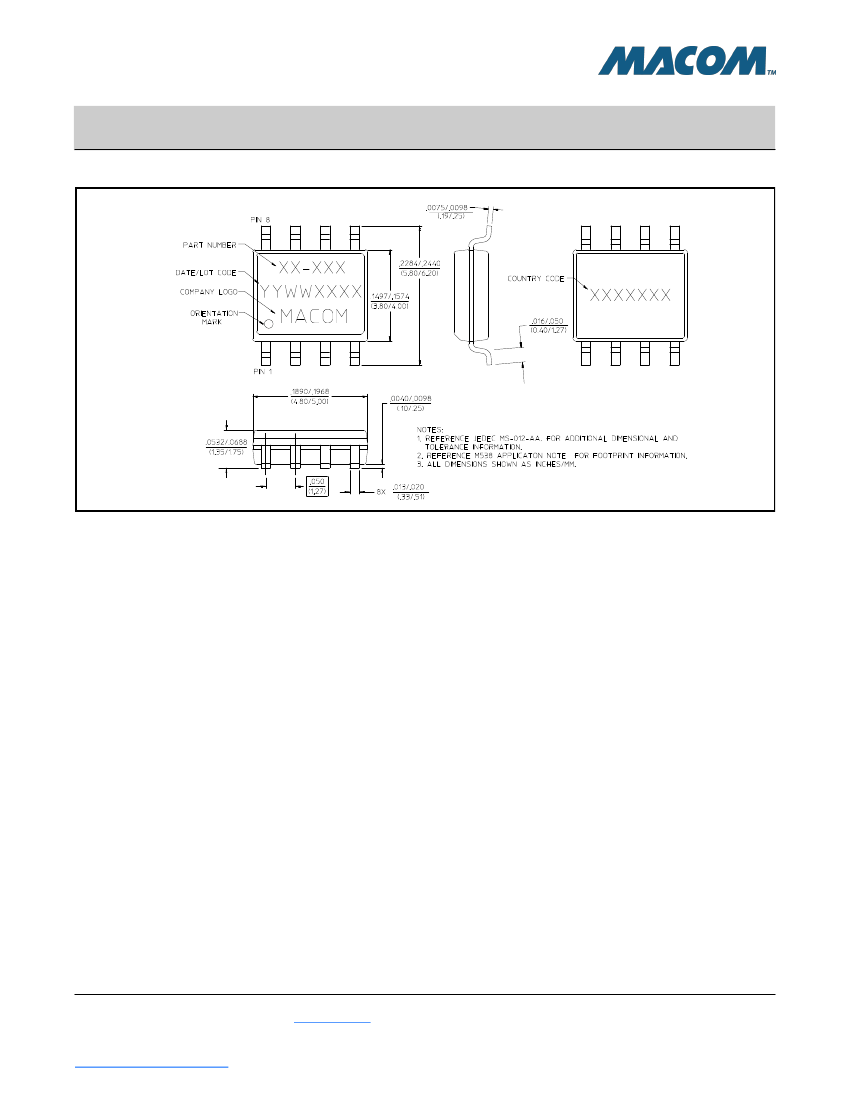

Lead-Free SOIC-8
†
Rev. V1
† Reference Application Note M538 for lead-free solder reflow recommendations.
Additional information is available in Application Note M540, “M/A-COM GaAs MMIC LNA SOIC-8 Platform”.
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0044
Low Noise Amplifier
1.5 - 1.6 GHz
Rev. V1
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
