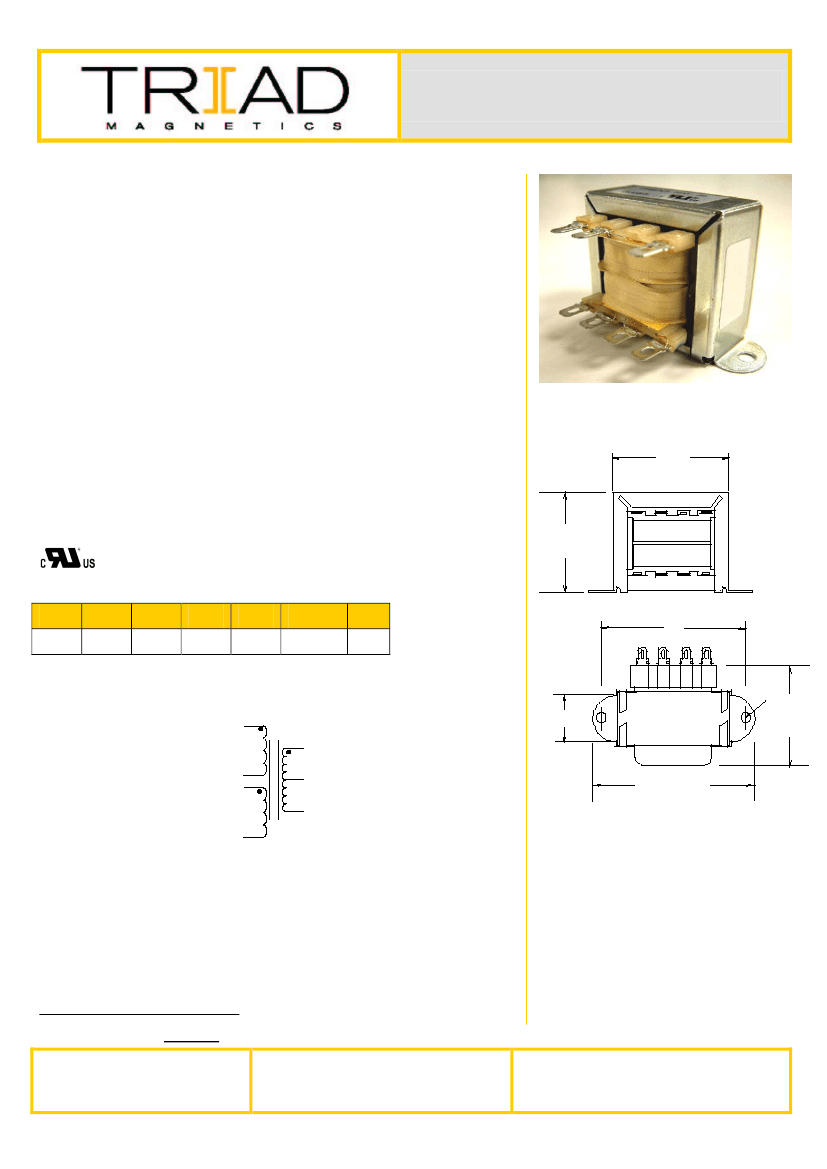

Power Transformer
Chassis Mount: Quick Pack
FD5-24
Description:
The FD5-24 Quick Pack small power transformer offers a significant reduction
in size and weight over a standard transformer. This transformer can be used
for a wide variety of applications. It is bobbin wound for reduced size and small
operating space.
Electrical Specifications (@25C);
Maximum Power:
12.0VA
Input Voltage: Series:
230VAC@50/60Hz;
Parallel:
115VAC@50/60Hz
1
Output Voltage:
24VCT@.5A
Recommended Fuse:
UL listed 250VAC, 700mA, Slo-Blo
Hipot:
2500VAC primary to secondary; 1500VAC windings to core.
Construction:
Split bobbin non concentric winding eliminates costly electrostatic shielding.
Termination is suitable for quick connects or soldering.
Built with a UL Class B Insulation System.
8
7
E
5
Safety:
UL: File E53148, UL 5085-1 and 2 (formerly UL 506), General Purpose.
UL: File E65390, UL5085-1 and 3, Class 3
A
Dimensions:
(in)
A
1.625
B
2.375
C
2.812
D
1.375
E
1.937
F
.187 Dia
G
.812
4
3
2
1
B
1
2
3
4
Notes:
1. Terminal size: .187” X 0.021”.
2. Weight: .70 lbs
Schematic:
1
5
F
G
D
2
3
7
C
8
4
Input (115V):
Input 1 & 2
Connect 1&3, 2&4
Input (230V):
Input 1 & 4
Connect 2&3
Output:
5 & 8
RoHS Compliance:
All standard products meets the requirements of 2011/65/EU,
known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
1
Fuse must be used on
secondary
as conditions of acceptability for UL Class2/3 operation.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: July 8, 2016
