Datasheet> All Categories > The connector> 1460182

Preview

1460182: DescriptionCONN HOOD SIDE ENTRY SZB16 M25; CategoryThe connector; File Size49KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1460182 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1460182	-	-	View	Buy Now

1460182 Overview

CONN HOOD SIDE ENTRY SZB16 M25

1460182 Parametric

Parameter Name	Attribute value
Connector type	protecting mask
style	Side insertion
size	B16
lock position	Cover lock clip (2)
Thread size	M25
size/dimensions	3.681" long x 1.693" wide x 2.992" high (93.50mm x 43.00mm x 76.00mm)
Shell color	grey
characteristic	-
Intrusion protection	IP65 - dust and water resistant
Shell material	Aluminum, casting
Shell surface	powder coating
Operating temperature	-40°C ~ 125°C

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1460182

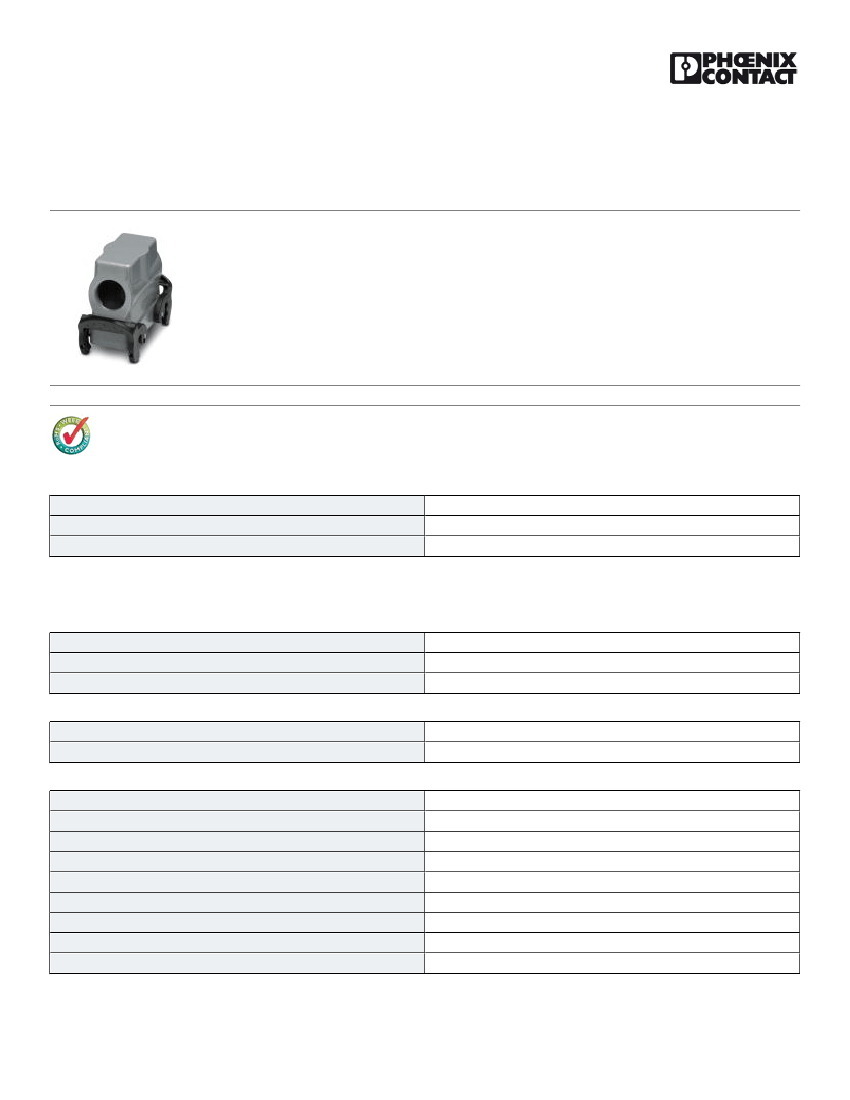

Housing - HC-B 16-TMQ-H-O1STM25S - 1460182

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://download.phoenixcontact.com)

HEAVYCON B16 sleeve housing, with double locking latch, height: 72 mm, with 1 x M25 thread, lateral cable

outlet

Key commercial data

Packing unit

Custom tariff number

Country of origin

1 pc

85389099

Germany

Technical data

Dimensions

Height

Width

Length

76 mm

43 mm

93.5 mm

Ambient conditions

Degree of protection of housing (IP)

Ambient temperature (operation)

IP65

-40 °C ... 125 °C

General

Note

Design

Housing type

Locking type

No. of cable exits

Cable exit

Screw connection

Type of the screw connection

Housing material

For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K

B16

Sleeve housings

With double locking latch

1

Lateral

None

1x M25

Aluminum die-cast

1/29/14 Page 1 / 3
