MPLAD18KP7.0A –
MPLAD18KP200CA
Available
Surface Mount 18,000 Watt Transient Voltage Suppressor
DESCRIPTION
High-Reliability
screening available in
reference to
MIL-PRF-19500
Tested in
accordance with the
These high power 18 kW rated transient voltage suppressors in a surface mount package are
requirements of
provided with design features to minimize thermal resistance and cumulative heating.
Typical
AEC-Q101
applications include lightning and automotive load dump protection.
They are particularly effective
at meeting the multi-stroke lightning standard RTCA DO-160, section 22 for aircraft design.
This efficient low profile package design is offered in standoff voltage selections (V
WM
) of 7
volts to 200 volts in either unidirectional or bidirectional construction.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
Available in both unidirectional and bidirectional construction (bidirectional with CA suffix)
•
High reliability with wafer fabrication and assembly lot traceability
•
All parts surge tested
•
Low profile surface mount package
•
Optional upscreening is available with various screening and conformance inspection options based
on MIL-PRF-19500. Refer to
Hirel Non-Hermetic Product Portfolio
for more details on the screen-
ing options.
•

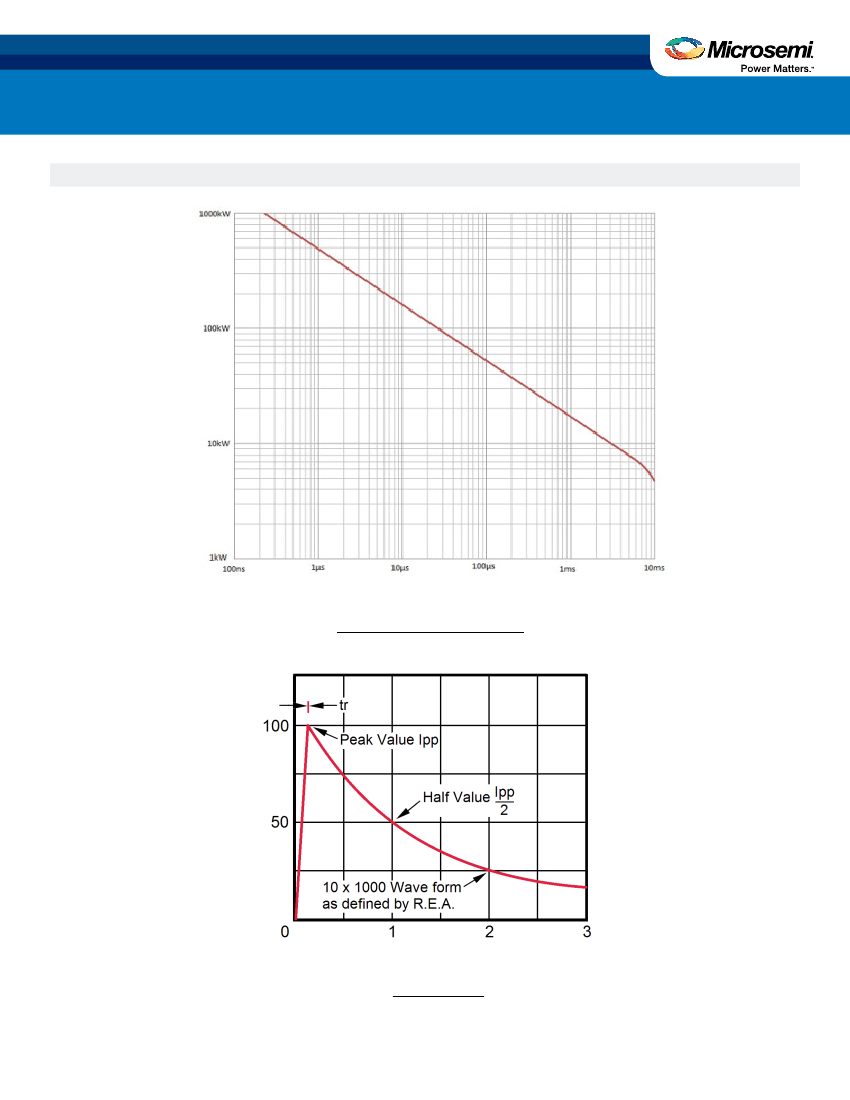

Suppresses transients up to 18,000 W @ 10/1000 μs (see
Figure 1)
•
Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B
•
RoHS compliant versions are available
•
3σ lot norm screening performed on standby current (I
D
)
(The cathode is the metal base
under the body of this device.)

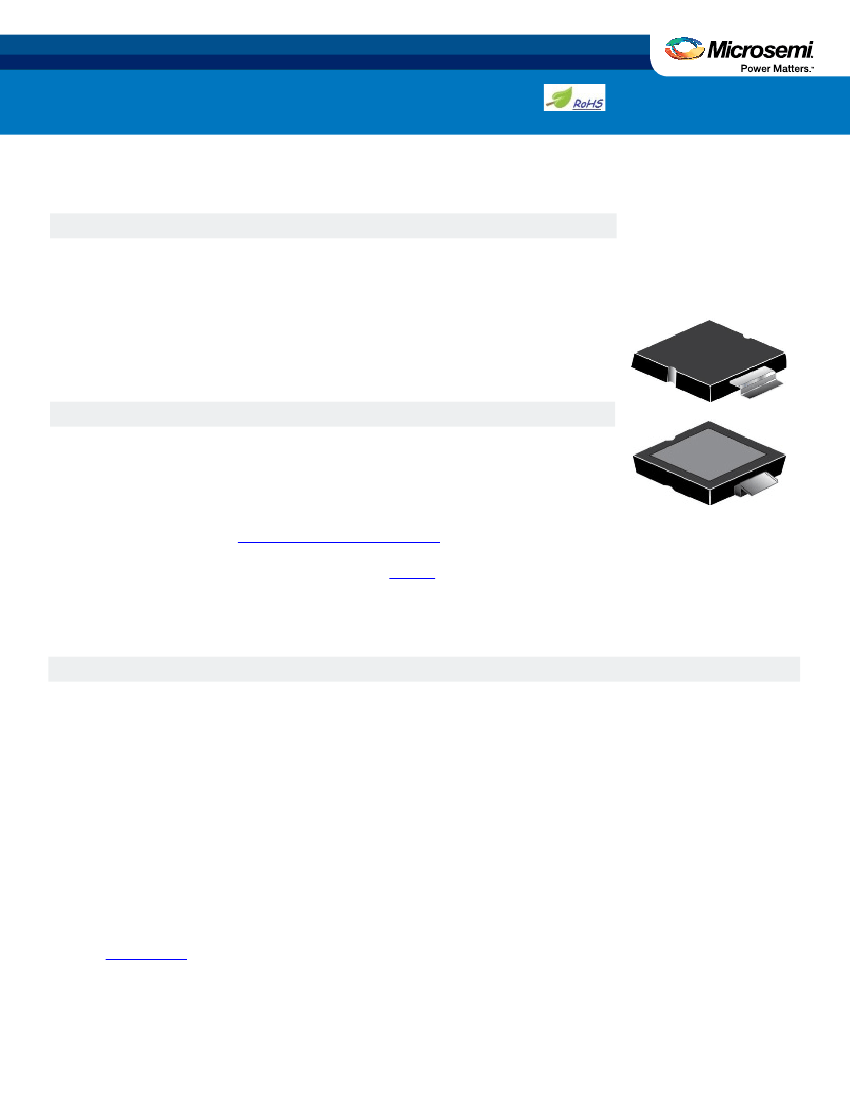

PLAD
APPLICATIONS / BENEFITS
•
Protection from switching transients and induced RFI
•
Protection from ESD, and EFT per IEC 61000-4-2 and IEC 61000-4-4
•
Secondary lightning protection per IEC 61000-4-5 with 42 ohms source impedance:
Class 1,2,3,4,5: MPLAD18KP7.0A to 200CA
•
Secondary lightning protection per IEC 61000-4-5 with 12 ohms source impedance:
Class 1,2,3,4: MPLAD18KP7.0A to 200CA
•
Secondary lightning protection per IEC 61000-4-5 with 2 ohms source impedance:
Class 2,3: MPLAD18KP7.0A to 200CA
Class 4: MPLAD18KP5.0 to 64CA
•
Pin injection protection per RTCA/DO-160F for Waveform 4 (6.4/69 μs at 25 ºC)*:
Level 4: MPLAD18KP7.0A to 200CA
Level 5: MPLAD18KP7.0A to 130CA
•
Pin injection protection per RTCA/DO-160F for Waveform 5A (40/120 μs at 25 ºC)*:
Level 4: MPLAD18KP7.0A to 36CA
*See
MicroNote 132
for further temperature derating selection.
RF01215, Rev B (12/14/16)
1
MPLAD18KP7.0A –
MPLAD18KP200CA
MAXIMUM RATINGS @ 25°C unless otherwise specified
Symbol
T
J
and T
STG
R
θJA
R
θJC
P
PP
Parameters / Test Conditions
Junction and Storage Temperature
Thermal Resistance Junction-to-Ambient
(1)
Thermal Resistance Junction-to-Case
Peak Pulse Power @ 10/1000 μs
(2)
t
clamping
(0 volts to V
(BR min)
V
FS
I
FSM
T
SP
P
D
Notes:
1.
2.
3.
4.
5.
Value
-55 to +150
50
0.7
18,000
Undirectional
Bidirectional
<100
<5
2.0
1500
260
T
A
=25°C
T
C
=100°C
2.5
(1)
71
(1)
Unit
°C/W
W
ps ns
V
A
°C
W
Forward Clamping Voltage @ 500 Amps
(3)
Forward Surge Current
(3)
Solder Temperature @ 10s
Steady-State Power dissipation
(5)
When mounted on FR4 PC board with recommended mounting pad (see
pad layout).
Also see
Figures 1 and 2.
With impulse repetition rate (duty factor) of 0.05% or less.
At 8.3 ms half-sine wave (unidirectional devices only).
Case temperature controlled on heat sink as specified.
See
MicroNote 134
for derating P
PP
when also applying steady-state power.
MECHANICAL and PACKAGING
•
•
•
•
•
•
•
•
CASE: Void-free transfer molded thermosetting epoxy body meeting UL94V-0
TERMINALS: Tin-lead or RoHS compliant annealed matte-tin plating readily solderable per MIL-STD-750, method 2026.
MARKING: Body marked with part number
POLARITY: For unidirectional devices, the cathode is on the metal backside (package bottom)
Available in bulk or custom tape-and-reel packaging
TAPE-AND-REEL: Standard per EIA-481-B (add “TR” suffix to part number). Consult factory for quantities.
WEIGHT: Approximately 1 gram
See
Package Dimensions
on last page.
PART NOMENCLATURE
M PLAD 18K P 7.0 CA (e3)
Reliability Level*
M
MA
MX
MXL
*(see
Hirel Non-Hermetic
Product Portfolio)
Package Designation
P
PP
Rating (W)
RoHS Compliance
e3 = RoHS compliant
Blank = non-RoHS compliant
Polarity
A = Unidirectional CA
= Bidirectional
Reverse Standoff Voltage
Plastic
RF01215, Rev B (12/14/16)
2
MPLAD18KP7.0A –
MPLAD18KP200CA
SYMBOLS & DEFINITIONS
Symbol
I
(BR)
I
D
I
PP
V
(BR)
V
C
V
WM
α
V(BR)
Definition
Breakdown Current: The current used for measuring breakdown voltage V
(BR)
.
Standby Current: The current at the rated standoff voltage V
WM
.
Peak Impulse Current: The peak current during the impulse.
Breakdown Voltage: The minimum voltage the device will exhibit at a specified current.
Clamping Voltage: Clamping voltage at I
PP
(peak pulse current) at the specified pulse conditions (typically shown as maximum value).
Related Working Standoff Voltage: The maximum peak voltage that can be applied over the operating temperature range.
Temperature Coefficient of Breakdown Voltage: The change in breakdown voltage divided by change temperature.
RF01215, Rev B (12/14/16)
3
