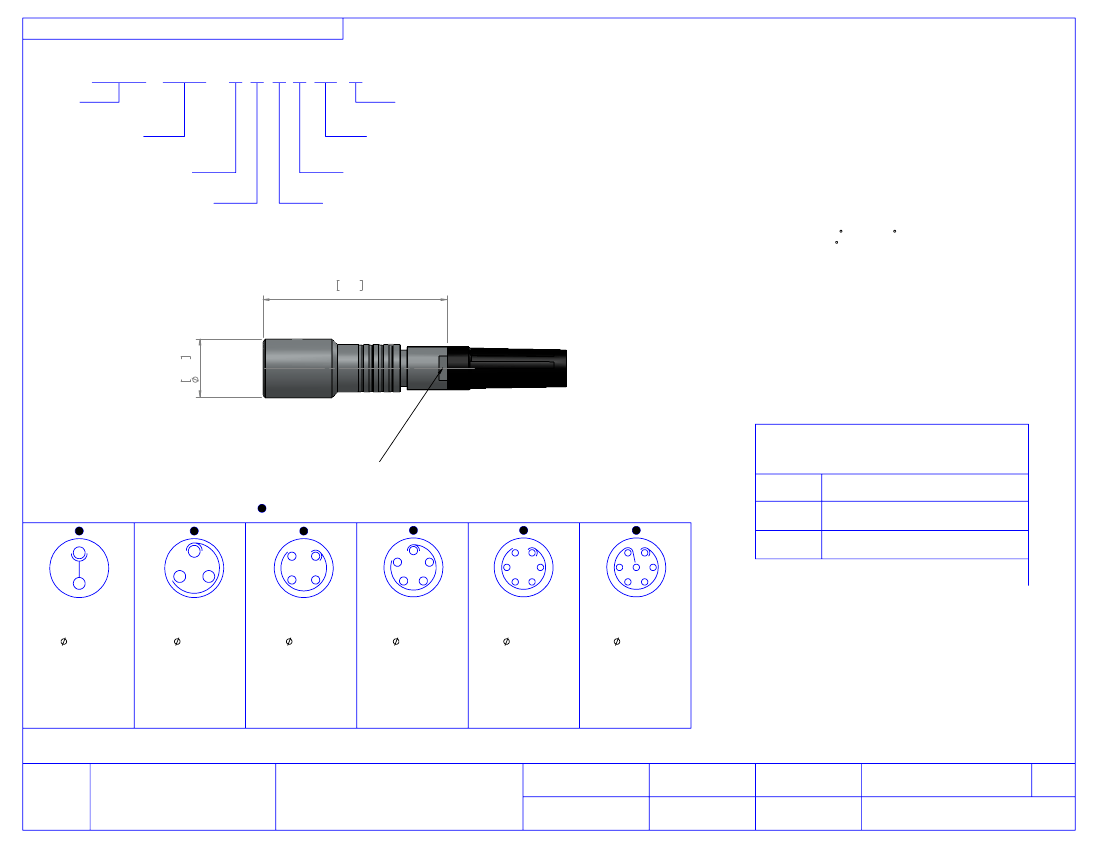

DESCRIPTION: QUIK-LOQ - FEMALE - CABLE MOUNT - IP67
UNITS = MM [INCHES]
821K YYY - 2 7 3 L YY 1
SERIES
13.00 [0.512]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
CABLE MOUNT
1 = GOLD FLASH
COLLET SIZE
**SEE CHART B**
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
CHARACTERISSTICS
MATERIALS
HOUSING : BRASS
HOUSING PLATING : 196µ" NICKEL MIN.
SHELL & COLLET NUT: BRASS, 196µ" CHROME PLATED MIN.
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
STRAIN RELIEF(BOOT) : THERMOPLASTIC POLYURETHANE
O-RING: SILICONE
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TOURQUE VALUE : 0.8 Nm [7.0 IN/LBS]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 67
1.772
45.00
0.591
15.00
CHART B
9.00 [0.354]
WIDTH ACROSS FLATS
COLLET
SIZE
40
**VIEW FROM TERMINATION END**
1
1
1
WIRE DIAMETER
3.30 [0.130] ~ 4.20 [0.165]
4.30 [0.169] ~ 5.20 [0.205]
5.30 [0.209] ~ 6.20 [0.244]
CHART A
1
1
= KEY LOCATION
1
50
60
2 POSITION
20 AWG MAX.
15 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1500V
WORKING VOLTAGE
= 500V
3 POSITION
20 AWG MAX.
12 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
4 POSITION
22 AWG MAX.
10 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
5 POSITION
22 AWG MAX.
9 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 415V
6 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 1050V
WORKING VOLTAGE
= 350V
7 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
M. SIGMON
DATE:
02-19-16
SCALE:
N.T.S.
SHEET
1
OF
1
REV:
5
CHECKED:
DATE:
DWG NO.
821KYYY-273LYY1
