ATDH40D160

Description
EMULATOR KIT ADAPTER 160QFP
CategoryDevelopment board/suite/development tools
File Size473KB,13 Pages
ManufacturerMicrochip
Websitehttps://www.microchip.com
Download Datasheet Parametric Compare View All

ATDH40D160 Online Shopping

Suppliers Part Number Price MOQ In stock
ATDH40D160 - - View Buy Now

ATDH40D160 Overview

EMULATOR KIT ADAPTER 160QFP

ATDH40D160 Parametric

Parameter NameAttribute value
Module/board typeAdapterPQFP
Supporting products/related productsATDH40M
Features
Hardware
– Supports Programming for Atmel AT40K/AT40KAL and AT94KALSeries of
SRAM-based Programmable System Level Integration (PSLI) Devices
– Supports ISP (In-System Programming) for Atmel AT17 Series Configuration
EEPROMs
– Built-in Clock Source with GCLK/FCLK Jumper Settings
– Supports Modular Docking Platform for the ATDH40D FPGA Daughter Boards
– Runs Off Portable 9V DC Power Supply or External Power
– Supports 5.0V or 3.3V Supply
– Designed to Work with Atmel IDS 5.0 or Above
– Downloading for AT40K/AT17 Devices Direct from PC Parallel Port
– Can be Used to Support FPSLIC
System Contents
– ATDH2081
25-pin Parallel to 10-pin Header Adapter
– ATDH40Dxxx
Package-specific Daughterboard (Variable)
– ATDH40M
Programming Motherboard
– Standard Parallel Cable (PC Parallel Port DB25), 10-pin Header Cable,
9V DC/200 mA, 2.1 mm Center Positive Power Supply
Programmable
System Level
Integration
Prototyping
System
ATDH40M
ATDH40DXXX
Description

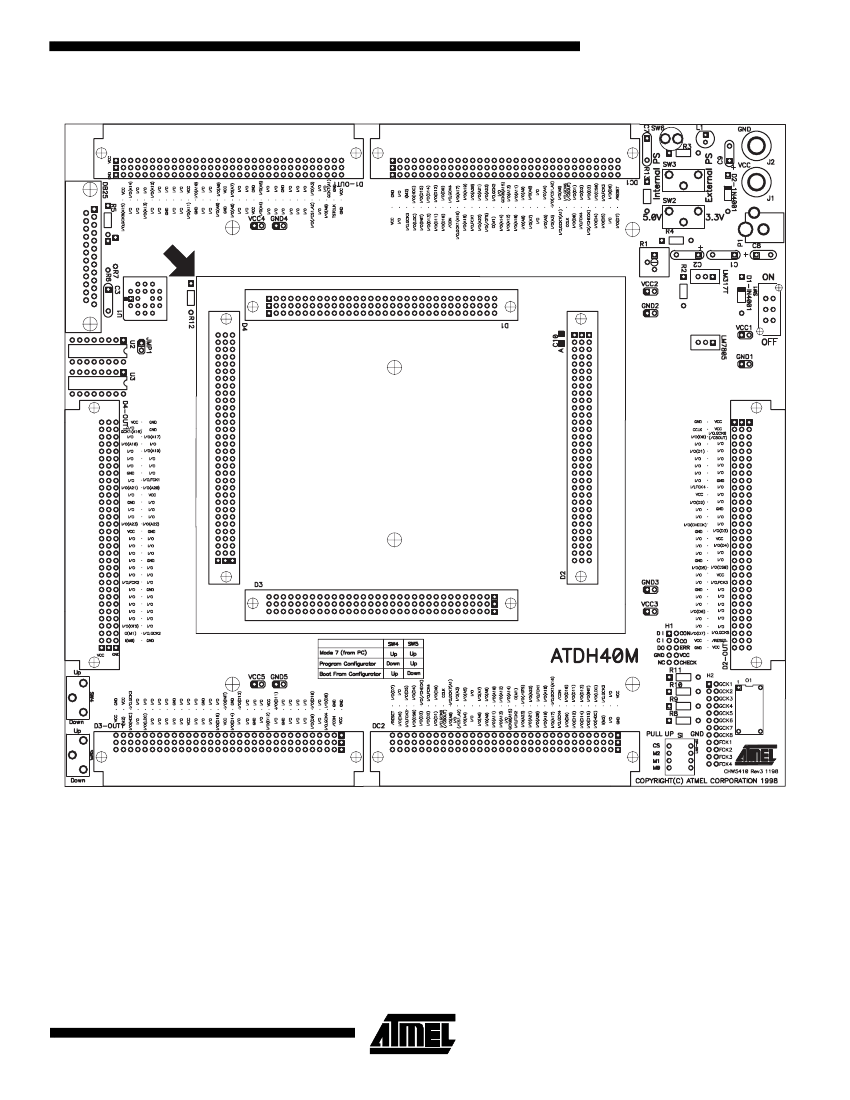

The Atmel ATDH40M prototyping system allows designers to quickly and economi-
cally evaluate Atmel’s family of AT40K/AT40KAL FPGA and AT94K Field
Programmable System Level Integrated Circuit (FPSLIC
) devices and Atmel’s AT17
FPGA configuration memory devices. The ATDH40M board connects to any x86 PC
via parallel port through a 10-pin header cable to program the AT40K/AT40KAL
FPGA/AT94K FPSLIC, or through a parallel port cable to program the AT17 FPGA
Configuration EEPROMs. The motherboard interfaces with various daughter boards
in order to program different package footprints (see Table 1).
Table 1.
Daughter Board Support List
Part Number

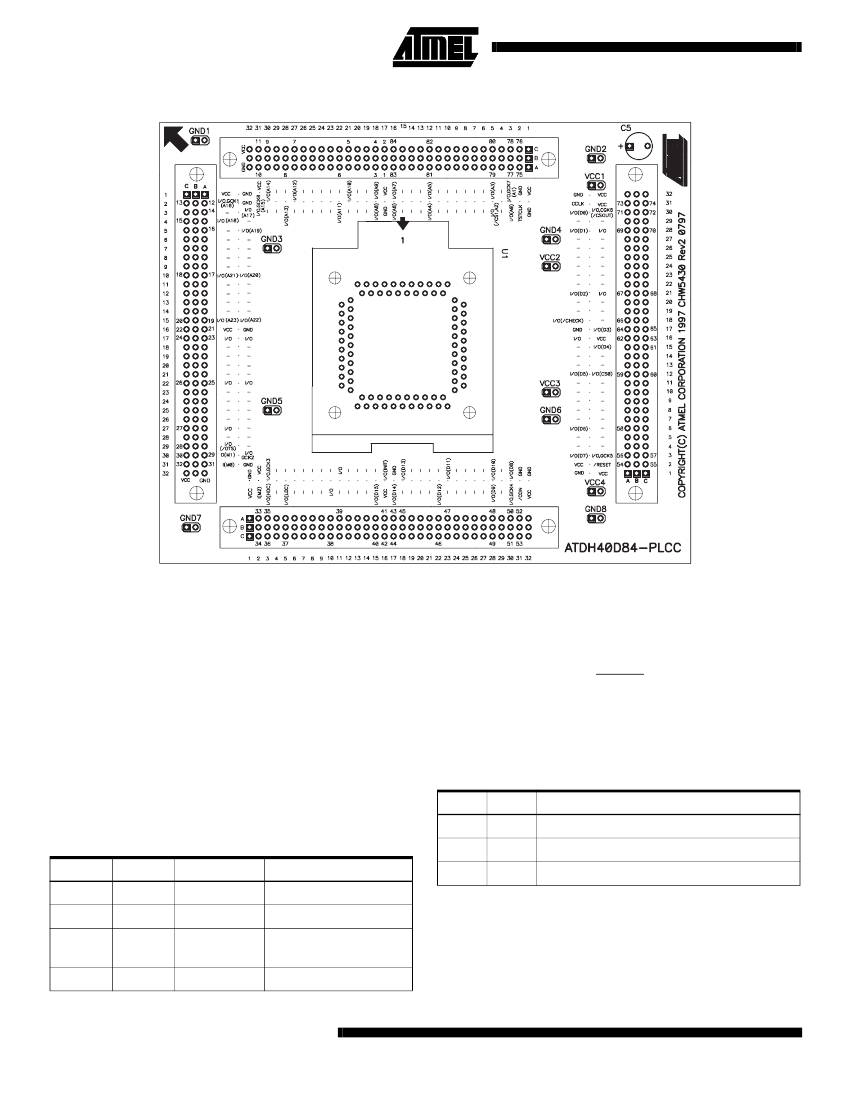

ATDH40D84
ATDH40D100
ATDH40D100R
ATDH40D144
ATDH40D160
ATDH40D208
ATDH40D240
Description
84-pin Plastic Lead Chip Carrier
100-pin Very Thin Quad Flat Pack
100-pin Rectangular Quad Flat Pack
144-pin Thin Quad Flat Pack
160-pin Plastic Quad Flat Pack
208-pin Plastic Quad Flat Pack
240-pin Plastic Quad Flat Pack
Rev. 1402B–06/01
1

ATDH40D160 Related Products

ATDH40D160
Description EMULATOR KIT ADAPTER 160QFP
Module/board type AdapterPQFP
Supporting products/related products ATDH40M
