QTLP2822 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> QTLP2822

QTLP2822: DescriptionLED RED CLEAR AXIAL T/H AXIAL; CategoryLED optoelectronic/LED; File Size350KB，5 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

QTLP2822 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	QTLP2822	-	-	View	Buy Now

QTLP2822 Overview

LED RED CLEAR AXIAL T/H AXIAL

QTLP2822 Parametric

Parameter Name	Attribute value
color	red
Lens color	-
Lens transparency	transparent
millicandela level	5.6mcd
Lens style/size	Rectangular, with flat top, 2.50mm x 2.00mm
Voltage - Forward (Vf) (Typical)	2V
Current - Test	20mA
perspective	150°
Installation type	Through hole, axial
Wavelength - Main	-
Wavelength - Peak	640nm
characteristic	-
Package/casing	Axial, flat leads
Supplier device packaging	Axial
size/dimensions	2.50mm length x 2.00mm width
Height (maximum value)	1.50mm

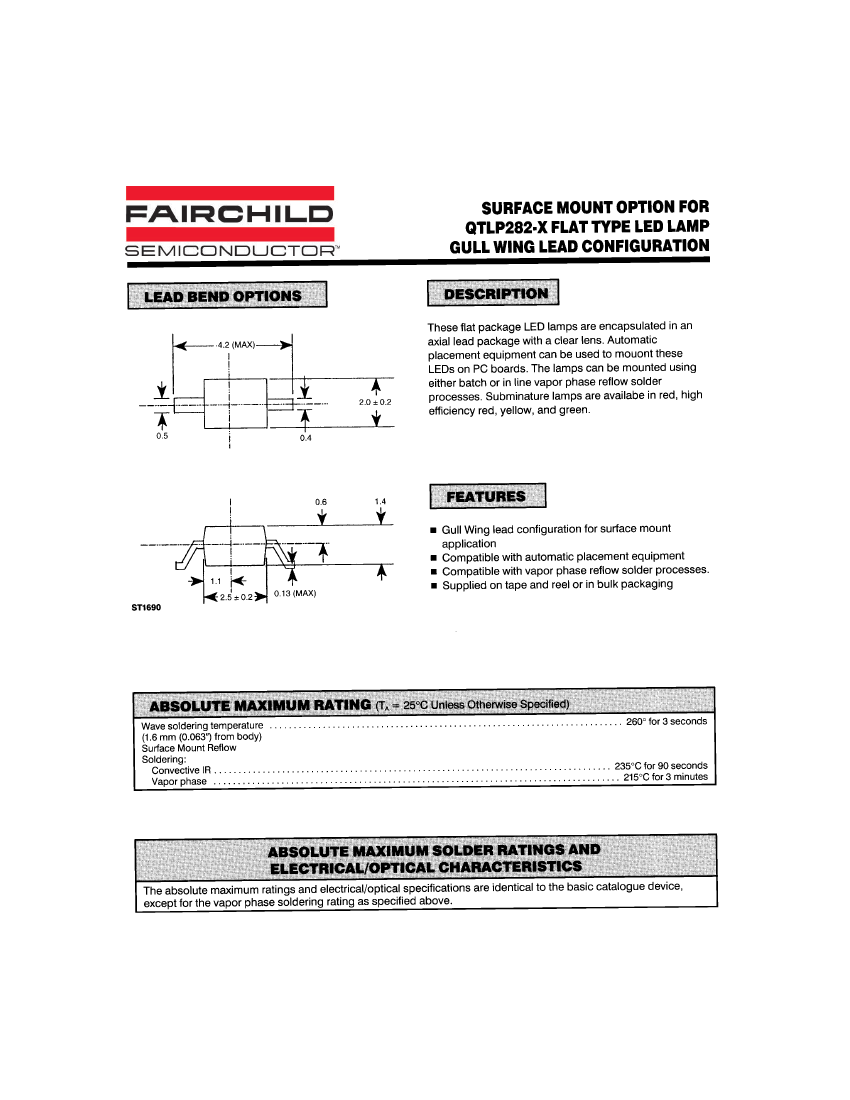

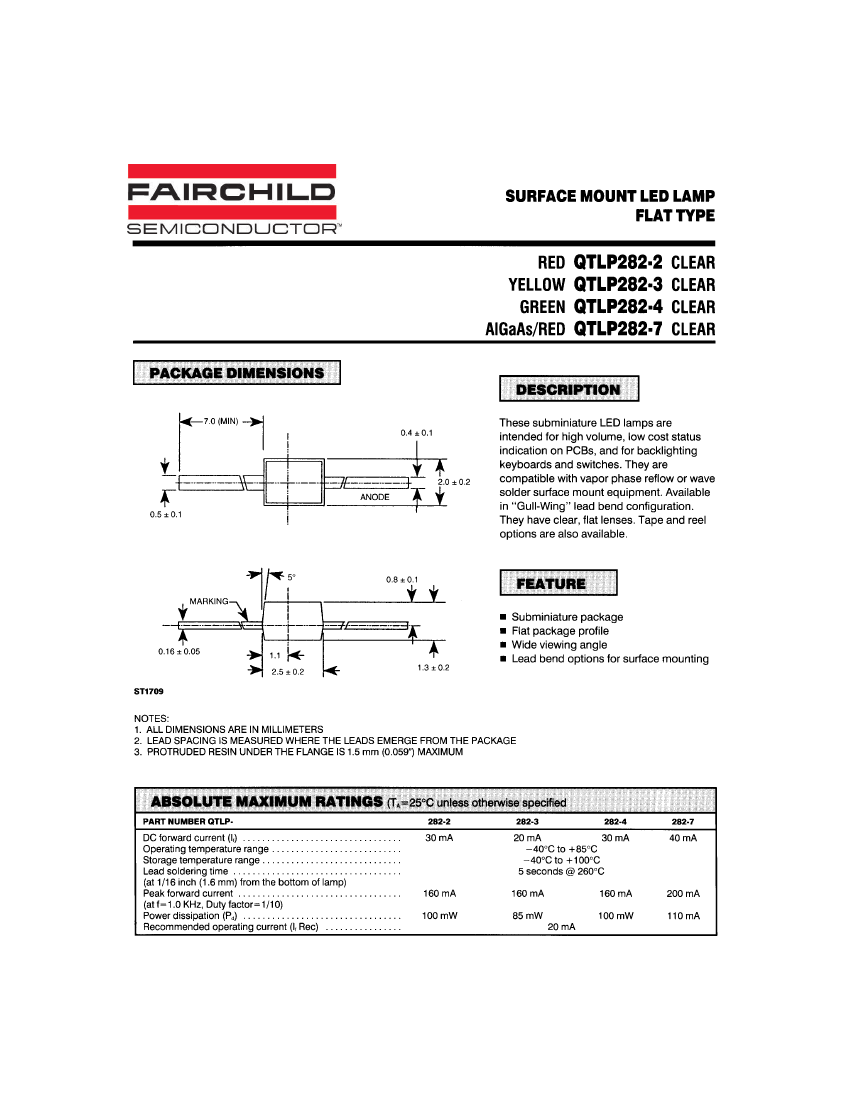

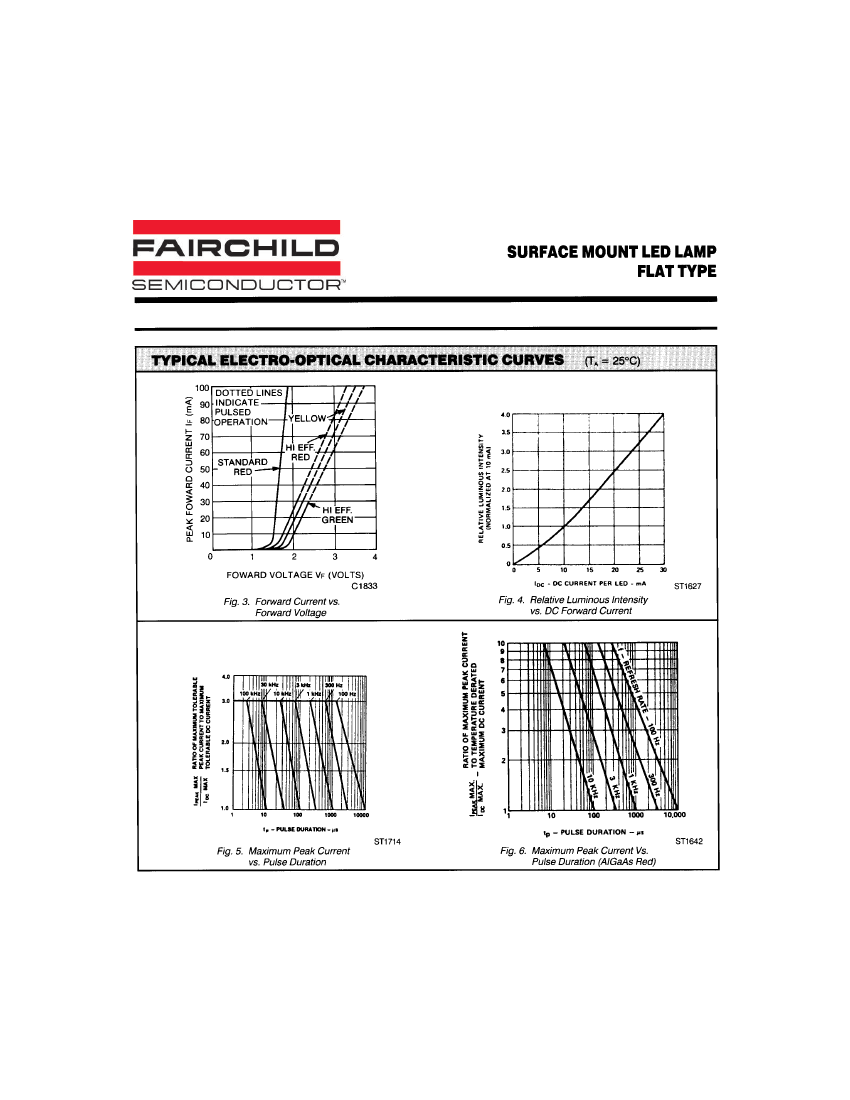

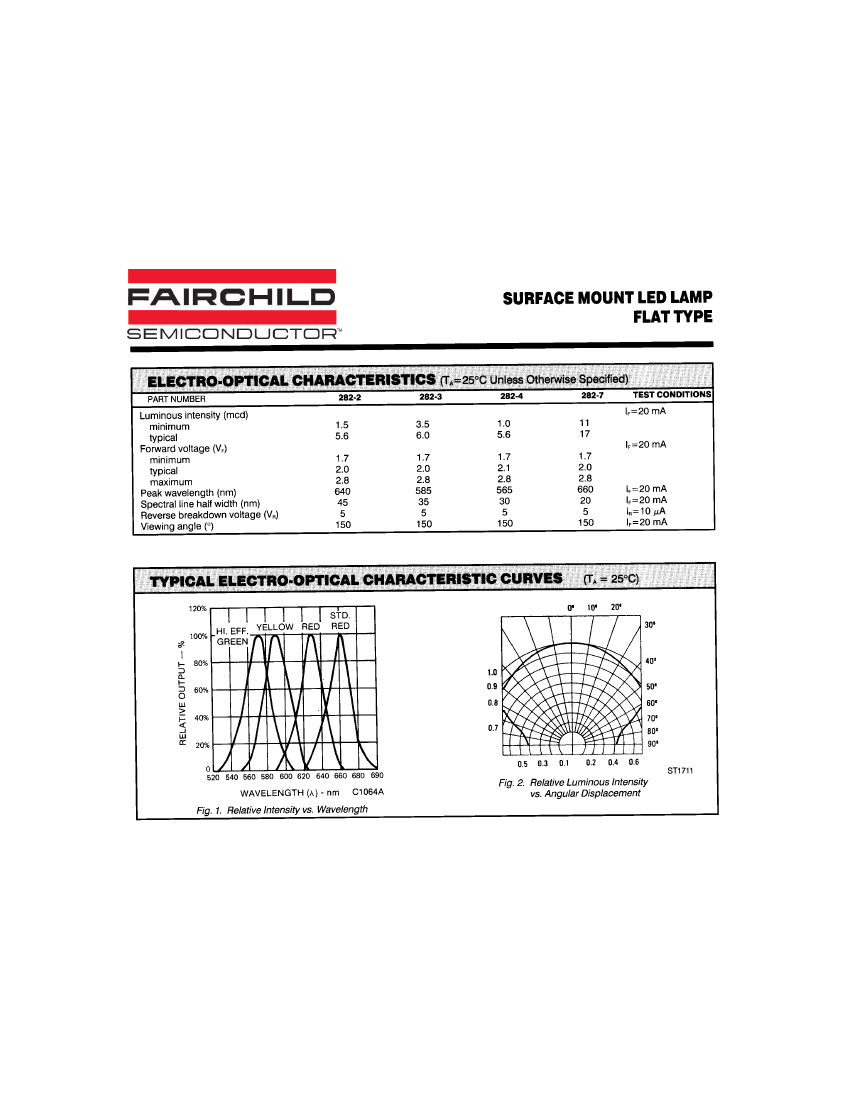

Preview

Download Datasheet

View All

QTLP2822 Related Products

	QTLP2822	QTLP2822GR	QTLP2823	QTLP2823GR	QTLP2824	QTLP2824GR	QTLP2827	QTLP2827GR
Description	LED RED CLEAR AXIAL T/H AXIAL	LED RED CLEAR GULL WING SMD	LED YELLOW CLEAR AXIAL T/H AXIAL	LED YELLOW CLEAR SMD	LED GREEN CLEAR AXIAL T/H AXIAL	LED GREEN CLEAR SMD	LED RED CLEAR AXIAL T/H AXIAL	LED RED CLEAR SMD
color	red	red	yellow	yellow	green	green	red	red
Lens transparency	transparent	transparent	transparent	transparent	transparent	transparent	transparent	transparent
millicandela level	5.6mcd	5.6mcd	6mcd	6mcd	5.6mcd	5.6mcd	17mcd	17mcd
Lens style/size	Rectangular, with flat top, 2.50mm x 2.00mm	Rectangular, with flat top, 2.50mm x 2.00mm	Rectangular, with flat top, 2.50mm x 2.00mm	Rectangular, with flat top, 2.50mm x 2.00mm	Rectangular, with flat top, 2.50mm x 2.00mm	Rectangular, with flat top, 2.50mm x 2.00mm	Rectangular, with flat top, 2.50mm x 2.00mm	Rectangular, with flat top, 2.50mm x 2.00mm
Voltage - Forward (Vf) (Typical)	2V	2V	2V	2V	2.1V	2.1V	2V	2V
Current - Test	20mA	20mA	20mA	20mA	20mA	20mA	20mA	20mA
perspective	150°	150°	150°	150°	150°	150°	150°	150°
Installation type	Through hole, axial	surface mount	Through hole, axial	surface mount	Through hole, axial	surface mount	Through hole, axial	surface mount
Wavelength - Peak	640nm	640nm	585nm	585nm	565nm	565nm	660nm	660nm
Package/casing	Axial, flat leads	2-SMD, gull wing	Axial, flat leads	2-SMD, gull wing	Axial, flat leads	2-SMD, gull wing	Axial, flat leads	2-SMD, gull wing
Supplier device packaging	Axial	gullwing	Axial	SMD	Axial	SMD	Axial	SMD
size/dimensions	2.50mm length x 2.00mm width	2.50mm length x 2.00mm width	2.50mm length x 2.00mm width	2.50mm length x 2.00mm width	2.50mm length x 2.00mm width	2.50mm length x 2.00mm width	2.50mm length x 2.00mm width	2.50mm length x 2.00mm width
Height (maximum value)	1.50mm	1.50mm	1.50mm	1.50mm	1.50mm	1.50mm	1.50mm	1.50mm
