T-1 3/4 (5mm)
SOLID STATE LAMPS

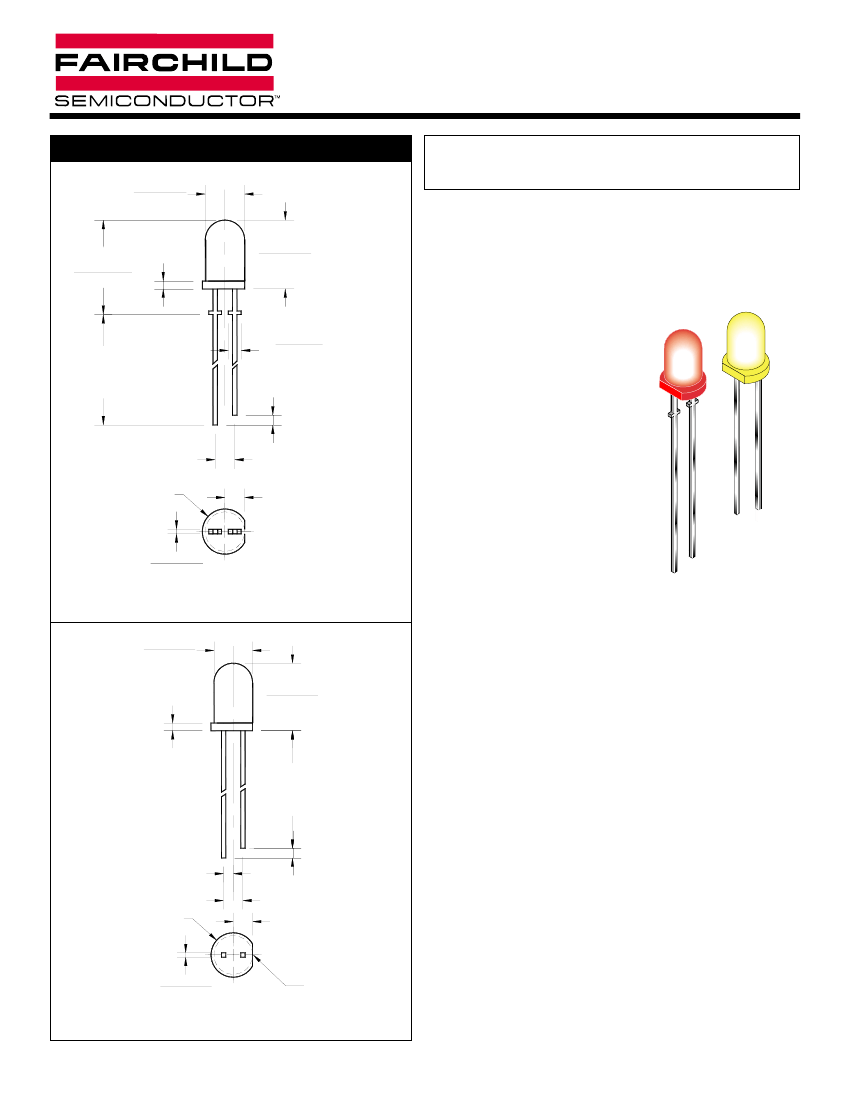

PACKAGE DIMENSIONS
0.200 (5.08)
0.180 (4.57)
C
L
HLMP-3X50A
MV3X50
FEATURES
0.040 (1.02)
0.480 (12.19)
0.460 (11.68)
0.350 (8.89)
0.330 (8.38)
• Pale tint
• Sturdy leads with or without stand-off on T-1 3/4
• Excellent for small area backlighting
• HER
0.850 (21.59)
MIN
0.065 (1.6)
0.055 (1.4)
2X
0.050 (1.27)
HLMP-3750A
MV3750
• Green
HLMP-3950A
MV3450
0.100 (2.54)
• Yellow
HLMP-3850A
0.100 (2.54)
REF.
Ø 0.230 (5.84)
MV3350
0.023 (0.58)
0.017 (0.43)
SQ. TYP. (2X)
HLMP-3X50A
0.200 (5.08)
0.180 (4.57)
C
L
DESCRIPTION
The HLMP-3X50 series consists of tinted and water clear T-1 3/4
LED lamps with standoffs.
The MV3X50 series is the same as Agilent’s HLMP-3X50A series,
except for the standoffs.
Both series are available in red, yellow and green with a minimum
intensity of 80mcd.
0.040 (1.02)
0.350 (8.89)
0.330 (8.38)
1.00 (25.4)
MIN
NOTES:
ALL DIMENSIONS ARE IN INCHES (mm).
0.050 (1.27)
0.100 (2.54)
Ø 0.230 (5.84)
0.050 (1.27)
REF.
0.100 (2.54)
REF.
0.023 (0.58)
0.017 (0.43)
SQ. TYP. (2X)
FLAT DENOTES
CATHODE
MV3X50
2001 Fairchild Semiconductor Corporation
DS300006
2/27/01
1 OF 4
www.fairchildsemi.com
T-1 3/4 (5mm)
SOLID STATE LAMPS
ABSOLUTE MAXIMUM RATING
Parameter
Power Dissipation
Peak Forward Current
Continuous DC Forward Current
Lead Soldering Time at 260° C
Operating Temperature
Storage Temperature
(T
A
=25°C)
HER
135
90
30
5
-55 to +100
-55 to +100
YELLOW
85
60
20
5
-55 to +100
-55 to +100
GREEN
135
90
30
5
-50 to +100
-50 to +100
UNITS
mW
mA
mA
sec
°C
°C
ELECTRICAL / OPTICAL CHARACTERISTICS
Parameter
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Peak Wavelength (nm)
Reverse Voltage (V)
Viewing Angle (°)
(T
A
=25°C)
MV3350
HLMP-3850A
80
150
3.0
2.2
585
5
24
MV3450
HLMP-3950A
80
150
I
F
= 20mA
3.0
2.2
565
5
24
I
F
= 20mA
I
R
= 100µA
I
F
= 20mA
Condition
I
F
= 20mA
80
MV3750
HLMP-3750A
150
3.0
2.2
635
5
24
www.fairchildsemi.com
2 OF 4
2/27/01
DS300006
T-1 3/4 (5mm)
SOLID STATE LAMPS

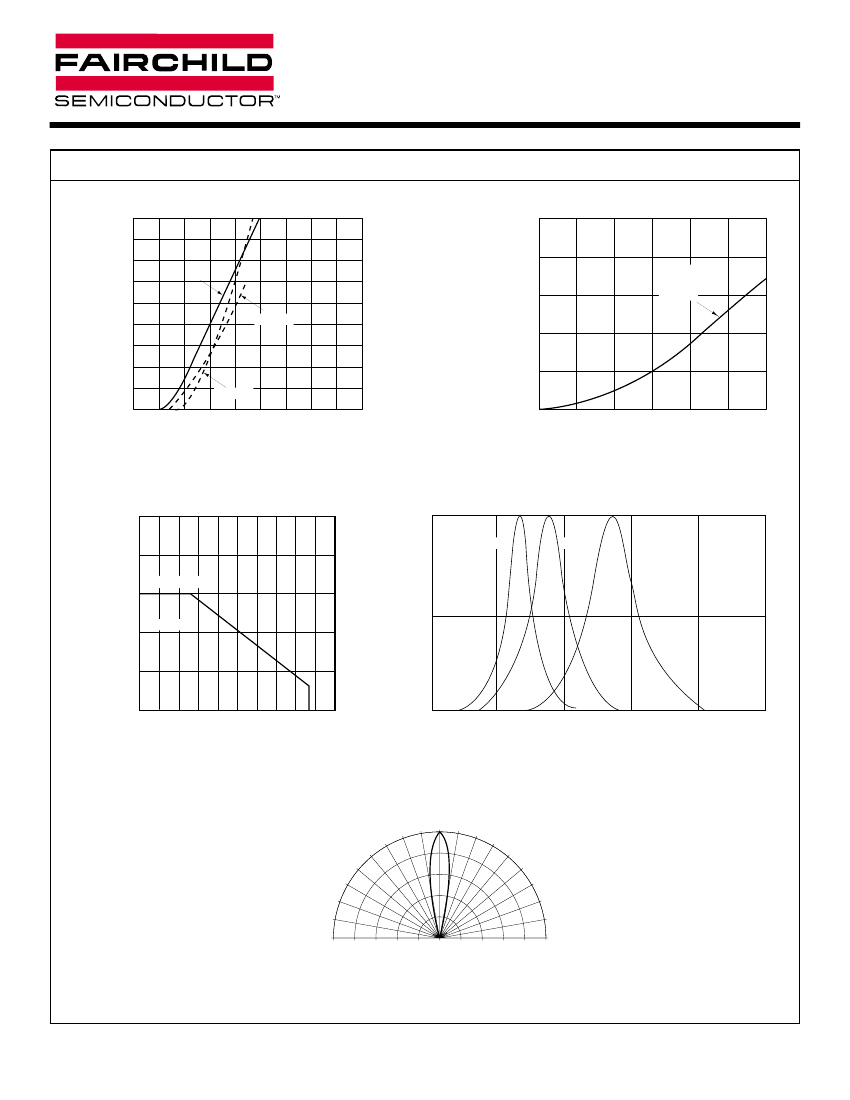

TYPICAL PERFORMANCE CURVES
90
(T
A
=25°C)
2.5
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
80
I
F
- FORWARD CURRENT (mA)
70
60
50
40
30
20
10
GREEN
0
1.0
2.0
3.0
4.0
5.0
YELLOW
HER
2.0
HER
YELLOW
GREEN
1.5
1.0
0.5
0.0
0
5
10
15
20
25
30
V
F
- FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 1 Forward Current vs. Forward Voltage
Fig. 2 Relative Luminous Intensity vs.
DC Forward Current
1.0
50
I
F
- FORWARD CURRENT (mA)
GREEN
40
YELLOW
HER, GREEN
30
RELATIVE INTENSITY
0.5
20
YELLOW
HER
10
0
0
20
40
60
85
100
0
500
550
600
650
700
750
T
A
- AMBIENT TEMPERATURE (˚C)
WAVELENGTH (nm)
Fig. 3 Current Derating Curve
Fig. 4 Relative Intensity vs. Peak Wavelength
-20˚
-30˚
-40˚
-50˚
-60˚
-70˚
-80˚
-90˚
100
80
60
40
-10˚
0˚
10˚
20˚
30˚
40˚
50˚
60˚
70˚
80˚
20
0
20
40
60
80
90˚
100
REL. LUMINOUS INTENSITY (%)
Fig. 5 Radiation Diagram
DS300006
2/27/01
3 OF 4
www.fairchildsemi.com
T-1 3/4 (5mm)
SOLID STATE LAMPS
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE
TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT
DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE
RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical
implant into the body,or (b) support or sustain life,
and (c) whose failure to perform when properly
used in accordance with instructions for use provided
in labeling, can be reasonably expected to result in a
significant injury of the user.
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
www.fairchildsemi.com
4 OF 4
2/27/01
DS300006
