35363-0210 datasheet, PDF - EEWORLD Datasheet

35363-0210: DescriptionCONN HEADER 2POS 2MM R/A TIN; CategoryThe connector; File Size154KB，3 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

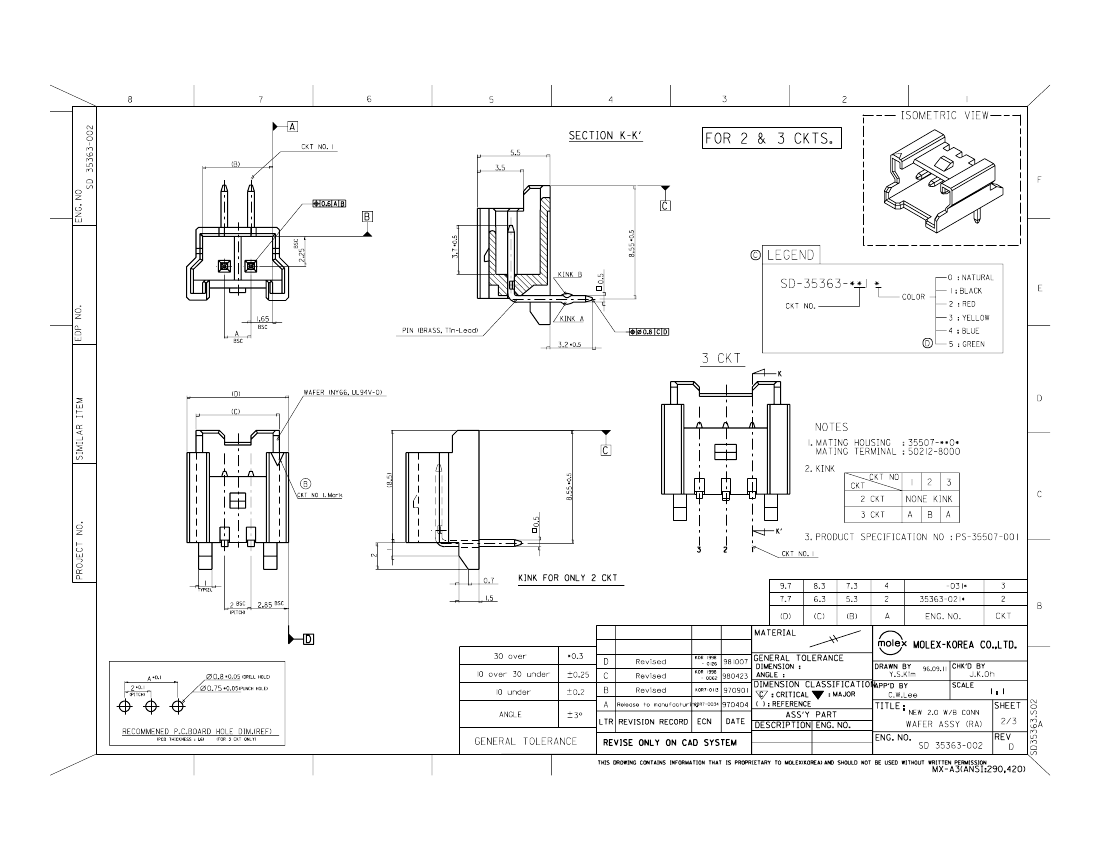

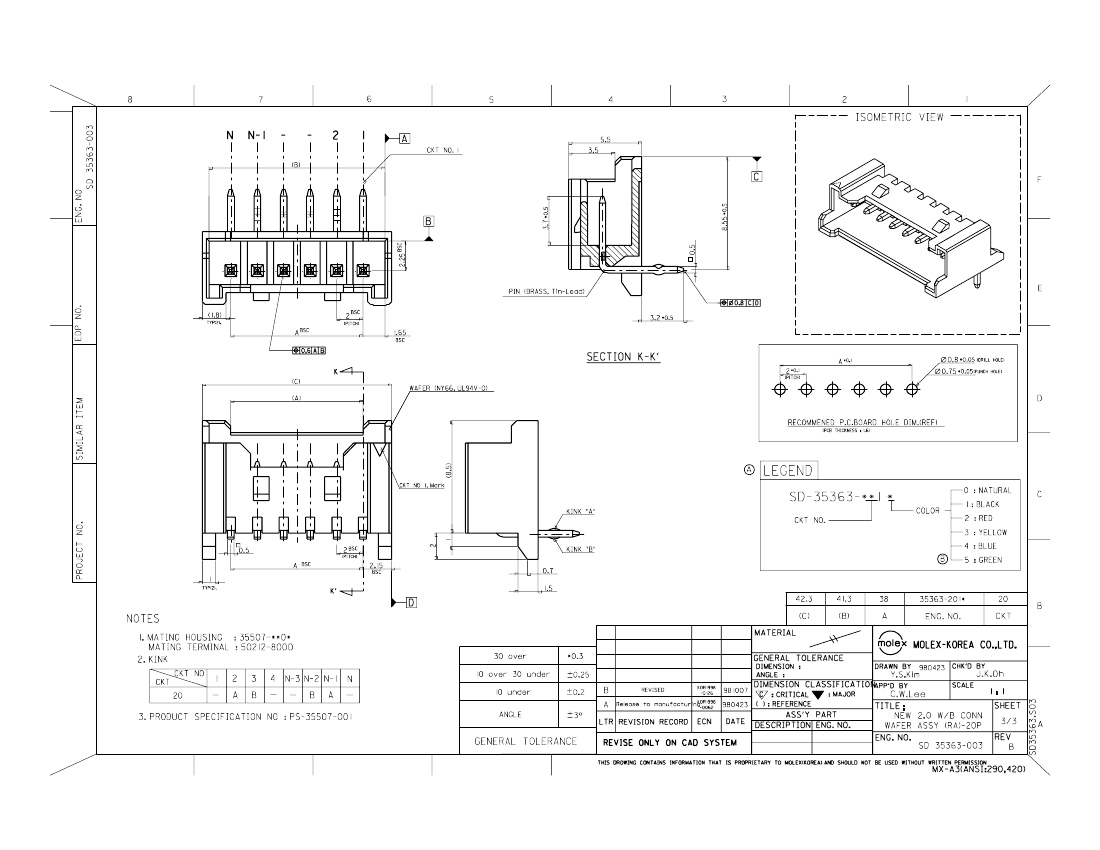

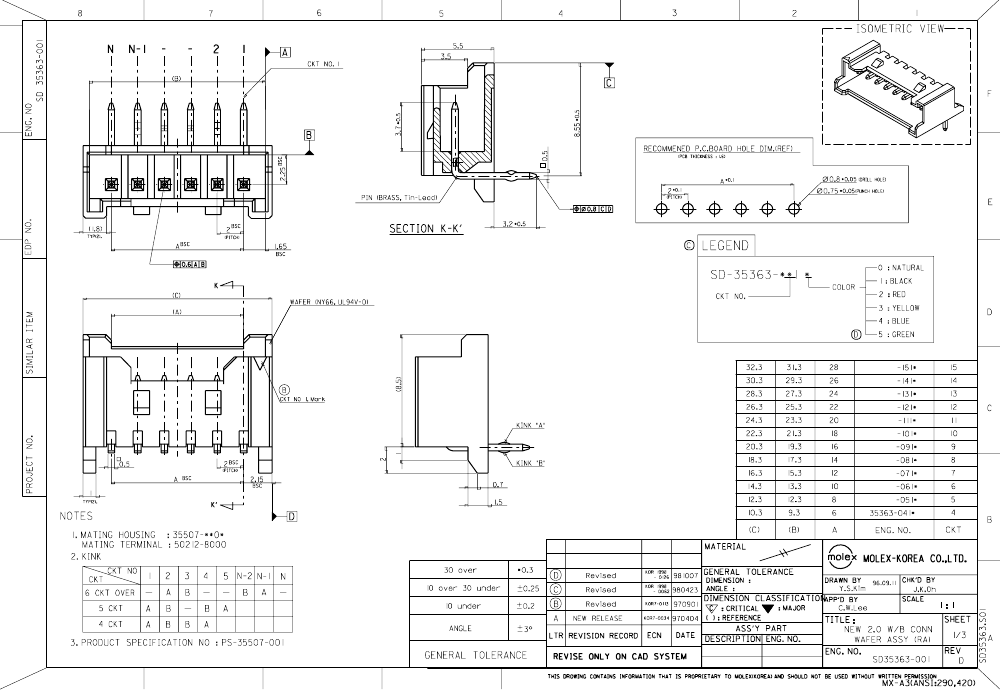

35363-0210 Overview

CONN HEADER 2POS 2MM R/A TIN

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	2
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole, right angle
Termination	welding
Fastening type	Lock pin slide
Contact Length - Mating	0.145"（3.70mm）
Contact length - terminal	0.126"（3.20mm）
Overall contact length	-
Insulation height	0.217"（5.51mm）
Contact shape	Square
Contact surface treatment - mating	Tin - Lead
Contact Surface Treatment Thickness - Mating	78.7µin（2.00µm）
Contact Surface Preparation - Column	-
Contact material	brass
Insulation Materials	Polyamide (PA), nylon
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	natural
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	automobile, general

	35363-0210	35363-0310
Description	CONN HEADER 2POS 2MM R/A TIN	CONN HEADER 3POS 2MM R/A TIN
Connector type	Connector	Connector
Contact type	Male pin	Male pin
Spacing - Mating	0.079"（2.00mm）	0.079"（2.00mm）
Number of pins	2	3
Number of rows	1	1
Number of pins loaded	all	all
style	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls
Installation type	Through hole, right angle	Through hole, right angle
Termination	welding	Kink pins, solder
Fastening type	Lock pin slide	Lock pin slide
Contact Length - Mating	0.145"（3.70mm）	0.145"（3.70mm）
Contact length - terminal	0.126"（3.20mm）	0.126"（3.20mm）
Insulation height	0.217"（5.51mm）	0.217"（5.51mm）
Contact shape	Square	Square
Contact surface treatment - mating	Tin - Lead	Tin - Lead
Contact Surface Treatment Thickness - Mating	78.7µin（2.00µm）	78.7µin（2.00µm）
Contact material	brass	brass
Insulation Materials	Polyamide (PA), nylon	Polyamide (PA), nylon
Material flammability rating	UL94 V-0	UL94 V-0
Insulation color	natural	natural
application	automobile, general	automobile, general
