71109-5006 datasheet, PDF - EEWORLD Datasheet

71109-5006: DescriptionCONN EDGE DUAL FMALE 330POS .030; CategoryThe connector; File Size191KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

71109-5006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	71109-5006	-	-	View	Buy Now

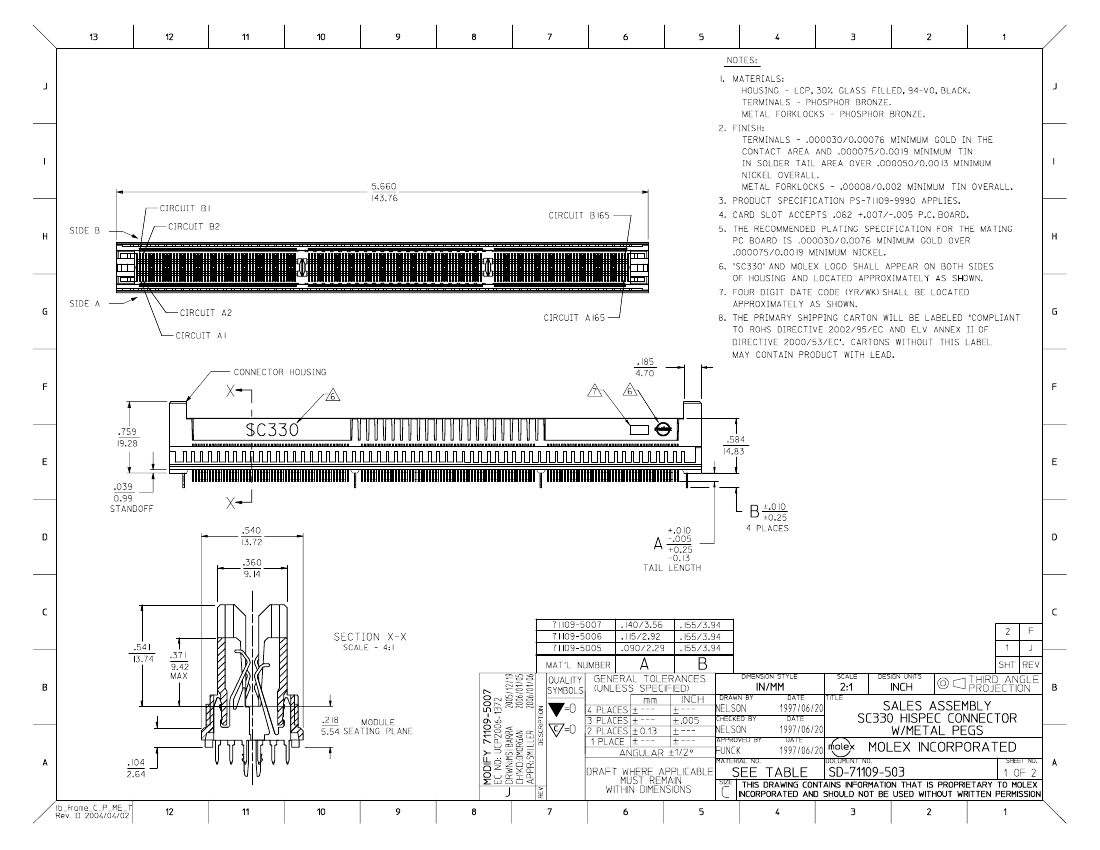

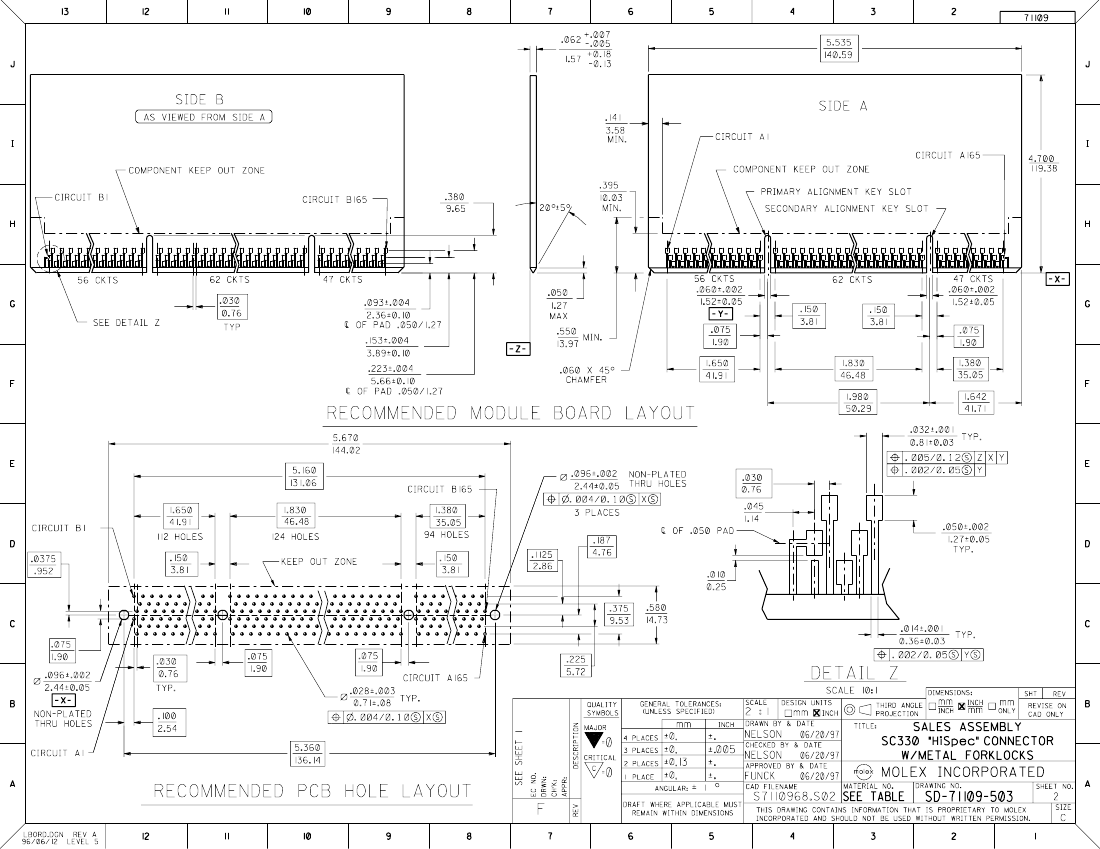

CONN EDGE DUAL FMALE 330POS .030

Parameter Name	Attribute value
card type	Unspecified - Bilateral
gender	female head
Number of positions/plates/rows	56；62；47
Number of pins	330
Card thickness	0.062"（1.57mm）
Number of rows	2
spacing	0.030"（0.76mm）
reading	pair
characteristic	plate lock
Installation type	Through hole
Termination	welding
Contact material	Phosphor bronze
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
Contact type	-
color	black
Flange characteristics	-
Operating temperature	-40°C ~ 85°C
Material - Insulation	Liquid crystal polymer (LCP), glass fiber reinforced

	71109-5006	71109-5005	71109-5007
Description	CONN EDGE DUAL FMALE 330POS .030	CONN EDGE DUAL FMALE 330POS .030	CONN EDGE DUAL FMALE 330POS .030
card type	Unspecified - Bilateral	Unspecified - Bilateral	Unspecified - Bilateral
gender	female head	female head	female head
Number of positions/plates/rows	56；62；47	56；62；47	56；62；47
Number of pins	330	330	330
Card thickness	0.062"（1.57mm）	0.062"（1.57mm）	0.062"（1.57mm）
Number of rows	2	2	2
spacing	0.030"（0.76mm）	0.030"（0.76mm）	0.030"（0.76mm）
reading	pair	pair	pair
characteristic	plate lock	plate lock	plate lock
Installation type	Through hole	Through hole	Through hole
Termination	welding	welding	welding
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	gold	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）
color	black	black	black
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Material - Insulation	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
